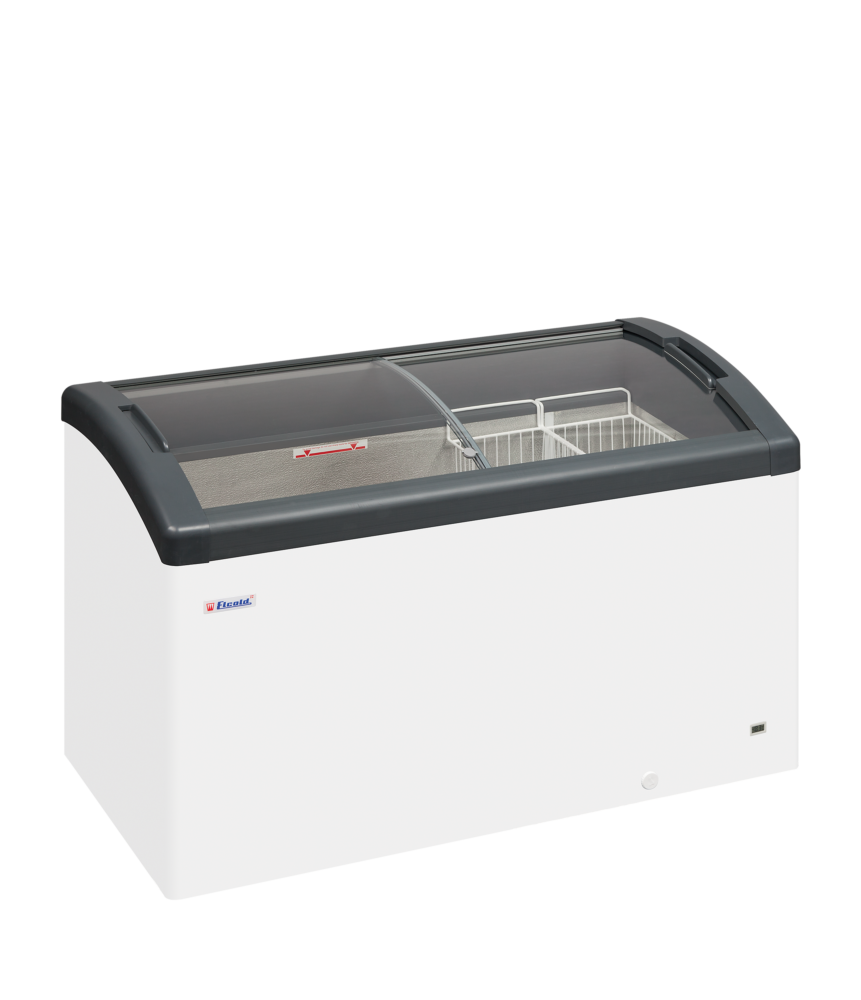

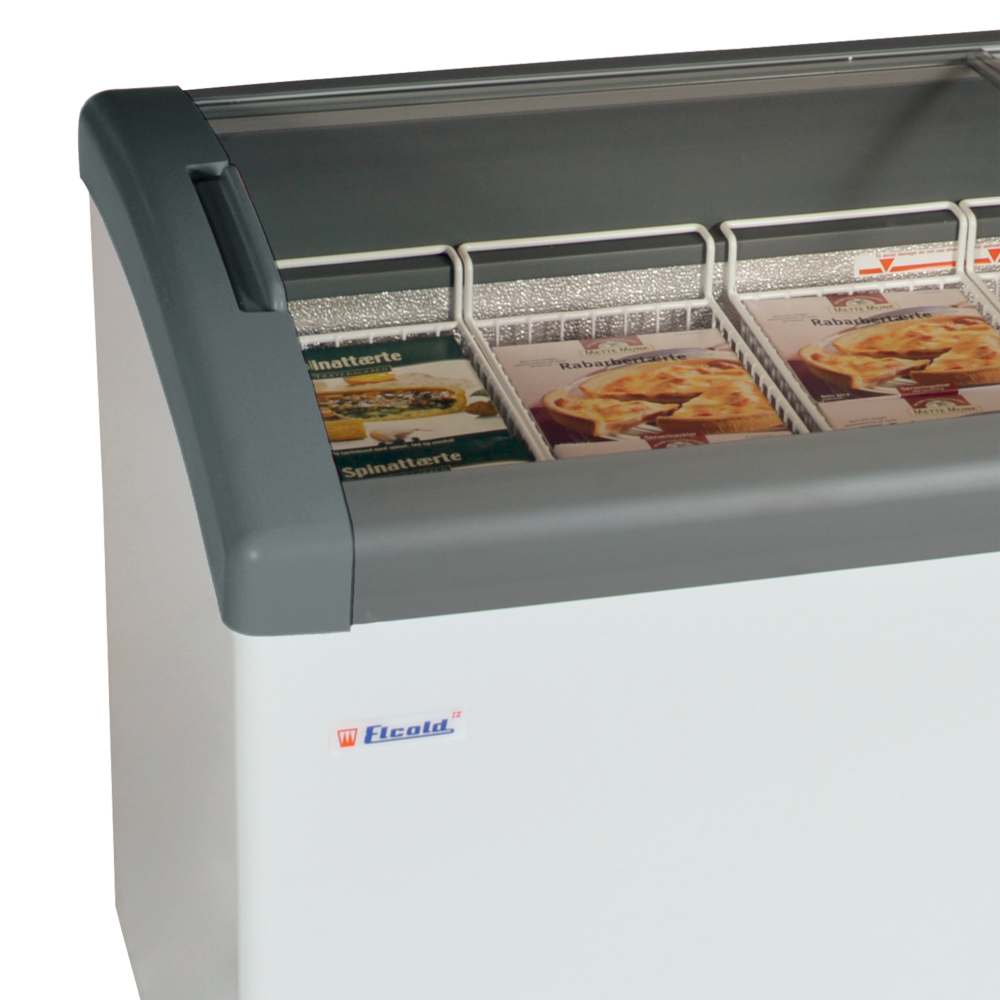

Elcold FOCUS 131 GREY Sliding Curved Glass Lid Chest Freezer

£774.00

+vat

Brand:

SKU: 53302

Energy Arrow

Product summary

  • Defrost drain
  • Static cooling
  • LED interior light with switch
  • Castors
  • Frameless curved sliding lids
  • Fan assisted condenser for energy efficiency
  • Includes full set of baskets

Product description

Sliding Curved Glass Lid Chest Freezer

Elcold’s Focus premium chest freezer is the preferred choice for leading ice cream and frozen food companies. With its sleek design, energy efficiency, and durability, it stands out. The frameless curved sliding lids and internal LED lighting provide an excellent display. Castors come standard, making it easy to move.

The Elcold FOCUS 131 is a sliding curved glass lid chest freezer holding 352 litres gross from -23 to -16 °C on natural R290 refrigerant, rated energy class D at 715.4 kWh a year, in a 1300 × 650 × 850 mm white and grey cabinet on a standard 13 amp supply.

SPECIFICATION 43 facts · tap for all External W × D × H1300 x 650 x 850 mmWidth1300 mmDepth650 mmGross / net weight66 / 62 kgGross weight66 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand Elcoldsite
GTIN / EAN 5708181737290site
Product code 53302site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Display Chest Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 650 mmsite
External (W×D×H) 1300 × 650 × 850 mmcatalogue
External W × D × H 1300 x 650 x 850 mmsite
Gross / net weight 66 / 62 kgsite
Gross weight 66 kgcatalogue
Height 850 mmsite
Internal (W×D×H) 1150 × 500 × 699 mmcatalogue
Internal W × D × H 1150 x 500 x 699 mmsite
Packed (W×D×H) 1350 × 760 × 880 mmcatalogue
Packed W × D × H 1350 x 760 x 880 mmsite
Width 1300 mmsite

Capacity1

Gross volume 352 litrescatalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 80 gsite
Temperature range -23 to -16site
Thermometer Yessite

Power & energy6

Annual energy consumption 716 kWh/yearsite
Energy consumption 1.96 kWh/24hsite
Energy efficiency index 43.5 %site
Input power 142 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Castors Castorssite
Exterior finish White, Greysite
Interior light LEDsite
Lock Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this display chest freezer earns its place

The Elcold FOCUS 131 is a display chest freezer with a sliding curved glass lid, built to show frozen stock while it stays frozen. It holds 352 litres gross (254 litres net) with a hammered-aluminium interior that shrugs off knocks from loading and unloading, and the white and grey exterior sits neatly in a retail aisle or serve area. The curved glass top keeps product visible with the lid closed.

It runs static cooling from -23 to -16 °C, holding ice cream and frozen lines hard, with manual defrost and a mechanical controller set once and left. At 40 dB it is quiet enough for customer-facing floors, and climate class 4 covers typical indoor conditions. Energy class D at 715.4 kWh a year works out at about £179 a year at 25p/kWh.

External dimensions are 1300 × 650 × 850 mm (W×D×H) at 62 kg net, and it uses natural R290 refrigerant with an 80 g charge, drawing 142 W from a standard 13 amp socket on a 220-240 V supply. Internal space measures 1150 × 500 × 699 mm, and packed it ships at 1350 × 760 × 880 mm for delivery access.

BEFORE YOU BUY

Questions, answered straight

It runs from -23 to -16 °C using static cooling and a mechanical controller, holding ice cream and frozen lines hard. Defrost is manual.

It is energy class D, rated at 715.4 kWh a year, which is about £179 a year at 25p/kWh. It draws 142 W and runs at 40 dB.

It measures 1300 × 650 × 850 mm (W×D×H) externally, with an internal space of 1150 × 500 × 699 mm. Packed for delivery it measures 1350 × 760 × 880 mm and weighs 62 kg net.

Gross volume is 352 litres, with 254 litres net usable for frozen stock.

It uses natural R290 refrigerant with an 80 g charge, drawing 142 W from a standard 13 amp socket on a 220-240 V supply.

Yes, Craven Cooling services the refrigeration we supply — call 01792 732702 to arrange a visit. It uses R290 refrigerant with an 80 g charge.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1150 x 500 x 699 mm
External Dimension (WxDxH): 1300 x 650 x 850 mm
Packed Dimension (WxDxH): 1350 x 760 x 880 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 80 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.96 kWh/24h
Temperature Range: -23 to -16 °C
Annual Energy Consumption: 716 kWh/year m³
EEI: 43.5 %
Input Power: 142 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Temperature Range: -23 to -16 °C
Climate Class: 4
Gross / Net Weight: 66 / 62 kg
Gross / Net Volume: 352 / 254 l
Max Ambient: +30°C, 55% RH

Design and Material

Castors: Castors
Exterior Finish: White, Grey
Interior Finish: White, Grey
Interior Light: LED
Lock: No
If you have any questions about the Elcold FOCUS 131 GREY Sliding Curved Glass Lid Chest Freezer then please get in touch.
