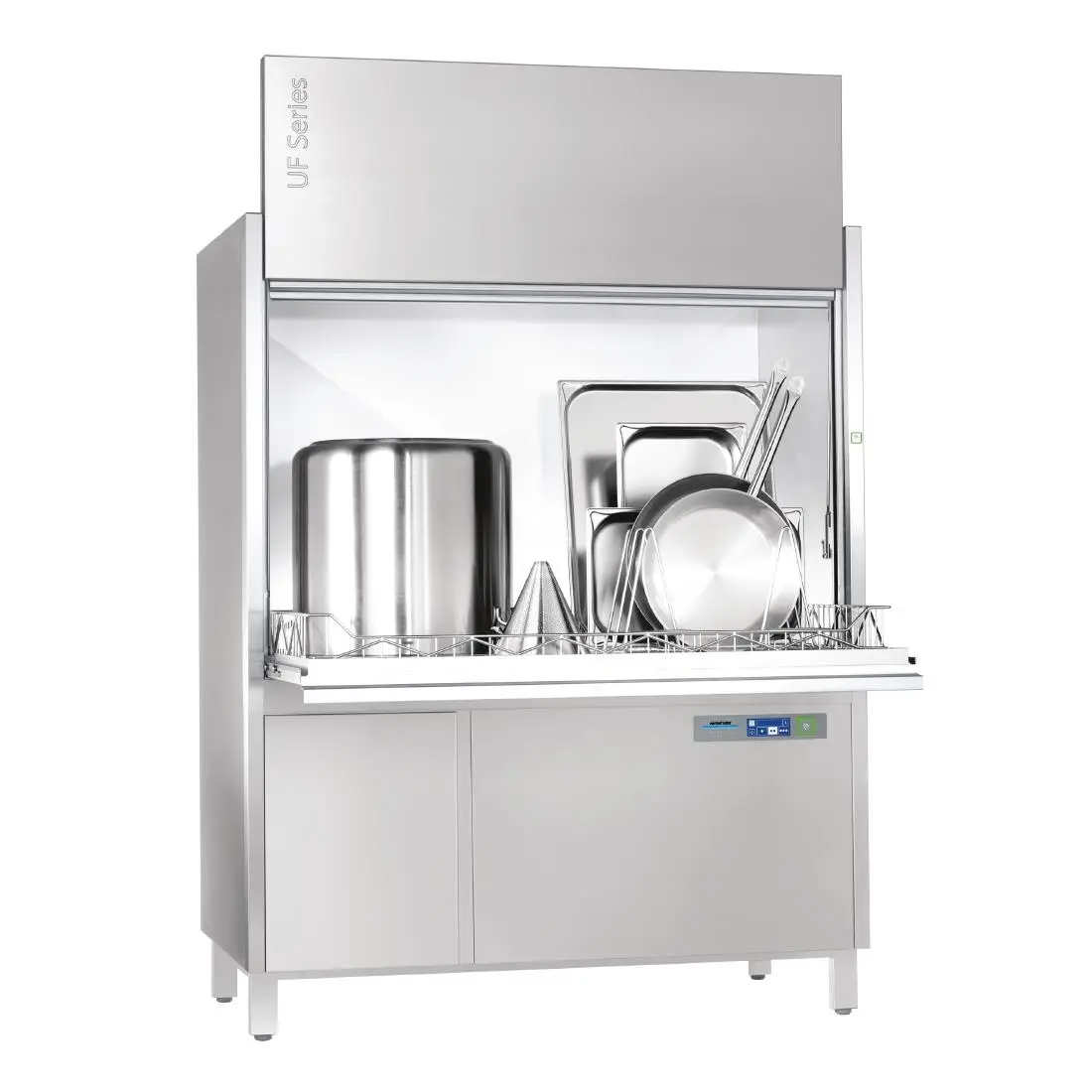

Winterhalter Utensil Washer UF-XL DE677

£23,853.16

+vat

Availability: 999 in stock

- +

Brand:

SKU: DE677

Product summary

Rack Size: 672 X 1305mm. Hot Fill

Product description

Winterhalter double width frontloading utensil washer, 1380mm wide with 830mm entry height for washing large utensils including GN baking sheets. Hot fill

Up to 40 wash cycles an hour on hot fill supply
Reversing top and bottom wash system for total cleaning coverage
Total coverage filter system with filter cassette and cyclonic water filter
Self cleaning programme
Built in drain pump
Wash tank and boiler temperature display
Integrated rinse aid dosing device
Easy access front loading door system
Minimum requirement of 1.5 bar incoming water pressure
830mm entry height for washing large utensils including full size GN baking sheets
Rack Size of 1305 x 672mm
Easy to use colour coded controls – language neutral

The Winterhalter UF-XL DE677 is a double-width, hot-fill frontloading utensil washer for large utensils and GN baking sheets, with an 830mm entry height and up to 40 racks per hour.

Downloads

SPECIFICATION 20 facts · tap for all Width1468 mmDepth870 mmHeight1880 mmGross weight305 kgVoltage415VTemperature range+60 to +85 °C

Identity5

Brand Winterhaltersite
Product code DE677site
Seo name Winterhalter Utensil Washercatalogue
Type Utensil Washerscatalogue
Warranty 3 Years Parts & Labourcatalogue

Size & weight5

Depth 870 mmcatalogue
External (W×D×H) 1880 × 1468 × 870 mmcatalogue
Gross weight 305 kgcatalogue
Height 1880 mmcatalogue
Width 1468 mmsite

Performance1

Temperature range +60 to +85 °Ccatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 9800 Wcatalogue
Voltage 415Vcatalogue

Build & fittings1

Colour Silvercatalogue

Other stated facts5

Basket size 608(W) x 1242(D)mmcatalogue
Drainage Drain Pumpcatalogue
Electrical safety notice Yescatalogue
Output per hour 40 racks/hrcatalogue
Suitable for Utensil Washingcatalogue
THE WORKING VIEW

Why this utensil washer earns its place

The UF-XL DE677 is Winterhalter's double-width frontloading utensil washer, built for large utensils including GN baking sheets. The manufacturer describes it as 1380mm wide with an 830mm entry height, giving a much more practical loading opening than a standard crockery dishwasher when trays, pans and bakery kit are the daily problem.

It is a hot-fill, three-phase machine running on 415V, with the supplier listing a 9.8 W rated input. Output is stated at 40 racks per hour, which is the figure that matters when a kitchen is trying to clear utensil build-up instead of losing labour to sink washing.

The working temperature range is listed as +60 to +85°C, and drainage is handled by a drain pump. The external size is substantial at 1880 x 1468 x 870mm, so this is a planned warewashing-zone installation rather than a casual undercounter swap.

BEFORE YOU BUY

Questions, answered straight

The manufacturer describes the double-width washer as 1380mm wide, with an 830mm entry height.

It is designed for large utensils including GN baking sheets.

Hot fill.

The supplier lists a 415V three-phase electrical connection and a rated input of 9.8 W.

40 racks per hour.

3 years parts and labour.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Winterhalter Utensil Washer UF-XL DE677 Product Data

Brand Winterhalter
Type Utensil Washers
Dimensions 1880(H) x 1468(W) x 870(D)mm
Colour / Finish Silver
Temperature Range 60°C to 85°C
Power Electric
Voltage 415V
Fuel / Supply Three Phase
Suitable For Utensil Washing
Warranty 3 Years Parts & Labour
Weight 305kg
Manufacturer Ref UF-XL
