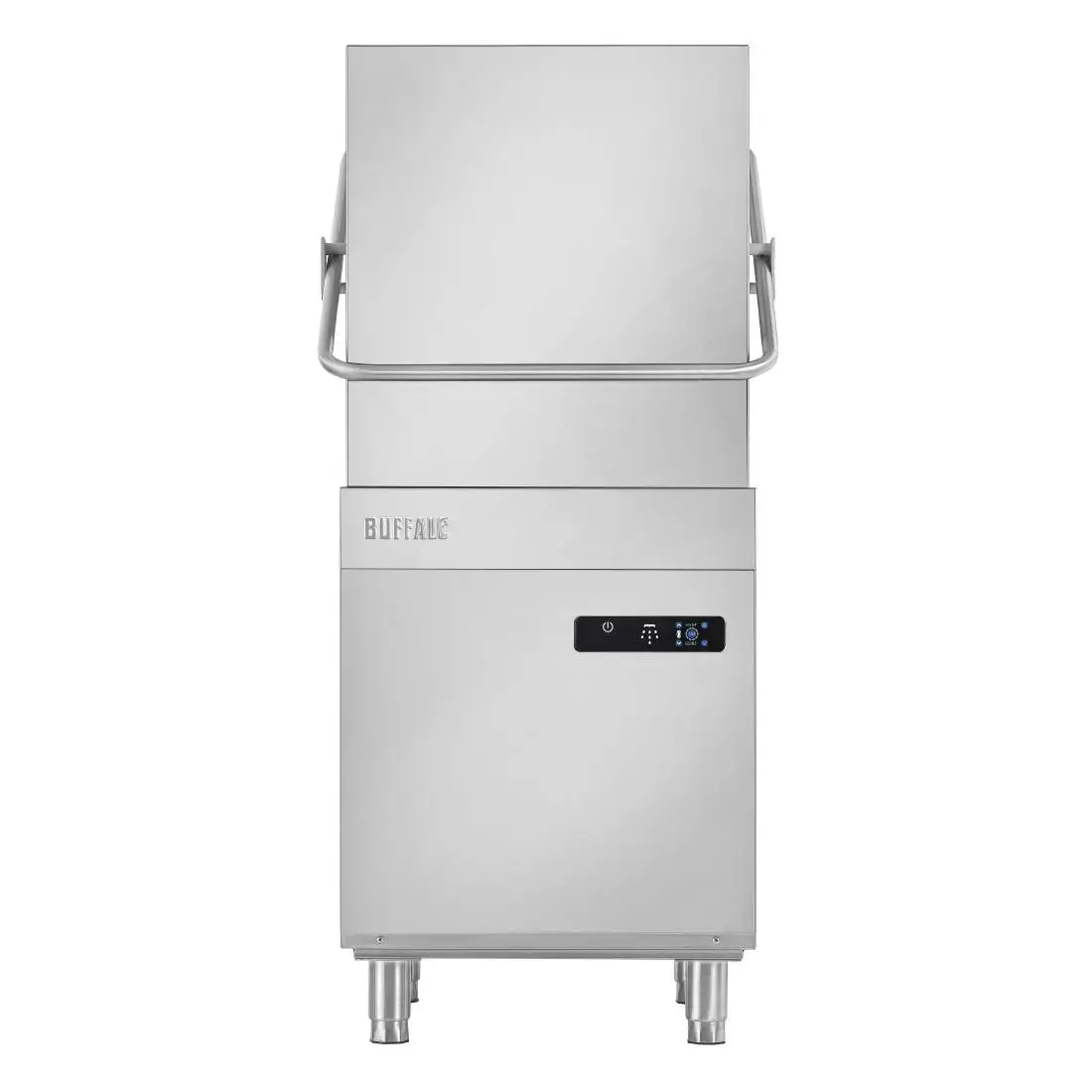

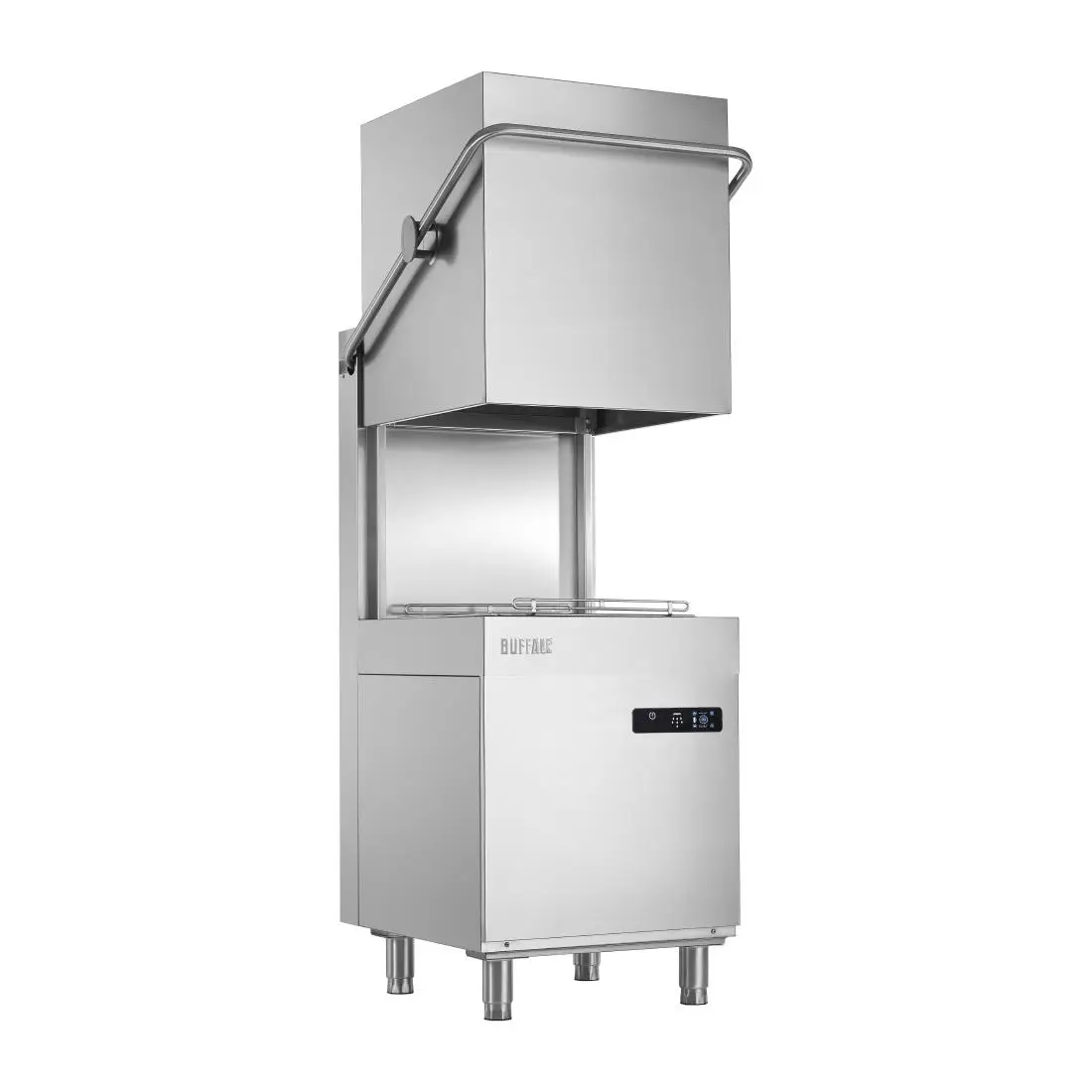

Buffalo Digital Pass Through Dishwasher with Drain Pump 9.7kW Three Phase DN975

£2,690.01

+vat

Out of stock

Brand:

SKU: DN975

Product summary

9.6kW. 16A Three phase

Product description

Save time and energy when washing large volumes of crockery, cookware, utensils and cutlery with the three phase Buffalo digital pass-through dishwasher.

Designed for user-friendly operation and effective washing results, the Buffalo dishwasher includes five selectable wash programs with allow the flexibility for you to wash just as you need – want a faster wash? No problem. Need a more intensive clean? The built-in detergent dispenser and rinse booster pumps deliver effective washing of pans with even burnt-on food.

With its high capacity 500mm baskets, the pass-through dishwasher provides plenty of room for large loads. It’s fast too – able to operate at up to 69 cycles per hour on the fastest cycle (max cycles achieved vary depending on power rating and incoming water temperature), you can quickly turn around dishes when demand is high. The machine itself is easy to clean too, with strong stainless steel construction and its simple wipe-clean digital panel.

We recommend fitting a water softener to reduce limescale build up. Issues caused by build up of limescale will not be covered by warranty.

Strong, easy-clean stainless steel construction
5 selectable washing programs
High output: up to 69 wash cycles per hour (max cycles achieved vary depending on power rating and incoming water temperature)
User friendly digital control panel
Thermostat controlled rinsing and washing temperatures
Reduced water consumption – only 2.8Ltr per standard cycle
Monoblock washing tank with rounded corners
Wash chamber loading height: 445mm. Height with hood open: 1960mm
Generously-sized 500mm x 500mm wash basket
Built-in drain pump. Compatible water softener: FB153
Supplied with 3 baskets (plate rack, glass rack and cutlery rack)
WRAS-approved Type A air gap

The Buffalo DN975 is a stainless steel 400V three phase pass-through dishwasher with 9.6kW rated input, five selectable wash programmes, 500mm baskets, up to 69 cycles per hour and a built-in drain pump for high-volume warewashing.

Downloads

SPECIFICATION 17 facts · tap for all Width700 mmDepth785 mmHeight1480 mmGross weight120 kgVoltage400VMaterialStainless Steel

Identity5

Brand Buffalosite
GTIN / EAN 5.05098E+12catalogue
Product code DN975site
Type Pass Through Dishwasherscatalogue
Warranty 1 Year Parts & Labourcatalogue

Size & weight5

Depth 785 mmcatalogue
External (W×D×H) 1480 × 700 × 785 mmcatalogue
Gross weight 120 kgcatalogue
Height 1480 mmcatalogue
Width 700 mmsite

Power & energy3

Fuel type Three Phasecatalogue
Rated input 9600 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Drainage Drain Pumpcatalogue
Electrical safety notice Yescatalogue
THE WORKING VIEW

Why this pass through dishwasher earns its place

The Buffalo DN975 is a stainless steel pass-through dishwasher running at 9.6kW rated input on a 400V three phase supply, with a digital control panel. It's built for high-volume commercial kitchens washing large batches of crockery, cookware, utensils and cutlery through a dedicated wash-up line rather than a single undercounter unit.

The machine is 1480mm high, 700mm wide and 785mm deep, with a 120kg gross weight, so it needs proper siting and a planned installation route. The pass-through format uses high-capacity 500mm baskets, giving plenty of room for large loads in a busy wash-up section.

Five selectable wash programmes are built in, giving staff the choice between faster turnaround and a more intensive clean. The built-in detergent dispenser and rinse booster pumps support effective washing on pans and burnt-on food, while the simple wipe-clean digital panel and stainless steel construction make the machine itself easier to clean down.

BEFORE YOU BUY

Questions, answered straight

Up to 69 cycles per hour on the fastest programme; actual throughput depends on power rating and incoming water temperature.

9.6kW rated input on a 400V three phase supply.

The supplier describes high-capacity 500mm baskets for large loads.

Buffalo recommends fitting one because limescale build-up from hard water is not covered under warranty.

1480mm high, 700mm wide and 785mm deep, with a 120kg gross weight.

1 year parts & labour.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Buffalo Digital Pass Through Dishwasher with Drain Pump 9.7kW Three Phase DN975 Product Data

Brand Buffalo
Type Pass Through Dishwashers
Dimensions 1480(H) x 700(W) x 785(D)mm
Material Stainless Steel
Colour / Finish Silver
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 1 Year Parts & Labour
Weight 120kg
Manufacturer Ref 071T.11110B.BB
If you have any questions about the Buffalo Digital Pass Through Dishwasher with Drain Pump 9.7kW Three Phase DN975 then please get in touch.
