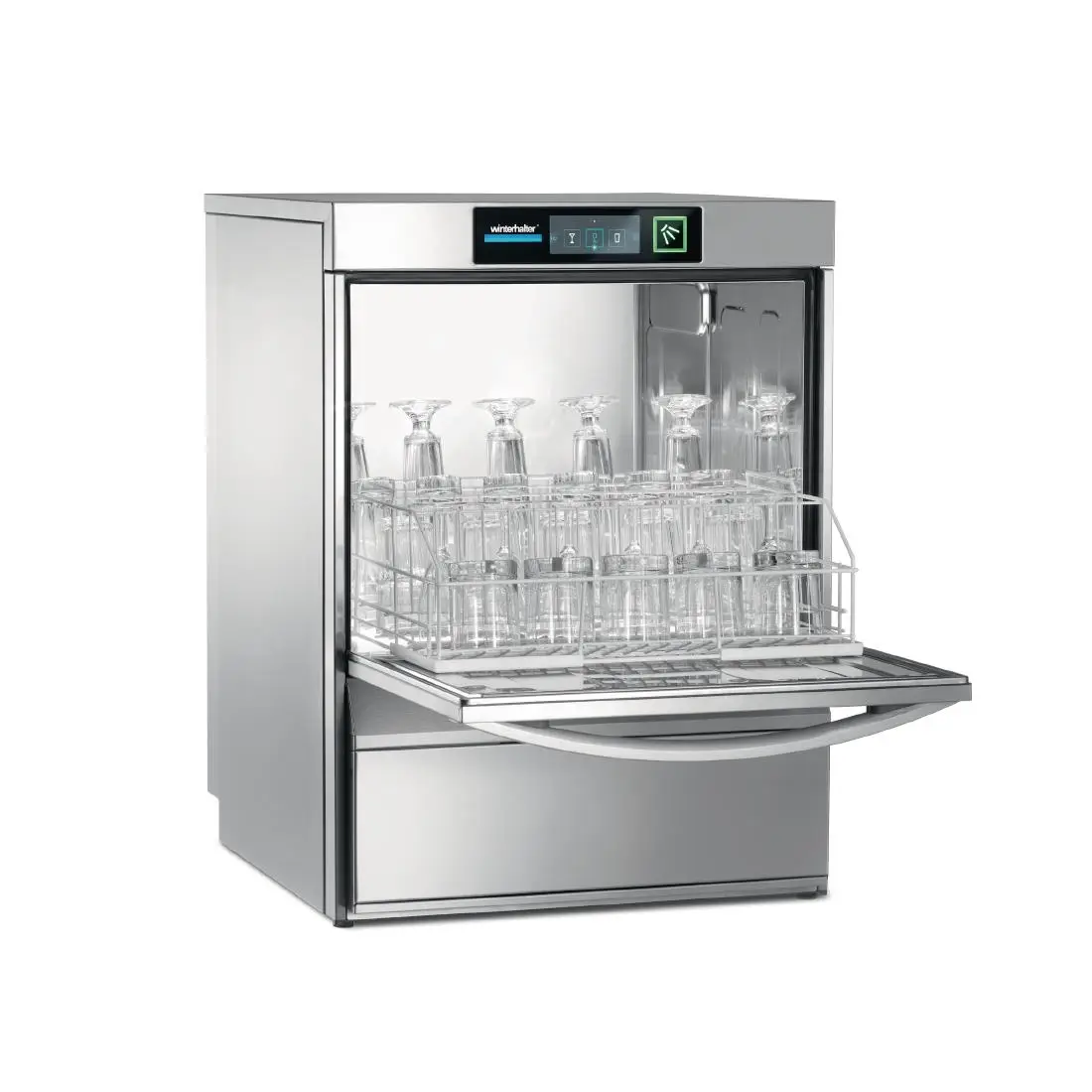

Winterhalter Undercounter Glasswasher UC-XL-E FC651

£7,651.48

+vat

Availability: 999 in stock

SKU: FC651

Product summary

Standard. With drain pump and water softener

Product description

Undercounter glass and dishwashing machines which are economical and easy to operate. Winterhalter UC machines come in four different sizes and are determined by the space onsite and the size of the items being washed (see spec). Wash arms removable for easy cleaning. Energy feature models have an integral air heat recovery system, which uses the steam produced in the washing process to heat up the incoming cold water supply, reducing running costs and improving room atmosphere. Supplied single phase as standard, three-phase available on request.

Useable wash chamber height: 404mm
Up to three programmable wash cycles
Self-cleaning programme ensures maximum hygiene
Advanced design helps to reduce water and energy use
Precise detergent & rinse aid dosing optimises washes
VarioPower technology adjusts rinse pressure to maximise performance
Minimum requirement of 1.5 bar incoming water pressure
Made in Germany
Quiet mode reduces operating noise
Intuitive Smart Touch digital control panel and display
WRAS compliant air gap

Winterhalter Undercounter Glasswasher UC-XL-E FC651

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The Winterhalter UC-XL-E FC651 sits in the UC undercounter range, which Winterhalter describes as economical, easy to operate and available in different sizes according to site space and the items being washed. This model is listed at 810mm high, 600mm wide and 656mm deep, with an 86kg gross weight.

Throughput is the main number for a buyer to size against service: 32 glass racks or 28 dish racks per hour, with headline output of 860 glasses or 542 plates per hour. The listed operating temperature range is +40 to +66°C.

The machine includes a drain pump, and Winterhalter states that the UC wash arms are removable for easy cleaning. The manufacturer text says UC machines are supplied single phase as standard, with three-phase available on request.

DELIVERY FITSTATED GEOMETRY

Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 656 × 810 mmstated W × D × H86 kg

THE CRITICAL ANSWERNarrowest straight opening600mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS810 mmCheck corners and landings

YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

Clear widthmmClear heightmm

This checks straight stated geometry only.

FINANCE

Finance from£46.36per month · at £2,000 order value

Weekly equivalent£10.70ex VAT

Initial payment£46.36then 59 monthly payments

Finance detailsView the full breakdown

Configured product total£1,873.00 ex VAT

Cost of finance£781.60

Total over 5 years£2,781.60

Cash kept after initial payment£1,953.64

Payments1 + 59

Payment profile 1+59Rate / £1,000 23.18

Confirm this finance →Finance illustration begins at the workbook’s £2,000 ex-VAT order minimum. Add a warranty or service to see the configured total update.

BUILT FORWhere this machine earns its place.

WHO BUYS IT

Wash-up and laundry rooms across commercial kitchens and sites.

Pubs & bars

up to 860 glasses per hour in an undercounter UC machine

32 glass racks/ 28 dish racks/hr

Clubs & venues

32 glass racks per hour with a drain pump for pumped waste connection

variable

Restaurants

one machine specified for both glass racks and dish racks

3 years on-site parts & labour

Hotels

single phase as standard, with three-phase available on request

service-pace

Explore all 20 sectors ↗

THE WASH-UP LINE31 PRODUCTS

Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

Combisteel DRAIN PUMP FOR GLASS WASHER A£—

SL GLASS WASHER 350 DP WITH DRAIN PUMP £—

Combisteel SL GLASS WASHER 350 DP DDE I£—

SL DISHWASHER FRONTLOADER 500-230 7280.0£—

Combisteel SL DISHWASHER FRONTLOADER 503£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

Combisteel DRAIN PUMP FOR PASS-THROUGH D£—

Combisteel PL PASS-THROUGH DISHWASHER 40£—

PL PASS-THROUGH DISHWASHER 30 PRSE 7280.£—

Combisteel PL PASS-THROUGH DISHWASHER 30£—

Combisteel PL RACK CONVEYOR DISHWASHER£—

PL RACK CONVEYOR DISHWASHER CD 7280.0090£—

Combisteel PL RACK CONVEYOR DISHWASHER A£—

PL RACK CONVEYOR DISHWASHER ASC CD 7280.£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel SL DISHWASHER FRONTLOADER 500£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

Combisteel GLASS WASHER ENT 400-230£—

GLASS WASHER ENT 400-230 DDE WITH DETE£—

Combisteel GLASS WASHER ENT 400-230 DP D£—

DISHWASHER FRONTLOADER ENT 500-230 7082.£—

DISHWASHER FRONTLOADER ENT 500-230 DP £—

DISHWASHER FRONTLOADER ENT 500-230 DP DD£—

PASS-THROUGH DISHWASHER ENT 400 7082.007£—

Combisteel PASS-THROUGH DISHWASHER ENT 4£—YOU'RE HERE

Winterhalter Undercounter Glasswasher UC£—

BEFORE YOU BUY

Questions, answered straight

What throughput is FC651 rated for?+

32 glass racks or 28 dish racks per hour, with listed output of 860 glasses or 542 plates per hour.

What are the dimensions?+

810mm high, 600mm wide and 656mm deep.

What's the wash temperature range?+

The listed temperature range is +40 to +66°C.

How heavy is this machine?+

86kg gross.

Single-phase or three-phase?+

Single-phase as standard, three-phase available on request.

Does it have a drain pump?+

Yes. The drainage field lists a drain pump.

The numbers that decide it

Service pace

Output per hour	860 glasses/hr or 542 plates/hr
Basket size	500(W) x 540(D)mm

Water & tank

Drainage

Drain Pump

Chamber & baskets

Capacity

32 glass racks/ 28 dish racks/hr

Power & supply

Voltage	Variable
Fuel type	Single or Three Phase

Format & size

External (W×D×H)	810 × 600 × 656 mm
Width	600 mm
Depth	656 mm
Height	810 mm
Gross weight	86 kg

Build

Colour	Silver
Colour code	Silver

Identifiers

GTIN / EAN	FB774
Brand	Winterhalter
Warranty	3 Years On-Site Parts & Labour
Type	Glasswashers
Range / series	Glasswashers
Extended warranty	3 Years On-Site Parts & Labour
Supplier ref	FC651
Supplier name	Uropa

Safety

Electrical safety notice

Yes

In use

Suitable for

Dishwashers

Performance

Temperature range

+40 to +66 °C

KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

THIS PRODUCT'S QUESTIONDishwasher selectorLoad type and peak racks/hour in — the right machine out.Open the tool →

COUNT THE REAL COSTTrue-cost calculatorHand washing vs machine — labour, water and chemicals compared.Open the tool →

Cleaning schedule generator illustration

YOUR SCHEDULECleaning schedule generatorPrintable HACCP cleaning rotas for the whole kitchen.Open the tool →

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

01792 732702 Browse the range

Winterhalter Undercounter Glasswasher UC-XL-E FC651 Product Data

Brand	Winterhalter
Type	Glasswashers
Dimensions	810(H) x 600(W) x 656(D)mm
Capacity	32 glass racks/ 28 dish racks/hr
Colour / Finish	Silver
Temperature Range	Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
Power	20A single phase as standard. Please inform us when ordering if you require 3 phase
Voltage	Variable
Fuel / Supply	Single or Three Phase
Suitable For	Dishwashers
Warranty	3 Years On-Site Parts & Labour
Weight	86kg
Manufacturer Ref	UC-XL-E

If you have any questions about the Winterhalter Undercounter Glasswasher UC-XL-E FC651 then please get in touch.
