TEFCOLD TC26 Ice Maker

£926.00

+vat

Brand:

SKU: 43618

Product summary

  • Cubed ice approx. 31x35x31mm
  • Production Capacity: 26 kg/24 h
  • Storage Capacity: 8 kg
  • Low energy air-cooled system
  • Spray system produces individual clear ice cubes
  • Self-contained ice machine with storage
  • Ag+ easy to clean surfaces in the storage bin
  • High quality catering grade 304 stainless steel
  • 4 Legs and 4 adjustable feet included
  • Scoop for ice cubes included
  • Built-in silent operating magnetic water pump
  • Waste water drain pump for safe water drainage

Product description

Ice Machine Making Individual Clear Ice Cubes

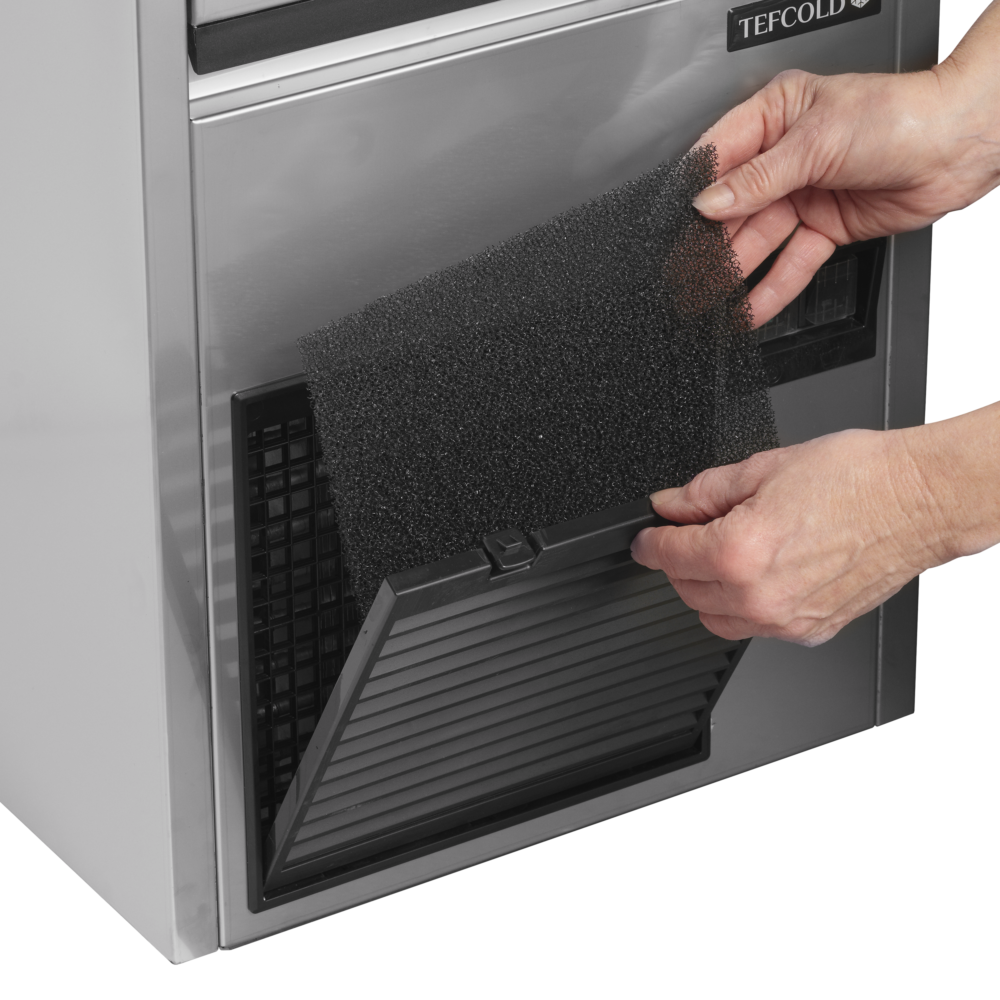

The TC range of ice makers uses a spray system to produce individual, clear, slow melting ice cubes. The unit is manufactured using 304 grade stainless steel, with the door at the front of the unit allowing quick access to an insulated storage bin featuring Ag+ antibacterial technology which helps prevent the formation of bacteria and odours. To ensure that the ice maker runs efficiently, the unit has an air filter that is easy to remove and clean. In addition to adjustable legs, the unit also includes small adjustable feet meaning the height can be lowered by 68.5mm if required. The TC range is ideal for use in cafes, restaurants, pubs, bars, fast-food venues, and other hospitality establishments that require cubed ice for drinks or other purposes.

The TEFCOLD TC26 is a self-contained SS304 stainless steel ice maker producing 26kg of cubed ice every 24 hours with 8kg of built-in storage, using a low-energy air-cooled R290 system rated at 350W from a standard 13A supply.

SPECIFICATION 29 facts · tap for all External W × D × H390 x 515 x 735 mmWidth390 mmDepth515 mmGross / net weight39 / 33.4 kgGross weight39 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181711078site
Product code 43618site
Sub title Ice Makercatalogue
Type Ice Cube Machinescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight9

Depth 515 mmsite
External (W×D×H) 390 × 515 × 735 mmcatalogue
External W × D × H 390 x 515 x 735 mmsite
Gross / net weight 39 / 33.4 kgsite
Gross weight 39 kgcatalogue
Height 735 mmsite
Packed (W×D×H) 450 × 575 × 710 mmcatalogue
Packed W × D × H 450 x 575 x 710 mmsite
Width 390 mmsite

Performance7

Ice cube size 31 x 35 x 31 (18g)site
Ice production 26site
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 66 gsite
Water consumption 100.8site

Power & energy2

Input power 350 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS304site
Feet / legs 4 adjustable feet and legssite
THE WORKING VIEW

Why this ice cube machine earns its place

The TEFCOLD TC26 is a self-contained ice maker that makes and stores ice on the same footprint, built for sites that need a steady supply of cubed ice without a separate bin. It produces 26kg of ice in 24 hours and holds 8kg in its own storage bin, with a spray system that forms individual clear ice cubes measuring approximately 31 × 35 × 31mm.

The machine runs a low-energy air-cooled system on R290 refrigerant, drawing 350W from a standard 13A supply at a running cost of about £539 a year at 25p/kWh. A built-in magnetic water pump runs silently to feed the spray system, and a waste water drain pump clears used water safely rather than relying on a gravity outlet. The storage bin uses Ag+ antimicrobial surfaces that stay easy to keep clean between ice-making cycles.

Construction is high quality catering-grade 304 stainless steel, standing on 4 legs with adjustable feet to level the machine on an uneven floor, and a scoop is included for serving straight from the bin. The unit weighs 39kg. Servicing and parts support are available through Craven Cooling's aftercare team.

BEFORE YOU BUY

Questions, answered straight

The TC26 produces 26kg of cubed ice every 24 hours and holds 8kg in its own storage bin, so there's ice on hand as well as ice being made.

Yes for waste water — a built-in drain pump clears used water rather than needing a gravity-fed outlet, which gives more flexibility over where the machine sits.

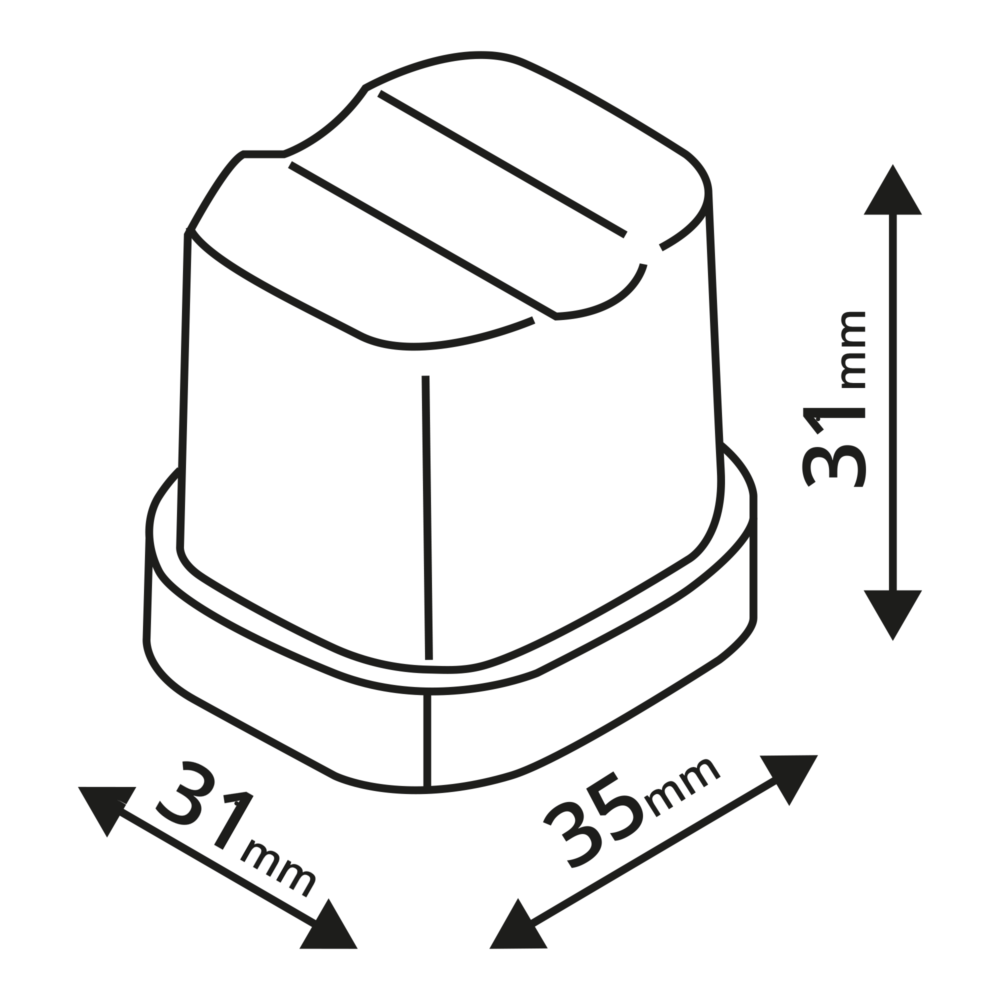

A spray system forms individual clear ice cubes of approximately 31 × 35 × 31mm, rather than flaked or crushed ice.

Based on its rated energy use, about £539 a year at 25p/kWh.

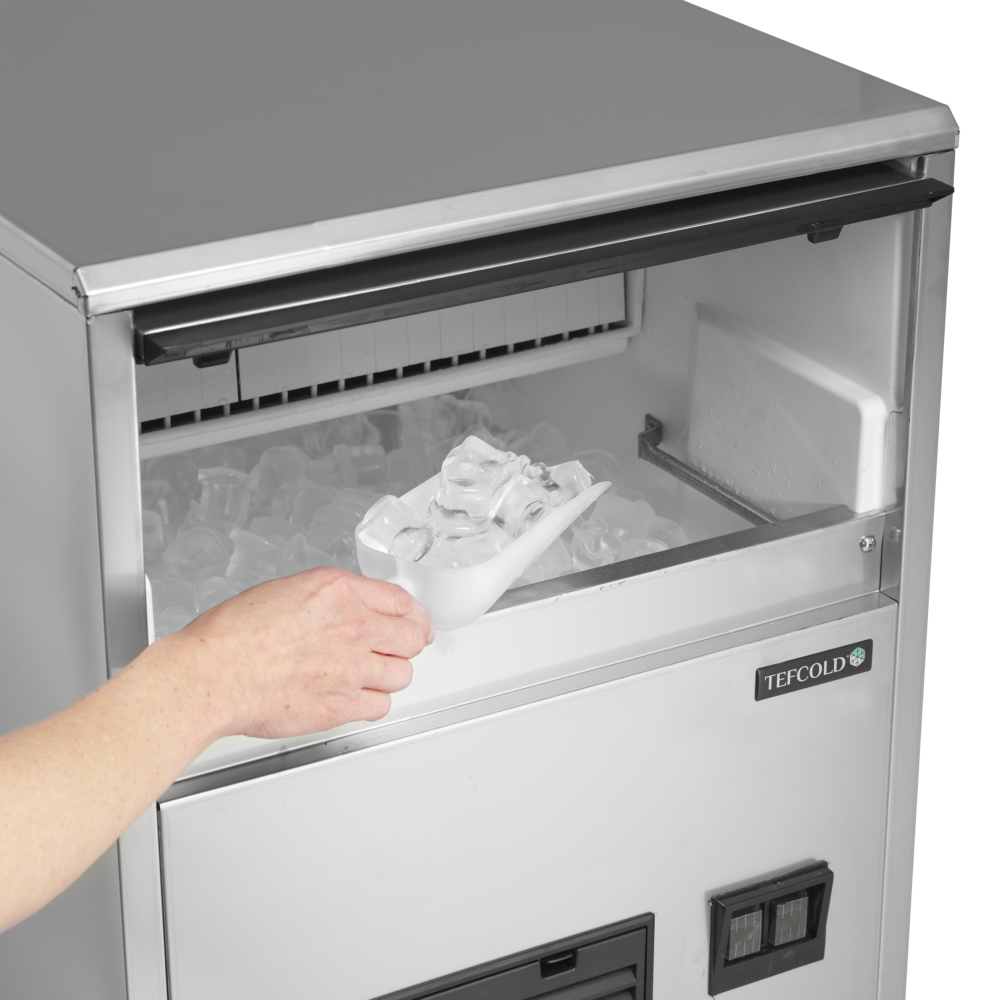

The bin uses Ag+ antimicrobial surfaces that are easy to wipe down, and construction throughout is catering-grade 304 stainless steel.

Craven Cooling can support the TC26 after installation — call 01792 732702 to book a service visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 390 x 515 x 735 mm
Packed Dimension (WxDxH): 450 x 575 x 710 mm

Cooling and Functions

Refrigerant: R290
Refrigerant Charge: 66 g

Power and Consumption

Input Power: 350 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Capacity Ice Production: 26 kg/24h
Size of Ice Cubes: 31 x 35 x 31 (18g) mm
Capacity In Ice Container: 8 mm
Water Consumption: 100.8 l/24h
Gross / Net Weight: 39 / 33.4 kg
Max Ambient: +40°C, 40% RH

Design and Material

Feet / Legs: 4 adjustable feet and legs
Exterior Finish: SS304
Interior Finish: SS304
If you have any questions about the TEFCOLD TC26 Ice Maker then please get in touch.
