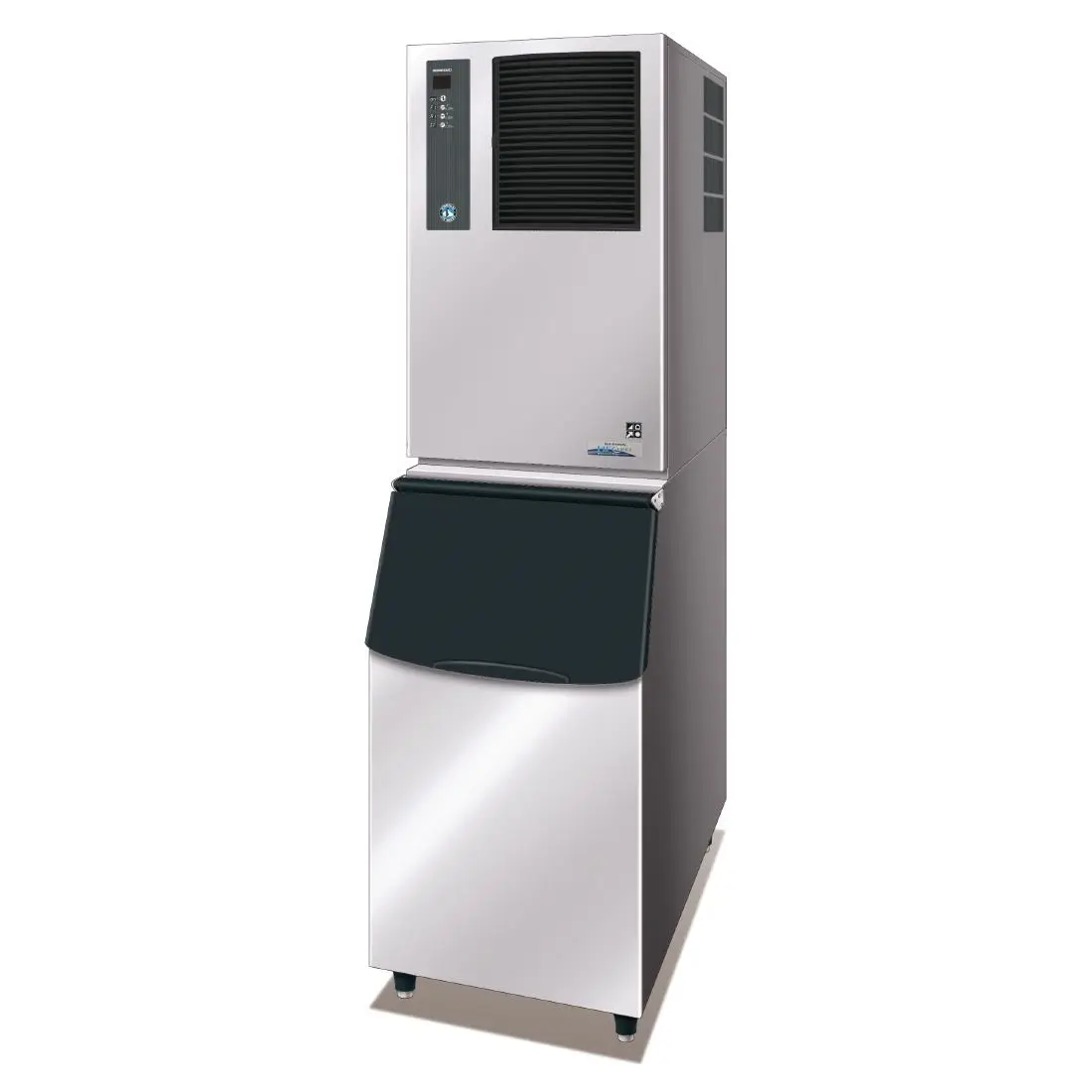

Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM130-APE-23 CY203

£3,799.61

+vat

Availability: 999 in stock

Brand:

SKU: CY203

Product summary

Output: 125kg/24hr. M Cube

Product description

Self-contained HydroCarbon Ice Maker with a built-in storage bin. This is the new HC version using 20% less energy than its predecessor, saving on running costs. Please be aware that this product unfortunately cannot be returned under the 30 days offer as unwanted. This is due to the potential risk for transit damage and the high cost of testing after return.

Output: up to 125kg per 24 hours (Medium cubes: 23 x 28 x 28 mm)
Uses Hoshizaki closed cell system offering ultimate contamination protection
Microcomputer control manages the ice making process, ensuring optimal performance
Installed leak detector ensures automatic shutdown in event of leaking gas
Gravity drain
Site call/survey included as standard
Compatible with CY212,CY213 & CY214 storage bins and top kits, depending on ice storage requirements
Modular head compatible with all Hoshizaki modular storage bins for added flexibility
Eco Friendly HFC free foam injected polyurethane for insulation preserves ice quality and consistency
HC model using 20% less energy than its predecessor saving on running costs

The Hoshizaki IM130-APE-23 CY203 is a modular air-cooled HFC-free ice maker producing up to 125kg of medium 23 x 28 x 28mm cubes per 24 hours for a matched Hoshizaki storage-bin installation.

Downloads

SPECIFICATION 22 facts · tap for all Width560 mmDepth700 mmHeight880 mmGross weight68 kgVoltage230VMaterialStainless Steel

Identity5

Brand Hoshizakisite
Product code CY203site
Seo name Hoshizaki Modular Air Cooled HFC Free Ice Makercatalogue
Type Ice Machinescatalogue
Warranty 2 Yearscatalogue

Size & weight5

Depth 700 mmcatalogue
External (W×D×H) 880 × 560 × 700 mmcatalogue
Gross weight 68 kgcatalogue
Height 880 mmcatalogue
Width 560 mmsite

Capacity2

Door type Hingedcatalogue
Doors 1catalogue

Performance2

Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 635 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Output per hour 125kg/24hrcatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this ice machine earns its place

The IM130-APE-23 CY203 is a Hoshizaki modular ice maker for sites that need dependable medium-cube production without building the machine around a small internal bin. Hoshizaki lists output at up to 125kg per 24 hours, with medium cubes measuring 23 x 28 x 28mm, giving bars, hotels and foodservice counters a steady supply of clear, serviceable ice for drinks and presentation.

Because this is a modular head, the storage bin is part of the buying decision. Hoshizaki states that CY203 is compatible with CY212, CY213 and CY214 storage bins and top kits, depending on the site's ice storage requirement, and also describes the head as compatible with Hoshizaki modular storage bins. That flexibility matters when peak demand is uneven: the machine makes the ice, but the bin decides how much reserve is ready when service hits.

The manufacturer material focuses on ice quality, control and installation protection. Hoshizaki's closed-cell system is described as offering contamination protection, while microcomputer control manages the ice-making process for optimal performance. The product information also lists a gravity drain, an installed leak detector with automatic shutdown in the event of leaking gas, and a site call or survey included as standard.

BEFORE YOU BUY

Questions, answered straight

Hoshizaki's manufacturer material states output of up to 125kg per 24 hours.

CY203 is listed as a medium-cube model producing cubes measuring 23 x 28 x 28mm.

It is described as a modular head, so it should be paired with a compatible Hoshizaki storage bin and top kit.

The manufacturer material lists CY212, CY213 and CY214 storage bins and top kits, depending on the storage requirement.

The product information lists a gravity drain and says a site call or survey is included as standard.

Yes. Call 01792 732702 with your expected ice use and service pattern, and Craven Cooling can help match CY203 with suitable storage.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM130-APE-23 CY203 Product Data

Brand Hoshizaki
Type Ice Machines
Dimensions 880(H) x 560(W) x 700(D)mm
Material Stainless Steel
Colour / Finish Silver
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 1
Power 635W, 4.5A
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years
Weight 68kg
Manufacturer Ref IM130-APE-23
If you have any questions about the Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM130-APE-23 CY203 then please get in touch.
