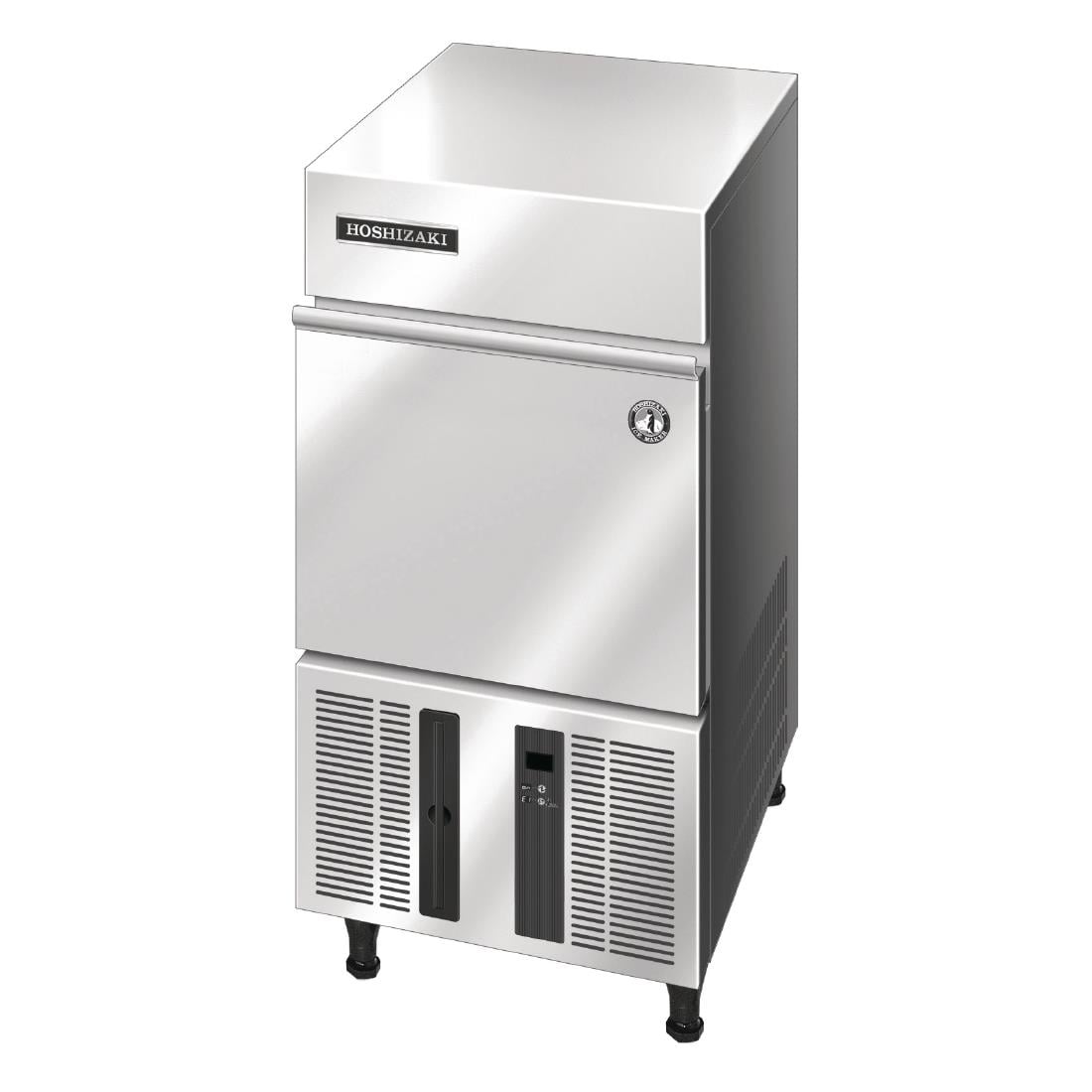

Hoshizaki Air-Cooled Compact Ice Maker 30Kg/24hr Output IM-30CPE Y193

£1,300.73

+vat

Availability: 999 in stock

Brand:

SKU: Y193

Product summary

30kg/24hr Output 11.5kg Storage

Product description

Advanced design hygienic ice maker which produces strong long lasting cube shaped ice with reduced water consumption.

Foam injected polyurethane insulation for excellent ice preservation, reducing production cycles, saving energy and cutting running costs
Unpacked dimensions 695(H) x 398(W) x 495(D) mm (with legs add 100-135mm)
Ice cube dimensions 28 x 28 x 32 mm
Removable door gasket prevents any heat and contaminants from entering the bin whilst making it easy to clean
Easy to clean air filter allows users to carry out routine cleaning for extended longevity and reduced maintenance call-outs
Self contained unit with built-in 11.5Kg storage bin
Unpacked / packed weight: 34kg / 38kg
Gravity drain
Each cycle is made with fresh water, ensuring only the highest quality of ice produced to protect the integrity and flavour of your drinks
Reduced water consumption for improved green operation
Packed dimensions 879(H) x 505(W) x 575(D) mm

The Hoshizaki IM-30CPE Y193 is a compact air-cooled ice cube machine with hinged stainless steel access, 11.5 kg bin storage and on-site parts and labour warranty cover.

Downloads

SPECIFICATION 24 facts · tap for all Width398 mmDepth495 mmHeight695 mmGross weight35 kgVoltage220-240VCapacityBin storage 11.5 kg.

Identity5

Brand Hoshizakisite
Product code Y193site
Seo name Hoshizaki Air Cooled Compact Ice Makercatalogue
Type Ice Machinescatalogue
Warranty 2 Years On-Site Parts & Labourcatalogue

Size & weight5

Depth 495 mmcatalogue
External (W×D×H) 695 × 398 × 495 mmcatalogue
Gross weight 35 kgcatalogue
Height 695 mmcatalogue
Width 398 mmsite

Capacity4

Capacity Bin storage 11.5 kg.catalogue
Door type Hingedcatalogue
Doors 1catalogue
Product capacity 11.5catalogue

Performance2

Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 250 Wcatalogue
Voltage 220-240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts3

Mobility Feetcatalogue
Output per hour Up to 30kg per 24 hours (Hoshizaki Large Cubes: 32 x 28 x 28 mm)catalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this ice machine earns its place

The Hoshizaki IM-30CPE Y193 is a compact air-cooled ice cube machine for bars, cafés and service points that need cube ice made on site. The built-in bin stores 11.5 kg, keeping a usable reserve available for staff during trading periods.

Its stainless steel exterior is a practical finish for commercial environments where equipment is handled and cleaned regularly. Hinged access keeps the storage bin simple to open during service, then close again to keep the ice area protected.

The machine is supplied with 2 years on-site parts and labour warranty cover. It is best planned as a dedicated cube ice station, with water, drainage and service access checked against the final site position before installation.

BEFORE YOU BUY

Questions, answered straight

The listed bin storage is 11.5 kg. That gives staff a ready store of cube ice at the machine.

Yes. Y193 is listed under Ice Cube Machines, so it is for cube ice rather than flake or nugget ice.

The exterior finish is listed as stainless steel. That is a practical choice for busy commercial service areas.

The listed door type is hinged. Staff open the hinged access point to use the stored ice.

The listed warranty is 2 years on-site parts and labour. For servicing or siting advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Hoshizaki Air-Cooled Compact Ice Maker 30Kg/24hr Output IM-30CPE Y193 Product Data

Brand Hoshizaki
Type Ice Machines
Dimensions 695(H) x 398(W) x 495(D)mm
Capacity Bin storage 11.5 kg.
Material Stainless Steel
Colour / Finish Silver
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 1
Power 0.25kW, 220-240V 1.1A
Voltage 220-240V
Fuel / Supply Plug
Warranty 2 Years On-Site Parts & Labour
Weight 35kg
Manufacturer Ref IM-30CPE
If you have any questions about the Hoshizaki Air-Cooled Compact Ice Maker 30Kg/24hr Output IM-30CPE Y193 then please get in touch.
