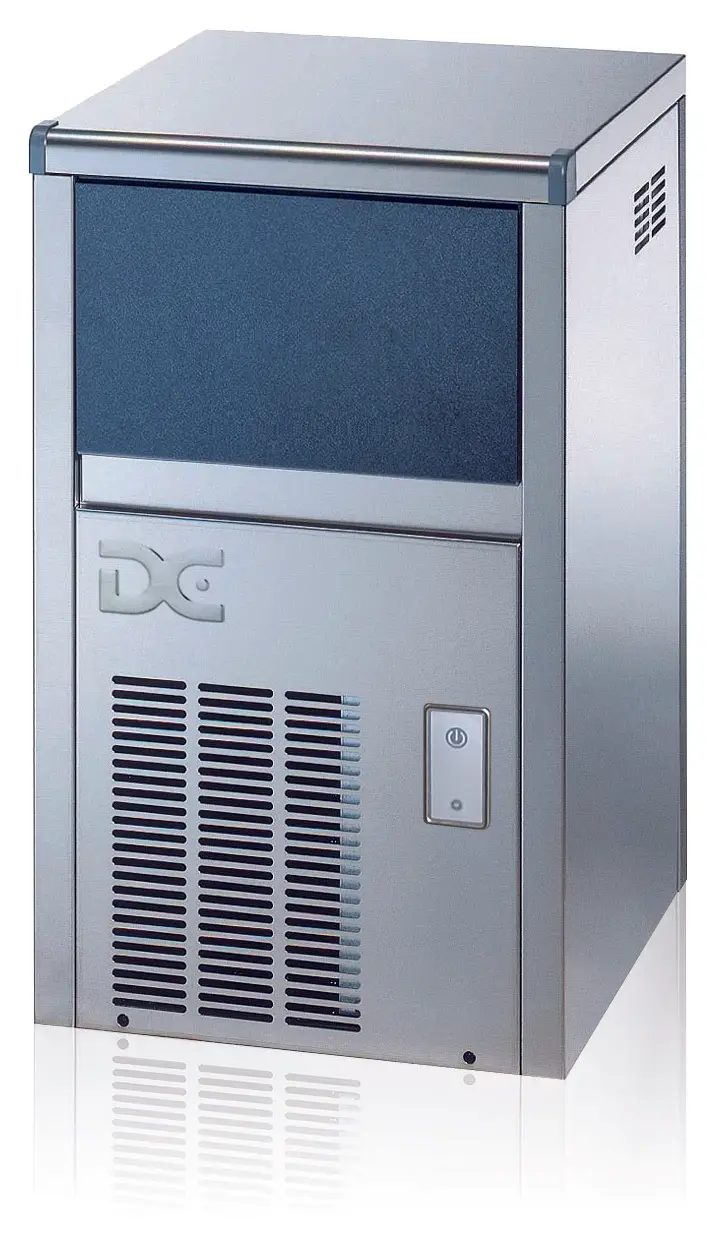

DC DCP25-8A Self-contained

£1,012.00

+vat

Brand:

SKU: DCP25-8A

Product summary

Product description

– Self-contained icemakers incorporate an ice-production system and ice storage bin into one machine. The smallest machine of the range produces 20kg/24hrs and stores up to 4kg, while the largest produces up to 155kg/24hrs and stores up to 65kg.
Hollow Ice – Hollow cubes of crystalline ice that cool quickly and melt slowly – particularly suited to hard water areas due to ice manufacturing processes. Suitable for: nightclubs, pubs, restaurants, healthcare industries, educational facilities, hotels and supermarkets.

The DC DCP25-8A delivers 25 kg of hollow ice cubes per day with an 8 kg integrated bin — the compact self-contained cube maker for small bars, cafés and hard-water sites where space and scale are at a premium.

Downloads

SPECIFICATION 8 facts · tap for all External W × D × H385x468x692mmWidth385 mmDepth468 mmProduct codeDCP25-8ATypeIce Cube MachinesExternal (W×D×H)385 × 468 × 692 mm

Identity3

Brand DCsite
Product code DCP25-8Asite
Type Ice Cube Machinescatalogue

Size & weight5

Depth 468 mmsite
External (W×D×H) 385 × 468 × 692 mmcatalogue
External W × D × H 385x468x692mmsite
Height 692 mmsite
Width 385 mmsite
THE WORKING VIEW

Why this ice cube machine earns its place

The DC DCP25-8A is the entry point to the DC self-contained cube range: a single cabinet that makes and stores its own hollow ice cubes. It produces 25 kg every 24 hours and holds 8 kg in the built-in bin — sized for a neighbourhood pub, a busy café bar or a restaurant service that needs cubed ice without dedicating floor space to a separate storage bin.

Hollow cubes are formed by spraying water upward onto a chilled evaporator; minerals fall away during the freeze cycle, so the cubes come out clean even in hard-water areas. That spray process also freezes faster than a solid-cube mould, giving you quicker recovery after a rush. The cubes themselves are thimble-shaped, roughly 30 × 30 × 25 mm, with thin walls that chill a drink fast and melt at a steady, predictable rate — exactly what a busy bartender needs for gin tonics, highballs and post-mix.

The cabinet is catering-grade stainless, 400 mm wide, 515 mm deep and 695 mm high — low enough to tuck under a standard 900 mm bar counter with the lid closed. A front service panel gives access to the evaporator, water valve and condenser without pulling the unit out. Installation asks for a 13 A supply, ¾″ BSP cold feed and a 19 mm gravity drain; fit a carbon-block filter on the inlet and you protect both the evaporator and the warranty in hard-water postcodes.

BEFORE YOU BUY

Questions, answered straight

Up to 25 kg of hollow ice cubes at 21 °C air / 15 °C water inlet. Expect ~20 kg at 32 °C/21 °C conditions.

Approx. 30 × 30 × 25 mm thimble cubes. Hollow form freezes faster, cools drinks quicker, and the spray process handles hard water better than solid-cube machines.

No — the 8 kg bin is built in. Ice drops directly from the evaporator into the insulated bin below.

13 A single-phase, ¾″ BSP cold water, 19 mm gravity waste. Fit a carbon-block filter (required for warranty in hard-water areas).

Every 3–6 months depending on water hardness; clean the bin weekly. Front panel access keeps it simple. For a planned schedule, call Craven service on 01792

Yes — overall height 695 mm, width 400 mm, depth 515 mm. Lid opens within the footprint.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC DCP25-8A Self-contained Product Data

Dimensions (W×D×H) 385 × 468 × 692 mm
Ice production (24hr) 25 kg
Ice storage 8 kg
Water inlet connection 3/4
Water inlet pressure 1 bar (14psi) / 6 bar (84psi)
Water temperature 3 – 32ºC
Ambient operating temp Min: +10°C Max: +43°C
Ventilation Rear: 200 mm Sides and top: 50 mm
Waste connection 21 mm
If you have any questions about the DC DCP25-8A Self-contained then please get in touch.
