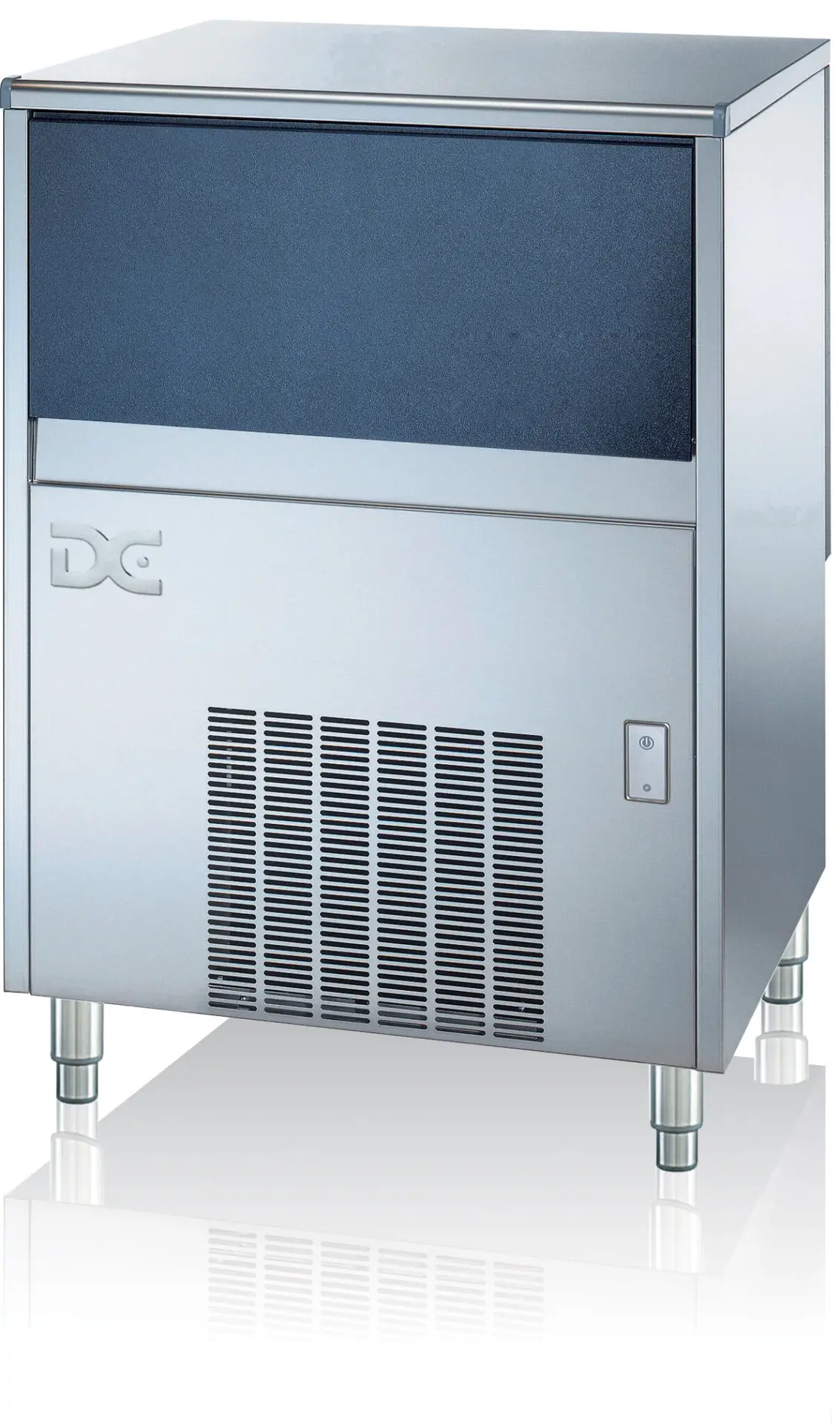

DC DC70-40A Self-contained

£1,628.00

+vat

Brand:

SKU: DC70-40A

Product summary

Product description

Constructed using corrosive-resistant stainless-steel for strength and hygiene, using the highest quality components and evaporators for maximum performance ensuring crystalline ice on demand. Our self-contained icemakers feature ergonomically designed ice storage bins made from insulated, non-toxic, ABS food-safe plastic with limescale inhibiting evaporator plates. All models use 100% natural propane gas with zero environmental impact and are designed with a self cleaning cycle to assist engineer servicing.

The DC DC70-40A is a self-contained cube ice machine producing up to 70 kg of crystalline cubes per 24 hours with an integrated 40 kg bin — built for bars, cafés and small restaurants that need proper cubes on demand without a separate ice room.

Downloads

SPECIFICATION 9 facts · tap for all External W × D × H735x603x1017mmWidth735 mmDepth603 mmInput power13 ampProduct codeDC70-40ATypeIce Cube Machines

Identity3

Brand DCsite
Product code DC70-40Asite
Type Ice Cube Machinescatalogue

Size & weight5

Depth 603 mmsite
External (W×D×H) 735 × 603 × 1017 mmcatalogue
External W × D × H 735x603x1017mmsite
Height 1017 mmsite
Width 735 mmsite

Power & energy1

Input power 13 ampsite
THE WORKING VIEW

Why this ice cube machine earns its place

The DC70-40A packs the full ice cycle — make, store, serve — into a single stainless-steel cabinet the footprint of an undercounter dishwasher. That's the self-contained advantage: no remote bin to plumb, no ice room to ventilate, no shovelling cubes from a bin across the kitchen. You open the front door, scoop crystalline cubes, and the machine gets on with making the next batch.

Seventy kilograms in 24 hours (21 °C air / 15 °C water) sounds modest next to a modular head, but in a neighbourhood pub, a breakfast-to-lunch café, or a restaurant doing 60 covers, 70 kg is two busy services with cube to spare. The integrated 40 kg bin holds most of a day's peak run — you're not constantly playing catch-up. And because the bin sits right under the evaporator, meltwater drains internally; one gravity waste from the cabinet, done.

The cubes are proper cubes — crystalline, slow-melting, the kind that hold a gin and tonic together without watering it to tea by the third sip. Propane (R290) refrigerant keeps the evaporator plate cold with near-zero GWP, and the limescale-inhibiting plate coating stretches descale intervals — critical in hard-water areas where scale kills evaporators fast. The self-clean cycle flushes the system before an engineer even opens a panel, cutting service time and chemical use.

BEFORE YOU BUY

Questions, answered straight

Up to 70 kg at 21 °C air / 15 °C water. In a warm kitchen (30 °C / 20 °C) expect 50–55 kg. The 40 kg bin covers most single-service peaks — if you regularly drain the bin in one sitting, you're due a modular head.

Standard crystalline cubes — approximately 28 × 28 × 32 mm (standard European cube). Slow-melting, clear, the shape that holds a drink without rapid dilution.

No. The 40 kg insulated ABS bin is built in, directly under the evaporator. Meltwater drains internally to the cabinet waste. One machine, one waste connection.

Single-phase 230 V, typically 13 A (some variants 16 A — check nameplate). Cold-water feed ¾" BSP, 1–6 bar. One gravity waste to floor gully or pumped waste. No three-phase, no high-amperage supply.

Yes. Factory-sealed system, charge well below the practical limit for commercial cavities. R290 is the industry direction — zero ODP, GWP ~3. Engineers certified for hydrocarbon refrigerants handle any sealed-system work.

A timed flush cycle circulates descaling solution through the evaporator and water path. Run it before a service visit (or on schedule per manufacturer guidance) and the engineer arrives to clean surfaces, not descale a blocked plate. Saves labour, chemical and downtime.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC DC70-40A Self-contained Product Data

Dimensions (W×D×H) 735 × 603 × 1017 mm
Power supply 13 amp
Ice production (24hr) 70 kg
Ice storage 40 kg
Water inlet connection 3/4
Water inlet pressure 1 bar (14psi) / 6 bar (84psi)
Water temperature 3 – 32ºC
Ambient operating temp Min: +10°C Max: +43°C
Ventilation Rear: 200 mm Sides and top: 50 mm
Waste connection 21 mm
If you have any questions about the DC DC70-40A Self-contained then please get in touch.
