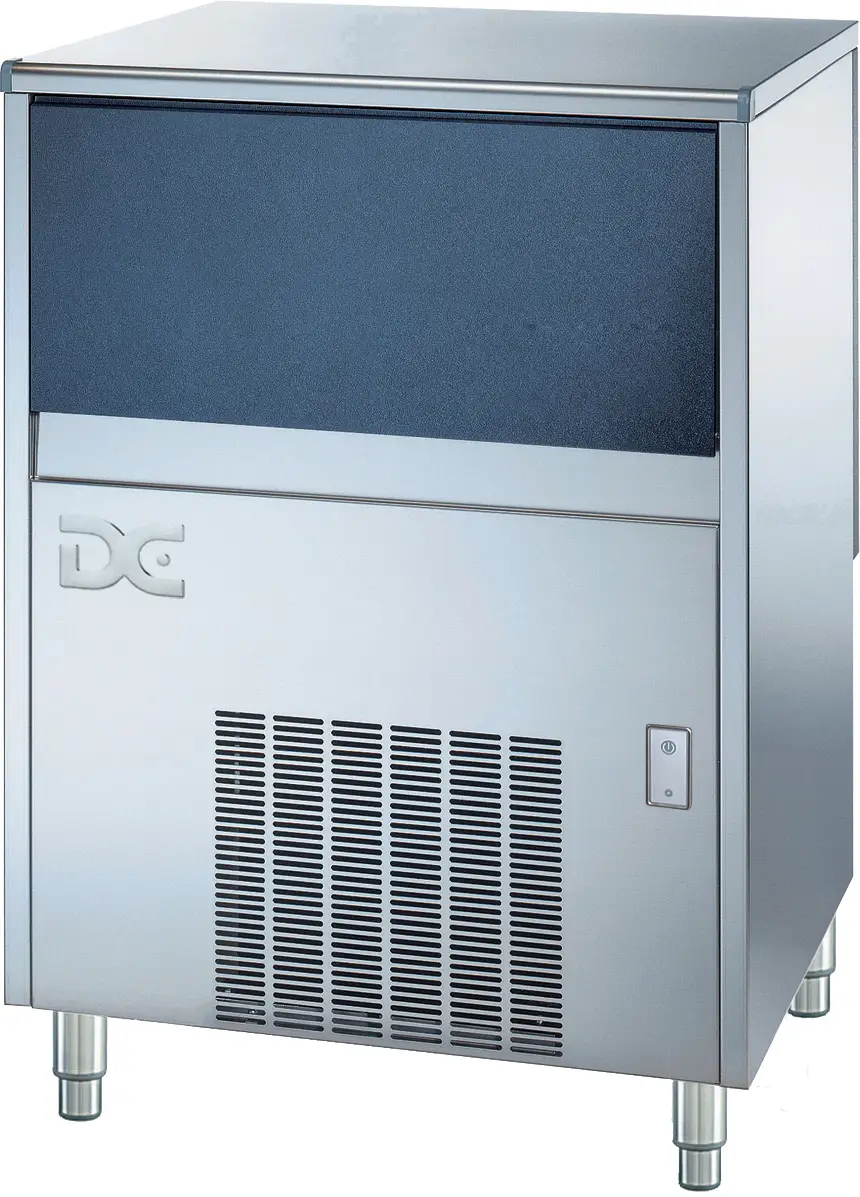

DC DCT140-50A Self-contained

£2,783.00

+vat

Brand:

SKU: DCT140-50A

Product summary

Product description

– Self-contained icemakers incorporate an ice-production system and ice storage bin into one machine. The smallest machine of the range produces 20kg/24hrs and stores up to 4kg, while the largest produces up to 155kg/24hrs and stores up to 65kg.
Pebble Ice – Compact and long lasting nuggets of ice. This versatile ice can be used in many applications including soft drinks or cocktails. Suitable for: cocktails, pubs, cafeterias, nightclubs, restaurants and hotels.

The DC DCT140-50A is a self-contained pebble ice machine delivering up to 140 kg of nugget ice per 24 hours with a 50 kg built-in bin — high-volume nugget ice in a single footprint for busy bars, nightclubs and event venues.

Downloads

SPECIFICATION 8 facts · tap for all External W × D × H738x690x1130mmWidth738 mmDepth690 mmProduct codeDCT140-50ATypeCrushed & Flake Ice MachinesExternal (W×D×H)738 × 690 × 1130 mm

Identity3

Brand DCsite
Product code DCT140-50Asite
Type Crushed & Flake Ice Machinescatalogue

Size & weight5

Depth 690 mmsite
External (W×D×H) 738 × 690 × 1130 mmcatalogue
External W × D × H 738x690x1130mmsite
Height 1130 mmsite
Width 738 mmsite
THE WORKING VIEW

Why this crushed & flake ice machine earns its place

The DCT140-50A is the heavy hitter in DC's self-contained pebble ice range: 140 kg of nugget ice every 24 hours, stored in a 50 kg bin that's part of the same unit. That's seven times the daily output and twelve times the storage of the entry-level DCT85-20A, all in one box. For a busy nightclub, a high-volume cocktail bar or a hotel running banquets and a lobby bar simultaneously, this is the machine that means you never run out — and you never need a separate plant room.

Pebble ice (nugget ice) is the texture of choice for premium highballs, tiki drinks, frozen margaritas and craft soft serves. The compact, porous nuggets chill fast thanks to massive surface area, but they're denser than flake ice so they hold in the glass. Drinks stay cold, dilution stays controlled. It's also the ice that healthcare and hospitality specs call for when hydration stations or display wells need ice that doesn't turn to slush in an hour.

Because it's self-contained, you get modular-scale output without modular complexity. One footprint (check the spec sheet for exact W×D×H — it's a substantial unit), one 13 A or 16 A supply (rating plate wins), one ¾" BSP water inlet, one gravity drain. No head-to-bin pipe run to plan, no separate bin to level, no extra floor space. The 50 kg bin holds roughly 1,800–2,500 nuggets — enough to ride through a Friday night rush while the auger keeps feeding.

BEFORE YOU BUY

Questions, answered straight

At a busy bar serving 300–400 cocktails a night, you'll burn 30–50 kg of nugget ice. The DCT140-50A replaces that overnight and carries 50 kg into the next shift. You're not chasing the machine.

The bin is integral but accessible — a large insulated door gives full access for sanitisation. You don't pull the bin out; you clean it in situ on your HACCP schedule.

Typically 16 A single-phase (some specs show 13 A — always verify on the unit's rating plate). Not three-phase. One industrial socket, dedicated circuit.

Gravity drain only on the self-contained range. If you can't get fall to a floor waste, you'll need a condensate pump kit (third-party) — factor that into the install plan.

The auger and compressor are audible — it's a working machine, not a silent fridge. In a nightclub or busy bar it's lost in ambient noise. In a quiet hotel lobby or restaurant, site it back-of-house or specify a modular system with the head in a plant room.

Craven-approved engineers carry DC self-contained spares. Call 01792 732702 for breakdown cover, planned maintenance or installation advice.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC DCT140-50A Self-contained Product Data

Dimensions (W×D×H) 738 × 690 × 1130 mm
Ice production (24hr) 140 kg
Ice storage 50 kg
Water inlet connection 3/4
Water inlet pressure 1 bar (14psi) / 6 bar (84psi)
Water temperature 3 – 32ºC
Ambient operating temp Min: +10°C Max: +43°C
Ventilation Rear: 200 mm Sides and top: 50 mm
Waste connection 21 mm
If you have any questions about the DC DCT140-50A Self-contained then please get in touch.
