TEFCOLD VL334 Juice Dispensers

£999.00

+vat

- +

Brand:

SKU: 18702

Energy Arrow

Product summary

  • Fully automatic
  • Adjustable feet
  • Paddle system agitation
  • Suitable for juice containing fruit pulp
  • Not suitable for milk, slush or ice cream smoothies

Product description

Promek are an Italian based manufacturer of juice dispensers making some of the best units on the market. The VL range offers single, double or triple tank dispensers to suit all requirements. Switchable paddle stirrers help keep the product at an even temperature and the large bowl size holds up to 11.5 litres of juice. The unit is designed so it can be cleaned easily, the tap is quick and simple to remove and disassemble for cleaning while the drip trays can easily be removed. We can also supply 60Hz versions of this unit (on request) for placement on ships or offshore developments where regular mains current is not available.

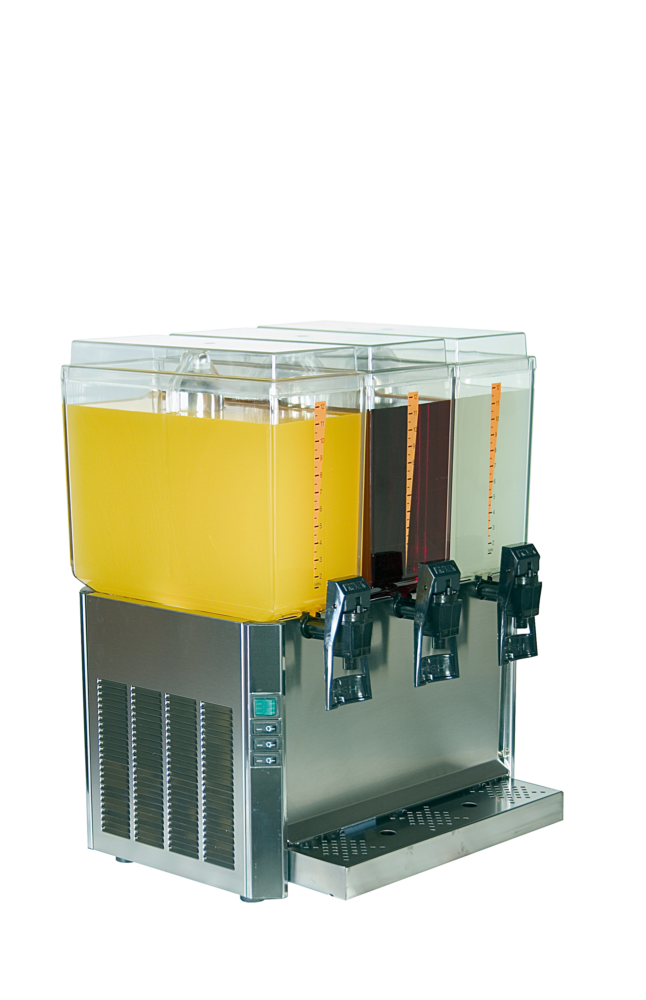

TEFCOLD VL334 Juice Dispensers

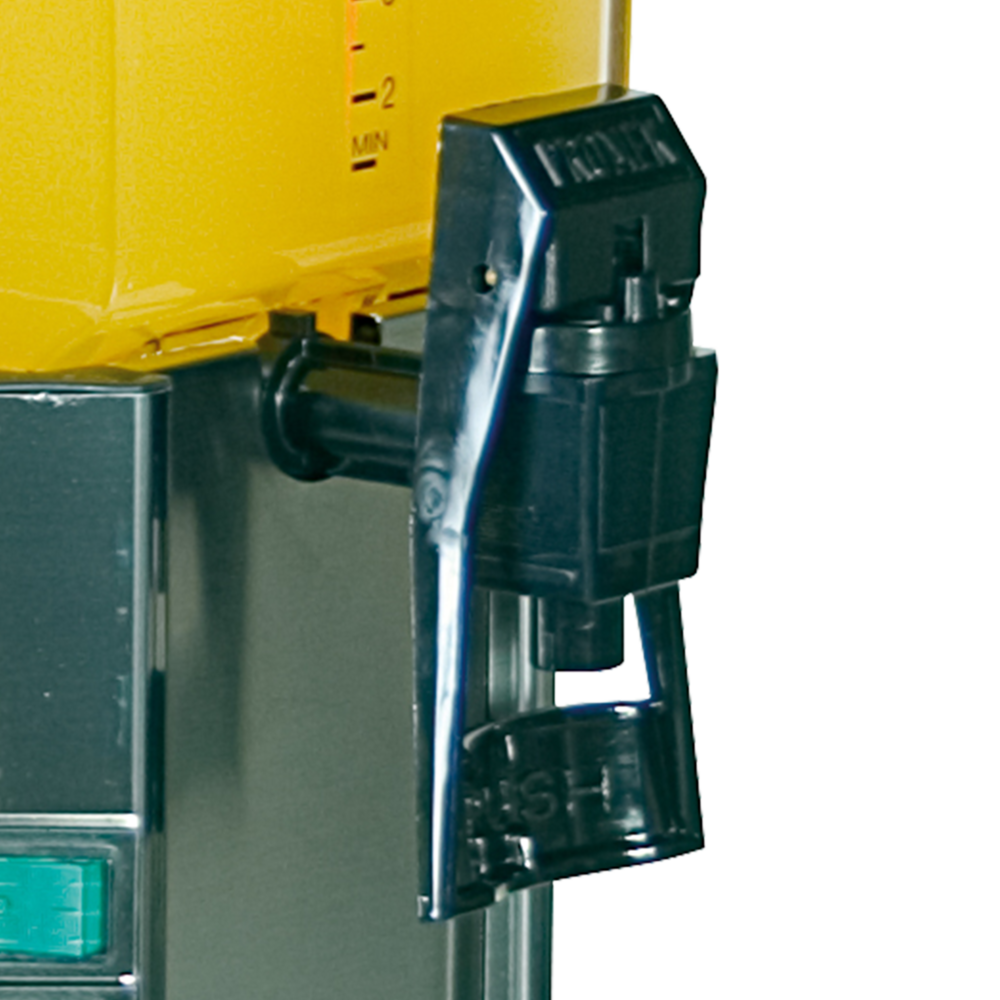

TEFCOLD VL334 Juice Dispensers - Image 2

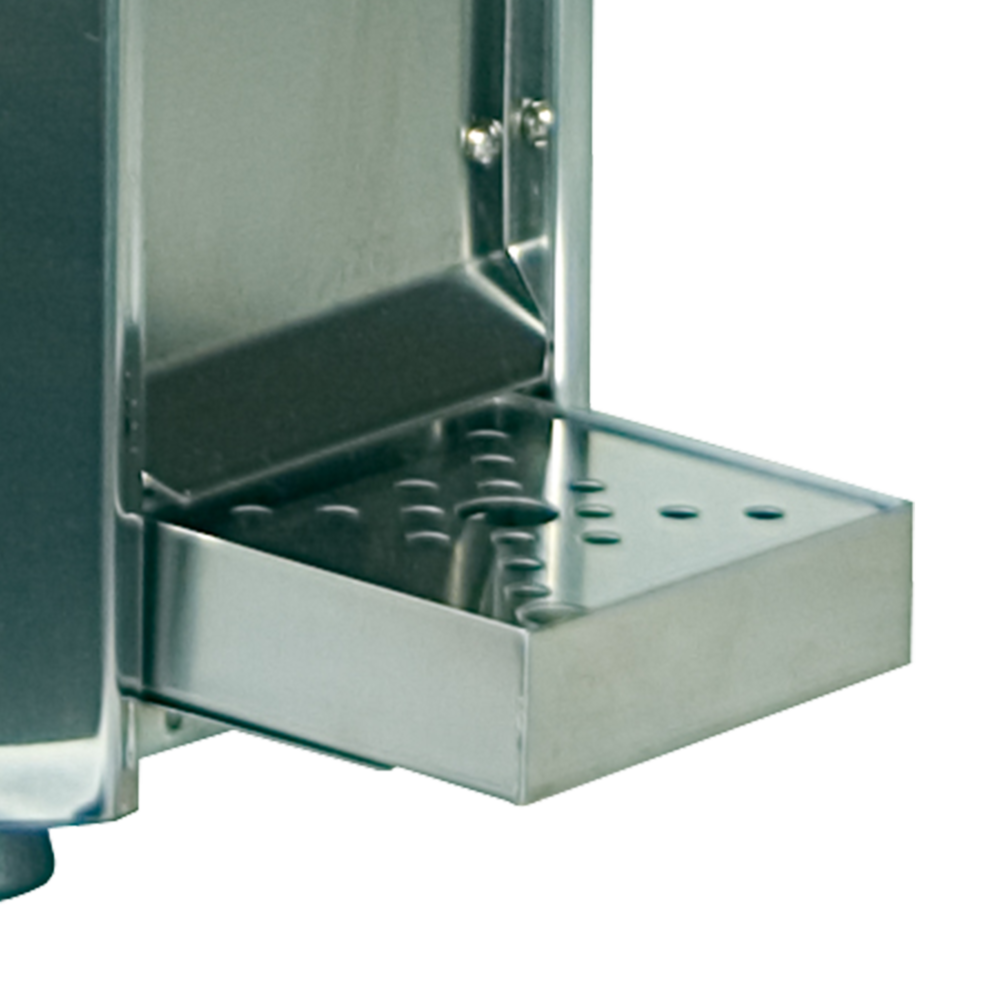

TEFCOLD VL334 Juice Dispensers - Image 3

Downloads

Data Sheet
SPECIFICATION 29 facts · tap for all External W × D × H480 x 460 x 670 mmWidth480 mmDepth460 mmGross / net weight38 / 35 kgGross weight38 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents1

Data sheetPDF ›

Identity5

Brand TEFCOLDsite
GTIN / EAN 5708181602789site
Product code 18702site
Type Juice Dispenserscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 460 mmsite
External (W×D×H) 480 × 460 × 670 mmcatalogue
External W × D × H 480 x 460 x 670 mmsite
Gross / net weight 38 / 35 kgsite
Gross weight 38 kgcatalogue
Height 670 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 520 × 450 × 750 mmcatalogue
Packed W × D × H 520 x 450 x 750 mmsite
Width 480 mmsite

Capacity1

Gross volume 34.5 litrescatalogue

Performance6

Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 265 gsite
Temperature range +3 to +8site

Power & energy5

Annual energy consumption 1267 kWh/yearsite
Energy consumption 3.47 kWh/24hsite
Input power 290 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this juice dispenser earns its place

The TEFCOLD VL334 is a juice dispenser for chilled self-serve or assisted drinks service. Verified facts put it in a stainless steel finish, with the working temperature range confirmed at +3 to +8 °C for chilled drinks presentation.

Day to day, the VL334 uses automatic off-cycle defrost and is rated at 54 dB. Annual energy use is verified at 1266.6 kWh, which is about £317 a year at 25p/kWh, with 290 W input power.

The refrigeration data is also confirmed: R290 refrigerant with a 265 g charge, running on 220-240/50 voltage. Gross weight is 38 kg and net weight is 35 kg, so plan handling and counter support accordingly.

BEFORE YOU BUY

Questions, answered straight

The verified operating range is +3 to +8 °C. That makes it a chilled juice dispenser rather than a frozen-drinks or ambient dispenser.

The verified noise rating is 54 dB. That gives buyers a confirmed figure to consider for counter, kiosk or front-of-house placement.

The verified defrost type is automatic off-cycle defrost. Cleaning still needs to be handled as part of the site's normal hygiene routine.

The verified energy use is 1266.6 kWh a year. At 25p/kWh, that is about £317 a year before tariff and usage differences.

The VL334 uses R290 refrigerant with a verified 265 g charge. Keep that figure with the equipment records for future engineer reference.

Yes. Craven Cooling can discuss counter position, service access and cleaning routines on 01792 732702 before the dispenser is ordered.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 480 x 460 x 670 mm
Packed Dimension (WxDxH): 520 x 450 x 750 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 265 g

Power and Consumption

Energy Consumption: 3.47 kWh/24h
Temperature Range: +3 to +8 °C
Annual Energy Consumption: 1267 kWh/year m³
Input Power: 290 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: +3 to +8 °C
Gross / Net Weight: 38 / 35 kg
Gross / Net Volume: 34.5 / 34.5 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD VL334 Juice Dispensers then please get in touch.
