TEFCOLD VL223 Juice Dispensers

£814.00

+vat

Brand:

SKU: 18700

Energy Arrow

Product summary

  • Fully automatic
  • Adjustable feet
  • Paddle system agitation
  • Suitable for juice containing fruit pulp
  • Not suitable for milk, slush or ice cream smoothies

Product description

Promek are an Italian based manufacturer of juice dispensers making some of the best units on the market. The VL range offers single, double or triple tank dispensers to suit all requirements. Switchable paddle stirrers help keep the product at an even temperature and the large bowl size holds up to 11.5 litres of juice. The unit is designed so it can be cleaned easily, the tap is quick and simple to remove and disassemble for cleaning while the drip trays can easily be removed. We can also supply 60Hz versions of this unit (on request) for placement on ships or offshore developments where regular mains current is not available.

The TEFCOLD VL223 is a stainless steel juice dispenser for +3 to +8 °C chilled drinks service, using automatic off-cycle defrost and R290 refrigerant.

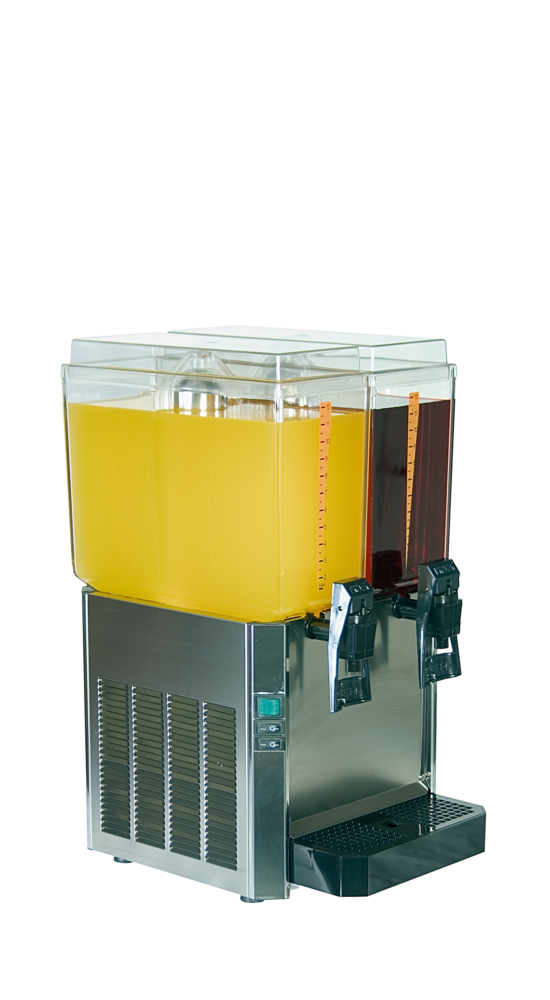

TEFCOLD VL223 Juice Dispensers

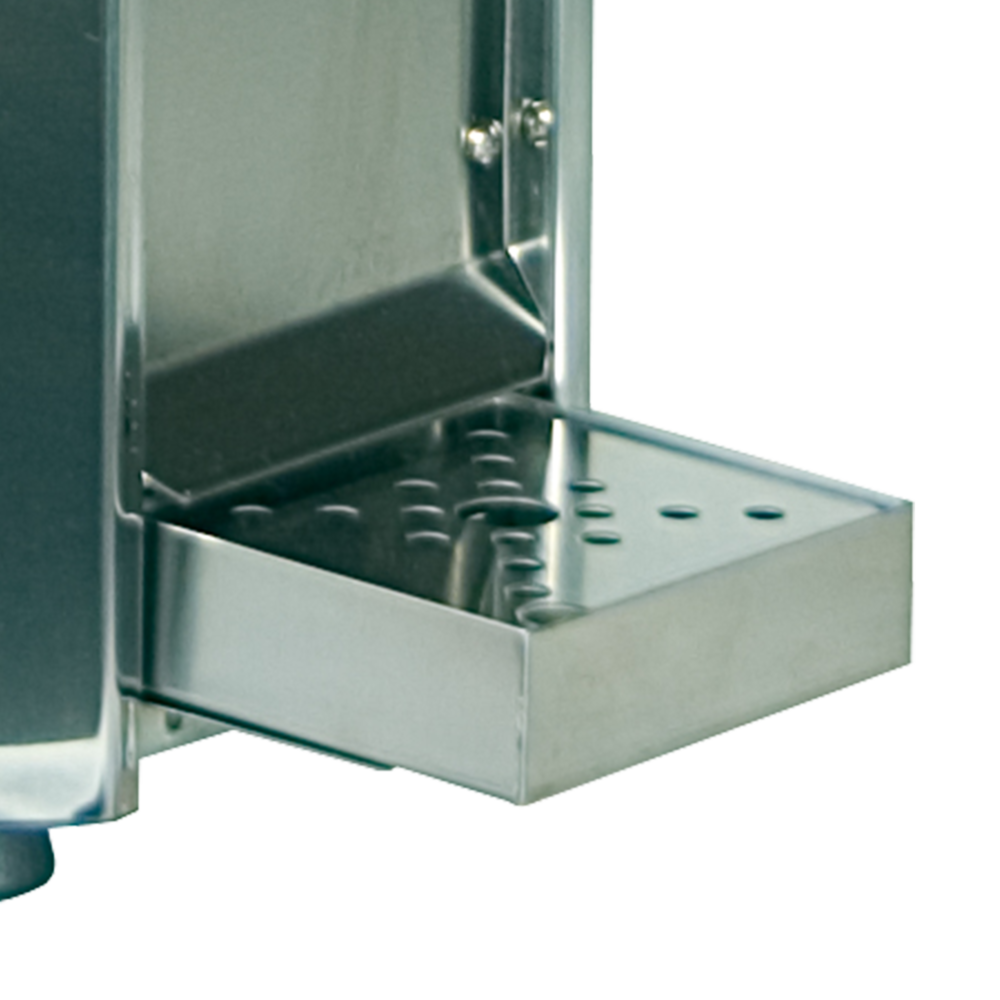

TEFCOLD VL223 Juice Dispensers - Image 2

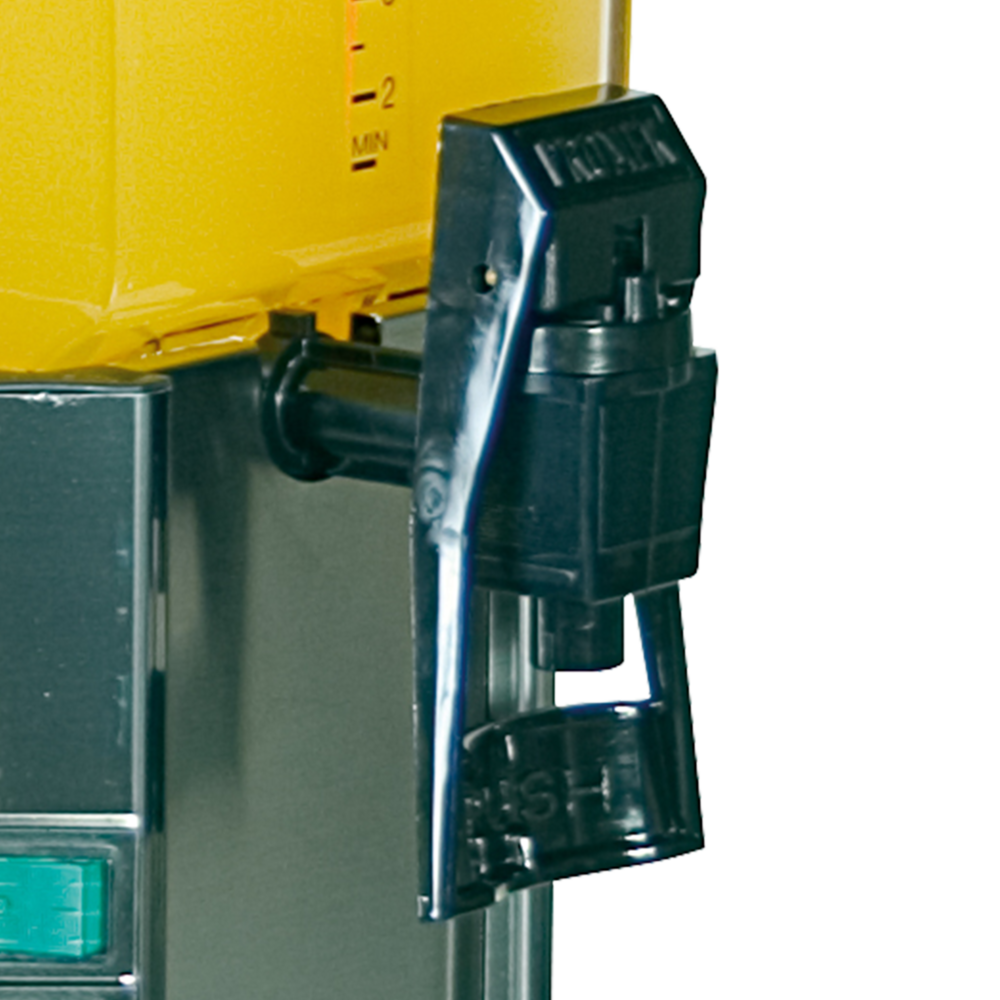

TEFCOLD VL223 Juice Dispensers - Image 3

Downloads

Data Sheet
SPECIFICATION 30 facts · tap for all External W × D × H335 x 460 x 670 mmWidth335 mmDepth460 mmGross / net weight33 / 28 kgGross weight33 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents1

Data sheetPDF ›

Identity5

Brand TEFCOLDsite
GTIN / EAN 5708181602765site
Product code 18700site
Type Juice Dispenserscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 460 mmsite
External (W×D×H) 335 × 460 × 670 mmcatalogue
External W × D × H 335 x 460 x 670 mmsite
Gross / net weight 33 / 28 kgsite
Gross weight 33 kgcatalogue
Height 670 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 360 × 450 × 750 mmcatalogue
Packed W × D × H 360 x 450 x 750 mmsite
Width 335 mmsite

Capacity1

Gross volume 23 litrescatalogue

Performance7

Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 240 gsite
Temperature range +3 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 639 kWh/yearsite
Energy consumption 1.75 kWh/24hsite
Input power 170 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this juice dispenser earns its place

The TEFCOLD VL223 is a juice dispenser for chilled drinks service in cafés, takeaways and similar counters. Its verified finish is stainless steel, and the confirmed operating temperature range is +3 to +8 °C.

In use, the VL223 has automatic off-cycle defrost and a verified 54 dB noise rating. The annual energy figure is 638.8 kWh, about £160 a year at 25p/kWh, with 170 W input power.

For technical planning, the dispenser runs on 220-240/50 voltage and uses R290 refrigerant with a 240 g charge. Gross weight is 33 kg and net weight is 28 kg, so check counter support and handling access.

BEFORE YOU BUY

Questions, answered straight

The VL223 is verified for +3 to +8 °C chilled operation. Use that range when deciding whether it suits the drinks you plan to serve.

Verified annual energy use is 638.8 kWh. At 25p/kWh, that is about £160 a year before any site-specific tariff changes.

The verified noise rating is 54 dB. That figure helps when deciding whether to place it front-of-house or in a tighter service area.

The verified defrost type is automatic off-cycle defrost. Routine cleaning still needs to be built into the site's hygiene schedule.

The VL223 uses R290 refrigerant with a verified 240 g charge. For siting or service questions, Craven Cooling can advise on 01792 732702.

The verified gross weight is 33 kg and the net weight is 28 kg. Use those figures when checking handling, counter support and access.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 335 x 460 x 670 mm
Packed Dimension (WxDxH): 360 x 450 x 750 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 240 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.75 kWh/24h
Temperature Range: +3 to +8 °C
Annual Energy Consumption: 639 kWh/year m³
Input Power: 170 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: +3 to +8 °C
Gross / Net Weight: 33 / 28 kg
Gross / Net Volume: 23 / 2.3 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD VL223 Juice Dispensers then please get in touch.
