TEFCOLD VL112 Juice Dispensers

£685.00

+vat

Brand:

SKU: 18698

Energy Arrow

Product summary

  • Fully automatic
  • Adjustable feet
  • Paddle system agitation
  • Suitable for juice containing fruit pulp
  • Not suitable for milk, slush or ice cream smoothies

Product description

Promek are an Italian based manufacturer of juice dispensers making some of the best units on the market. The VL range offers single, double or triple tank dispensers to suit all requirements. Switchable paddle stirrers help keep the product at an even temperature and the large bowl size holds up to 11.5 litres of juice. The unit is designed so it can be cleaned easily, the tap is quick and simple to remove and disassemble for cleaning while the drip trays can easily be removed. We can also supply 60Hz versions of this unit (on request) for placement on ships or offshore developments where regular mains current is not available.

The TEFCOLD VL112 is a stainless steel juice dispenser with 11.5 litres gross volume, holding drinks at +3 to +8 °C on R290 refrigerant.

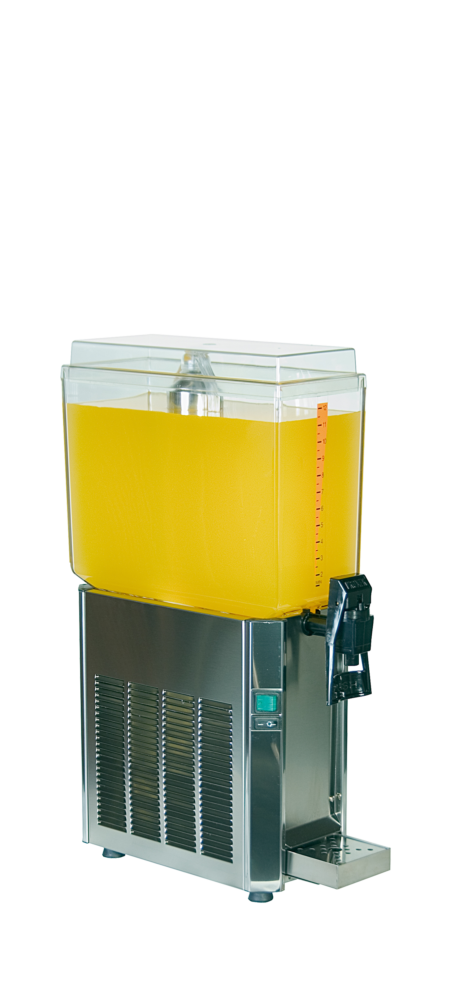

TEFCOLD VL112 Juice Dispensers

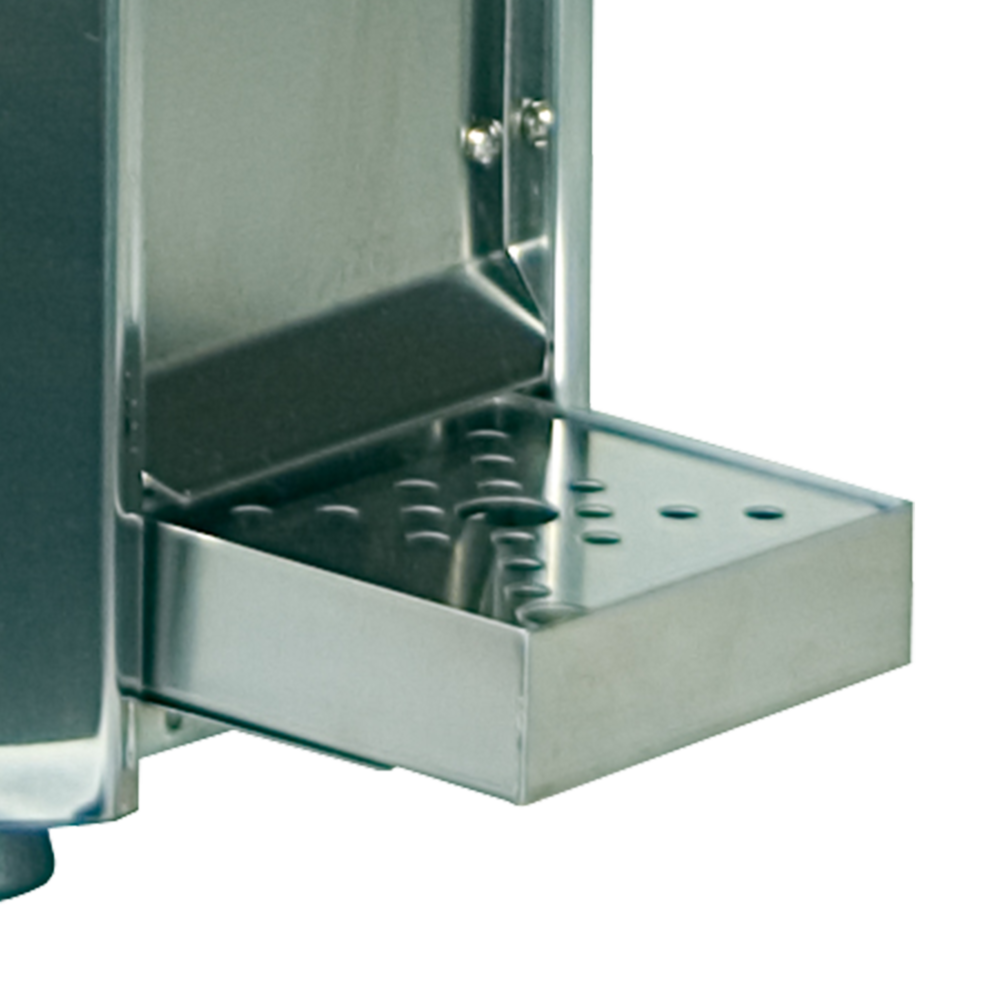

TEFCOLD VL112 Juice Dispensers - Image 2

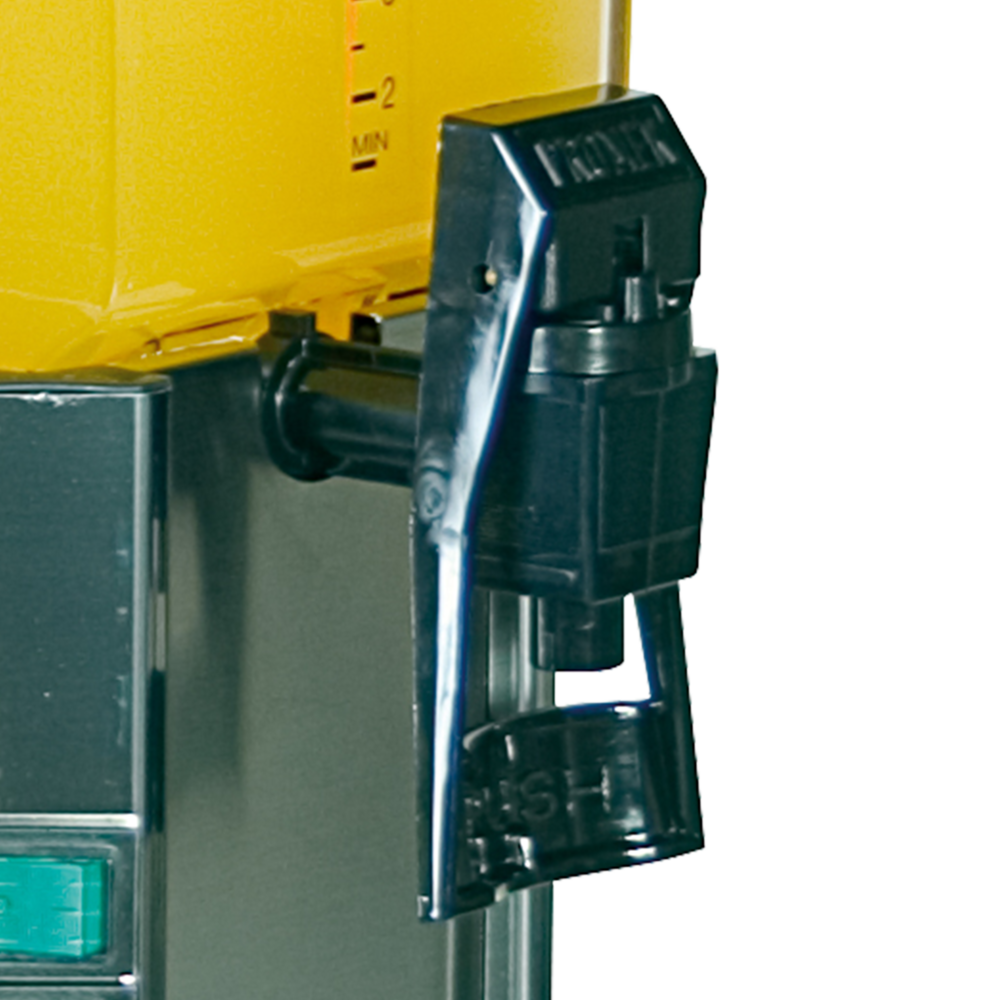

TEFCOLD VL112 Juice Dispensers - Image 3

Downloads

Data Sheet
SPECIFICATION 30 facts · tap for all External W × D × H180 x 460 x 670 mmWidth180 mmDepth460 mmGross / net weight22 / 19 kgGross weight22 kgVoltage / frequency220-240/50 V/Hz

Manufacturer documents1

Data sheetPDF ›

Identity5

Brand TEFCOLDsite
GTIN / EAN 5708181602741site
Product code 18698site
Type Juice Dispenserscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

Depth 460 mmsite
External (W×D×H) 180 × 460 × 670 mmcatalogue
External W × D × H 180 x 460 x 670 mmsite
Gross / net weight 22 / 19 kgsite
Gross weight 22 kgcatalogue
Height 670 mmsite
Internal W × D × H mmsite
Packed (W×D×H) 210 × 450 × 740 mmcatalogue
Packed W × D × H 210 x 450 x 740 mmsite
Width 180 mmsite

Capacity1

Gross volume 11.5 litrescatalogue

Performance7

Defrost type Automatic / Off Cyclesite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 105 gsite
Temperature range +3 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 580 kWh/yearsite
Energy consumption 1.59 kWh/24hsite
Input power 130 Wsite
Noise level 54 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings1

Exterior finish Stainless steelsite
THE WORKING VIEW

Why this juice dispenser earns its place

The TEFCOLD VL112 is a juice dispenser for chilled drinks service where 11.5 litres gross volume is enough. The confirmed gross volume is 11.5 litres, with a stainless steel exterior and a +3 to +8 °C operating range.

For day-to-day operation, the VL112 uses automatic off-cycle defrost and has a verified 54 dB noise rating. Energy use is 580.4 kWh a year, about £145 a year at 25p/kWh, with 130 W input power.

Installation planning is based on a 13 A supply and 220-240/50 voltage. The unit uses R290 refrigerant with a 105 g charge, and the verified weights are 22 kg gross and 19 kg net.

BEFORE YOU BUY

Questions, answered straight

The verified gross volume is 11.5 litres. Treat that as the confirmed capacity figure and avoid relying on unverified alternatives.

The VL112 is verified for +3 to +8 °C operation. That range is for chilled drinks service, not freezing or hot holding.

The verified energy use is 580.4 kWh a year. At 25p/kWh, that is about £145 a year before tariff and usage differences.

The VL112 is verified for a 13 A supply and 220-240/50 voltage. Confirm socket position and cable routing before final siting.

The dispenser uses R290 refrigerant with a verified 105 g charge. Keep that information available for commissioning and future service visits.

Craven Cooling can help with cleaning routines, counter position and service access. Call 01792 732702 before ordering if any site detail is uncertain.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): mm
External Dimension (WxDxH): 180 x 460 x 670 mm
Packed Dimension (WxDxH): 210 x 450 x 740 mm

Cooling and Functions

Type of Defrost: Automatic / Off Cycle
Refrigerant: R290
Refrigerant Charge: 105 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.59 kWh/24h
Temperature Range: +3 to +8 °C
Annual Energy Consumption: 580 kWh/year m³
Input Power: 130 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 54 dB(A)

Measures and Content

Temperature Range: +3 to +8 °C
Gross / Net Weight: 22 / 19 kg
Gross / Net Volume: 11.5 / 11.5 l
Max Ambient: +25°C, 60% RH

Design and Material

Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD VL112 Juice Dispensers then please get in touch.
