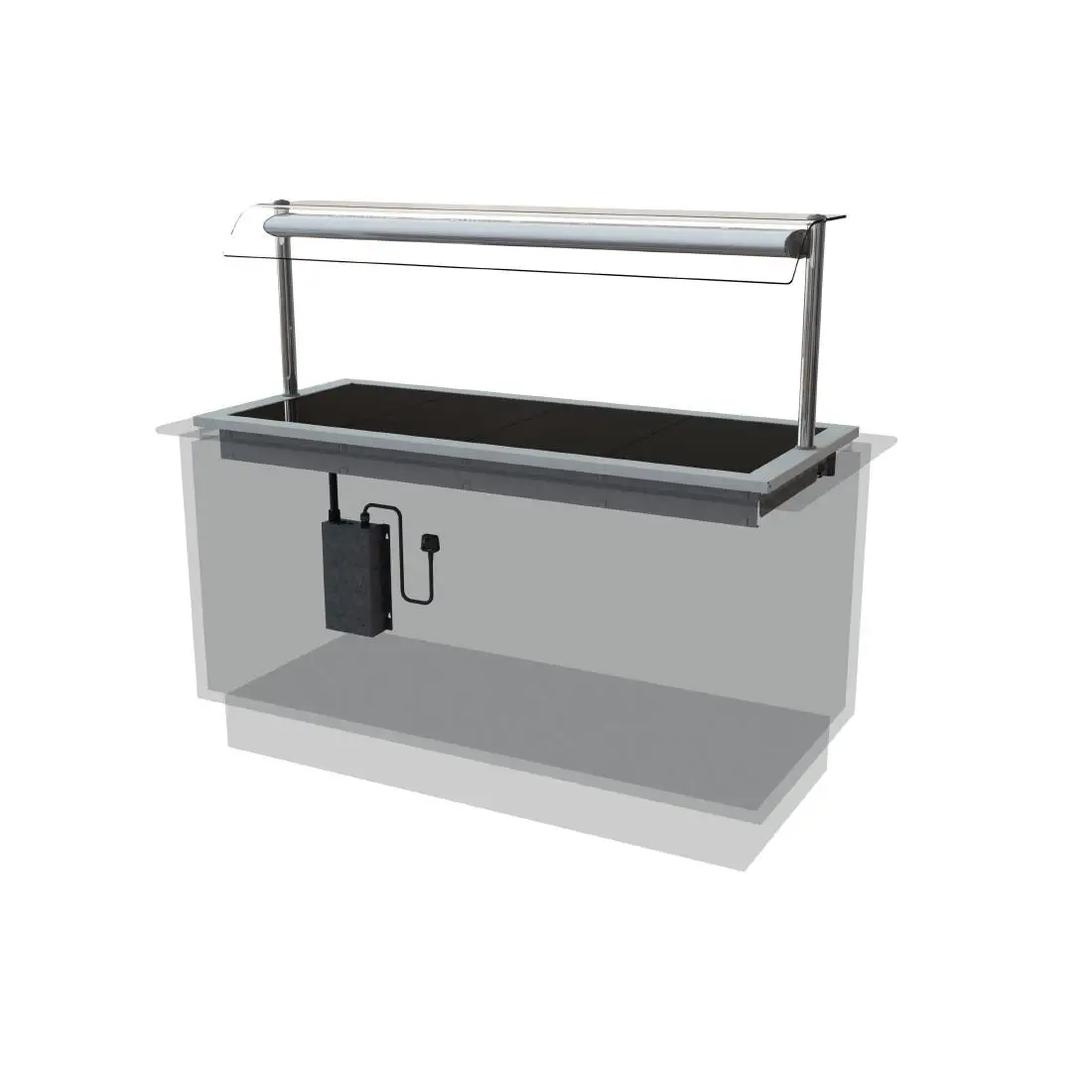

CED Designline Drop In Ceran Glass Hotplate HP4 CW619

£2,878.49

+vat

Availability: 999 in stock

Brand:

SKU: CW619

Product summary

Capacity: 4x 1/1 GN | Self service | Width: 1525mm

Product description

Display, illuminate, heat and protect pre-cooked food with CED’s elliptically shaped Designline self help ceran glass hotplate drop in display. This 4/1 Gn size hot display features a 4/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN’s Sold Separatley.

Presentation area heated evenly from underneath by individual heater mat elements
Gantry-mounted digital temperature display is easy to monitor
Simple base heat control panel and top heat control by dimmer switch
Smart curved display in bright polished steel with aluminium profile
Curved glass profile complements other Designline units
24-hour operation as standard
Supplied with lifting kit for installation
Comes with concealed control box and UK 3-pin plug top on a 2m lead
Infrared quartz heat lamps provide surface heat and illumination to each 1/1GN area
Gantry fitted with curved toughened sneeze screen glass for food protection
Lamps within the gantry showcase food displays

The CED Designline HP4 CW619 is a drop-in Ceran glass hotplate for self-service counters, with verified capacity for 4x 1/1 GN positions.

Downloads

SPECIFICATION 19 facts · tap for all Width1525 mmDepth660 mmHeight535 mmGross weight64 kgVoltage230VTemperature range+85 to +110 °C

Identity5

Brand Designlinesite
Product code CW619site
Seo name Designline Drop In Ceran Glass Hotplatecatalogue
Type Hot Platescatalogue
Warranty 1 Yearcatalogue

Size & weight5

Depth 660 mmcatalogue
External (W×D×H) 535 × 1525 × 660 mmcatalogue
Gross weight 64 kgcatalogue
Height 535 mmcatalogue
Width 1525 mmsite

Capacity2

Capacity 4 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue

Performance1

Temperature range +85 to +110 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 2600 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Colour code Chromecatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this hot plate earns its place

The CED Designline HP4 CW619 is a drop-in Ceran glass hotplate for self-service food presentation, with verified capacity for 4x 1/1 GN positions. It is built for counters where customers can see and select hot dishes directly from the display.

That format suits counters that need multiple hot dishes presented in a defined, customer-facing section rather than a single-pan display. The verified pan count helps buyers plan dish choice, replenishment and service layout, since four gastronorm positions give enough separation to keep different dishes apart while still fitting a compact self-service run. Standard GN sizing also means pans and inserts used elsewhere in the kitchen carry straight across to the display, simplifying stock rotation through service.

Because this is a drop-in unit rather than a freestanding appliance, plan it into the counter build rather than adding it afterwards. The verified 4x 1/1 GN capacity and self-service format are the figures to design the counter run around, but the exact width, heated holding specification, electrical connection and installation requirements should be confirmed against the current supplier specification before ordering.

BEFORE YOU BUY

Questions, answered straight

The verified capacity is 4x 1/1 GN positions. Use that count when planning the number of hot dishes on display.

Yes. The verified description lists this model as self service, so it is suited to customer-facing counter presentation.

The verified facts confirm 4x 1/1 GN capacity and self-service format only. Check the exact width against the current supplier specification before finalising the counter opening.

The self-service format and 4x 1/1 GN capacity can suit buffet-style layouts. Confirm the final holding specification for the food you plan to serve.

The verified copy covers capacity, service style and width. Electrical connection, holding performance and installation details should be confirmed before ordering.

Yes. Share the counter details and service plan, or call 01792 732702, and Craven Cooling can help check suitability.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Designline Drop In Ceran Glass Hotplate HP4 CW619 Product Data

Brand Designline
Type Hot Plates
Dimensions 535(H) x 1525(W) x 660(D)mm
Capacity 4 x 1/1 GN
Colour / Finish Silver
Temperature Range 85°C to 110°C
Power 2.6kW, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 64kg
Manufacturer Ref HP4
If you have any questions about the CED Designline Drop In Ceran Glass Hotplate HP4 CW619 then please get in touch.
