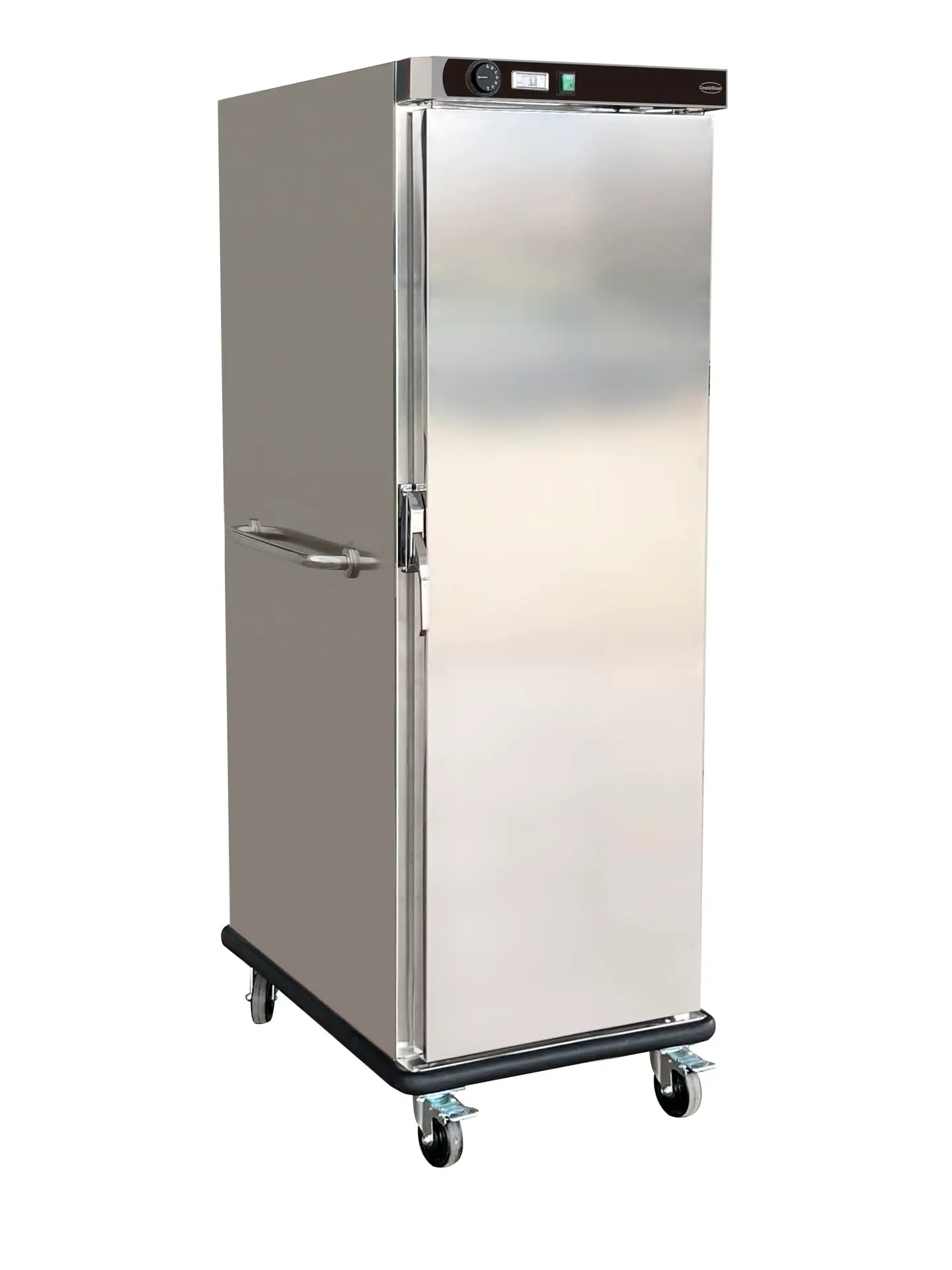

CombiSteel Banquet Trolley Heated 17x 1/1GN 7450.0900

£716.38

+vat

- +

SKU: 7450.09

Product summary

Size W/D/H (mm) 515 x 780 x 1763

Product description

Downloads

SPECIFICATION 29 facts · tap for all Width515 mmDepth780 mmHeight1763 mmGross / net weight99 kgGross weight85 kgVoltage / frequency23050

Identity2

Brand CombiSteelcatalogue
Type Banqueting Trolleyscatalogue

Size & weight8

Depth 780 mmsite
External (W×D×H) 515 × 780 × 1763 mmcatalogue
Gross / net weight 99 kgsite
Gross weight 85 kgcatalogue
Height 1763 mmsite

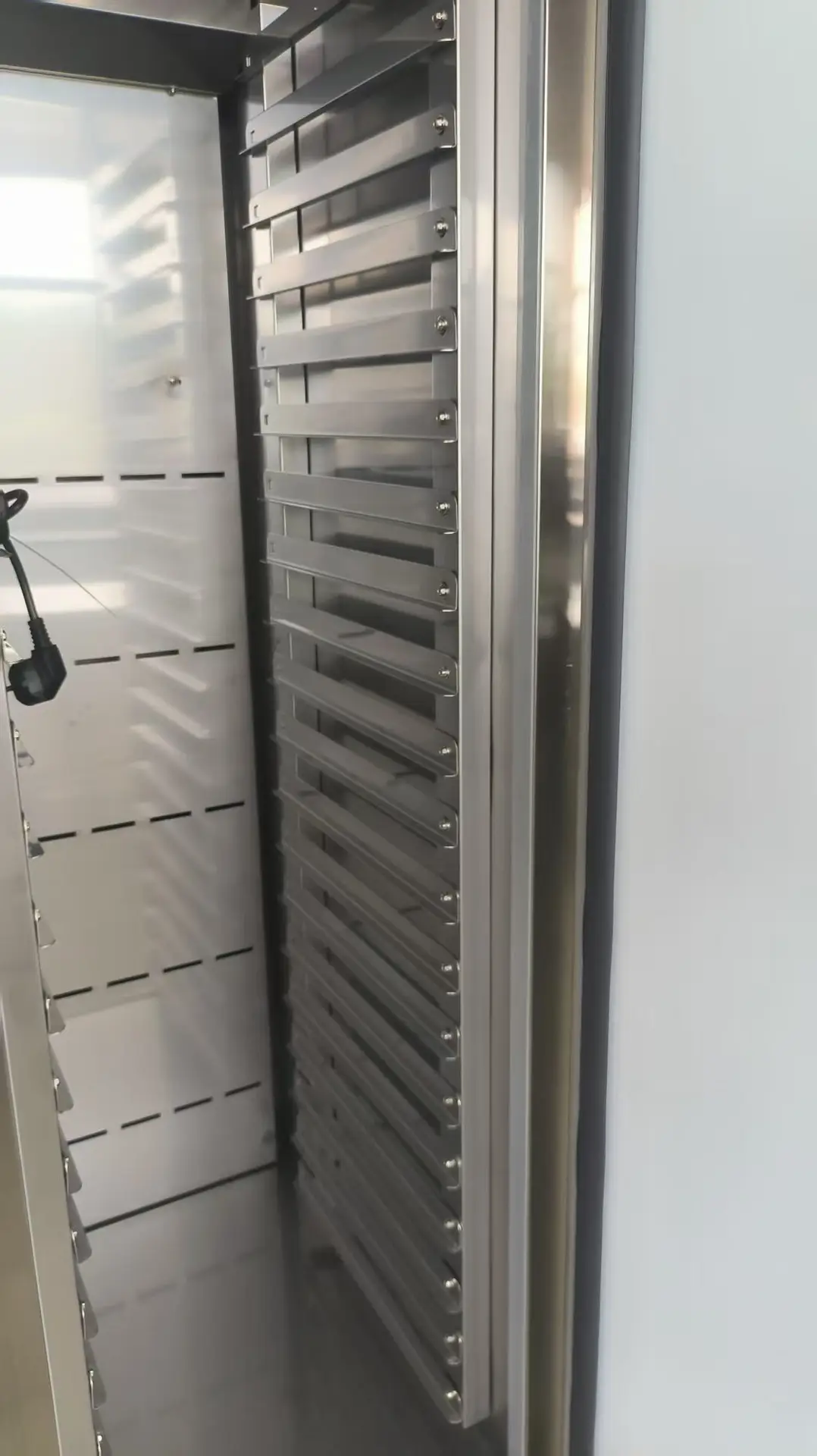

Internal (W×D×H) 395 × 650 × 1430 mmcatalogue
Internal W × D × H 395x650x1430site
Width 515 mmsite

Capacity4

Capacity 290 Ltrcatalogue
Doors 1catalogue
Gastronorm size 17x 1/1GNcatalogue
Gross volume 290 litrescatalogue

Performance1

Temperature range +30/+90site

Power & energy6

Energy consumption 0,8site
Frequency 50 Hzcatalogue
Rated input 800 Wcatalogue
Rated power 0.8 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Colour Stainless steelcatalogue
Exterior finish Stainless steel Aisi 304site
Insulation 60 mmcatalogue
Interior finish Stainless steel 304site
Interior light Nosite
Lock Yessite
Temperature display Yes, digitalcatalogue

Other stated facts1

Energy (24h) 15.36 kWh/24hcatalogue
THE WORKING VIEW

Why this banqueting trolley earns its place

A heated banqueting trolley is the answer when you need to move hot food without stopping to serve it. The Combisteel trolley holds 17 × 1/1 GN pans (the industry standard for buffet and banquet trays), keeping them at +30 to +90 °C as you roll from prep kitchen to the dining room. At 515 mm wide, 780 mm deep and 1763 mm tall, it is tall and narrow — built to roll between tables and through kitchen doors without wasting floor space. The gross volume is 290 litres, which is enough for a full buffet or course service without needing a second trolley.

Built in AISI 304 stainless steel (food-safe and hard-wearing), the trolley sits on lockable castors so it stays put when you stop to serve, then rolls freely when you need to move. Gross weight is 99 kg, which is substantial enough to hold full GN pans of hot food without tipping, but the castors are rated to handle it. Inside dimensions are 395 × 650 × 1430 mm, which fits the 17 GN pans in the standard configuration.

Power demand is 800 W at 230 V — much lower than a static cupboard because this is designed to hold temperature during a service, not to heat from cold. The locked castors keep it stable during plating, and the mobility means you can stage the whole course in the kitchen, roll it to the dining area, and serve directly.

BEFORE YOU BUY

Questions, answered straight

17 × 1/1 GN pans (full-size Gastronorm), which is the standard banqueting load. At 290 litres gross capacity, this covers a complete course for 50–100 guests depending on pan depth and portion size.

Yes — lockable castors let you roll it freely when moving, then lock it solid when plating or serving. The 99 kg loaded weight is stable even on uneven event floors.

+30 to +90 °C, covering gentle warming through to regulated hot-holding. Your event protocol or HACCP plan will set your minimum for the food type.

Yes. At 515 mm wide and 780 mm deep, it is designed to roll through standard kitchen and event doors. The tall (1763 mm) narrow footprint fits where wider equipment would not.

800 W at 230 V, which is much lower than a static cupboard — just enough to maintain temperature during service, not to heat from cold.

Call Craven Cooling on 01792 732702 — we can arrange servicing, repair of castors or temperature checks for your banqueting trolley.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Banquet Trolley Heated 17x 1/1GN 7450.0900 Product Data

Brand CombiSteel
Dimensions (W×D×H) 515 × 780 × 1763 mm
Interior Dimensions 395x650x1430
Capacity 290 Ltr
GN Capacity 17x 1/1GN
Material Stainless steel Aisi 304
Interior Material Stainless steel 304
Colour / Finish Stainless steel
Temperature Range +30/+90
Number of Doors 1
Electrical Power 0.8 kW
Energy Use 15.36 kWh/24h
Voltage 230V / 50Hz
Installation Freestanding
Mobile Yes
Lockable Yes
Insulation 60 mm
Weight 85 kg
If you have any questions about the CombiSteel Banquet Trolley Heated 17x 1/1GN 7450.0900 then please get in touch.
