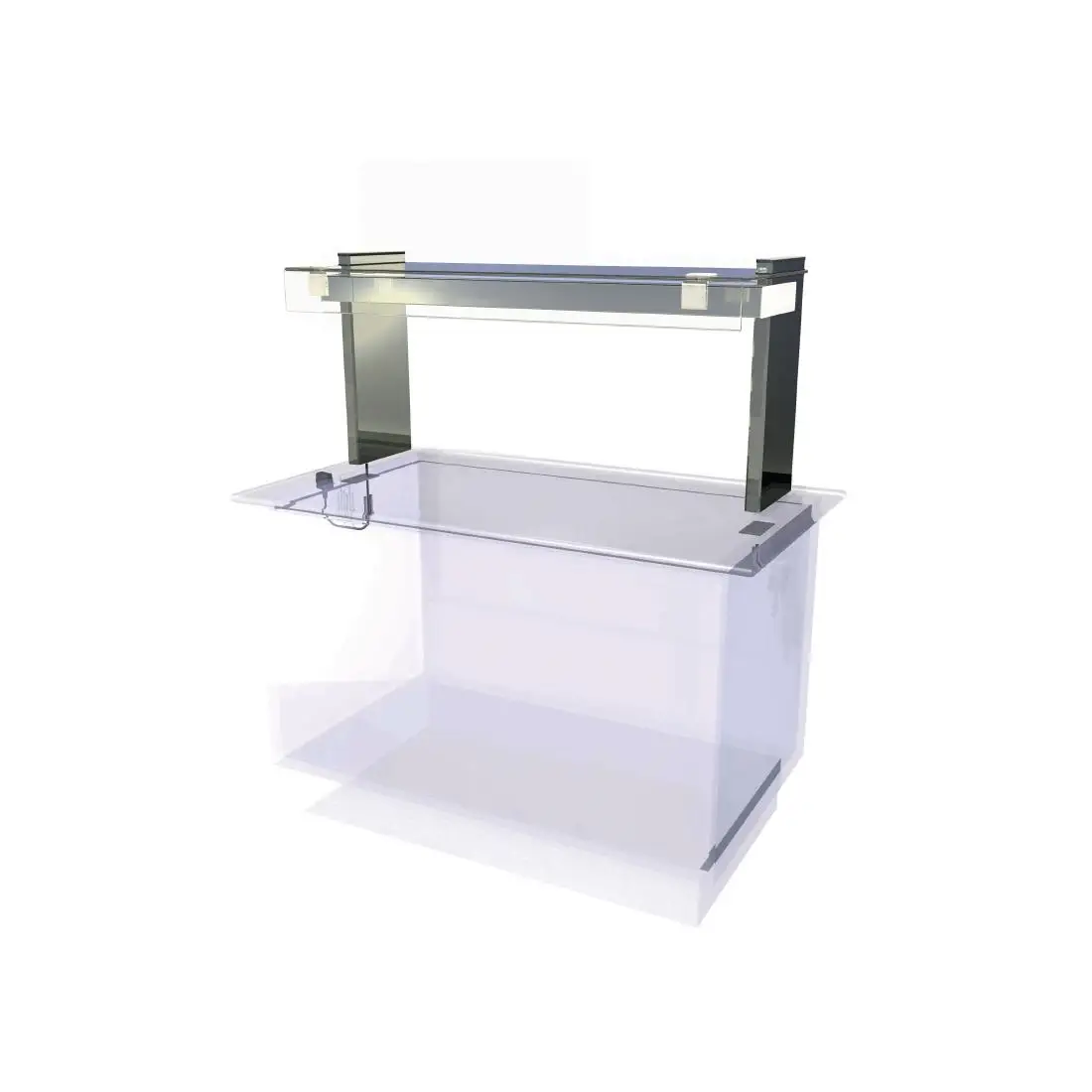

CED Kubus Drop In Ambient Display KAG4 CW622

£786.59

+vat

Availability: 999 in stock

Brand:

SKU: CW622

Product summary

Capacity: 4x 1/1 GN. Self Service. 1500mm Wide

Product description

Illuminate and protect countertop displayed ambient food and drink with CED’s rectangular shaped Kubus self help ambient gantry. The 4/1 GN display is suitable for self service, 1500mm long and worktop mounted. The polished aluminium / steel construction gantry is fitted with a flat glass sneeze screen, diffused lighting and includes post fixing plates and bolts. The light switch is conveniently housed at the end of the gantry. GN’s Sold Separatley.

Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Lighting is controlled from a push button switch on gantry end plate
Supplied with post fixing plates, bolts, 2m lead & plug top
Flat glass profile is designed to complement other units within the Kubus range
Drink display examples: Racked wine, impulse drinks (still and carbonated), bottled, canned & cartoned water, UHT dairy, lemonade, wine, beer, lager & fruit juice
Food/ merchandising display examples : Chocolate, confectionary, crisps, snacks, cakes, flowers, menus, wine lists. * Sandwiches, baguettes, rolls & cheese
Gantry fitted with flat toughened glass sneeze screen food protection
Self help application
Product illumination is provided from diffused lighting in a rectangular gantry profile

A compact, countertop ambient display with illumination for four 1/1 GN trays—ideal for bakeries, takeaways, and cafés where visible merchandising drives sales without thermal demand.

Downloads

SPECIFICATION 18 facts · tap for all Width1500 mmDepth474 mmHeight540 mmGross weight22 kgVoltage230VCapacity4x 1/1 GN

Identity5

Brand Kubussite
Product code CW622site
Seo name Kubus Drop In Ambient Displaycatalogue
Type Ambient Displayscatalogue
Warranty 1 Yearcatalogue

Size & weight5

Depth 474 mmcatalogue
External (W×D×H) 540 × 1500 × 474 mmcatalogue
Gross weight 22 kgcatalogue
Height 540 mmcatalogue
Width 1500 mmsite

Capacity2

Capacity 4x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 100 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Colour code Chrome & Blackcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this ambient display earns its place

The Kubus is a straightforward worktop-mounted ambient display gantry designed for self-service operations. It holds four 1/1 gastronorm containers, giving bakeries, cafés, and takeaways the visible merchandising space they need without the power draw or heat of a cooking display. The polished aluminium and steel construction is built to stand the day-to-day rigour of a servery counter. Diffused lighting illuminates the product naturally, and the flat glass sneeze screen keeps the display hygienic while maintaining clear sightlines—no dark tinting, no distortion.

At just 22 kg, it's light enough to install or relocate easily. The 1500 mm width slots into most standard counter runs, and the 100 W power demand is minimal—it plugs into a standard 230 V outlet. Installation is straightforward: post-fixing plates and bolts are included, and the light switch is mounted at the end of the gantry for convenient access. There's no complex wiring required.

The Kubus works well for ambient products: baked goods, pastries, sandwiches, chilled deli items, packaged snacks, and ready-to-eat products that benefit from visibility rather than heat. Gastronorm trays are sold separately, so you can configure capacity and layout to suit your business. It's a dependable workhorse for any kitchen where front-of-house presence matters.

BEFORE YOU BUY

Questions, answered straight

Any ambient (room-temperature) products that benefit from visibility: baked goods, pastries, sandwiches, chilled deli items, packaged snacks, or ready-to-serve food. Gastronorm trays are sold separately.

It's 1500 mm wide and 474 mm deep—a standard servery footprint that fits most counter configurations.

The diffused lighting is designed to illuminate without glare or shadow, bright enough for typical ambient display.

Yes. At 22 kg, it's the lightest display in the range. Installation is just post-fixing to the countertop with the included bolts.

It runs on a standard 230 V plug with 100 W draw—you can relocate it freely within reach of a socket.

1 year parts and labour, with an optional 1-year extension available.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CED Kubus Drop In Ambient Display KAG4 CW622 Product Data

Brand Kubus
Type Ambient Displays
Dimensions 540(H) x 1500(W) x 474(D)mm
Capacity 4x 1/1 GN
Colour / Finish Silver
Power 100W, 230V, 13A
Voltage 230V
Fuel / Supply Plug
Warranty 1 Year
Weight 22kg
Manufacturer Ref KAG4
If you have any questions about the CED Kubus Drop In Ambient Display KAG4 CW622 then please get in touch.
