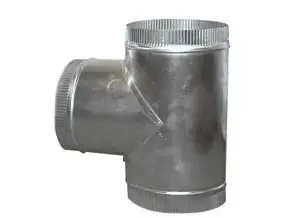

CombiSteel T-piece 90° Complete Ø200mm 7215.0110

£88.00

+vat

SKU: 7215.011

Product summary

Size W/D/H (mm) x x

Product description

A complete 90° T-junction for 200mm round ducting, connecting main extraction runs with branch lines in commercial kitchen ventilation systems.

Downloads

SPECIFICATION 5 facts · tap for all Gross / net weight1 kgBrandCombiSteelGTIN / EAN6017437418487TypeDuctingDiameter200 mm

Identity3

Brand CombiSteelcatalogue
GTIN / EAN 6017437418487catalogue
Type Ductingcatalogue

Size & weight2

Diameter 200 mmcatalogue
Gross / net weight 1 kgsite
THE WORKING VIEW

Why this ducting earns its place

T-pieces are essential connectors in any extraction system where ductwork needs to split or merge—sending air up the main flue while collecting from a side appliance, or routing from multiple sources into a single stack. This 200mm T-piece is the right size for medium-duty commercial kitchens where the main extraction is 200mm diameter and you need to add a branch connection.

A complete T-piece arrives ready to install, unlike a plain tee that still needs sealing tape and fixings. All interior edges are smooth and properly formed to maintain airflow without turbulence or dead zones where grease can collect. The ducting connections are tight and true, so you're not fighting poor fit when assembling the run.

At 1 kg, it's light enough to handle easily but rigid enough to support itself in the ductwork without requiring extra support brackets. It will integrate cleanly into both rigid and semi-rigid extraction runs, making it a flexible choice for kitchen retrofits as well as new installs.

BEFORE YOU BUY

Questions, answered straight

This is a 200mm T-piece designed for 200mm round ducting. All three connections (inlet and two outlets) are 200mm diameter.

Not with this model. For transitioning between 200mm and larger or smaller ducting, you'll need a separate converter piece and then your branch connection—but a T-piece itself won't reduce or increase diameters.

Yes. You can orient it as needed—main run straight through, branch going up or down. The internal shape works equally well in any position.

Yes, like all ductwork connections. Wrap the male connections with silicone duct tape or foil tape before sliding into the female connectors to keep your system airtight. This prevents air leakage and ensures the full extraction capacity reaches the hood.

Access the interior by disconnecting the branch line, then run a brush through to remove grease and dust. Regular HACCP cleaning is easier if you plan the ducting run with access points every 2–3 metres—your extraction engineer can advise where best to position access doors.

Strap it to the joists or purlins with a rubber-lined clip or adjustable duct hanger every 1.5 metres, and never rest the weight on the appliance side of the connection itself. Support the main run separately from the branch to prevent stress where they join.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel T-piece 90° Complete Ø200mm 7215.0110 Product Data

Brand CombiSteel
Diameter 200 mm
Weight 1 kg
If you have any questions about the CombiSteel T-piece 90° Complete Ø200mm 7215.0110 then please get in touch.
