Mono Zmatik Bench Pastry Sheeter 500x500mm Three Phase FG202-B02SHE HT433

£5,107.95

+vat

Availability: 999 in stock

- +

Brand:

SKU: HT433

Product summary

Three Phase

Product description

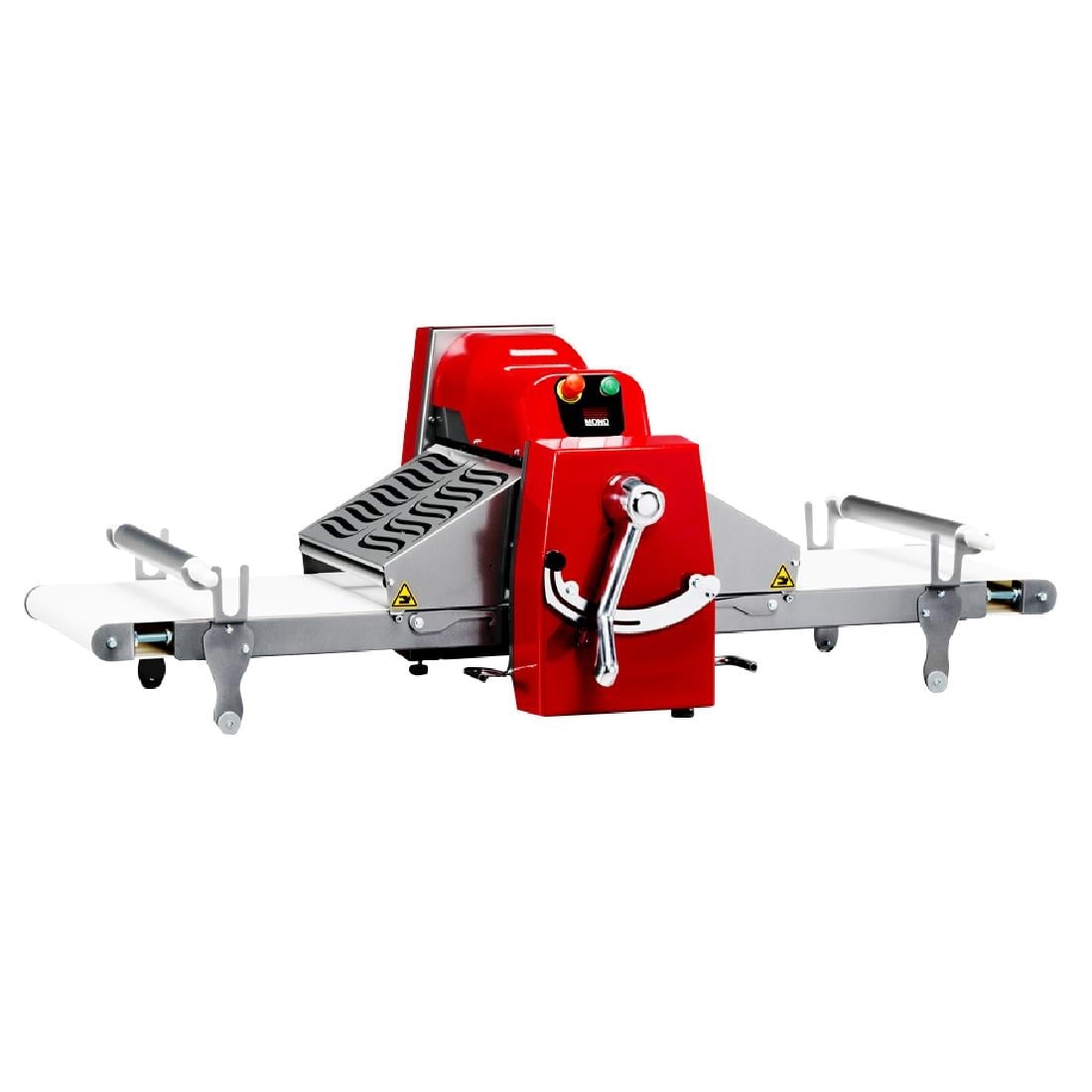

The powerful three phase 500x500mm Mono pastry sheeter is designed to form and sheet a wide range of dough including puff pastry, short crust, croissant and biscuit. Designed for performance, the Mono effortlessly sheets the dough or pastry to the exact thickness required, taking all the time and effort out of the process.

Constructed from hygienic stainless steel, the Mono sheeter is highly durable, and thanks to simple controls, the dough thickness can be quickly and easily changed with the adjustable ergonomic handle. It’s safe to operate too, as the sheeter is fitted with safety guards to conform to the strictest safety requirements. Perfect for hotels, restaurants and bakeries as well as patisserie, cake and confectionery shops.

Please note: this product is made to order and is therefore and non-returnable.

Sheet all types of dough – puffed, croissant, biscuit, doughnut and short crust
Provides total control of product weight, size, height, length and shape
Compact footprint – fits most environments

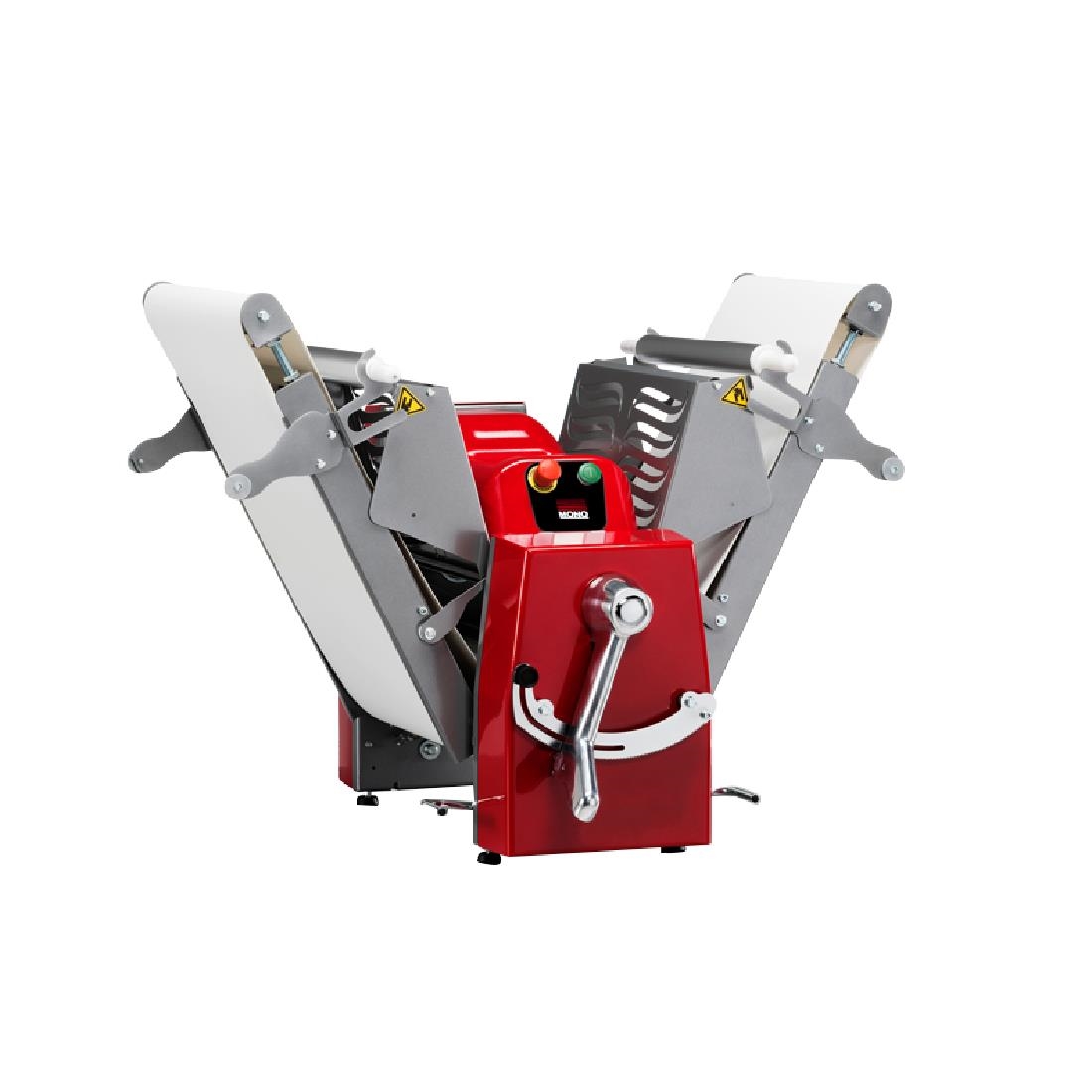

Conveyors can be raised and polyethylene scrapers can be removed for ease of cleaning
Quick and easy one person set up and operation
Please note: this product is made to order. As such, once ordered cannot be cancelled or returned
Hygienic stainless steel construction – quick and easy cleaning
Conveyor width: 500mm
Max dough capacity: 6kg
Input: 17 metres/min
Output: 28 metres/min
Belt length: 1195mm

A bench-mounted pastry sheeter for bakeries and patisseries that sheets dough to exact thickness — 500×500mm roll, three-phase 400V, 550W.

Downloads

SPECIFICATION 15 facts · tap for all Width980 mmHeight650 mmGross weight130 kgVoltage400VMaterialSteelProduct codeHT433

Identity4

Brand Monosite
Product code HT433site
Type Dough Sheeterscatalogue
Warranty 1 Year Parts & Labourcatalogue

Size & weight5

External (W×D×H) 650(H) x 980(W)mmcatalogue
Gross weight 130 kgcatalogue
Height 650 mmcatalogue
Length 1440 mmcatalogue
Width 980 mmsite

Power & energy3

Fuel type Plugcatalogue
Rated input 550 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Redcatalogue
Material Steelcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this dough sheeter earns its place

The Mono Zmatik pastry sheeter removes the labour and inconsistency from dough preparation. Load your dough, set the thickness via the ergonomic handle, and the machine delivers it uniformly — puff pastry, short crust, croissant, biscuit, all handled equally well. It's the tool that lets one baker sheet as much dough as two would by hand, and every sheet comes out the same thickness, session after session.

The 500×500mm roller is a practical size for small to medium bakeries, patisseries and hotel pastry services. The footprint sits neatly on a standard prep bench. Construction is stainless steel throughout, built to clean quickly and withstand the daily rhythm of commercial production. Safety guards are integrated to meet strict safety standards — the sheeter is as safe as its engineering can make it.

This model is three-phase 400V, so it's suited to kitchens where three-phase power is already installed. If your site has a three-phase supply running to other equipment, this sheeter plugs into that infrastructure. The setup is straightforward: one connection, ready to work. Delivered made-to-order, allowing time for manufacture before you need service.

BEFORE YOU BUY

Questions, answered straight

Designed for puff pastry, short crust, croissant dough and biscuit dough. These are the core laminated and enriched doughs. For any speciality formulations outside these categories, call 01792 732702 to confirm fit.

An ergonomic handle adjusts the roller gap to your target thickness — no tools needed, no downtime between batches. Set it and leave it, or adjust between different dough runs depending on your recipe.

The 500×500mm roller gives you a 500mm working width. That suits most small to medium bakery batches. If you're regularly working wider dough, the larger 500×1000mm model is available.

Yes — this model runs on three-phase 400V. If your site doesn't have three-phase supply, the single-phase 230V version (HT432) is available instead. Check with your electrician which is fitted on your site.

Stainless steel construction resists sticking and cleans fast. Safety guards make disassembly straightforward for thorough washing. For HACCP schedules or servicing questions, ring 01792

Made-to-order, so allow manufacture time. Includes 1 year parts and labour warranty on delivery, with extended warranty available. Confirm delivery slot when you place your order.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Mono Zmatik Bench Pastry Sheeter 500x500mm Three Phase FG202-B02SHE HT433 Product Data

Brand Mono
Type Dough Sheeters
Dimensions 650(H) x 980(W)mm
Material Steel
Colour / Finish Red
Power Electric
Voltage 400V
Fuel / Supply Plug
Warranty 1 Year Parts & Labour
Weight 130kg
Manufacturer Ref FG202-B02SHE
If you have any questions about the Mono Zmatik Bench Pastry Sheeter 500x500mm Three Phase FG202-B02SHE HT433 then please get in touch.
