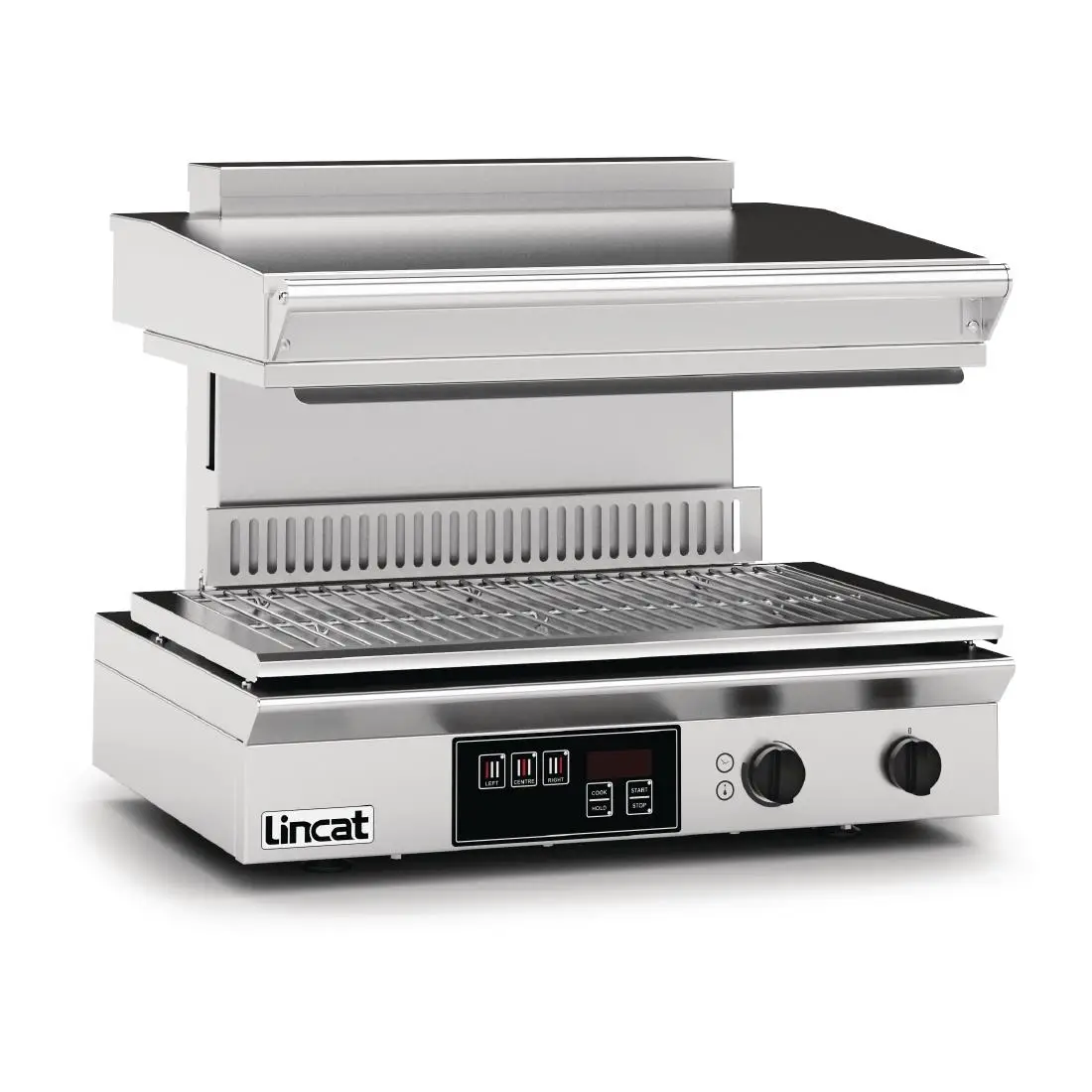

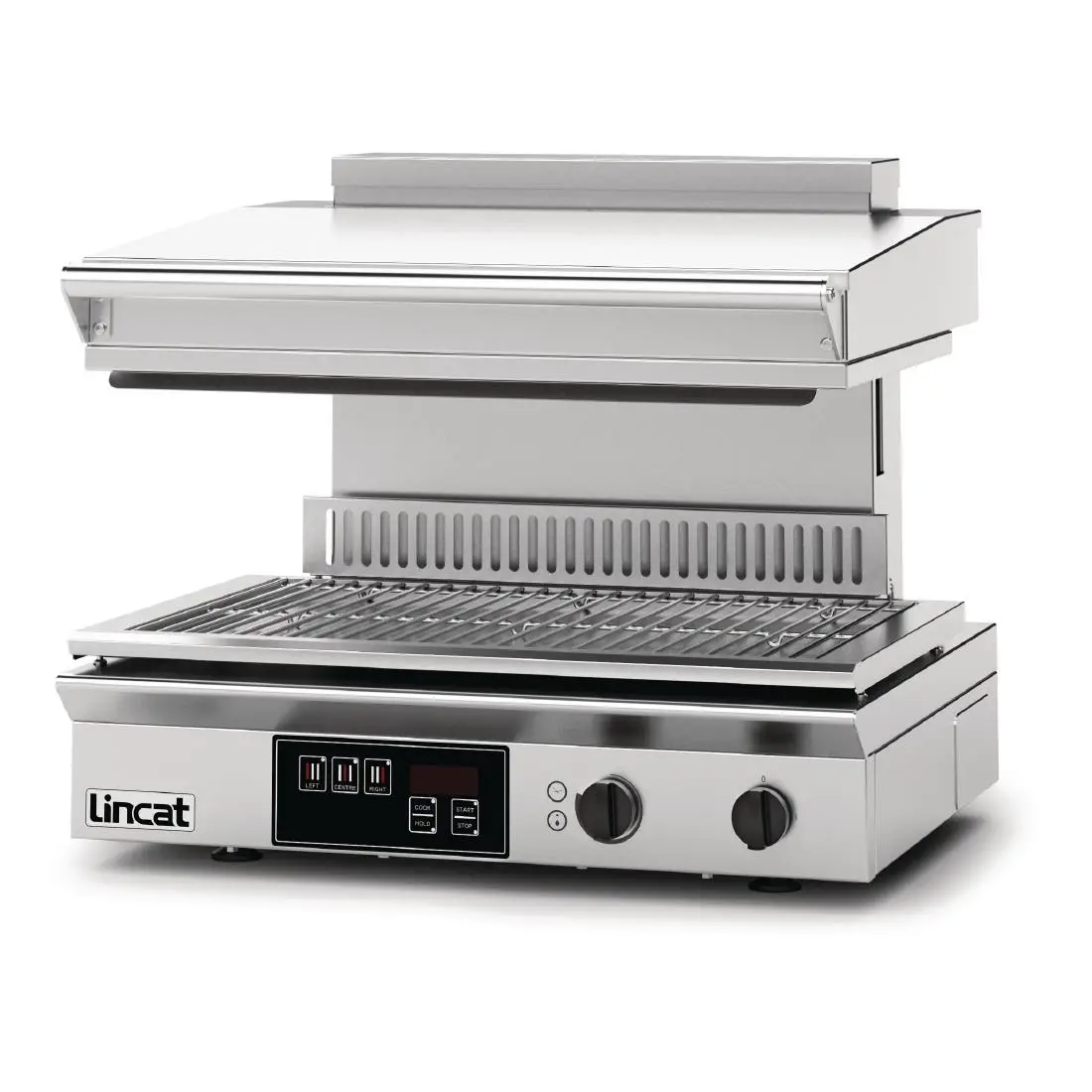

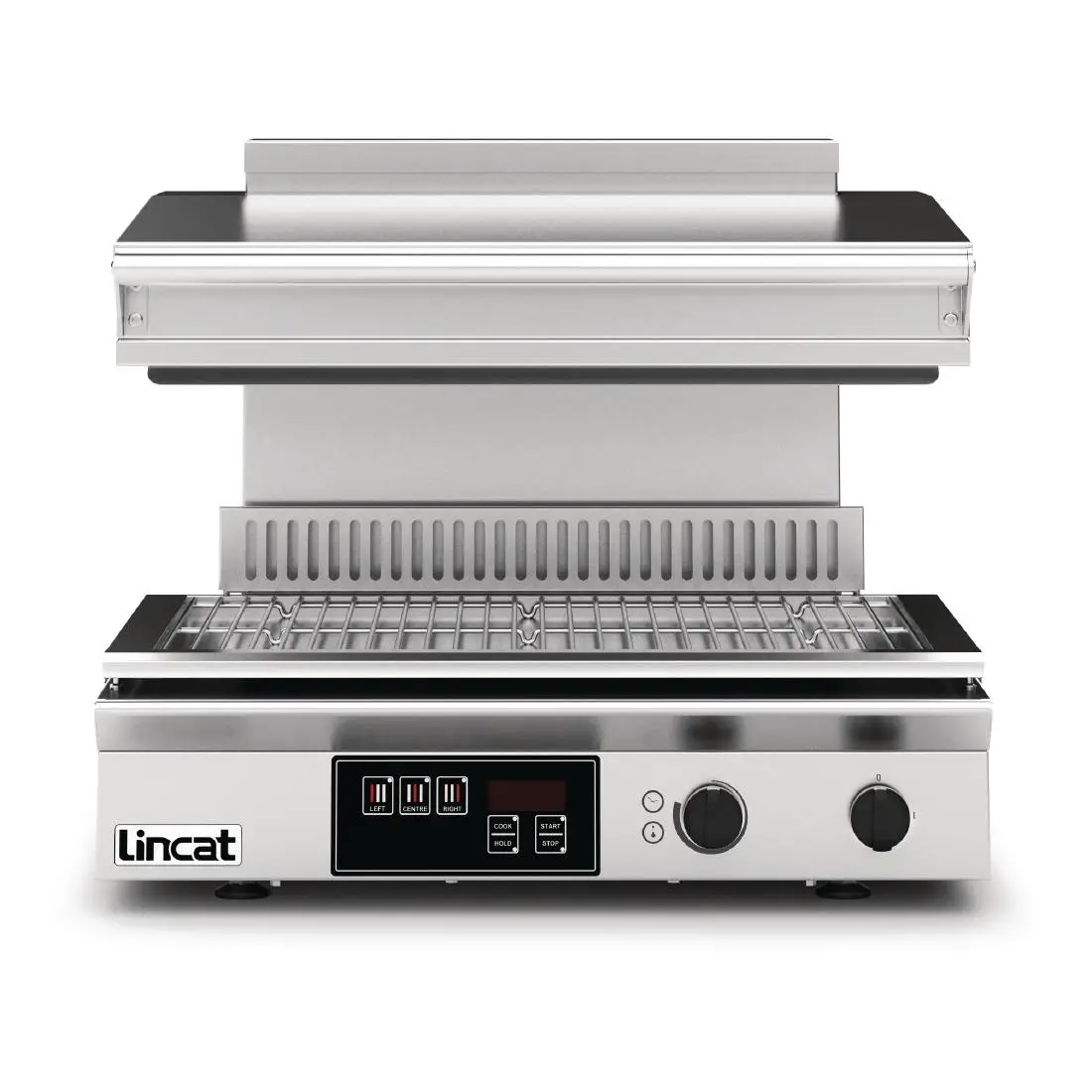

Lincat Opus 800 Salamander Grill OE8306 DM566

£2,643.84

+vat

Availability: 999 in stock

- +

Brand:

SKU: DM566

Product summary

Electric. Power: 4.5kW. Width: 600mm

Product description

The sophisticated Cook & Hold Salamander, heats up in just 8 seconds when the plate detection mechanism is activated by a plate or gastronorm. Once the food is cooked, the intelligent hold function will ensure food is kept warm but does not continue to cook until required for service. Once the plate is removed and the plate detection mechanism freed the elements automatically switch off saving energy.

Infra red radiant Hi-light elements – ready to use in 8 seconds
1/1GN compatible – quickly transfer pans between appliances
Self balancing height adjustable grill allows grill hood to be lowered to optimum height
Suitable for wall or countertop mounting
Can be converted to 230V upon installation if required (installation not included)
Independently controlled left, centre and right heat zones for maximum flexibility
PCB controlled with LED display for time and power
Open on three sides, for easy loading

Downloads

SPECIFICATION 22 facts · tap for all Width600 mmDepth562 mmHeight544 mmGross weight62.5 kgVoltage400VCapacity1 x 1/1 GN

Identity7

Brand Lincatsite
GTIN / EAN 5.05611E+12catalogue
Product code DM566site
Range / series Opuscatalogue
Seo name Lincat Opus 800 Salamander Grillcatalogue
Type Salamander Grillscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 562 mmcatalogue
External (W×D×H) 544 × 600 × 562 mmcatalogue
Gross weight 62.5 kgcatalogue
Height 544 mmcatalogue
Width 600 mmsite

Capacity2

Capacity 1 x 1/1 GNcatalogue
Gastronorm size 1/1 GN fullcatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 4500 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts3

Electrical safety notice Yescatalogue
Output per hour 4.5kWcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this salamander grill earns its place

This Opus 800 salamander grill is built for commercial kitchens that need quick, controlled finishing and holding. It is a stainless steel, silver countertop unit with an external size of 544 x 600 x 562 mm and a listed weight of 62.5 kg.

The key feature here is the cook-and-hold behaviour. Once a plate or gastronorm activates the plate detection mechanism, the grill heats up in just 8 seconds. After cooking, the hold function keeps food warm without continuing to cook it until service needs it.

When the plate is removed and the detection mechanism is freed, the elements switch off automatically to save energy. That makes it a focused, high-control salamander for finishing and holding dishes in service.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 562 × 544 mmstated W × D × H62 kg
THE CRITICAL ANSWERNarrowest straight opening562mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS600 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

The manufacturer states 8 seconds when the plate detection mechanism is activated.

No. The hold function keeps food warm without continuing to cook it.

The elements switch off automatically.

400V three phase.

1/1 GN full.

Craven's servicing team can be reached on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Opus 800 Salamander Grill OE8306 DM566 Product Data

Brand Lincat
Type Salamander Grills
Range Opus
Dimensions 544(H) x 600(W) x 562(D)mm
Capacity 1 x 1/1 GN
Material Stainless Steel
Colour / Finish Silver
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 62.5kg
Manufacturer Ref OE8306
If you have any questions about the Lincat Opus 800 Salamander Grill OE8306 DM566 then please get in touch.
