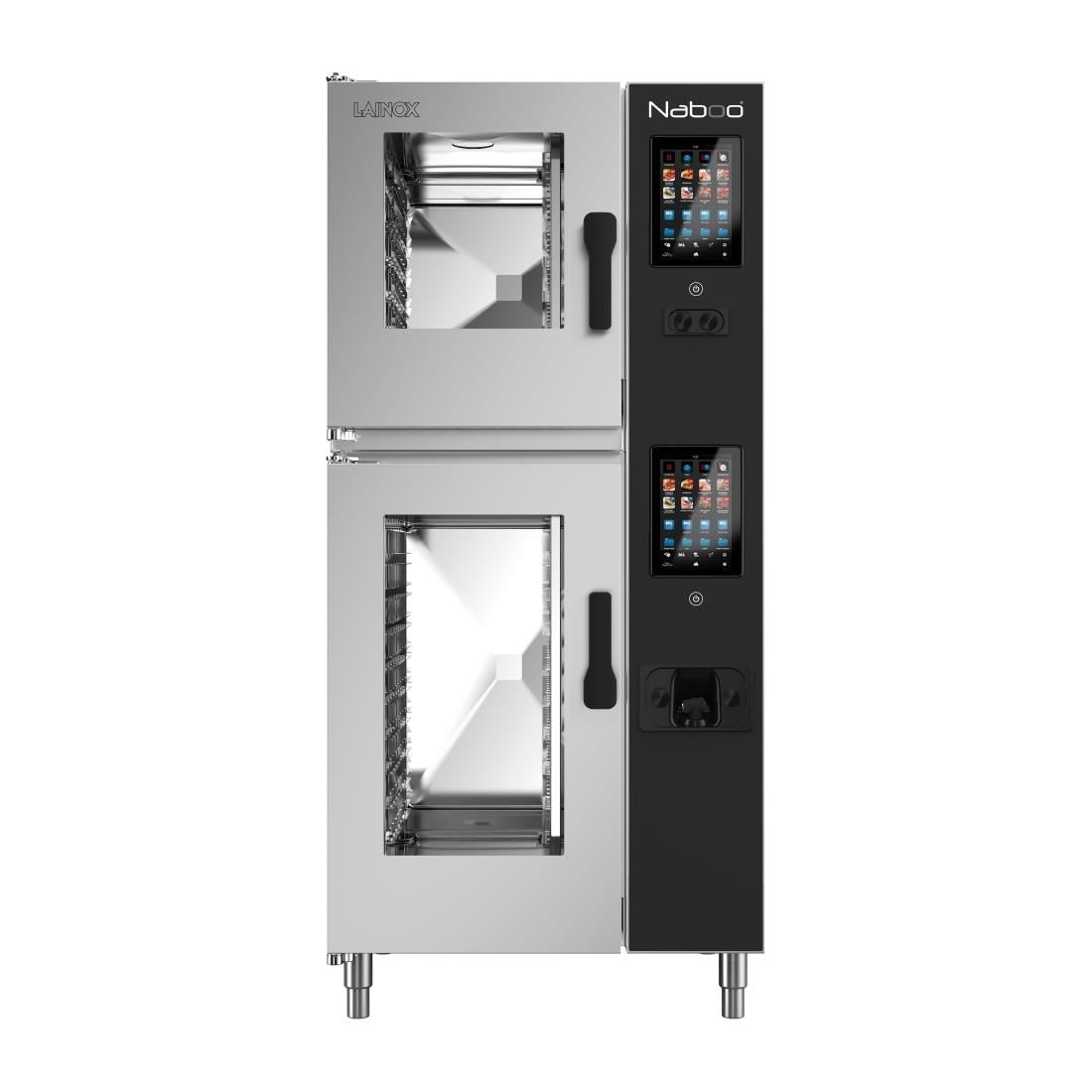

Lainox Naboo Boosted Touch Screen Gas Combi Oven 16x 1/1 GN NAG161BV HP563

£16,168.37

+vat

Availability: 999 in stock

- +

Brand:

SKU: HP563

Product summary

Boilerless

Product description

The NAG161BV gas direct steam combination oven features an NAE061BV 6 shelf combi stacked on top of an NAE101BV 10 shelf model, all in one convenient unit. Each oven has it’s own 10″ full colour touch screen that is easy to use and can be configured to suit every kitchen’s requirements. Popular menu items can be placed onto the home screen so can be started with a single touch, while recipes can be organised in folders, making them easier to access for all users. The three cooking modes – convection, steam and combination – can be accessed directly from the home screen too, making it easy to start cooking quickly. Multilevel cooking enables menu items with different cooking times to be cooked at the same temperature, with the oven’s intelligence able to identify other saved recipes that can also be cooked under these parameters.

Each oven has its own 10″ HD colour touch screen is easy and intuitive to use and can be customised to suit the user’s requirements. Bottom oven control screen is located at a more convenient operator height.
Wifi connectivity as standard allows combi to be managed from anywhere – add / adapt recipes, check HACCP data etc
Comes with conversion kit co can be converted to LPG
Multilevel and Just-in-Time cooking modes allow cooking of multiple items at the same time, with oven alerting when each item is ready or when to put each item into the oven so everything is ready at the same time
Automatic washing system with 7 different programs makes it easy to keep the oven chamber clean
Pre-heat temperature of up to 320°C, reducing recovery time and ensures food cooked at a more consistent cooking temperature

A double-stacked 16-tray gas combi oven with separate 10\” touch screens on each chamber, ideal for kitchens that need two independent cooking zones or simultaneous batch capacity with separate temperature control.

Downloads

SPECIFICATION 18 facts · tap for all Width1030 mmDepth980 mmHeight2040 mmGross weight240 kgVoltage230VMaterialStainless Steel

Identity4

Brand Lainoxsite
Product code HP563site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 980 mmcatalogue
External (W×D×H) 2040 × 1030 × 980 mmcatalogue
Gross weight 240 kgcatalogue
Height 2040 mmcatalogue
Width 1030 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 16catalogue

Performance1

Controller Programmablecatalogue

Power & energy2

Fuel type Single Phasecatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Mobility Feetcatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Lainox Naboo NAG161BV is two professional combi ovens stacked into one footprint—an NAG061BV (six 1/1 GN pans) mounted on top of an NAG101BV (ten 1/1 GN pans), each with its own 10" colour touch screen and independent operation. This architecture solves a real kitchen problem: you need high throughput and flexibility, but single-chamber ovens force compromises. With dual chambers, you run two different temperatures, two different cooking programmes, and two different teams in parallel. One chef on the lower ten-tray chamber roasting proteins while another works the upper six-tray chamber on delicate fish or pastry. No compromise, no waiting, no cross-contamination of cooking profiles.

Both chambers are boilerless with direct steam injection, so you get the speed and low-maintenance advantage across the entire unit. Each chamber independently recognises multilevel cooking—load dishes on shelves within the lower chamber at one temperature, dishes on shelves within the upper chamber at another, and each runs autonomously. The three cooking modes (convection, steam, combination) are accessible from both screens, and recipes save globally, so any dish can be cooked in either chamber by any team member. Recipe folders keep the workflow organised; one-touch shortcuts for popular items sit right on each screen's home page.

Stainless steel construction throughout, weighing 240 kg and standing 2040 mm tall, this double-chamber oven is purpose-built for high-output kitchens that refuse to compromise on control. It runs on natural gas with 230V single-phase electricity, and Lainox backs it with a two-year parts and labour warranty. Where a single-chamber oven forces you to choose between volume and flexibility, the NAG161BV gives you both.

BEFORE YOU BUY

Questions, answered straight

Independence. You can roast at 200°C in the lower chamber while steaming delicate fish at 95°C in the upper chamber, simultaneously and at different batch cycles. If a restaurant runs mains and desserts back-to-back, having two chambers means both brigades prepare without waiting for temperature changes. If you need separation for allergen or dietary control, each chamber gives you that freedom.

Sixteen 1/1 GN pans total—ten in the lower chamber, six in the upper. Yes, both chambers run independently and simultaneously. Load the lower chamber with roast vegetables, start it at 200°C. Load the upper chamber with fish fillets, start it at 160°C. Both cook at their own pace; the oven manages each chamber's humidity and air circulation separately.

Single water supply and drain to the oven unit—the internal plumbing routes to both chambers. You don't need separate water lines. Each chamber has its own direct steam injection system, but they're fed from one water inlet and one drain. Confirm with your installer that the supply location can serve both chambers' demand.

Yes. Each chamber has its own 10" touch screen and can be set independently. One chef programmes the lower chamber for a batch of roast chicken; another starts the upper chamber on pastry items. They work autonomously. The recipes and menus are shared across the unit, so any setup from either screen can be recalled and run from the other chamber.

Boosted models are optimised for busy kitchens, but confirm exact specifications with your installer for your site. Both chambers share the electrical supply, so you're not running double power—it's more efficient than two separate ovens would be. Your site survey will confirm whether you need a dedicated circuit or if you can run it on standard commercial supply. Call 01792 732702 for site-specific guidance.

Both chambers are covered under the same two-year warranty. Servicing is typically straightforward—each chamber's direct steam system benefits from periodic descaling (quarterly, depending on water hardness). A technician can address both in one visit. Book maintenance on your quiet day. Contact our service team on 01792 732702 to set up a schedule.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lainox Naboo Boosted Touch Screen Gas Combi Oven 16x 1/1 GN NAG161BV HP563 Product Data

Brand Lainox
Type Combination Ovens
Dimensions 2040(H) x 1030(W) x 980(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 16
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 240kg
Manufacturer Ref NAG161BV
If you have any questions about the Lainox Naboo Boosted Touch Screen Gas Combi Oven 16x 1/1 GN NAG161BV HP563 then please get in touch.
