Convotherm Maxx Pro 6.10 GB easyDial Disappearing Door Combi Oven JB214

£6,754.87

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB214

Product summary

6kW single phase. Capacity: 6+1 x 1/1 GN. Gas boiler

Product description

The Convotherm Maxx Pro 6.10 GB easyDial combi oven is a superbly reliable 6+1 x 1/1GN capacity countertop combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

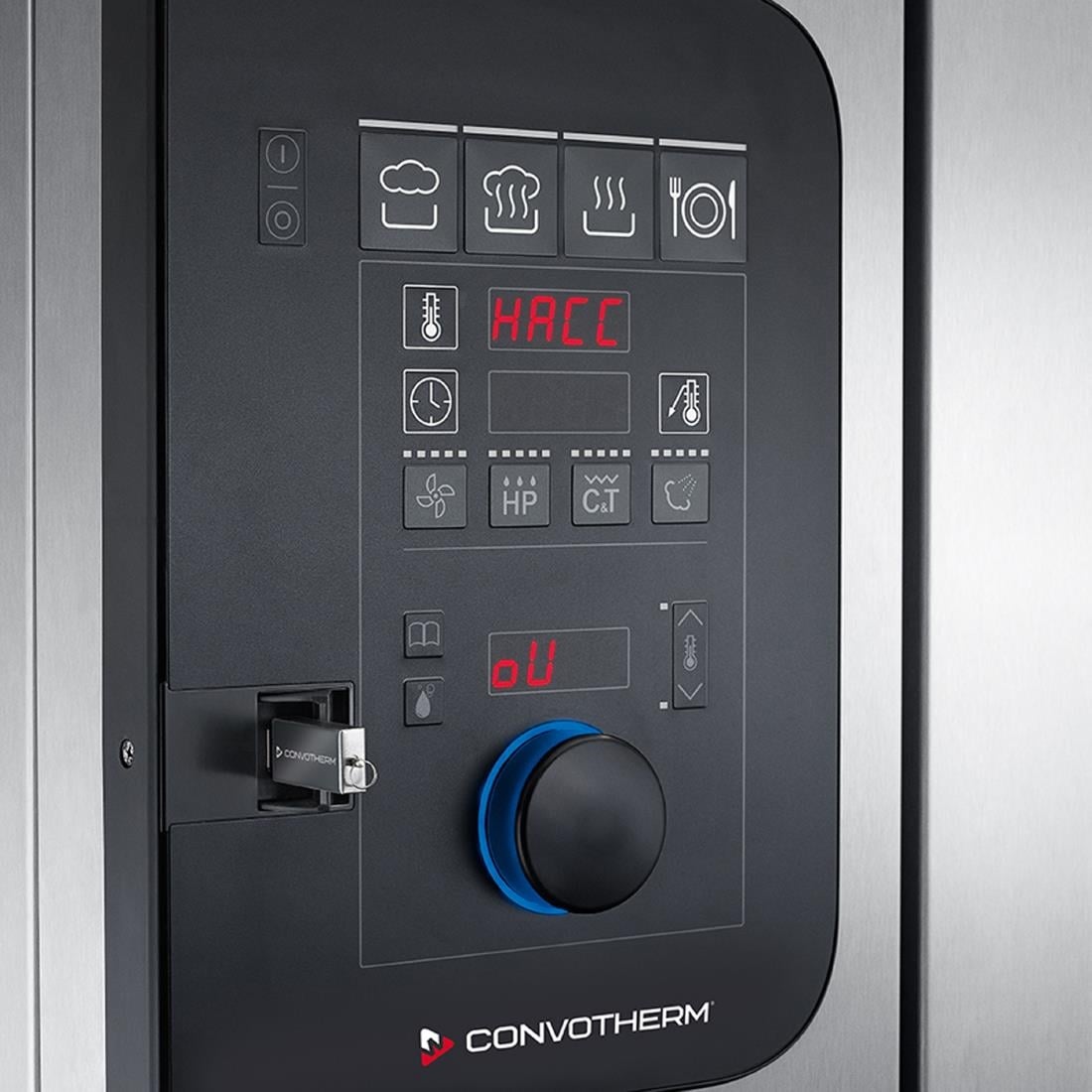

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

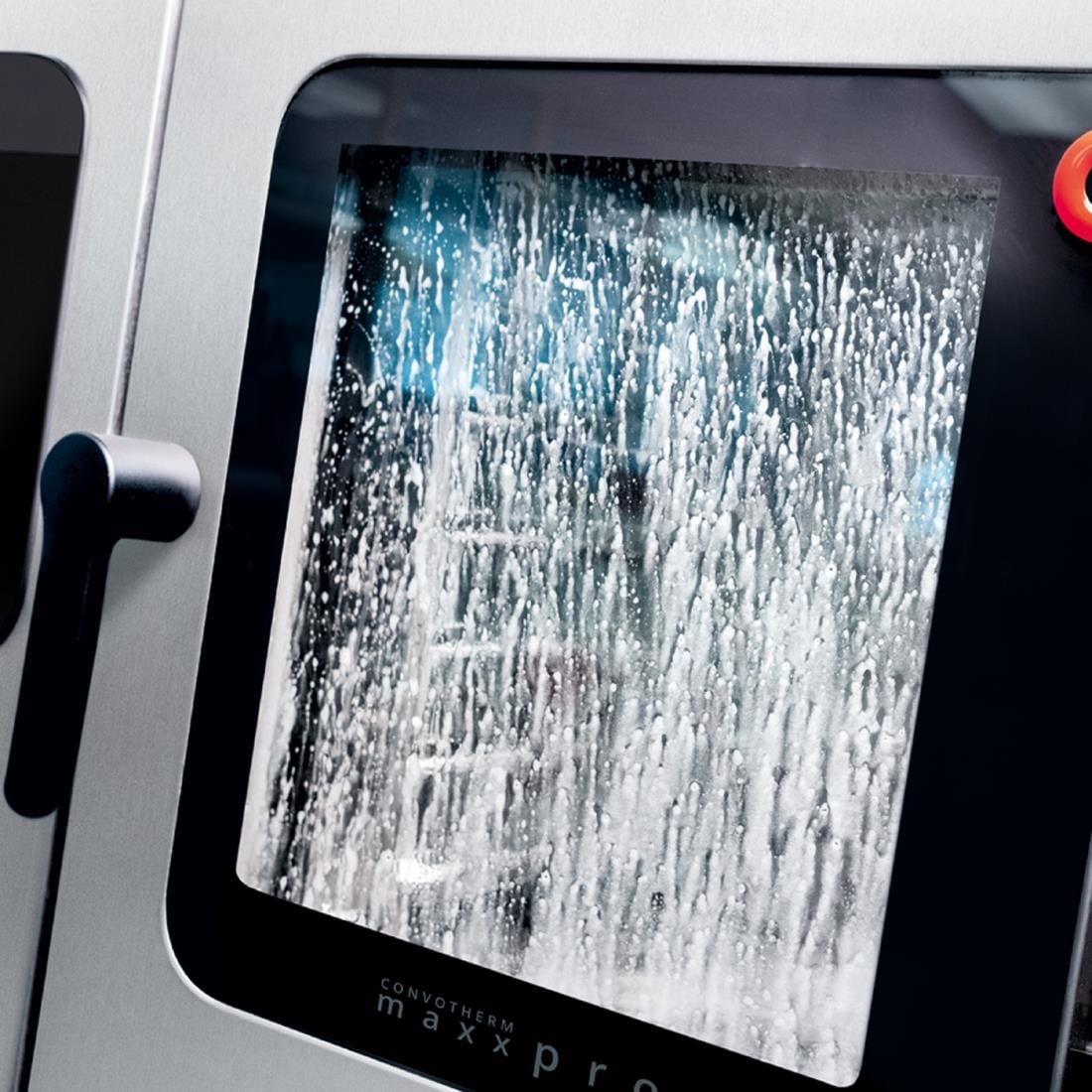

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has a built-in gas boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

The Convotherm Maxx Pro 6.10 GB is a countertop combi built for kitchens that want three cooking modes and batch flexibility on a single-phase supply, with a built-in gas boiler delivering consistent steam for pastry, holding, and high-output service.

Downloads

SPECIFICATION 17 facts · tap for all Width966 mmDepth792 mmHeight786 mmGross weight133 kgVoltage230VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB214site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 792 mmcatalogue
External (W×D×H) 786 × 966 × 792 mmcatalogue
Gross weight 133 kgcatalogue
Height 786 mmcatalogue
Width 966 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 6catalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 600 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

This is the 6+1 workhorse for mid-sized operations: 6 full gastronorm pans in the main chamber, 1 in the dedicated steam zone, all running from standard 230V single-phase supply. The built-in gas boiler generates steam reliably, feeding the three cooking modes—pure convection for roasting and crisping, steam for delicate work and pastry proofing, and combination mode where both run in parallel for speed and control. That three-mode flexibility means one oven handles the full range of menu needs without mode-switching downtime. Unlike ovens that rely on injection systems, a boiler-based approach gives you independent steam control and thermal stability, especially valuable when you're running mixed loads (proteins, vegetables, pastry finishes all at different times).

At 786 × 966 × 792 mm and 133 kg, it fits into a tight kitchen without dominating the space, and the disappearing door gives you workspace when you need it most—during service prep. The easyDial control system keeps all functions visible and accessible, so training is fast and operation is intuitive even in the noise of a busy kitchen.

Convotherm's ConvoClean automated cleaning system means overnight cleaning is straightforward, backed by a 2-year parts and labour warranty.

BEFORE YOU BUY

Questions, answered straight

Both generate steam, but a built-in gas boiler maintains a steady steam supply independently—you've always got consistent pressure and temperature. A gas injection system generates steam on-demand by injecting water into hot air. For most operations, a boiler gives you more stable steam control, especially if you're running long holds or mixing fast and slow cooks in the same service.

Yes. This model runs on 230V single-phase at 600W—standard supply in almost every kitchen. No electrician visit needed. You will need to ensure gas supply is available (propane or mains gas), and an installer will connect it safely. Unlike the larger three-phase models, this is plug-and-go from a power perspective.

That depends on your menu mix. With 6+1 capacity and the three cooking modes, you're looking at cook times of 12–18 minutes for batch roasting, 8–12 minutes for pastry or finishing work, and holding cycles that run cool. Use our combi-oven capacity selector—input your covers, portions per pan, and realistic cook pace, and it'll show you the service beats you can handle.

No, just different. All inputs and functions are visible on one level, so you're not digging through menus during a rush. Some kitchens prefer that—fewer steps, everything in plain sight. Training takes less time because there's nowhere to get lost. Capability is identical; it's an interface choice.

Like any boiler system, it benefits from quarterly descaling to keep steam flow consistent and prevent deposits. We can walk you through it, or flag it as part of a preventive maintenance plan. Call 01792 732702 if you want to set up a service schedule—especially for kitchens running heavy steam loads.

You'll need a qualified gas engineer to run a line from your main supply (if you have one) or arrange a bottle supply with a regulator. This is a professional install—call us before purchase and we'll give you a realistic picture of what's needed for your kitchen layout and existing gas infrastructure.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 6.10 GB easyDial Disappearing Door Combi Oven JB214 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 786(H) x 966(W) x 792(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 133kg
Manufacturer Ref MAXXPROED6.10 GB DD
If you have any questions about the Convotherm Maxx Pro 6.10 GB easyDial Disappearing Door Combi Oven JB214 then please get in touch.
