Convotherm Maxx Pro 6.10 ES easyDial Disappearing Door Combi Oven JB213

£4,559.32

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB213

Product summary

11kW 3 phase. Capacity: 6+1 x 1/1 GN. Electric Injection

Product description

The Convotherm Maxx Pro 6.10 ES easyDial combi oven is a superbly reliable 6+1 x 1/1GN capacity countertop combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has an electric injection system for steam generation.

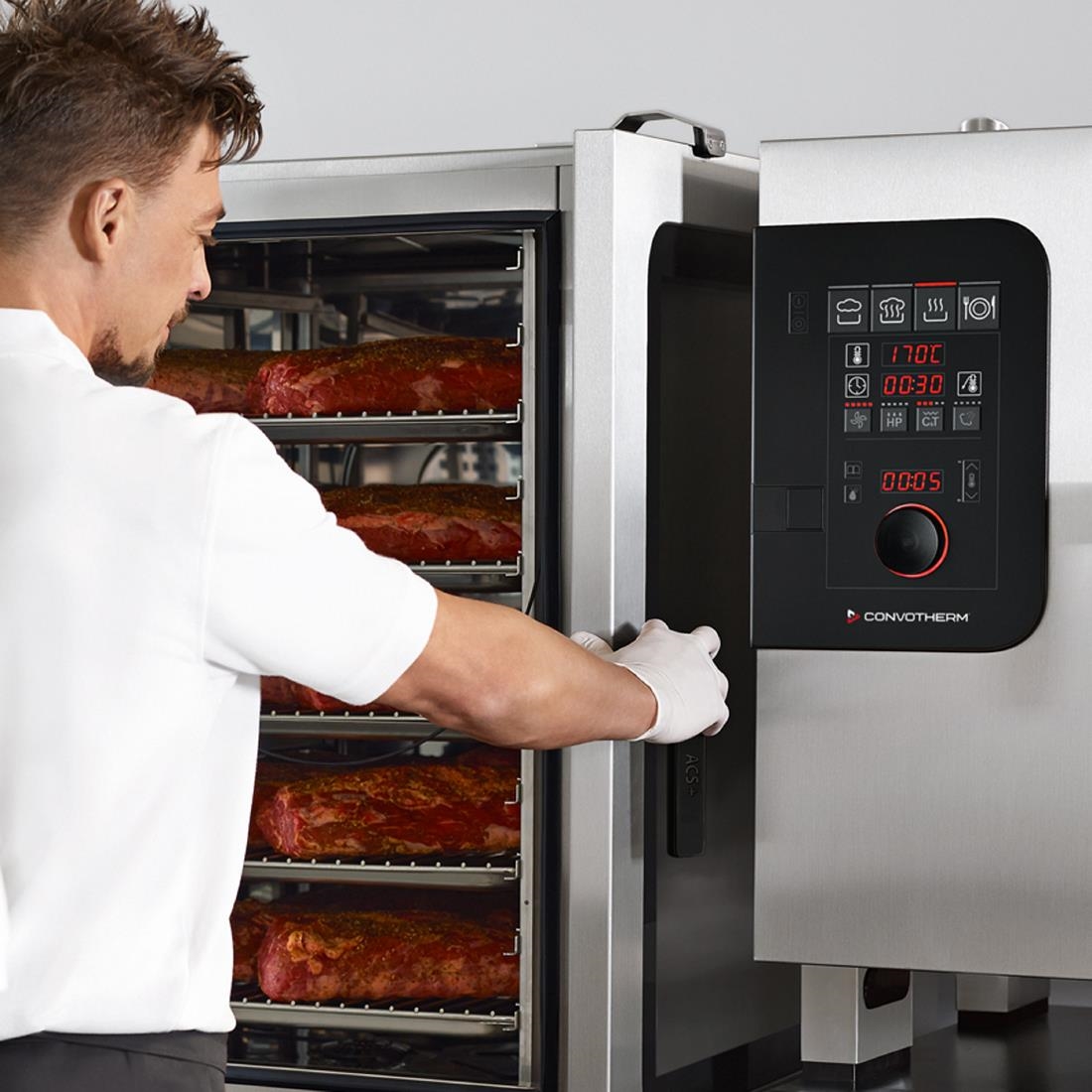

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

Downloads

SPECIFICATION 17 facts · tap for all Width966 mmDepth792 mmHeight786 mmGross weight116 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB213site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 792 mmcatalogue
External (W×D×H) 786 × 966 × 792 mmcatalogue
Gross weight 116 kgcatalogue
Height 786 mmcatalogue
Width 966 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 6catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 11000 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

This is the bridge model: 6 full gastronorm pans in the main chamber, 1 in the steam zone, built for kitchens with three-phase power and the appetite for speed without the footprint of the larger 10-pan ovens. The electric injection system generates steam on-demand, feeding three distinct cooking modes—convection for roasting and crisping, steam for pastry and delicate work, and combination mode where both run in tandem for precision and pace. That flexibility means one oven genuinely replaces multiple pieces of equipment: you're not batching convection-only work separately from steam work; you load mixed dishes and the oven handles them intelligently.

At 11 kW rated input on 400V three-phase, this model has the thermal reserve to recover quickly between heavy batches—roast 6 pans of vegetables, steam a pastry batch, go straight into a protein roast without waiting for temperature recovery. It's the difference between a steady rhythm and a stressed oven. The 786 × 966 × 792 mm footprint sits naturally on a bench or in a line, and at 116 kg it's substantial without being immobile. Like every Maxx Pro, the easyDial controls keep operation intuitive and training fast.

Automated ConvoClean cleaning and 2-year parts & labour warranty back the build.

BEFORE YOU BUY

Questions, answered straight

That depends on your menu volume and available space. The 6.10 ES runs at 11 kW—it handles thermal recovery quickly between batches—but capacity is 6 pans, not 10. For many mid-to-large operations, that's enough: you batch-cook protein, then veg, then specialities, each in 6 pans with quick turnaround. The 10.10 suits kitchens doing more simultaneous holds or serving truly massive covers. Use our combi-oven capacity selector to map your realistic service beat and covers; it'll tell you if 6 pans is your ceiling or if you need more.

Electric injection generates steam by injecting water into hot air—it's fast and responsive, with precise on-demand control. A gas boiler maintains a standing steam supply. Both work; electric injection is what you get with the ES models and suits kitchens where thermal responsiveness matters more than a constantly-available steam reserve. Three-phase power gives you the energy to do it reliably.

No—this model requires 400V three-phase at 11 kW. If your kitchen currently has only single-phase supply, look at the 6.10 GS or GB models instead, which run on 230V single-phase. If you're planning to upgrade your electrical infrastructure, an electrician can advise on three-phase bring-in, but that's a significant investment. Check your existing supply before you commit.

The ES runs at 11 kW vs. 600 W on the single-phase models—the difference is immediate. After you roast 6 pans of vegetables and move to steam work, the oven gets back to steam pressure in seconds rather than minutes. That recovery speed is what lets you batch-cook continuously without idle time—protein roast, veg roast, pastry steam, all flowing without pauses between courses or menu changes.

The electric injection system handles that—steam is on-demand and responsive. You're not waiting for a boiler to build pressure; you open the oven, load, and go. The easyDial has quick-select buttons for common steam cycles, so staff training is genuinely fast even if your team turns over.

Covered by two years' parts and labour warranty. Beyond that, electric injection systems are simpler than boilers (fewer components, no descaling)—repairs are usually straightforward. Call 01792 732702 if you need service outside warranty. Preventive maintenance (quarterly electrical inspections, valve checks) keeps surprises rare.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 6.10 ES easyDial Disappearing Door Combi Oven JB213 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 786(H) x 966(W) x 792(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 116kg
Manufacturer Ref MAXXPROED6.10 ES DD
If you have any questions about the Convotherm Maxx Pro 6.10 ES easyDial Disappearing Door Combi Oven JB213 then please get in touch.
