Convotherm Maxx Pro 6.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB202

£6,596.03

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB202

Product summary

ConvoGrill. 11kW 3 phase. Capacity: 6+1 x 1/1 GN

Product description

The Convotherm Maxx Pro 6.10 EB easyTouch combi oven is a superbly reliable 6+1 x 1/1GN capacity countertop combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

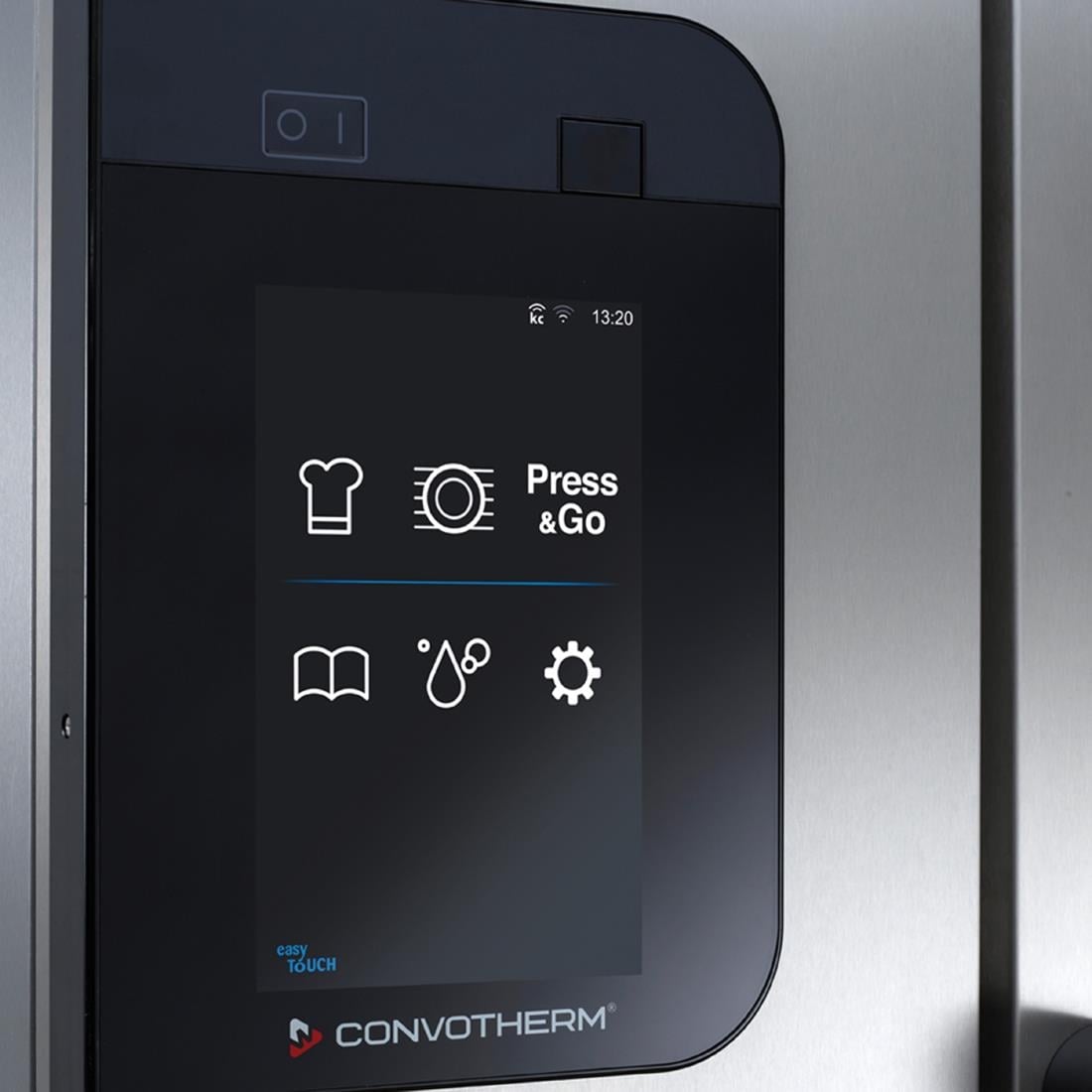

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks. This oven is equipped with a ConvoGrill grease management system which separates off the grease from waste water allowing environmentally friendly disposal and protects the drainage system from clogging.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
ConvoGrill with fully integrated grease management function

A 6+1 GN electric combi oven with built-in boiler and integrated grease separation—engineered for heavy-duty roasting and steaming with clean drainage and minimal maintenance.

Downloads

SPECIFICATION 17 facts · tap for all Width966 mmDepth792 mmHeight786 mmGross weight147 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB202site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 792 mmcatalogue
External (W×D×H) 786 × 966 × 792 mmcatalogue
Gross weight 147 kgcatalogue
Height 786 mmcatalogue
Width 966 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 6catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 11000 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 6.10 EB with ConvoGrill brings boiler-based steam reliability to electric-powered kitchens. With 6+1 full-size GN capacity (786×966×792mm), it's dense enough to drive volume without hogging space. The disappearing door slides completely away when opened, giving your team genuine working room—no hinged door swinging into elbows during service.

The built-in electric boiler means steam is always ready and consistent—a reservoir heats to temperature and delivers steam on demand without the lag of cold-start systems. This matters when you're running a packed pass: steam is there when you need it, every plate gets even heat, and you're not babying the oven's mood. Three cooking modes and four function management systems handle roasting, steaming, braising and batch-baking simultaneously across six shelves. The 10-inch easyTouch display uses symbols, so your team learns quickly and consistency holds across shifts. Quick-select keys let you stack different dishes and cooking profiles without reprogramming.

Here's where ConvoGrill earns its place: the grease separation system siphons fat from the waste water before it hits the drain, so you're not pouring liquid grease into your pipes. In kitchens running heavy sauces and roasts, this cuts plumbing call-outs and drainage blockages. The fully automatic ConvoClean system handles daily cleanup, and you get two years' parts and labour warranty. Running on three-phase 400V at 11,000W, this is built for serious kitchens.

BEFORE YOU BUY

Questions, answered straight

A boiler heats a reservoir and keeps it warm, so steam is always ready—good for kitchens running continuous service with high steam demand. Injection fires steam on demand, which is more precise for light vegetables and fish. Boilers are cheaper to run over long services; injection is faster off the blocks. Choose boiler if you're steaming constantly; injection if you're mixing dry roasting with occasional precision steaming.

The system siphons fat from the chamber's waste water into a separate collection point before it enters the drain. You dispose of the fat separately—cleaner for your pipes and better for the environment. Kitchens with heavy roasting and sauce work see real savings in plumbing visits.

Yes. Six GN pans on different shelves with four function management systems giving each its own steam/convection ratio. One shelf roasts beef whilst another steams vegetables and a third finishes fish—each gets exactly what it needs without cross-flavour.

Three-phase 400V at 11,000W—industrial supply. Confirm with a commercial electrician that your site has three-phase available, and speak to Craven Cooling on 01792 732702 before ordering, so we can plan the installation and avoid surprises.

The boiler maintains itself through normal operation, but water quality matters. If you're in a hard-water area, periodic descaling keeps it efficient. Craven can advise on a servicing schedule when the oven arrives. Most kitchens run it 200+ days per year without issue if water is treated.

Two years' parts and labour covers unexpected failures. Downtime mid-service costs serious money. Use the breakdown cost calculator to understand your actual exposure, then decide whether extended warranty or a local service contract makes sense for your business rhythm.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 6.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB202 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 786(H) x 966(W) x 792(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 147kg
Manufacturer Ref MAXXPROET6.10 EB DD GRILL
If you have any questions about the Convotherm Maxx Pro 6.10 EB easyTouch Disappearing Door Combi Oven with ConvoGrill JB202 then please get in touch.
