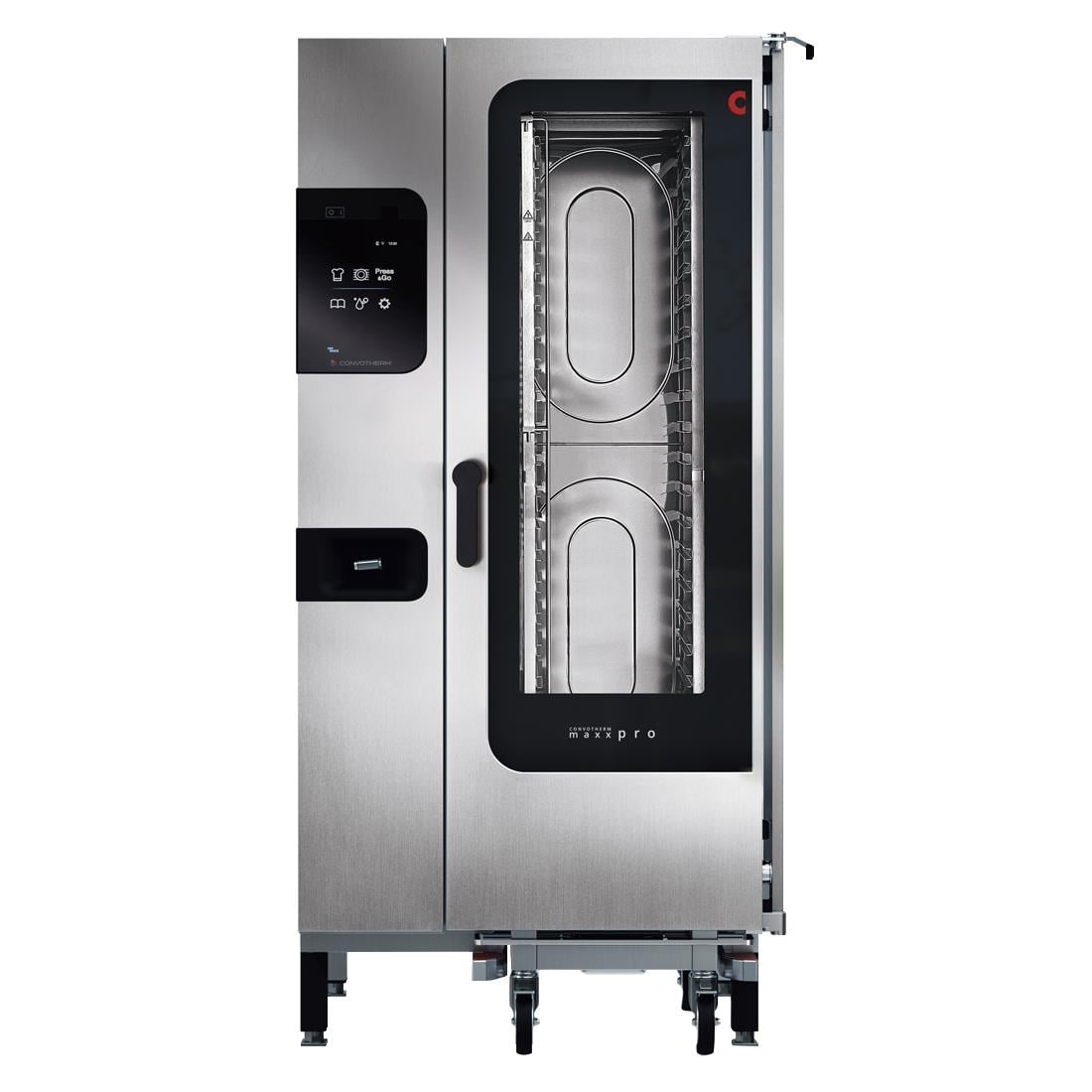

Convotherm Maxx Pro 20.10 ES easyTouch Disappearing Door Combi Oven JB267

£13,615.29

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB267

Product summary

Standard. 38.9kW 3 phase. Capacity: 20 x 1/1 GN

Product description

The Convotherm Maxx Pro 20.10 ES easyTouch combi oven is a superbly reliable freestanding 20 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

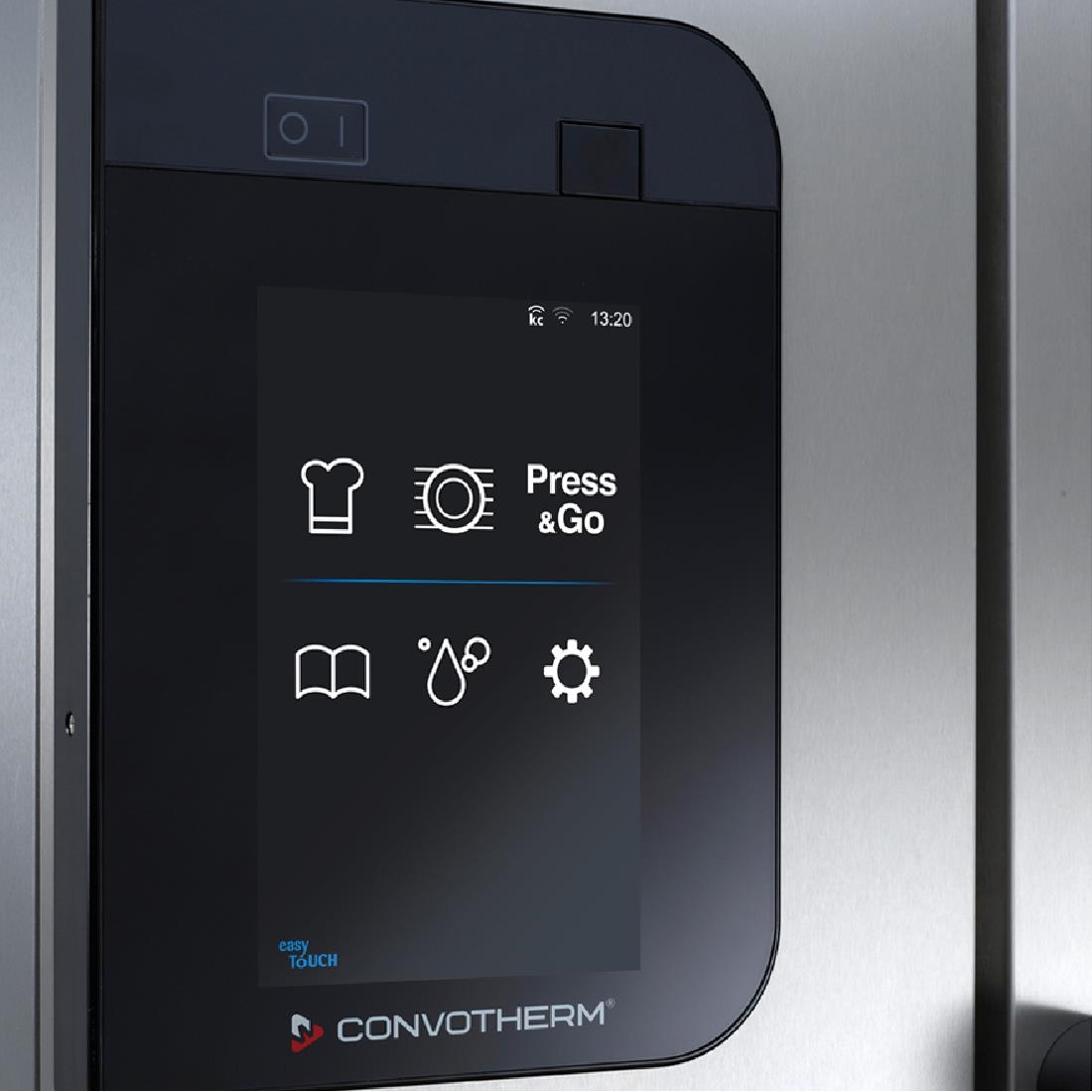

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model uses an electric injection system for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower

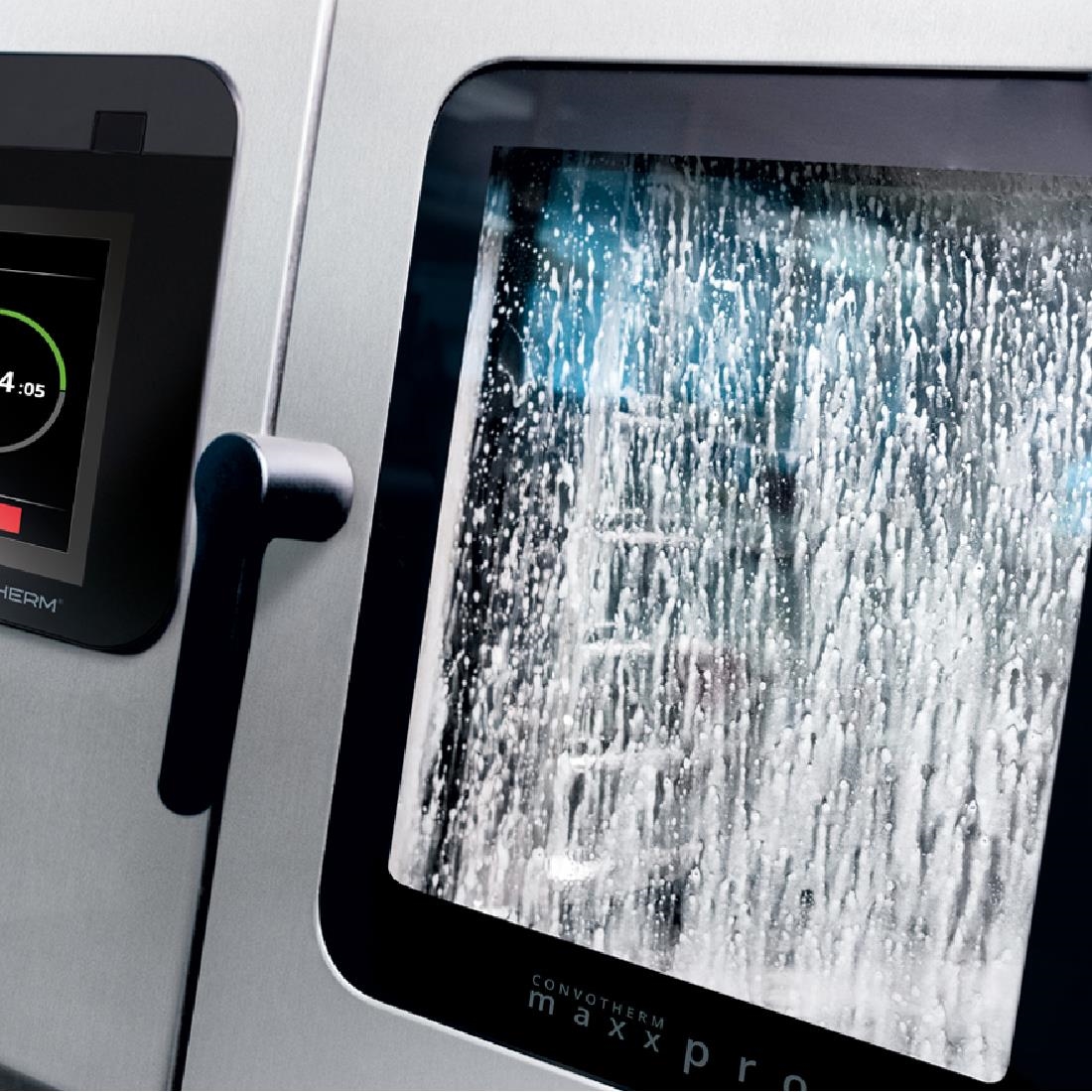

ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
Connectivity – includes WiFi and KitchenConnect¬Æ solution for networking and data management

Downloads

SPECIFICATION 17 facts · tap for all Width1002 mmDepth820 mmHeight1942 mmGross weight277 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB267site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 820 mmcatalogue
External (W×D×H) 1942 × 1002 × 820 mmcatalogue
Gross weight 277 kgcatalogue
Height 1942 mmcatalogue
Width 1002 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 38900 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

This is the core Maxx Pro: 20 × 1/1 GN capacity, three cooking modes, and the space-saving disappearing door that slides to the side when opened. It's built for kitchens that need volume and flexibility without extra modules. You roast, bake and steam—sometimes all three at once—and let the oven manage temperature and humidity while you plate and serve. No specialist modules, no add-ons; just a reliable oven that scales with your business.

The easyTouch 10" symbol-based display is where the smart part shows. Instead of scrolling through menus, you navigate with picture buttons, which cuts training time and lets your team programme consistently across shifts. Four function management systems handle mixed loads: roasting chicken while steaming vegetables while baking bread, all on auto-sequence, all finishing when you need them. Quick-select keys store your most-used programmes—once your mise-en-place is dialled in, loading becomes routine. Electric injection steam generates precise humidity on demand, which matters for everything from crusty bread to delicate fish.

ConvoClean automatic cleaning takes the hardest job—you run the cleaning programme and the oven cycles moisture and heat to shift burnt-on residue. Two-year parts and labour warranty covers the whole machine. Three-phase 400V power (38,900W) feeds it; standard in every commercial kitchen. Build is stainless steel. Dimensions: 1942 mm tall, 1002 mm wide, 820 mm deep. Weight is 277 kg—slightly lighter than specialist variants.

BEFORE YOU BUY

Questions, answered straight

Roasting (dry heat), baking (dry heat with moisture control), and steaming (full steam). You can run them separately or stack them in a single programme—roast a vegetable tray, then add steam to finish it. The oven manages each mode independently and holds temperature and humidity to spec. For a kitchen doing roasts, breads, and vegetables, that covers almost everything.

No—the easyTouch display is symbol-based, not text. A symbol for roast, a symbol for steam, a symbol for temperature. Your team learns it visually, not by reading menus. Most of your staff will be confident on it after a single shift. Quick-select keys store your signature programmes, so once it's set, they just press a button.

Yes—that's the whole point of the four function management systems. You set roasting on one GN pan and steaming on another, and the oven runs both in the same chamber at their own target temperatures and humidities. The oven balances them automatically. It's one of the reasons kitchens choose combis—you cook more, faster, in less space.

An electric heating element generates steam on demand. The moment you select steam on the display, steam arrives in the chamber at your exact humidity setting. It's faster and more precise than a gas boiler; no waiting for water to heat, no fluctuation. Matters for delicate items and close-tolerance dishes.

ConvoClean runs roughly 20 minutes for a full clean, depending on how dirty the chamber is after service. You press the button, the oven cycles heat and moisture through the chamber to break down burnt-on residue, and you're ready to go. No scrubbing; the system is designed to cut manual labour.

Two years parts and labour—both the machine and all onboard systems (steam injection, control electronics, the lot). If something breaks, phone 01792 732702 and Convotherm covers the engineer visit and parts.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 20.10 ES easyTouch Disappearing Door Combi Oven JB267 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1942(H) x 1002(W) x 820(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 277kg
Manufacturer Ref MAXXPROET20.10 ES DD
If you have any questions about the Convotherm Maxx Pro 20.10 ES easyTouch Disappearing Door Combi Oven JB267 then please get in touch.
