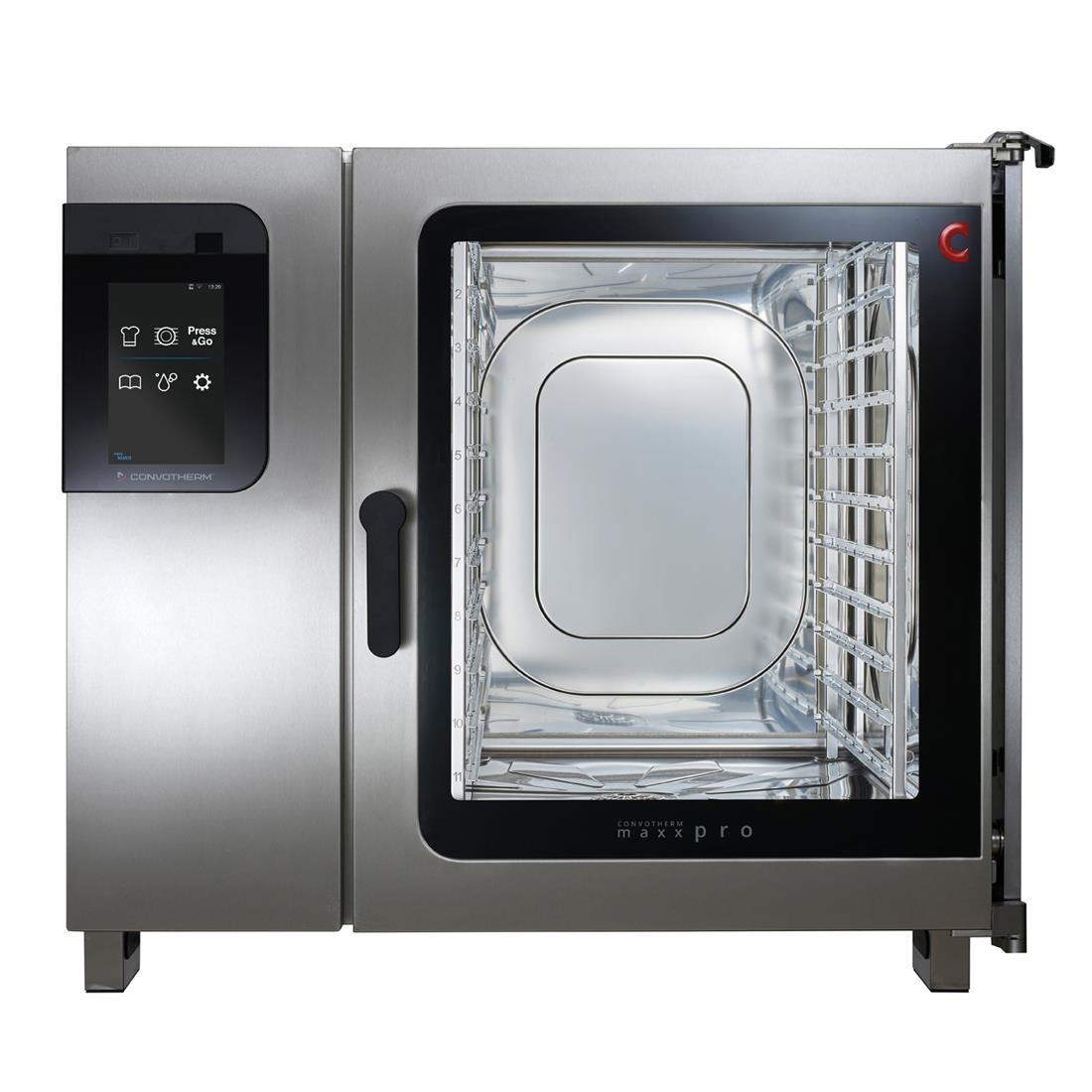

Convotherm Maxx Pro 10.20 EB easyTouch Disappearing Door Combi Oven JB248

£12,243.21

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB248

Product summary

Standard. 33.7kW 3 phase. Capacity: 20+2 x 1/1 GN

Product description

The Convotherm Maxx Pro 10.20 EB easyTouch combi oven is a superbly reliable 20+2 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
Connectivity – includes WiFi and KitchenConnect¬Æ solution for networking and data management

Downloads

SPECIFICATION 17 facts · tap for all Width1211 mmDepth992 mmHeight1058 mmGross weight205 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB248site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 992 mmcatalogue
External (W×D×H) 1058 × 1211 × 992 mmcatalogue
Gross weight 205 kgcatalogue
Height 1058 mmcatalogue
Width 1211 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 10catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 33700 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 10.20 EB easyTouch is the clean, uncomplicated choice for kitchens that want serious capacity and combi flexibility without speciality options. At 20+2 x 1/1 GN across its double-deck, it's built for volume—hotels, schools, contract caterers, restaurants running back-to-back covers. The disappearing door slides to the side when opened, freeing up the gangway in front of the oven. That space matters when your team is working quickly between courses or services.

The easyTouch 10" touchscreen is symbol-based and responsive. Training is straightforward: your team learns the interface fast, making it especially useful if you turn over staff or have multiple kitchens to manage. Three cooking modes and four function management systems give you the flexibility you need for mixed-load work—roast proteins, steam starches, and finish vegetables in a single cycle. Quick-select keys lock in your house signatures (your risotto profile, your fish-cooking curve, your vegetable steam-time) so batch work doesn't require re-programming.

Built-in electric steam generation keeps things simple: no gas plumbing, no injectors to maintain. The fully automatic ConvoClean system handles the labour-heavy end-of-service cleaning. Stainless-steel construction throughout. 400V three-phase power, 33.7 kW rated input. 2-year parts and labour warranty. A genuinely reliable workhorse for kitchens where output and uptime are non-negotiable.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

1211 × 992 × 1058 mmstated W × D × H205 kg
THE CRITICAL ANSWERNarrowest straight opening992mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1211 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

The 20+2 capacity (40+ x 1/1 GN slots) depends entirely on your portion size and plating. A 180g protein portion might fit 40+ per deck; a larger prime cut fewer. Work with your consultant to map your specific menu to the oven's capacity.

Fully electric. Built-in electric boiler for steam. Needs 400V three-phase supply, 33.7 kW rated input. No gas connection required—check your electrical infrastructure before installation.

Yes. Each deck is independent. You can roast protein on the lower deck while steaming vegetables on the upper, or run the same recipe across both for volume. Mixed-load modes let you combine cooking methods within a single cycle too.

External dimensions 1058 mm wide × 1211 mm deep × 992 mm high. The disappearing door swings to the side (not down), so plan your front gangway space accordingly. Weight is 205 kg—confirm your floor loading if it's on an upper level or mobile base.

Fully automatic. ConvoClean cycles at programme end without additional input. It's integrated into the system, not a manual wash-down. For servicing and maintenance, ring Craven Cooling on 01792

33.7 kW rated input on 400V three-phase. That's a significant supply—consult a qualified electrician or your builder to check your available capacity and whether any upgrades are needed before installation.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 10.20 EB easyTouch Disappearing Door Combi Oven JB248 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1058(H) x 1211(W) x 992(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 10
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 205kg
Manufacturer Ref MAXXPROET10.20 EB DD
If you have any questions about the Convotherm Maxx Pro 10.20 EB easyTouch Disappearing Door Combi Oven JB248 then please get in touch.
