Convotherm Maxx Pro 10.10 EB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB217

£8,706.93

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB217

Product summary

ConvoSmoke. 19.8kW 3 phase. Capacity: 10+1 x 1/1 GN

Product description

The Convotherm Maxx Pro 10.10 EB easyTouch combi oven is a superbly reliable 10+1 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks. This oven is equipped with the smoke option which is fully integrated into the cooking profiles for maximum smoke flexibility, allowing cold and hot smoking with the use of biscuits.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower

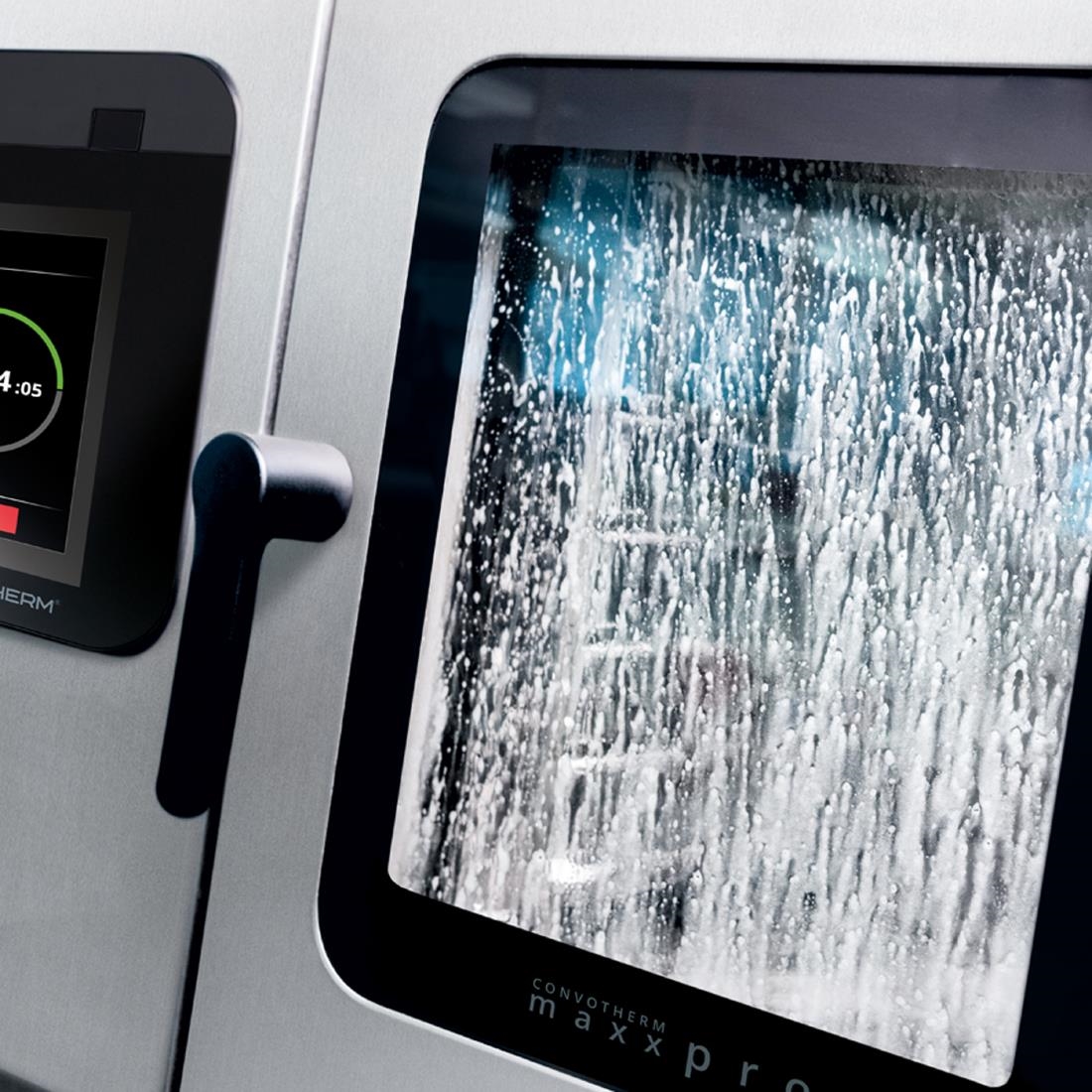

ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button

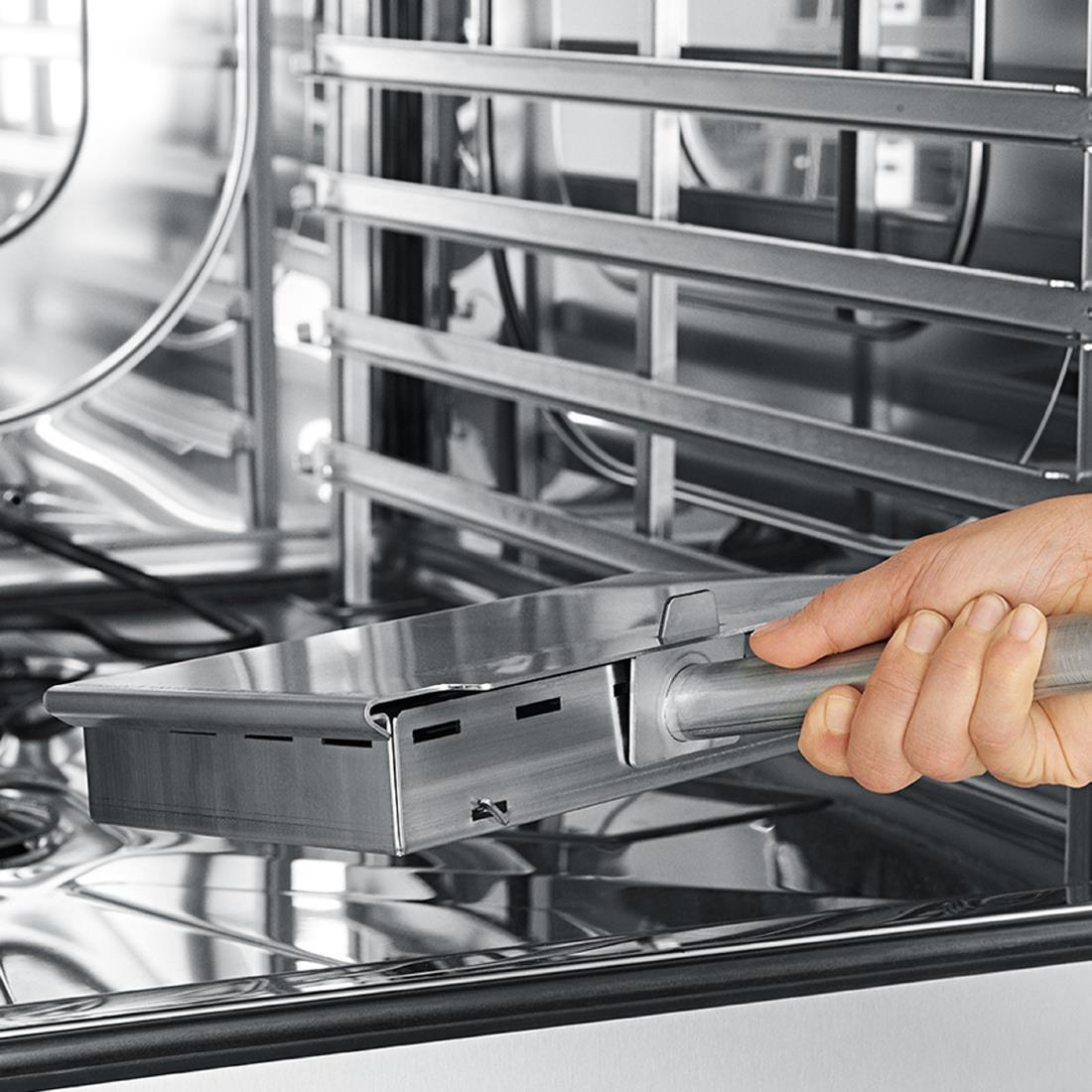

Fully integrated ConvoSmoke smoker for hot & cold smoking

Downloads

SPECIFICATION 11 facts · tap for all Width966 mmGross weight141 kgVoltage400V three phaseTemperature range+30 to +250 °CCapacity10+1 x GN 1/1MaterialStainless Steel

Identity3

Brand Convothermsite
Product code JB217site
Warranty 2 Years Parts & Labourcatalogue

Size & weight3

External (W×D×H) 875 × 1058 × 792 mmcatalogue
Gross weight 141 kgcatalogue
Width 966 mmsite

Capacity1

Capacity 10+1 x GN 1/1catalogue

Performance1

Temperature range +30 to +250 °Ccatalogue

Power & energy2

Rated input 19500 Wcatalogue
Voltage 400V three phasecatalogue

Build & fittings1

Material Stainless Steelcatalogue
THE WORKING VIEW

Why this product earns its place

The Convotherm Maxx Pro 10.10 EB easyTouch with ConvoSmoke is built for kitchens that want to combine two specialist capabilities: sustained steam cooking and integrated smoking. The EB (electric boiler) steam system builds pressure and holds it through back-to-back services—perfect for kitchens running continuous stock preparation, vegetable cooking, or precision baking. Layer in ConvoSmoke, and you can cold-smoke à la carte whilst steaming stock below, or hot-smoke a finish whilst roasting above. Both are running on schedule, both are logged and repeatable via quick-select keys.

The 10+1 full-size (1/1 GN) capacity with disappearing door gives you volume in a compact footprint. Three cooking modes and four function management systems let you build exactly what you need: steam + heat + humidity in one cavity, smoke in another, all managed independently. The easyTouch 10" symbol-based display is intuitive, and quick-select keys programme complex cooking sequences. Automatic cooking and baking profiles keep timing consistent, so switching between smoking and steam techniques doesn't mean retraining staff or losing consistency.

The electric boiler and integrated smoking work together: you get the sustained steam that backs up heavy cooking programmes, and the smoking profiles are embedded in the same scheduling system. At 157 kg and 1058 × 966 × 792 mm, it sits well on standard benching. Built from stainless steel for hard service, with the fully automatic ConvoClean system handling interior cleaning after service. 400V three-phase at 19.8 kW is standard. The 2-year parts and labour warranty covers you through bedding-in.

BEFORE YOU BUY

Questions, answered straight

Either. If your kitchen only wants sustained steam cooking, use it like a standard combi. If you only smoke occasionally, the smoke profiles sit idle. You're not locked into using both—you're free to use what you need and ignore the rest.

Yes. The four function management systems let the boiler run steam in part of the oven whilst smoke profiles run in another cavity or chamber. Both are on the same schedule, both finish on time, no guesswork.

The +1 is just an extra cooking space; it can hold steaming, roasting, or smoking. The four function management systems mean it's independent of the main cavity, so you could cold-smoke in the +1 whilst roasting in the main cavity, all finishing together.

157 kg (the boiler adds weight vs. lighter injection models). Standard commercial benching is rated for this load. Confirm with your fitter, but it's not unusual. The weight is the boiler and stainless steel build—that's durability for hard service.

Plan 20–30 minutes at the start of shift for the boiler to build pressure. Once running, it holds steam through service. For kitchens doing prep work before service, this is built into the routine. It's not a delay—it's how sustained steam systems work.

Smoke biscuits are consumables (supplied separately) and need occasional replacement depending on usage. The oven comes ready to use them—just load, set, and it integrates into your cooking schedule. Running costs are minimal once you identify your preferred biscuit type.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 10.10 EB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB217 Product Data

Brand Convotherm
Type Combi Ovens
Dimensions 875(W) x 1058(D) x 792(H) mm
Capacity 10+1 x GN 1/1
Material Stainless Steel
Temperature Range 30°C to 250°C
Power 19.5kW
Voltage 400V three phase
Warranty 2 Years Parts & Labour
Weight 141kg
Manufacturer Ref maxx pro easyTouch 10.10 EB
If you have any questions about the Convotherm Maxx Pro 10.10 EB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB217 then please get in touch.
