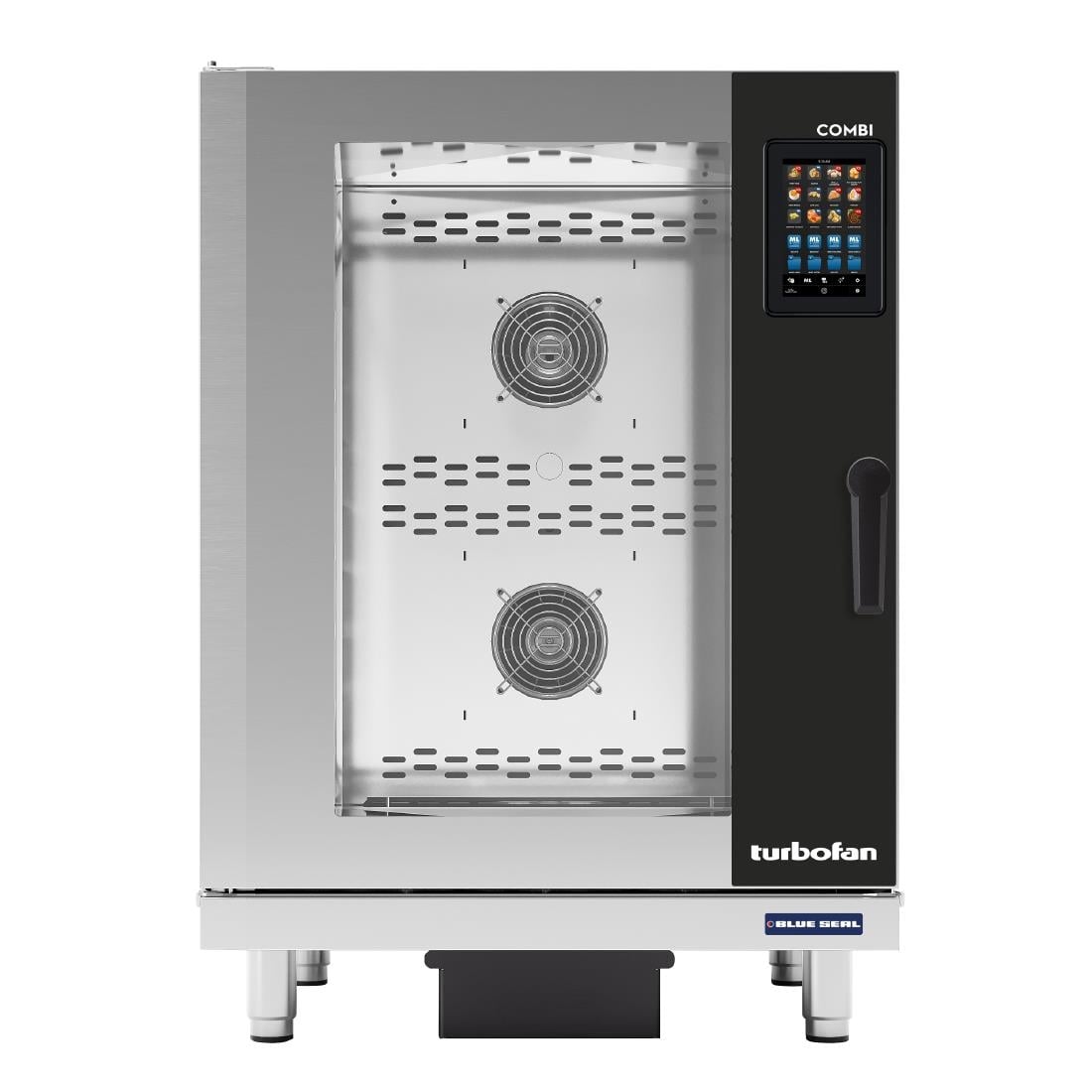

Blue Seal Turbofan Digital Electric Combi Oven10x 1/1 GN EC40D10 HC006

£6,254.41

+vat

Availability: 999 in stock

Brand:

SKU: HC006

Product summary

10 Grid. Touch Control

Product description

The Turbofan 40 Series Combi packs a whole lot of intuitive functionality and raw power into its compact 812mm-wide footprint. Take your kitchen to a new degree of productivity. Step up to the next level of possibility. Release your creativity and reward your clientele. 22 amps per phase.

10 x 1/1 GN tray capacity
Electric direct steam version
Digital touch controls
Convection mode
Combination steam convection mode
Steam mode
Auto wash facility with core temperature probe capability. (core temp probe kit sold separately)
Full view vented glass door panels
Perfectly smooth cooking chamber walls with rounded edges
10 x 600mm x 400mm tray capacity
70mm tray spacing
Water softener supplied for treatment of water quality to the machine. External fitting

A digital 10-tray electric combi oven that delivers steam, convection and combination cooking in a compact 1097 mm footprint — perfect for kitchens that need high-volume precision without the space.

Downloads

SPECIFICATION 18 facts · tap for all Width777 mmDepth744 mmHeight1097 mmGross weight104 kgVoltage380-415VMaterialStainless Steel

Identity5

Brand Blue Sealsite
Extended warranty 1 Yearcatalogue
Product code HC006site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 744 mmcatalogue
External (W×D×H) 1097 × 777 × 744 mmcatalogue
Gross weight 104 kgcatalogue
Height 1097 mmcatalogue
Width 777 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 10catalogue

Power & energy2

Fuel type Three Phasecatalogue
Voltage 380-415Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Output per hour 14.5kWcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Turbofan 40 Digital is built for pace. Load 10 full-size gastronorm pans (1/1 GN), and its three-phase 14.5kW power delivers both heat and steam exactly when you need them. The digital controls make it precise: set your temperature, steam percentage and cycle time, then walk away—no guesswork, no tweaking mid-service. Stainless steel throughout means it'll take a beating and keep working.

This is the oven for kitchens that measure success in covers per hour. Whether you're batch-roasting vegetables, steaming fish to order, or finishing plated dishes, the combination of steam and convection heat means you control the outcome. Fast recovery between cycles keeps the pass moving, and the 14.5kW input means you're never waiting for it to catch up.

The footprint is genuinely compact—just 1097 mm tall and 777 mm deep—but the capacity inside is serious. You get the volume of a much larger oven without eating up your line space. It sits comfortably under a pass, and three-phase power is standard in professional kitchens, so installation is straightforward. Comes with 2 years parts and labour warranty, extendable to 3 years.

BEFORE YOU BUY

Questions, answered straight

It depends on your pan configuration and what you're cooking. A full load is 10 gastronorm pans (1/1 GN). Use our combi oven capacity selector to see real portion counts for your dishes—it'll show you batches per hour and total covers possible.

Digital gives you precision: you set steam percentage, temperature and time, and the oven delivers exactly that every cycle. Manual needs more operator experience—you adjust steam and temp during cooking. For high-volume service where consistency matters, digital saves time and stress.

This model requires three-phase power at 380–415V. The 14.5kW input needs that three-phase supply (22 amps per phase). Check your site electrics with your installer—most commercial kitchens have three-phase as standard, but domestic or small café spaces may need an upgrade.

Footprint is 777 mm deep × 1097 mm tall. Width is the same 777 mm, so it's a tight, efficient unit. It'll sit under a standard pass, and the compact size means you save bench space compared to larger combi ovens while keeping serious capacity inside.

Stainless steel inside and out, so daily hot-water rinse keeps it clean. Steam generators and heating elements need annual servicing to prevent limescale buildup—especially important if you have hard water. We can arrange servicing through our support team on 01792

2 years parts and labour warranty covers faults. Even during service, you'll have backup plans (grill, fryer, blast chiller), but if you need urgent repair, call our support line on 01792 732702. Extended warranty available if downtime risk is high.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Blue Seal Turbofan Digital Electric Combi Oven10x 1/1 GN EC40D10 HC006 Product Data

Brand Blue Seal
Type Combination Ovens
Dimensions 1097(H) x 777(W) x 744(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 10
Power Electric
Voltage 380-415V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 104kg
Manufacturer Ref EC40T10
If you have any questions about the Blue Seal Turbofan Digital Electric Combi Oven10x 1/1 GN EC40D10 HC006 then please get in touch.
