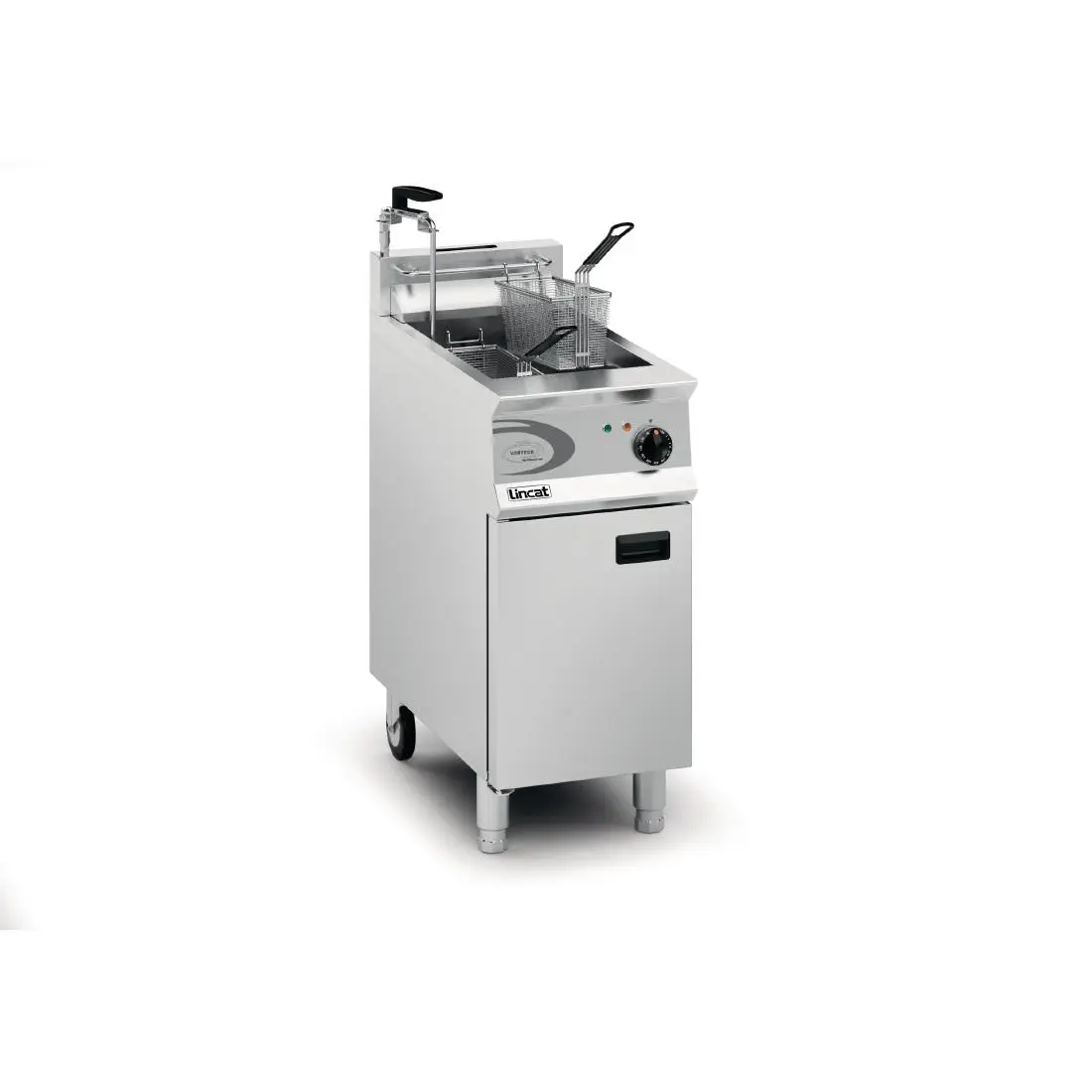

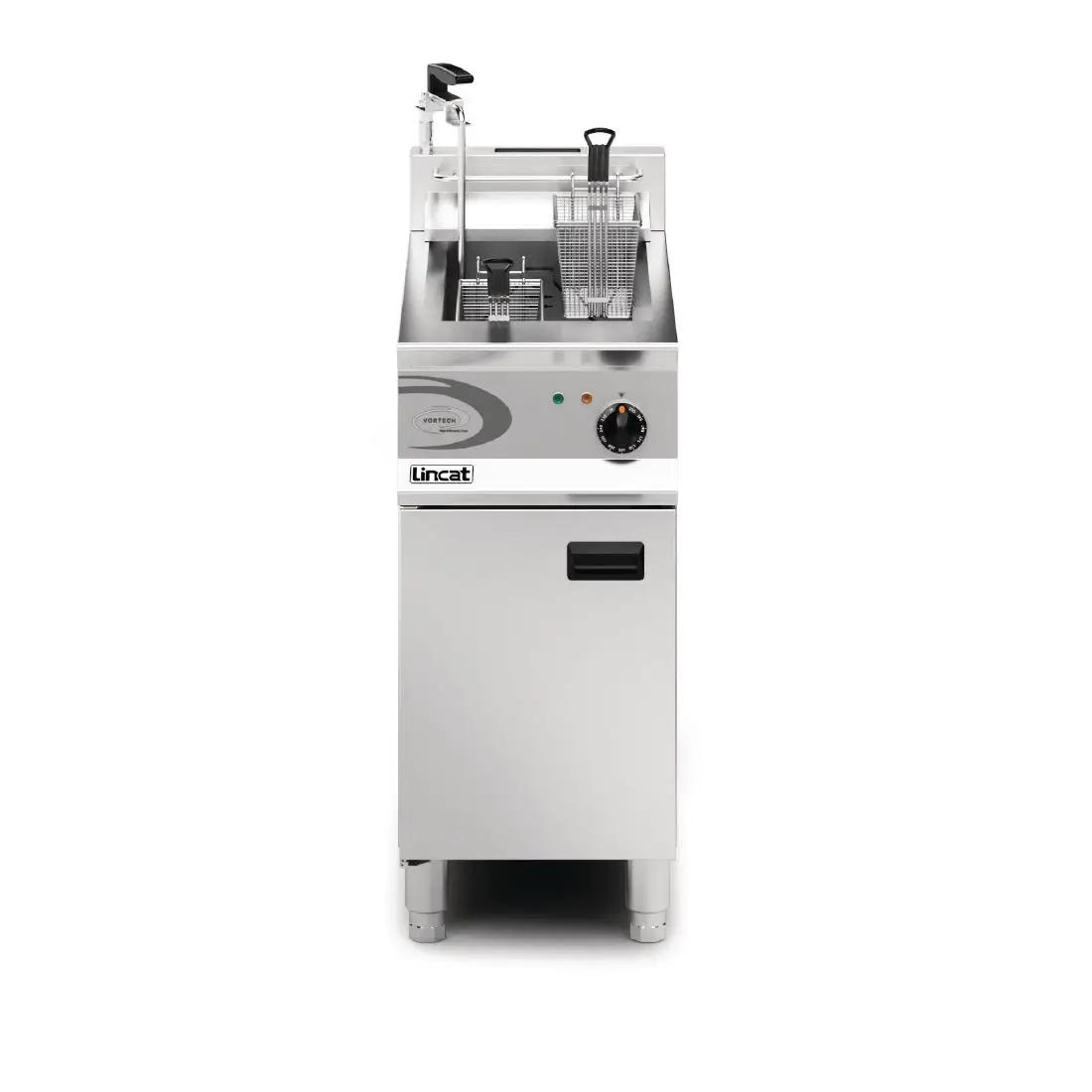

Lincat Vortech Free Standing Natural Gas Filtration Fryer OG8115/OP DM541-N

£6,865.64

+vat

Availability: 999 in stock

- +

Brand:

SKU: DM541-N

Product summary

Natural gas

Product description

This highly economic Lincat Opus 800 Vortech High Efficiency Natural Gas Fryer OG8115 boasts a highly advanced and innovative design, 97% energy efficiency, lower running costs and a metallic-alloy mesh pre-mix gas burner technology. It also comes with pumped filtration, a residual heat recovery system, fuzzy logic electronic temperature control, removable batter plates, electronic ignition and a wide bore pipe, overall making this fryer extremely user friendly.

Integral pumped filtration option, filter oil and be ready to fry again in under 5 minutes
Heat transfer technology delivers quicker response to temperature change and faster recovery
Fully welded mild steel pan, with dull finish for easy cleaning
Inclined base to tank and 28mm drain valve for quick and easy draining
Heavy-duty wire nickel plated basket/s
3kg max weight capacity per basket
Inboard oil drainage for improved safety and negates requirement of attaching an external pipe
Close tolerance thermostat range from 130°C to 190°C for accurate temperature control
Externally fired heating system gives unobstructed access to fryer tanks for ease of cleaning

Downloads

SPECIFICATION 24 facts · tap for all Width400 mmDepth800 mmHeight1070 mmGross weight99.2 kgVoltage230VTemperature range+90 to +190 °C

Identity7

Brand Lincatsite
GTIN / EAN 5.05611E+12catalogue
Product code DM541-Nsite
Range / series Opuscatalogue
Seo name Lincat Opus 800 Vortech Fryercatalogue
Type Free Standing Fryerscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 800 mmcatalogue
External (W×D×H) 1070 × 400 × 800 mmcatalogue
Gross weight 99.2 kgcatalogue
Height 1070 mmcatalogue
Width 400 mmsite

Capacity2

Capacity 16Ltrcatalogue
Product capacity 16catalogue

Performance1

Temperature range +90 to +190 °Ccatalogue

Power & energy2

Fuel type Natural Gascatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts5

Baskets 2catalogue
Mobility Castors & Feetcatalogue
Number of tanks 1catalogue
Output per hour 51kg/hrcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this free standing fryer earns its place

The DM541-N is the natural gas version of Lincat's Opus 800 free standing filtration fryer, built for kitchens that want high throughput with oil management built in. It measures 1070 x 400 x 800 mm, weighs 99.2 kg and is finished in stainless steel.

It holds 16 litres, uses two baskets and is rated at 51 kg/hr output. The manufacturer describes the fryer as highly economic, with 97% energy efficiency, lower running costs and metallic-alloy mesh pre-mix gas burner technology.

Pumped filtration, residual heat recovery, fuzzy logic electronic temperature control, removable batter plates, electronic ignition and a wide bore pipe are all included. That gives you a fryer set up to keep pace with service and keep the oil handling under control.

BEFORE YOU BUY

Questions, answered straight

It has a 16 litre capacity and one tank.

It runs on natural gas and requires 230V.

The specification lists 51 kg/hr.

It runs from +90 to +190 °C.

It has pumped filtration, residual heat recovery and removable batter plates.

For servicing help, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Vortech Free Standing Natural Gas Filtration Fryer OG8115/OP DM541-N Product Data

Brand Lincat
Type Free Standing Fryers
Range Opus
Dimensions 1070(H) x 400(W) x 800(D)mm
Capacity 16Ltr
Material Stainless Steel
Colour / Finish Silver
Temperature Range 90°C to 190°C
Power Gas/Electric
Voltage 230V
Fuel / Supply Natural Gas
Warranty 2 Years Parts & Labour
Weight 99.2kg
Manufacturer Ref OG8115/OP/N
If you have any questions about the Lincat Vortech Free Standing Natural Gas Filtration Fryer OG8115/OP DM541-N then please get in touch.
