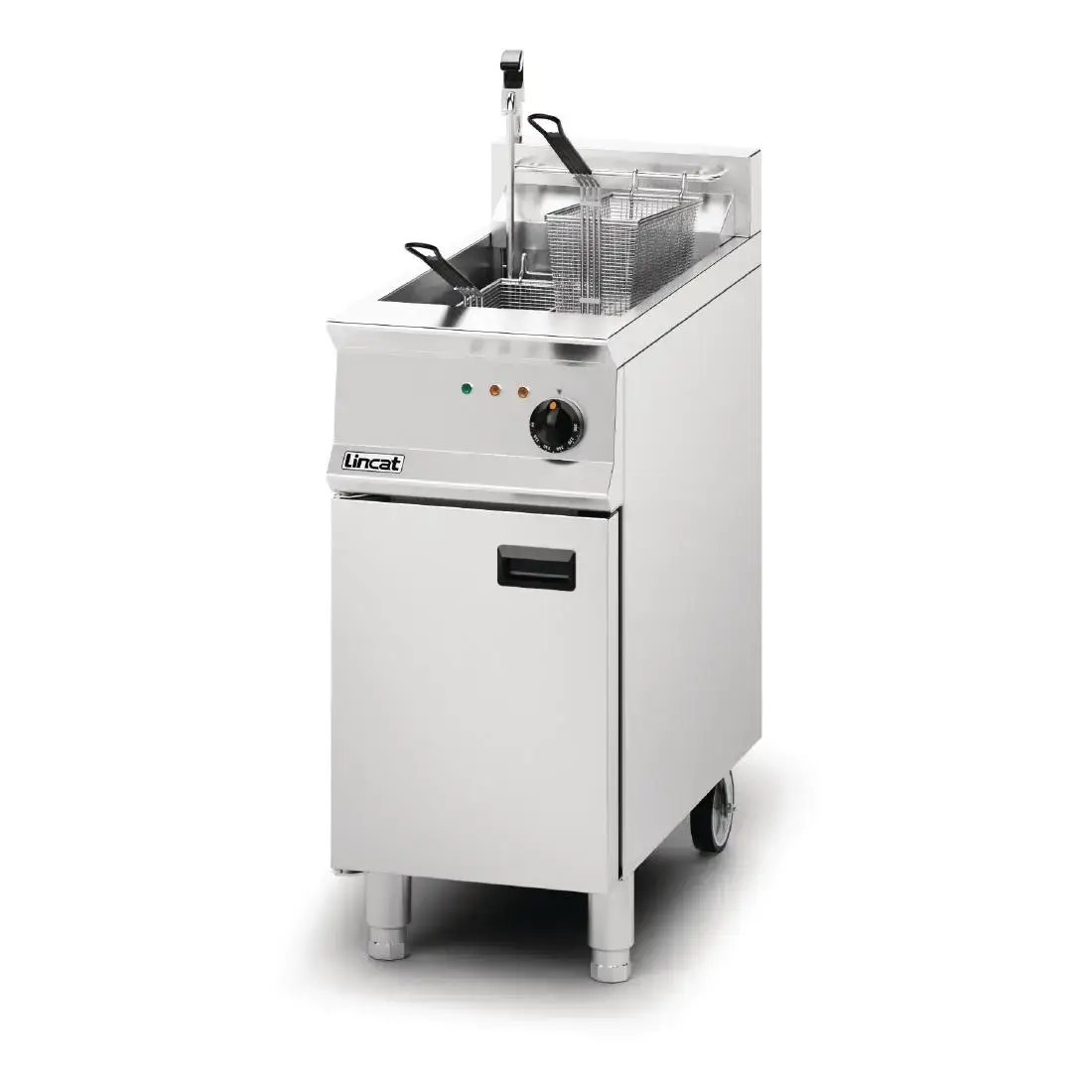

Lincat Opus 800 Free Standing Electric Filtration Fryer OE8114/OP DM530

£4,430.79

+vat

Availability: 999 in stock

- +

Brand:

SKU: DM530

Product summary

2 baskets. 14kW Three phase. Capacity: 20Ltr. Output: 45kg/hr

Product description

The Lincat Opus 800 Electric Fryer Single Tank 400mm is specifically designed to cope with the everyday rigours of a busy commercial kitchen, a task demonstrated by its heavy duty performance, excellent reliability, accurate control, super fast recovery, simple operation and easy cleaning. Pumped filtration means the oil can be filtered and the fryer ready to fry again in under 5 minutes, meaning oil can be filtered during or after service, even whilst hot, maximising oil life.

Integral pumped filtration option, filter oil and be ready to fry again in under 5 minutes
Fully welded mild steel pan, with dull finish for easy cleaning
Inclined base to tank and 28mm drain valve for quick and easy draining
Heavy-duty wire nickel plated basket/s
Oil pump to easily return filtered oil to the tank
3kg max weight capacity per basket
Inboard oil drainage for improved safety and negates requirement of attaching an external pipe
Close tolerance thermostat range 130°C to 190°C for accurate temperature control
Removable batter plates and lift out element with safety interlock for easy access and cleaning

Downloads

SPECIFICATION 25 facts · tap for all Width400 mmDepth800 mmHeight1070 mmGross weight78.5 kgVoltage400VTemperature range+90 to +190 °C

Identity7

Brand Lincatsite
GTIN / EAN 5.05611E+12catalogue
Product code DM530site
Range / series Opuscatalogue
Seo name Lincat Opus 800 Fryercatalogue
Type Free Standing Fryerscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 800 mmcatalogue
External (W×D×H) 1070 × 400 × 800 mmcatalogue
Gross weight 78.5 kgcatalogue
Height 1070 mmcatalogue
Width 400 mmsite

Capacity2

Capacity 20Ltrcatalogue
Product capacity 20catalogue

Performance1

Temperature range +90 to +190 °Ccatalogue

Power & energy2

Fuel type Three Phasecatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts6

Baskets 2catalogue
Electrical safety notice Yescatalogue
Mobility Castors & Feetcatalogue
Number of tanks 1catalogue
Output per hour 45kg/hrcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this free standing fryer earns its place

The Lincat Opus 800 Free Standing Electric Filtration Fryer OE8114/OP DM530 is a heavy-duty electric fryer built for constant commercial use. It has a 20 litre capacity, two baskets, a single tank and external dimensions of 1070 x 400 x 800 mm, with a stainless steel body that weighs 78.5 kg.

It runs on a 400V three phase supply with a rated input of 14,000 W, and its temperature range runs from +90 to +190 °C. The manufacturer also points to heavy duty performance, excellent reliability, accurate control, super fast recovery, simple operation and easy cleaning, which is exactly the kind of combination buyers look for in a workhorse fryer.

The pumped filtration system is the feature that makes daily service easier to live with. Oil can be filtered and the fryer ready to fry again in under 5 minutes, even while hot, which helps maximise oil life and keep service moving. Backed by a 2 year parts and labour warranty, it is a serious choice for kitchens that want output and control in one unit.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

400 × 800 × 1070 mmstated W × D × H78 kg
THE CRITICAL ANSWERNarrowest straight opening400mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1070 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

It runs on a 400V three phase supply.

It has a single 20 litre tank.

It comes with two baskets.

The stated output is 45 kg/hr.

The pumped filtration system can have it ready to fry again in under 5 minutes, even while hot.

It comes with 2 years parts and labour, and servicing support is available on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Opus 800 Free Standing Electric Filtration Fryer OE8114/OP DM530 Product Data

Brand Lincat
Type Free Standing Fryers
Range Opus
Dimensions 1070(H) x 400(W) x 800(D)mm
Capacity 20Ltr
Material Stainless Steel
Colour / Finish Silver
Temperature Range 90°C to 190°C
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 78.5kg
Manufacturer Ref OE8114/OP
If you have any questions about the Lincat Opus 800 Free Standing Electric Filtration Fryer OE8114/OP DM530 then please get in touch.
