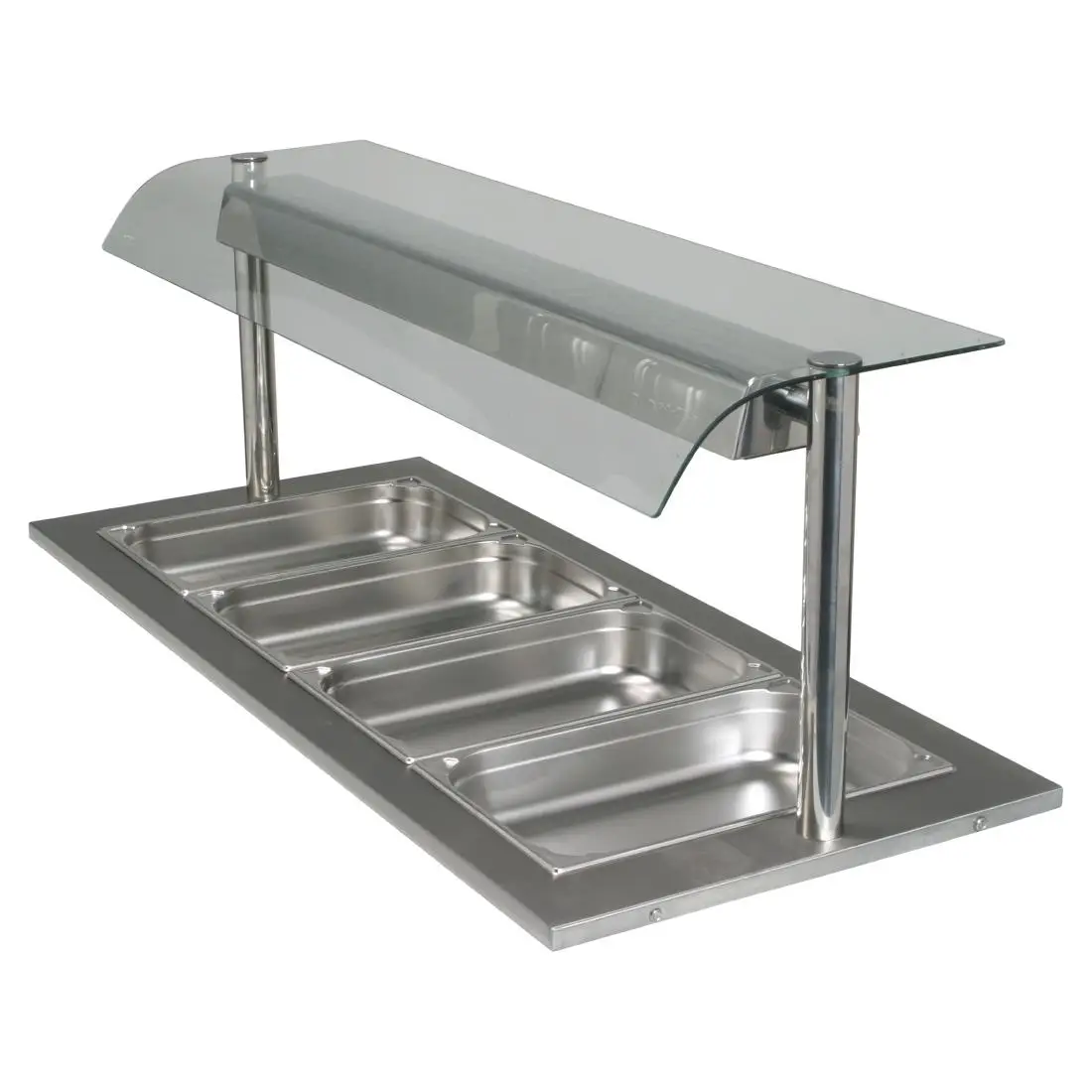

Victor Synergy DHBD4 Heated Bains Marie 150mm FS512

£2,692.29

+vat

Availability: 999 in stock

Brand:

SKU: FS512

Product summary

Capacity: 4x GN 1/1

Product description

A highly flexible display designed to maintain the temperature of hot food using an energy regulator controlled Bains Marie well, with supplimenting dimmer controlled quartz halogen heat lamps from above.

Controls mounted in bright polished stainless steel light box
Required cut out dimensions: 1370 x 636
Power 3.0kW
Dry heat – Max depth 150mm containers
Accepts GN containers with a maximum depth of 100mm
Complete with toughened glass screen and over shelf
Capacity 4 x 1/1GN

A counter-top bain marie with independent heated wells and overhead quartz halogen heat lamps, designed for flexible hot food display and temperature maintenance across full service.

Downloads

SPECIFICATION 11 facts · tap for all Depth660 mmGross weight75 kgMaterialStainless SteelProduct codeFS512BrandVictorTypeBains Marie

Identity5

Brand Victorsite
Product code FS512site
Seo name Victor Synergy DHBD4 Heated Bains Marie 150mmcatalogue
Type Bains Mariecatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight3

Depth 660 mmcatalogue
External (W×D×H) 540 × 1504 × 660 mmcatalogue
Gross weight 75 kgcatalogue

Power & energy1

Fuel type Plugcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this bains marie earns its place

The Victor Synergy DHBD4 is built for the display and holding strategy of a busy hot pass. It combines energy-regulator-controlled heated wells with dimmer-controlled quartz halogen heat lamps mounted above — giving you two independent temperature zones to work with. That flexibility matters: sauces and delicate plates hold differently than robust mains, and this machine lets you tune the heat for each without moving product around mid-service.

The unit spans 1504mm across — a serious counter presence that anchors your hot holding at the pass. At 660mm deep and 540mm wide, it sits well in a standard kitchen layout without intruding into traffic. Stainless steel throughout handles the moisture, heat and cleaning demands of service. At 75 kg, it's substantial enough to stay planted under load, mobile enough to position correctly when you install it.

The Victor Synergy philosophy is flexible — the DHBD4 isn't a one-trick holding cabinet; it's a display designed to adapt. Whether you're holding a four-course service with plates going hot at different stages or maintaining prepared components at different temperatures, the independent well and lamp control gives you the latitude to get it right.

BEFORE YOU BUY

Questions, answered straight

The wells hold food in heated pans, regulated by an energy controller. The overhead quartz halogen lamps add radiant heat from above, controlled separately with a dimmer, so you can adjust warmth without changing the well temperature.

The DHBD4 configuration gives you four wells. The exact pan dimensions and capacity depend on your GN pan profile; confirm compatibility with Craven before you buy.

Yes — the wells run on a single energy regulator and the lamps on a separate dimmer, so you have two main control zones. You can't adjust individual wells separately.

It spans 1504mm wide (counter length), 540mm across (towards you), and stands 660mm tall. That's a substantial footprint — measure your pass before ordering.

Stainless steel throughout makes washdown straightforward. Pan supports and lamp fixtures are designed for quick access. For detailed maintenance, contact Craven on 01792

The Victor Synergy DHBD4 comes with a 2-year parts and labour warranty.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Victor Synergy DHBD4 Heated Bains Marie 150mm FS512 Product Data

Brand Victor
Type Bains Marie
Dimensions 540(H) x 1504(W) x 660(D)mm
Material Stainless Steel
Colour / Finish Silver
Fuel / Supply Plug
Warranty 2 Years Parts & Labour
Weight 75kg
Manufacturer Ref DHBD4
If you have any questions about the Victor Synergy DHBD4 Heated Bains Marie 150mm FS512 then please get in touch.
