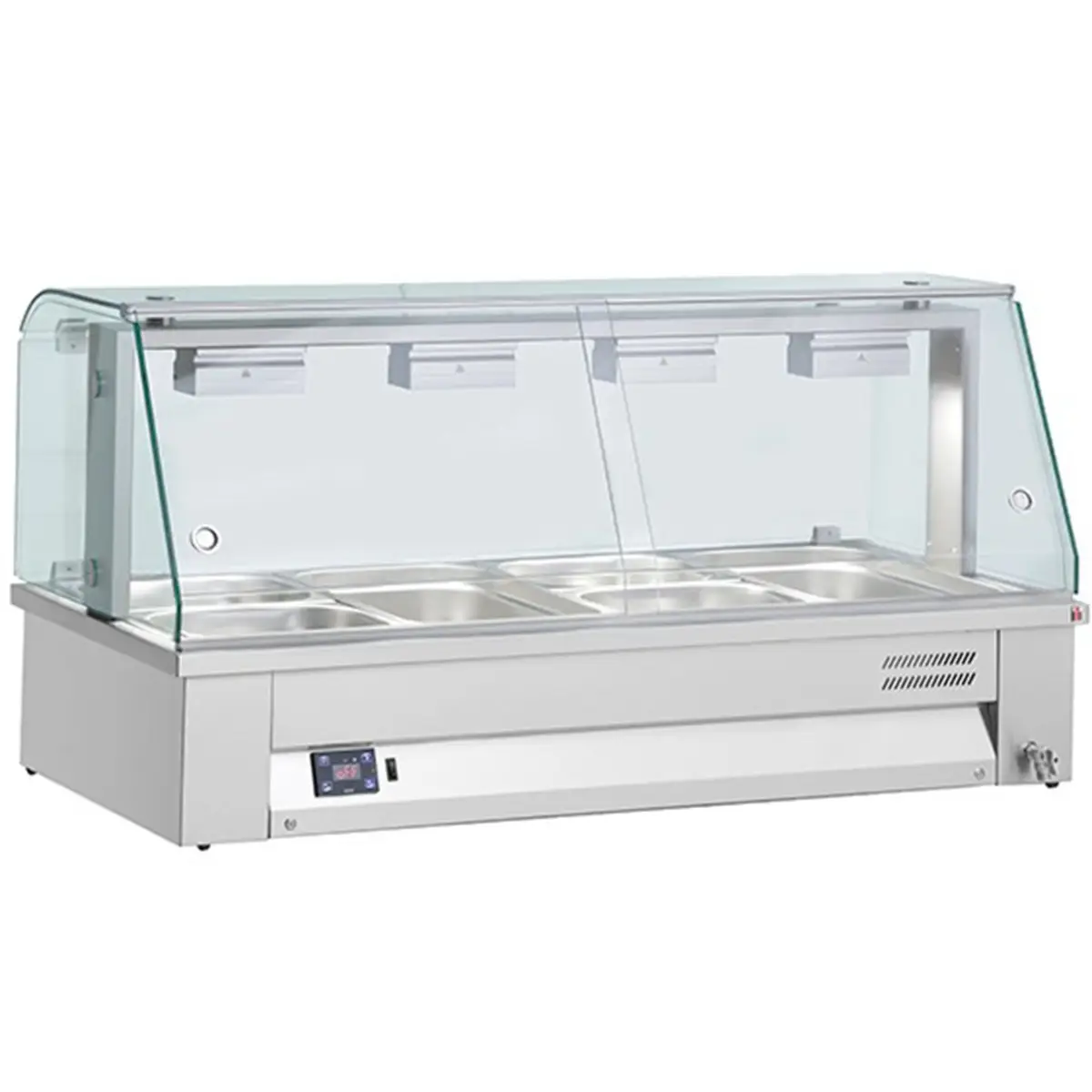

INOMAK Counter Top Bain Marie With Glass Canopy 4 x GN1/1 MBV614

£1,404.24

+vat

Brand:

SKU: MBV614

Product summary

Size: 1410 x 630 x 710

Product description

  • High grade AISI 304 stainless steel exterior & interior
  • With glass structure

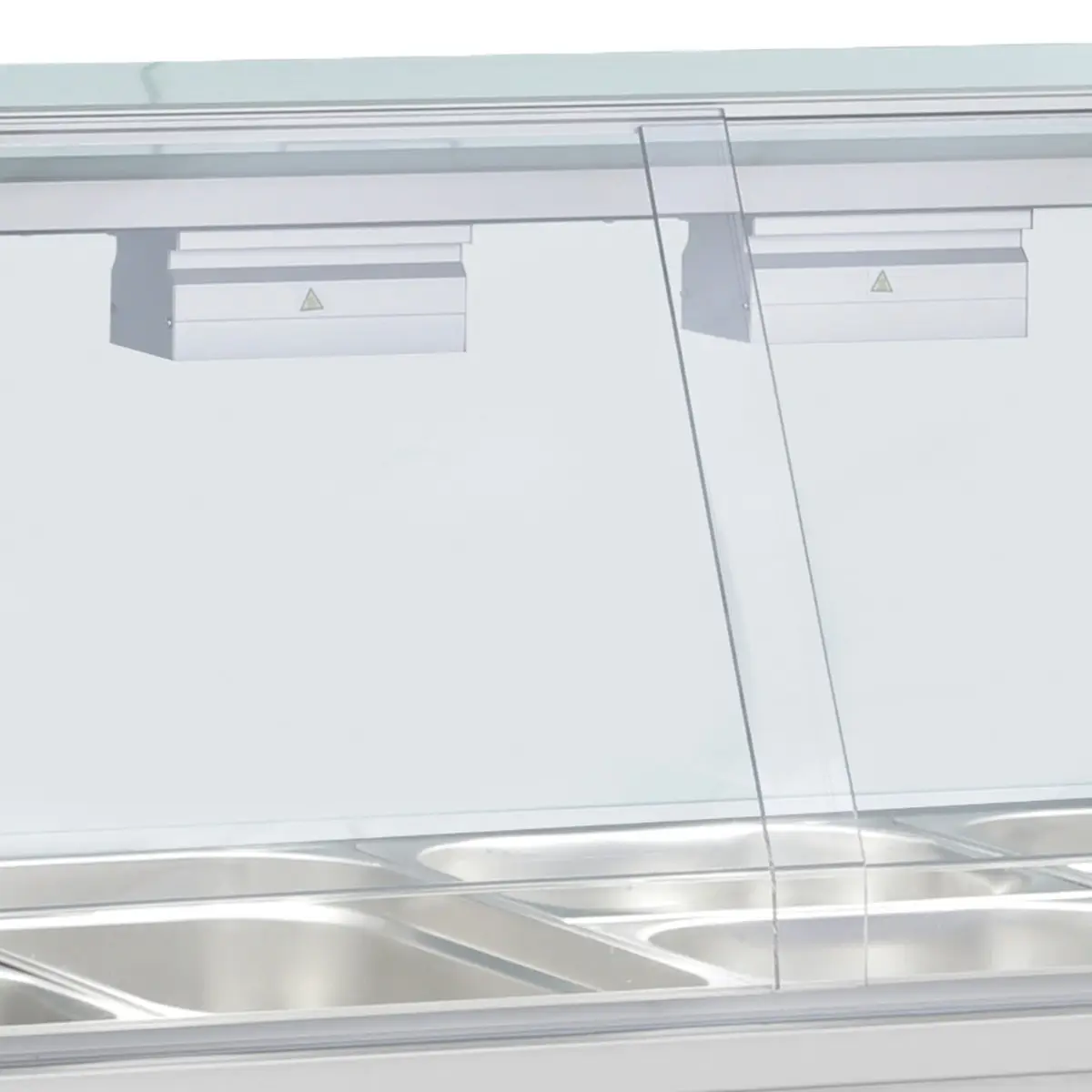

  • 130w halogen lamps
  • Supplied with perspex sliding doors to read of display area must be removed when in use
  • Wet well accepts GN1/1 upto 150mm deep not supplied
  • Portable: Easy to transfer
  • Maximum GN pan depth allowed: 150mm (pans not included)
  • Wet-well operation
  • Versatile showcase design with conversion capability depending on the use & 8mm thick glasses
  • Heater protection against low water level in the tank
  • The temperature in the Bain Marie is up to 90¬∞C
  • Robust construction

A wide counter-top bain marie with glass canopy and halogen lighting for four GN1/1 pans, designed to display and hold multiple hot dishes in sight of your customers. The INOMAK MBV614 combines four GN1/1 wet wells with a glass canopy, halogen lighting and digital control for high-visibility multi-dish service.

SPECIFICATION 18 facts · tap for all External W × D × H1410 x 630 x 710Width1410 mmDepth630 mmHeight710 mmGross weight81 kgVoltage / frequency2520W

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700965site
Product code MBV614site
Type Wet Well Counter Top Bain Mariescatalogue

Size & weight6

Depth 630 mmsite
External (W×D×H) 1410 × 630 × 710 mmcatalogue
External W × D × H 1410 x 630 x 710site
Gross weight 81 kgcatalogue
Height 710 mmsite
Width 1410 mmsite

Performance2

Controller Digital controller with temperature displaysite
Temperature range upto +90Csite

Power & energy3

Input power 13amp supplysite
Rated input 2520 Wcatalogue
Voltage / frequency 2520Wsite

Build & fittings1

Exterior finish Stainless Steelsite
THE WORKING VIEW

Why this wet well counter top bain marie earns its place

The MBV614 is built for kitchens where variety and visibility drive the sale. Four GN1/1 wells let you hold sauces, vegetables, proteins and sides all at once, each visible under halogen lamps that make the food look worth buying. At 1410 mm wide, it's a statement piece on a counter—the kind of display that draws customers' eyes and makes them order more. It sits comfortably on a standard run of counter and is portable enough to shift if you reconfigure the space.

The stainless-steel construction (AISI 304 inside and out) handles the demands of a busy counter—multiple daily fill-and-drain cycles, steam, splashing, the lot. The digital controller holds temperature up to 90°C steadily, so your food stays hot and safe without overcooking. Two 130 W halogen lamps warm the pans from above and light them for the customer view—crucial when four options are on display. The tempered glass vitrines and canopy are robust and clean easily.

Four pans mean you can run a real variety: soups and sauces, braised meats, roasted vegetables, sides. Each pan sits independently in its own GN1/1 well, accepting pans up to 150 mm deep. The perspex doors at the rear (for transport) come off during service to give you full working access. At 81 kg, it's a two-person move if needed, but once it's positioned it sits stable and level on its adjustable feet.

BEFORE YOU BUY

Questions, answered straight

Four pans give you the flexibility to run a proper range within a single counter unit. In a carvery you might run veg, sauce, meat and gravy; in a café, eggs, sausage, bacon and potatoes. Halogen lighting makes all four visible at once, and customers can see what's available without asking.

1410 mm wide, 630 mm deep. It's a substantial piece but designed to fit a standard catering counter run. Allow space around it for working and for water access to refill the tank.

The digital controller maintains up to 90°C. This is a hot-holding unit—load pans that are already cooked and at serving temperature. The goal is to keep them hot and safe, not to finish cooking.

The perspex doors at the rear must be removed during service. You can absolutely operate it open if visibility or access is more important than the display effect, though the halogen lamps and glass give a professional presentation.

Yes. The tank has a simple drain tap. Refill as needed to keep the pan seats surrounded by water—check the level regularly during service, especially on busy shifts. Drain and rinse the tank daily to avoid scale buildup.

13 amp supply, 2520 W. Standard UK socket required; no special installation.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1410 x 630 x 710

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Input Power: 13amp supply
Voltage / Frequency: 2520W

Measures and Content

Design and Material

Exterior Finish: Stainless Steel

INOMAK Counter Top Bain Marie With Glass Canopy 4 x GN1/1 MBV614 Product Data

If you have any questions about the INOMAK Counter Top Bain Marie With Glass Canopy 4 x GN1/1 MBV614 then please get in touch.
