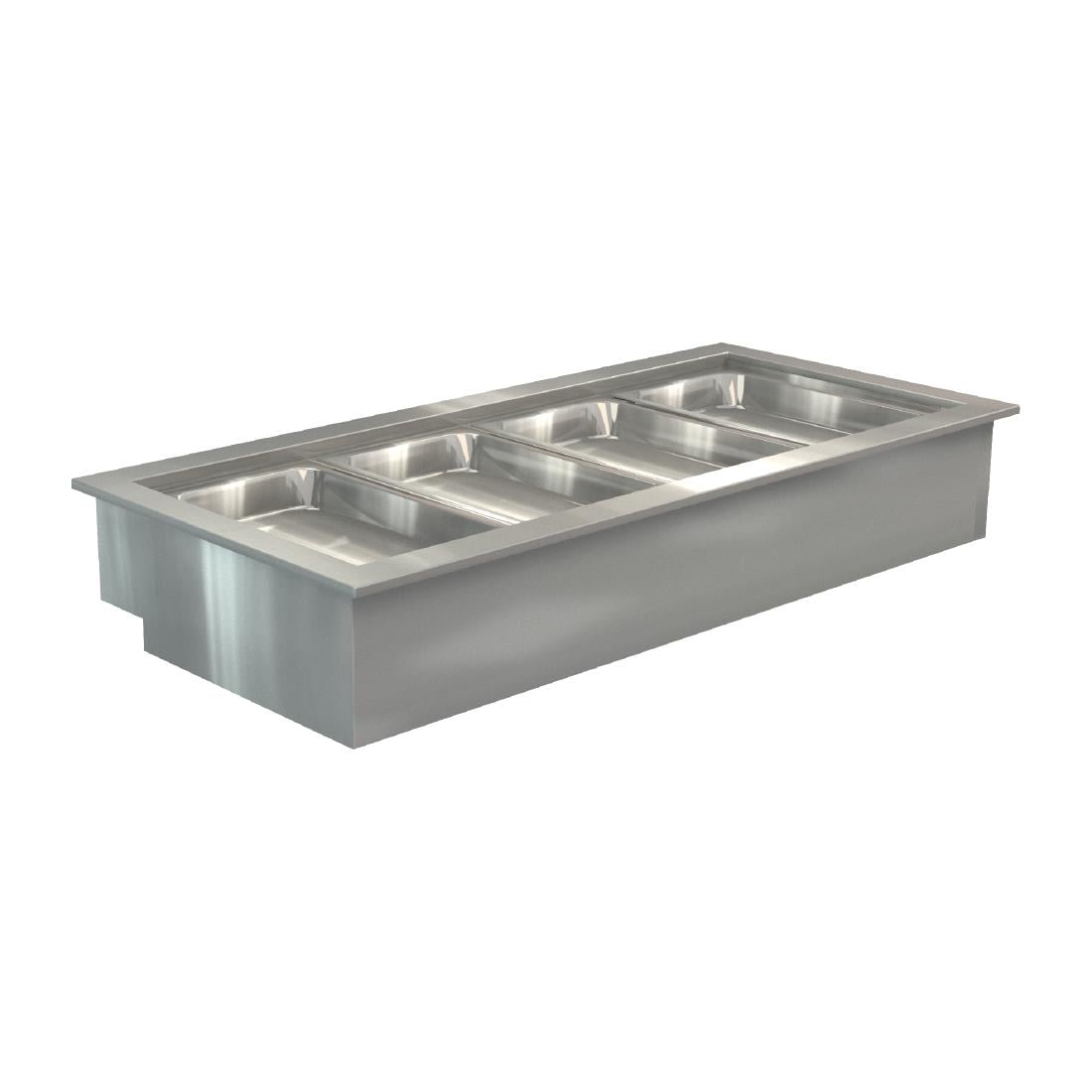

Cossiga Linear Series Drop-in Bain Marie 4×1/1 GN 1485mm HT653

£2,888.99

+vat

Availability: 999 in stock

Brand:

SKU: HT653

Product summary

4.3kW. 4×1/1 GN Compatible

Product description

The 4x 1/1GN compatible Cossiga Linear Series drop-in bain marie is a great addition to any foodservice line. Perfect for keeping pre-cooked food hot and ready to serve, the bain marie is highly reliable and easy to use, whether it’s in a self service or assisted service area.

Control is via a simple thermostat, allowing you to keep foods such as baked beans, chili, gravy or hot desserts at the perfect temperature without burning. The bain marie can also be used in wet or dry configurations – the choice is yours. And with space for four full-size pans, you can provide your guests with plenty of choice. Includes an overhead gantry with halogen lighting to maximise the appeal of the food.

Available in other sizes – please select from the drop-down menu.

Strong and durable 304 grade stainless steel construction
Overhead gantry with halogen lighting (no glass)
Holds up to 4x 1/1GN trays
Can operate in wet or dry configurations
Auto fill

A 1485 mm drop-in bain marie holding four full-size gastronorm pans at 75–85 °C with overhead halogen lighting — the entry point to the Cossiga Linear Series for smaller kitchens and tighter counter space.

Downloads

SPECIFICATION 18 facts · tap for all Width1485 mmDepth690 mmHeight555 mmGross weight106 kgVoltage220-240VTemperature range+75 to +85 °C

Identity5

Brand Cossigasite
Product code HT653site
Range / series Linearcatalogue
Type Bains Mariecatalogue
Warranty 2 Yearscatalogue

Size & weight5

Depth 690 mmcatalogue
External (W×D×H) 555 × 1485 × 690 mmcatalogue
Gross weight 106 kgcatalogue
Height 555 mmcatalogue
Width 1485 mmsite

Capacity1

Gastronorm size 1/1 GN fullcatalogue

Performance1

Temperature range +75 to +85 °Ccatalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 4.3 Wcatalogue
Voltage 220-240Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material 304 Stainless Steelcatalogue

Other stated facts1

Electrical safety notice Yescatalogue
THE WORKING VIEW

Why this bains marie earns its place

The Cossiga Linear 4-pan drop-in bain marie is the practical choice for smaller kitchens: four full 1/1 GN pans (530×325 mm each) held at 75–85 °C gives you a proper range of dishes without a footprint that dominates the counter. Many smaller operations run it at three dishes plus one emergency spare, or four items split across smaller pans if the menu needs it. The temperature range holds chilli, beans, gravies, hot desserts and pre-cooked proteins at the perfect holding temperature — hot enough to keep food safe, cool enough that nothing dries out or develops a skin during service.

The wet/dry flexibility is built in: run it with water in each well for traditional bain-marie reliability, or dry with just a cup of water per pan if you're holding delicate items. Most kitchens default to wet because it's proven, forgiving and requires minimal staff training. The overhead halogen gantry delivers the same presentation appeal as the larger models: proper lighting so food looks appetising and sells itself from the service counter.

Drop-in installation means you cut a hole and it sits flush — clean counter lines, no wasted space. 304 stainless steel throughout handles daily cleaning and years of service without complaint. The thermostat is straightforward: one dial, no software, no faffing. At 1485 mm wide, it fits into tight kitchen spaces and works well alongside a smaller griddle or range setup.

BEFORE YOU BUY

Questions, answered straight

For most small to mid-size operations, yes. Most kitchens run three working dishes with one emergency spare. If you consistently need more than four items, the five-pan (HT654/HT658) or six-pan (HT659) models are the answer.

75–85 °C is the safe holding range. Most kitchens dial it to 80 °C and leave it. Delicate items like custard or sauces might prefer 75 °C; robust items like chilli prefer 85 °C. The thermostat gives you one setting for all wells.

Yes, but wet is easier and more forgiving. Wet means water in each well (traditional bain-marie); dry means just a cup of water per pan. Most kitchens use wet because it tolerates minor oversights.

4.3 kW rated on a single-phase 220–240 V supply. Most modern kitchens have capacity for this already, but confirm with your electrician during installation.

1485 mm wide, 690 mm deep, 555 mm high. At 106 kg, it needs a solid work surface, but the footprint is relatively compact — it fits into smaller kitchen spaces without dominating.

2 years parts and labour covering the thermostat and heating elements — the components that wear. If something fails in that window, contact 01792 732702 for service. After warranty, thermostats and elements are affordable and usually a 20-minute job to swap.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Cossiga Linear Series Drop-in Bain Marie 4×1/1 GN 1485mm HT653 Product Data

Brand Cossiga
Type Bains Marie
Range Linear
Dimensions 555(H) x 1485(W) x 690(D)mm
Material 304 Stainless Steel
Colour / Finish Silver
Temperature Range 75°C to 85°C
Power 4.3W
Voltage 220-240V
Fuel / Supply Single Phase
Warranty 2 Years
Weight 106kg
Manufacturer Ref LSBM4
If you have any questions about the Cossiga Linear Series Drop-in Bain Marie 4×1/1 GN 1485mm HT653 then please get in touch.
