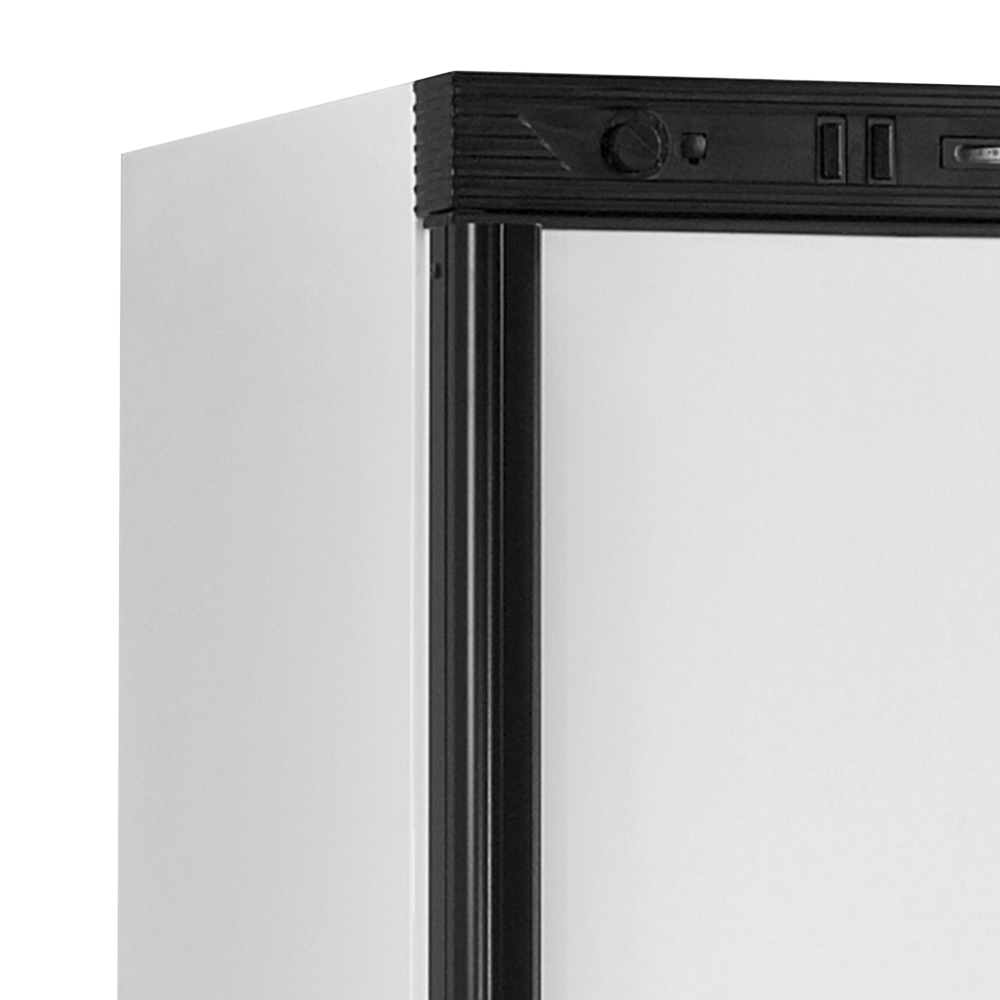

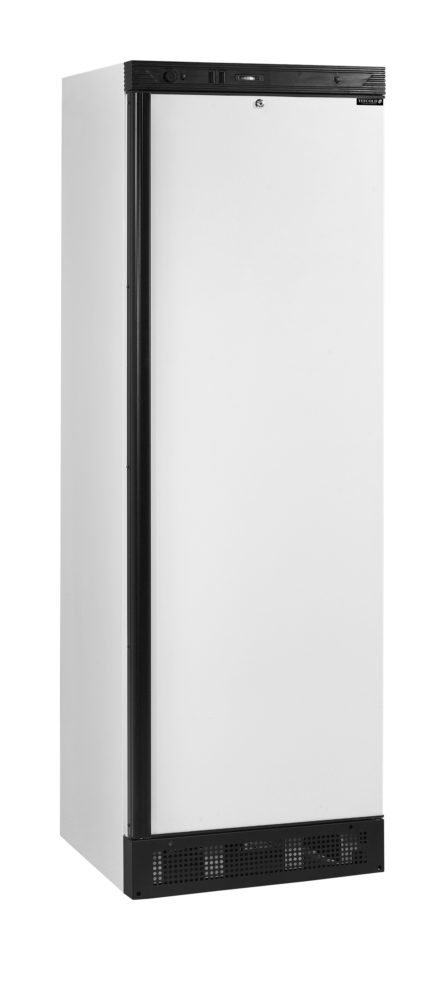

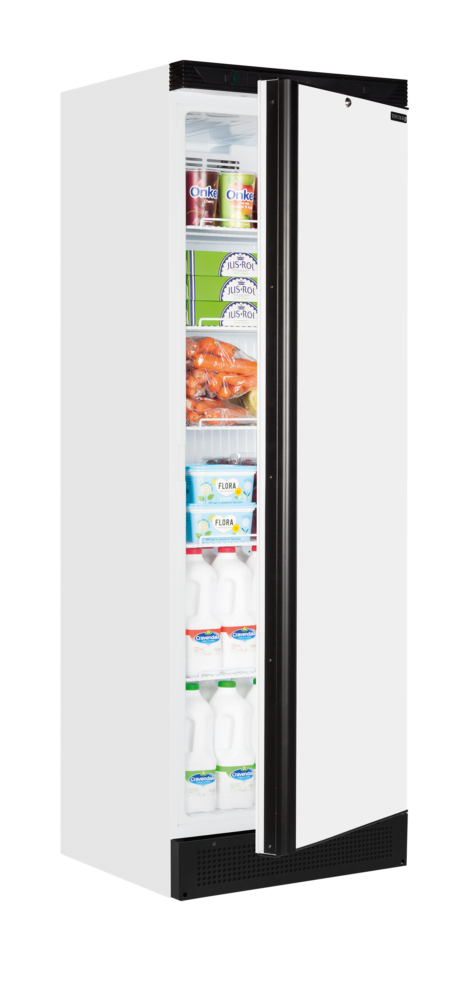

TEFCOLD SD1380 Solid Door Refrigerator

£533.00

+vat

Brand:

SKU: 20177

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Adjustable feet
  • Thermometer

Product description

The SD range of commercial refrigeration units are designed for optimal storage with solid door construction. With a sleek white exterior and interior, these units are both functional and aesthetically pleasing. The fan-assisted cooling system and mechanical controller ensure consistent temperature.

The Tefcold SD1380 is a compact single-door upright commercial refrigerator in a white cabinet with five adjustable white wire shelves and a simple mechanical controller, rated energy class D at 657 kWh a year and running from a standard 13 amp supply.

SPECIFICATION 47 facts · tap for all External W × D × H595 x 640 x 1840 mmWidth595 mmDepth640 mmGross / net weight70 / 64 kgGross weight70 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181008512site
Product code 20177site
Sub title Solid Door Refrigeratorcatalogue
Type Single Door Upright Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 640 mmsite
External (W×D×H) 595 × 640 × 1840 mmcatalogue
External W × D × H 595 x 640 x 1840 mmsite
Gross / net weight 70 / 64 kgsite
Gross weight 70 kgcatalogue
Height 1840 mmsite
Internal (W×D×H) 505 × 462 × 1555 mmcatalogue
Internal W × D × H 505 x 462 x 1555 mmsite
Packed (W×D×H) 630 × 670 × 1920 mmcatalogue
Packed W × D × H 630 x 670 x 1920 mmsite
Width 595 mmsite

Capacity3

Doors 1catalogue
Gross volume 358 litrescatalogue
Shelves 5catalogue

Performance10

Climate class 4site
Controller Mechanicalsite
Cooling type Fan assistedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 70 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 655 kWh/yearsite
Energy consumption 1.8 kWh/24hsite
Energy efficiency index 67.6 %site
Input power 370 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Castors 2 rollerssite
Exterior finish Whitesite
Feet / legs 2 adjustable feetsite
Interior light Nosite
Max load per shelf 174.94site
Shelf dimensions 498 x 398 mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door upright fridge earns its place

The SD1380 is a white single-door upright fridge built for chilled storage where floor space is tight. Behind one hinged solid door sit five adjustable white wire shelves, so you can stack a working day's stock and re-space the shelves as your lines change. It is a straightforward back-of-house cabinet for cafés, bars and small kitchens that need reliable storage without a large footprint.

Control is by a mechanical dial, which keeps setting and adjustment simple for any member of the team, and the cabinet is rated climate class 4 for warm back-of-house ambients. On energy it carries an energy class D label and uses 657 kWh a year, which works out at about £164 a year to run at 25p/kWh. It uses R600a refrigerant.

The cabinet measures 595 × 640 × 1840 mm, so at 595 mm wide it passes through a standard single doorway on delivery. Internally you get 470 × 440 × 1555 mm of usable height and width for your shelves. It weighs 70 kg packed and 64 kg installed, and runs from a standard 13 amp socket at 220-240 V, so no special supply is needed.

BEFORE YOU BUY

Questions, answered straight

It is rated energy class D and uses 657 kWh a year, which is about £164 a year at 25p/kWh. Your actual cost depends on your tariff and how hard the unit is worked.

Yes. The cabinet is 595 mm wide, so it clears a standard single doorway once unboxed. Its full external size is 595 × 640 × 1840 mm.

The SD1380 uses a mechanical dial controller, which keeps day-to-day setting and adjustment simple for the whole team.

There are five adjustable white wire shelves behind one solid door, with an internal space of 470 × 440 × 1555 mm to load and re-space as your stock changes.

No. It runs from a standard 13 amp socket at 220-240 V, so a single cabinet needs no dedicated circuit.

Yes. Our engineers cover Tefcold refrigeration across the region; call 01792 732702 to book a service visit or set up a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 470 x 440 x 1555 mm
External Dimension (WxDxH): 595 x 630 x 1840 mm
Packed Dimension (WxDxH): 630 x 670 x 1920 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Fan assisted
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 70 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.8 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 655 kWh/year m³
EEI: 67.6 %
Input Power: 370 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 4
Gross / Net Weight: 70 / 64 kg
Gross / Net Volume: 358 / 219 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: 498 x 398 mm
Max load on Shelves: 174.94 kg/m²
Feet / Legs: 2 adjustable feet
Castors: 2 rollers
Exterior Finish: White
Interior Finish: White
Interior Light: No
Lock: Yes
If you have any questions about the TEFCOLD SD1380 Solid Door Refrigerator then please get in touch.
