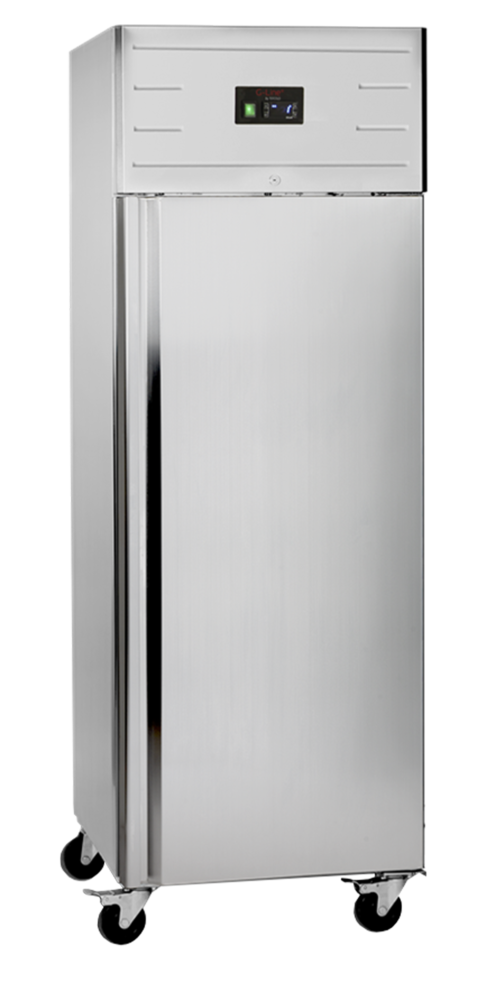

G-Line by TEFCOLD GUC70 Gastronorm Solid Door Refrigerator

£1,408.00 £754.00

+vat

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves
  • Castors
  • Digital controller and temperature display
  • Replaceable door gasket
  • Accepts 2/1 Gastronorm shelves/pans

Product description

The GUC Gastronorm Refrigerators are perfect for busy commercial kitchens. Offering adjustable shelves and accepting 2/1 Gastronorm shelves/pans. The stainless steel build, both inside and out, promotes easy cleaning, while standard castors provide mobility. Fan-assisted cooling offers quick pull-down times, and electric defrost feature enhances efficiency.

The G-Line GUC70 is a single solid-door stainless steel upright gastronorm fridge holding 395 litres net at +2 to +8 °C, with ventilated cooling, three shelves, R290 refrigerant, electronic control and a standard 13A supply.

Sale!
SPECIFICATION 43 facts · tap for all External W × D × H680 x 867 x 1995 mmWidth680 mmDepth867 mmGross / net weight145 / 120 kgGross weight145 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181362003site
Product code 30809site
Sub title Gastronorm Solid Door Refrigeratorcatalogue
Type Single Door Upright Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 867 mmsite
External (W×D×H) 680 × 867 × 1995 mmcatalogue
External W × D × H 680 x 867 x 1995 mmsite
Gross / net weight 145 / 120 kgsite
Gross weight 145 kgcatalogue
Height 1995 mmsite
Internal (W×D×H) 560 × 680 × 1384 mmcatalogue
Internal W × D × H 560 x 680 x 1384 mmsite
Packed (W×D×H) 720 × 880 × 2050 mmcatalogue
Packed W × D × H 720 x 880 x 2050 mmsite
Width 680 mmsite

Capacity2

Gross volume 537 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 90 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 445 kWh/yearsite
Energy consumption 1.22 kWh/24hsite
Energy efficiency index 36.5 %site
Input power 255 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Stainless steelsite
Max load per shelf 110site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this single door upright fridge earns its place

The GUC70 is a single-door upright fridge for everyday chilled storage back of house. It gives you 537 litres gross and 395 litres net across three shelves, with a stainless steel exterior and interior and a gastronorm-compatible interior. A slim 680 mm-wide body makes it easy to slot into a tight line without giving up usable capacity.

It holds +2 to +8 °C with ventilated cooling, which keeps temperature even from top to bottom, and an electronic controller for precise setting. It runs on R290 refrigerant with automatic electric defrost and carries a climate class 4 rating, so it holds temperature in warm kitchens. Rated energy class C at 445.3 kWh a year, it costs about £111 a year at 25p/kWh, and measured noise is 45 dB.

The cabinet measures 680 × 845 × 2000 mm and ships packed at 720 × 880 × 2050 mm, so check your access route before delivery — gross weight is 145 kg. It runs from a standard 13A supply at 220-240V 50Hz, drawing 255W, with a 90 g charge of R290.

BEFORE YOU BUY

Questions, answered straight

It offers 537 litres gross and 395 litres net across three shelves, with a gastronorm-compatible interior for standard trays and containers.

It is energy class C and rated at 445.3 kWh a year, which is about £111 a year at 25p/kWh. Your actual figure depends on tariff, ambient temperature and door use.

The cabinet is 680 × 845 × 2000 mm, so the slim 680 mm width suits a narrow run. It ships packed at 720 × 880 × 2050 mm and weighs 145 kg gross.

It runs at +2 to +8 °C with ventilated cooling for even distribution and an electronic controller. Its climate class 4 rating means it holds temperature in warm kitchens.

No. It runs from a standard 13A supply at 220-240V 50Hz and draws 255W, so it connects to an ordinary commercial socket.

It uses automatic electric defrost with R290 refrigerant, so there is no manual routine. For servicing, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 560 x 680 x 1384 mm
External Dimension (WxDxH): 680 x 867 x 1995 mm
Packed Dimension (WxDxH): 720 x 880 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.22 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 445 kWh/year m³
EEI: 36.5 %
Input Power: 255 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 145 / 120 kg
Gross / Net Volume: 537 / 395 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: GN2/1
Max load on Shelves: 73 kg/m²
Castors: 4 wheels, 2 with brake
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
Interior Light: No
Lock: Yes
If you have any questions about the G-Line by TEFCOLD GUC70 Gastronorm Solid Door Refrigerator then please get in touch.
