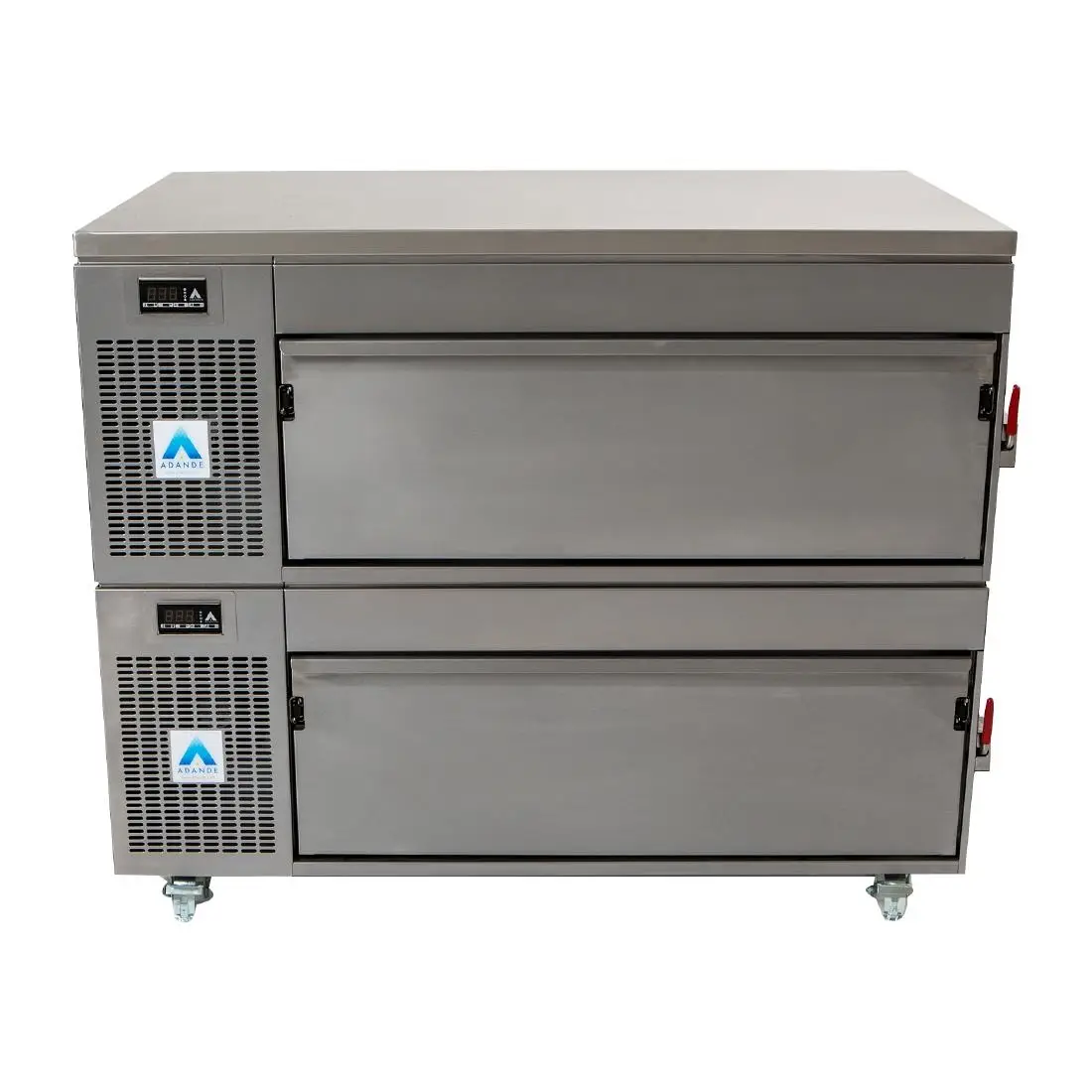

Adande Counter Pass Through Fridge Freezer Double Drawer VCM2/CW CU163

£6,384.94

+vat

Availability: 999 in stock

- +

Brand:

SKU: CU163

Product summary

Capacity: 8x 1/1GN (172Ltr). Castors and solid top.

Product description

The Adande VCM2/CW is a highly ergonomic storage solution right at the point of use. Provides access from both sides of a central island unit. ideal for meat, deli and larder prep. Suitable for pastry and dessert prep. Perfect for storage for garnish and ‘mise en place’ generally.

Each drawer can be separately operated at temperatures fully variable from -22°C to + 15°C
Fan that draws out any warm air and lets cold air naturally gravity feed into container. For less dehydration when used as a fridge and no ice crystals when used as a freezer
Ideal for central islands where access can be gained from both sides
Standard castors for optimum manoeuvrability and height
Energy Label B. Runs as A energy when in fridge mode
Can be set to suit soft scoop ice cream at exactly-14°C and will not crystalise
Capacity 86 litres. Holds 4 1/1 GN Pans 100mm deep
Fully insulated container to hold the cold
Horizontal seals for maximum efficiency and minimum expose to damage

Downloads

SPECIFICATION 29 facts · tap for all Width1120 mmDepth710 mmHeight900 mmGross weight164 kgVoltage230VTemperature range-22 to +15 °C

Identity6

Brand Adandesite
Extended warranty 1 Year Parts Onlycatalogue
Model ref VCM2/CWcatalogue
Product code CU163site
Type Counter Fridges/Freezerscatalogue
Warranty 5 Yearscatalogue

Size & weight5

Depth 710 mmcatalogue
External (W×D×H) 900 × 1120 × 710 mmcatalogue
Gross weight 164 kgcatalogue
Height 900 mmcatalogue
Width 1120 mmsite

Capacity4

Capacity 86Ltrcatalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 86 litrescatalogue
Product capacity 86catalogue

Performance3

Climate class 5catalogue
Refrigerant R600a / GWP 3catalogue
Temperature range -22 to +15 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 13 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Insulation 25 mmcatalogue
Material Stainless Steelcatalogue

Other stated facts5

Energy (24h) 4.16 kWh/24hcatalogue
Energy class Bcatalogue
Energy consumption 1522 kWh/yearcatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this counter fridges/freezer earns its place

The Adande VCM2/CW is a pass-through counter with two drawers at 1120 mm wide and 710 mm deep, holding chilled or frozen product right where it is used. Cooks pull stock without leaving the prep line to fetch it from elsewhere in the kitchen, and the drawers keep the cold contained each time they open.

Pass-through access means the counter can be loaded from one side and worked from the other — useful where prep and service share the same run, since the unit is restocked from the back while the front stays free for picking during a rush. The 86-litre capacity in two independent drawers suits meat prep, deli and larder work, as well as pastry and dessert prep, and it holds both chilled and frozen product at temperatures from −22 °C to +15 °C. That two-sided access also suits a layout where one team preps and another team plates, without either side crossing the other's path.

The unit weighs 164 kg and is built in stainless steel with 25 mm insulation. It's designed to sit within a bank of counters as a fixed part of the back-of-house line rather than a standalone cabinet, so plan its position early in the layout. Check clearance on both the loading side and the working side, confirm the worktop height matches the rest of the run, and verify electrical (230V single phase) before the install goes ahead.

BEFORE YOU BUY

Questions, answered straight

It is a fridge-freezer, so it can hold chilled or frozen product depending on how the drawers are set. Check the spec panel for the temperature range before ordering for a specific use.

Pass-through means the drawers can be reached from both sides of the counter, so one side can be restocked while the other is worked during service. It suits a counter shared between prep and the pass.

Drawers keep cold air contained each time they open and bring stock forward to the cook, rather than making them reach into a cabinet. That suits a busy prep station with constant access.

It is 1120 mm wide and 710 mm deep, built as a counter-height unit to sit within a bank of prep counters. Confirm the external dimensions in the spec panel against your available space and entry route before ordering.

The VCM2/CW is energy class B, consuming 1522 kWh per year (4.16 kWh per day). Use our energy label decoder to calculate the cost on your own electricity tariff.

Craven Cooling handles installation and servicing for the units we supply. Call 01792 732702 to arrange a service visit or discuss a maintenance schedule.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Adande Counter Pass Through Fridge Freezer Double Drawer VCM2/CW CU163 Product Data

Brand Adande
Type Counter Fridges/Freezers
Dimensions 900(H) x 1120(W) x 710(D)mm
Capacity 86Ltr
Material Stainless Steel
Colour / Finish Silver
Temperature Range -22°C to 15°C
Refrigerant R600a / GWP 3
Energy Rating B
Annual Energy Use 1522kWh/annum
Power 13W
Voltage 230V
Fuel / Supply Plug
Warranty 5 Years
Weight 164kg
Manufacturer Ref VCM2/CW
If you have any questions about the Adande Counter Pass Through Fridge Freezer Double Drawer VCM2/CW CU163 then please get in touch.
