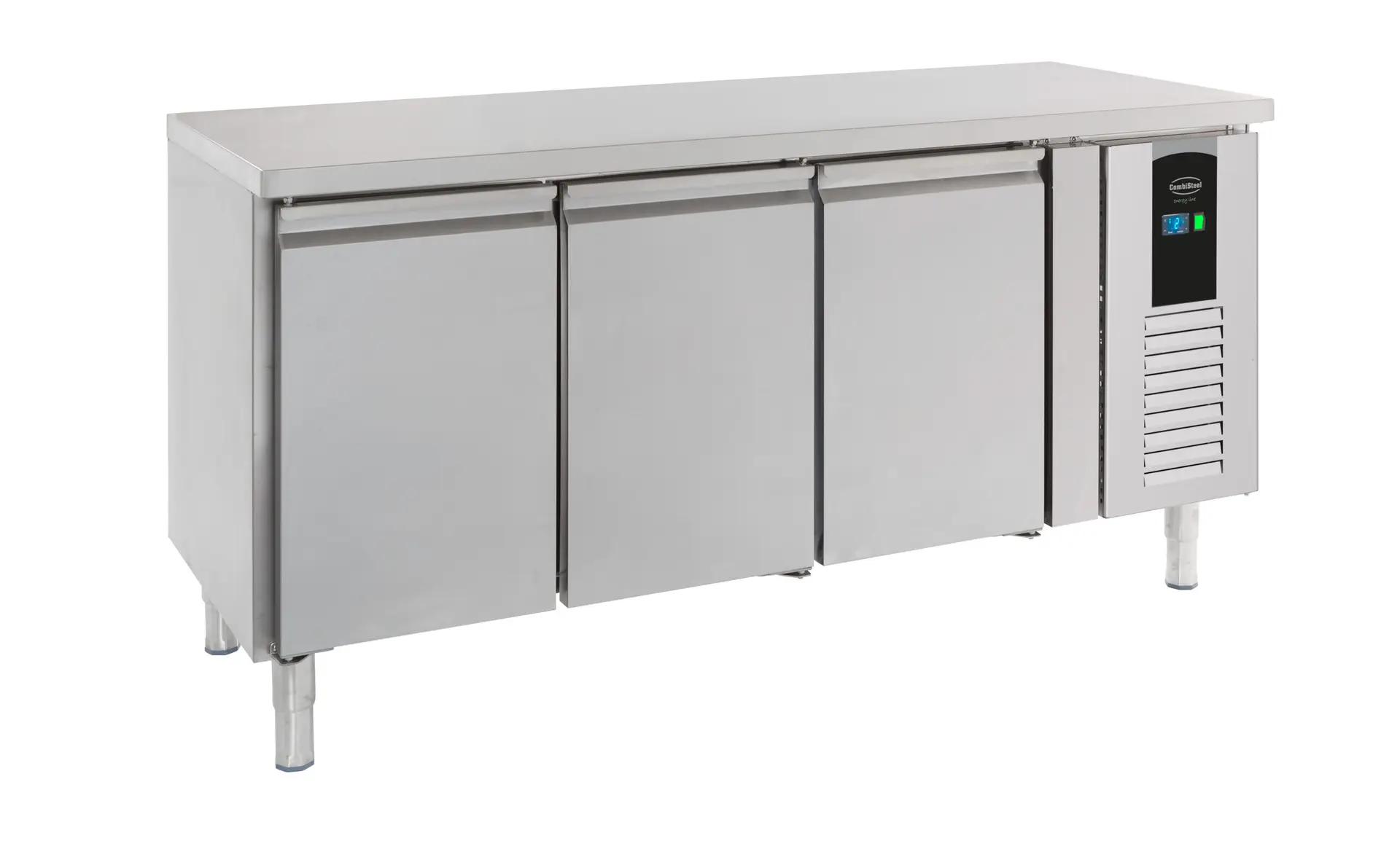

CombiSteel Refrigerated Counter Triple Door Energy Line 7450.5005

£1,092.08

+vat

- +

Brand:

SKU: 7450.5005

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 36 facts · tap for all Width1795 mmDepth700 mmHeight860 mmGross / net weight151 kgGross weight134 kgVoltage / frequency23050

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153302665652catalogue
Range / series Energy Linecatalogue
Type Triple Door Counter Fridgescatalogue

Size & weight8

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 860 mmcatalogue
Gross / net weight 151 kgsite
Gross weight 134 kgcatalogue
Height 860 mmsite
Internal (W×D×H) 1234 × 530 × 564 mmcatalogue
Internal W × D × H 1234x530x564site
Width 1795 mmsite

Capacity5

Capacity 465 Ltrcatalogue
Gastronorm size 3x 1/1catalogue
Gross volume 465 litrescatalogue
Net volume 291 litrescatalogue
Shelves 3catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 4040 °Ccatalogue
Maximum ambient 4040site
Temperature range +2/+8site

Power & energy6

Energy consumption 0,3site
Frequency 50 Hzcatalogue
Rated input 300 Wcatalogue
Rated power 3 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings6

Colour Stainless steelcatalogue
Exterior finish Stainless steel Aisi 201site
Insulation 60 mmcatalogue
Interior finish Stainless steel 201site
Lock Nosite
Temperature display Yes, digitalcatalogue

Other stated facts1

Energy (24h) 142 kWh/24hcatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

This is a three-door refrigerated counter — chilled storage built into a run of worktop so ingredients sit cold, under the hand, exactly where the prep happens. At 1795 mm wide and 860 mm tall, it drops into a standard kitchen line without breaking the worktop sight line. Instead of walking to a cabinet mid-service, the line cook opens a door beneath the bench and pulls what they need. The counter runs across three door sections, holding a working stock of 465 litres of chilled ingredients right where prep happens, at +2 to +8 °C.

Across three sections the unit holds exactly what a busy prep station needs — reach-in access for fillings, prepared components and chilled plates without tying up your walk-in or taking a cook away from the line. Built from stainless steel with 60 mm insulation and a ventilated cooling system, it runs to +2 to +8 °C and doubles as a bench, so one piece of equipment gives you both working surface and cold storage. For any station where speed and reach matter more than bulk, that combination is the point.

Built as a run of under-counter storage, it weighs 151 kg and runs from a standard 230V socket on a 3 kW circuit — check that power is available at the planned position. It drops into a line of kitchen furniture and works as part of the bench rather than a standalone cabinet. Craven Cooling supplies the counter and backs it with UK servicing and support, so a fault behind a prep station is one call away from being sorted. Talk to the team about the run you are fitting so the counter suits the station it sits in.

BEFORE YOU BUY

Questions, answered straight

It combines chilled storage and a worktop in one unit, so a kitchen keeps ingredients cold directly beneath the surface where prep happens. Cooks open a door under the bench rather than walking to a separate cabinet, which keeps a busy station quick and stocked.

Three door sections give a run of under-counter cold storage holding 465 litres along the bench, so a busy line can hold a working stock of chilled ingredients close to the pass. Each door opens to its own compartment, giving the line multiple points of reach without blocking others working nearby.

The counter runs at +2 to +8 °C — the chilled range for ready-to-eat and prepared ingredients. It is not a freezer; for frozen storage you would want a dedicated freezer format instead.

Yes. The counter is built as a bench with chilled storage below, so you get a working surface and cold stock from one piece of kit. That is what makes it suited to prep and make stations rather than bulk holding.

Craven Cooling supplies and services commercial refrigeration across the UK, so if the counter needs attention you have one number to call — 01792 732702. Keeping condensers clean and booking regular servicing helps a counter hold temperature through long service.

Check the spec panel on this page for the external dimensions: 1795 mm wide, 700 mm deep and 860 mm tall. It weighs 151 kg, so factor that into your flooring and installation plan. Give Craven Cooling the space and the station it needs to work in and the team will confirm it suits before you order.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Triple Door Energy Line 7450.5005 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 1795 × 700 × 860 mm
Interior Dimensions 1234x530x564
Capacity 465 Ltr
GN Capacity 3x 1/1
Material Stainless steel Aisi 201
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2/+8
Max. Ambient Temp. 40
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3x 335×530
Electrical Power 0.3 kW
Energy Use 1.42 kWh/24h
Voltage 230V / 50Hz
Mobile No
Lockable No
Insulation 60 mm
Weight 134 kg
If you have any questions about the CombiSteel Refrigerated Counter Triple Door Energy Line 7450.5005 then please get in touch.
