CombiSteel 600 Series Refrigerated Counter Triple Door 7450.0116

£887.00

+vat

Brand:

SKU: 7450.0116

Product summary

Size W/D/H (mm) x x

Product description

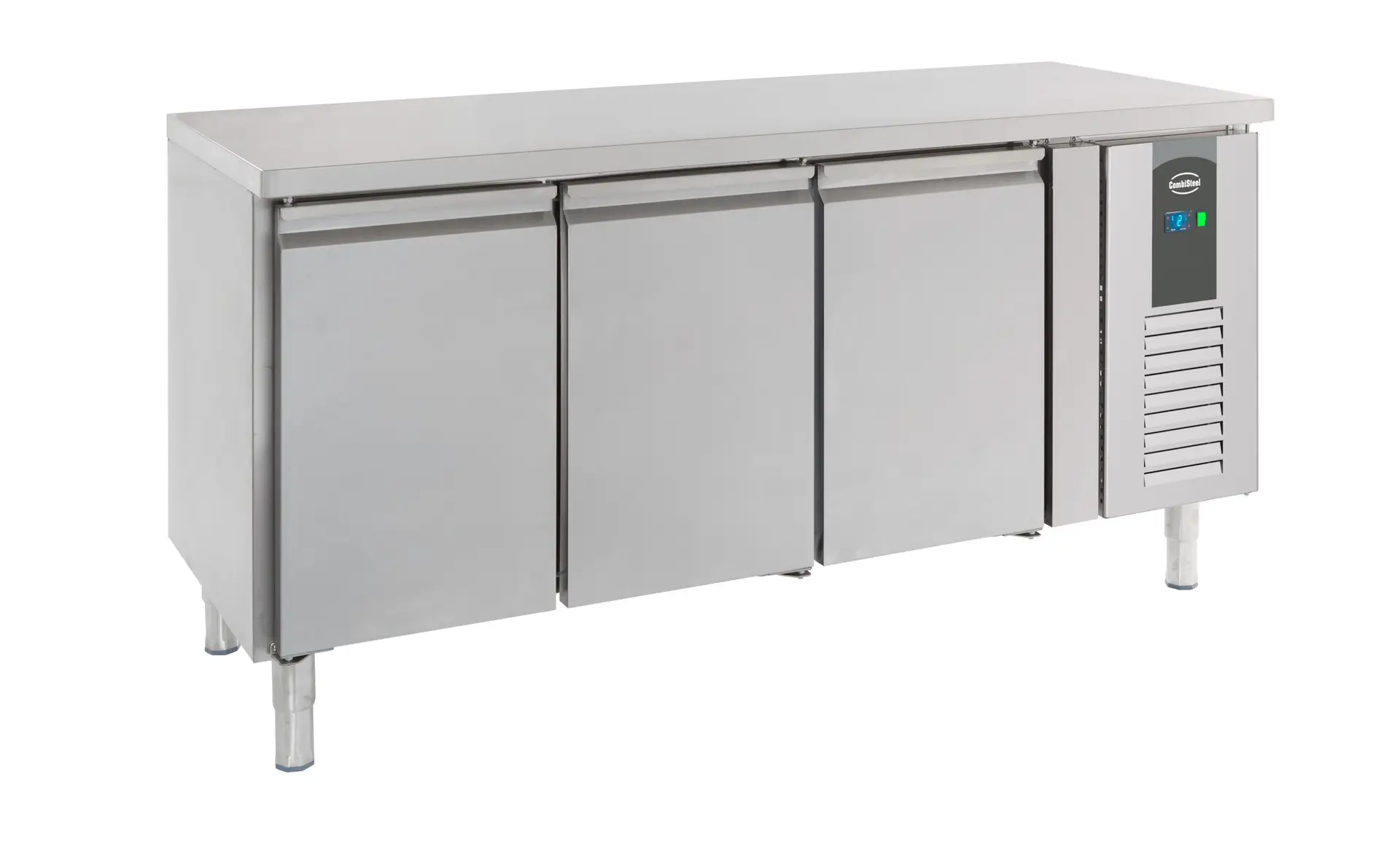

The Combisteel 7450.0116 is a three-door refrigerated counter — an under-counter fridge that holds chilled stock at working height across a service line, giving three separately accessed cold sections beneath one worktop.

Downloads

SPECIFICATION 33 facts · tap for all Width1798 mmDepth600 mmHeight860 mmGross / net weight145 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7435137891802catalogue
Range / series Standard Linecatalogue
Type Triple Door Counter Fridgescatalogue

Size & weight7

Depth 600 mmsite
External (W×D×H) 1798 × 600 × 860 mmcatalogue
Gross / net weight 145 kgsite
Height 860 mmsite
Internal (W×D×H) 1230 × 480 × 560 mmcatalogue
Internal W × D × H 1230x480x560site
Width 1798 mmsite

Capacity4

Capacity 339 Ltrcatalogue
Gross volume 339 litrescatalogue
Net volume 386 litrescatalogue
Shelves 3catalogue

Performance5

Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3838 °Ccatalogue
Maximum ambient 3838site
Temperature range +2 / +8site

Power & energy7

Energy consumption 0.34site
Frequency 50 Hzcatalogue
Noise level 4242site
Rated input 340 Wcatalogue
Rated power 0.34 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings6

Colour Stainless steelcatalogue
Exterior finish Stainless steel 18/8site
Feet / legs 150 – 200site
Insulation 60 mmcatalogue
Interior finish Stainless steel 201site
Lock Nosite
THE WORKING VIEW

Why this triple door counter fridge earns its place

The 7450.0116 is a refrigerated counter with three doors: an under-counter fridge built to run along the working line rather than sit off in a store. It holds 339 litres of chilled storage at +2 to +8 °C, so a busy section can pull product from directly under the counter instead of walking to a fridge and back. For a line that turns over stock through service, that is the difference between staying on the pass and leaving it. The three-door split gives you more sections to organise stock, and the ventilated cooling keeps temperature steady through a shift.

The three doors split the cabinet into separately accessed cold sections, so opening one to reach a tray keeps the other two shut and cold — losing less chill air than a single-door unit. Everything is front-accessed, which suits a unit that lives under a run of worktops with staff working over it. The stainless steel 18/8 build and 60 mm insulation are built for a wash-down kitchen, and at just 42 dB(A) it runs quietly in a busy back-of-house. It runs on 0.34 kW, so the unit is cheap to keep cool through a week.

Built as a counter at 1798 × 600 × 860 mm (W×D×H) and weighing 145 kg, it is designed to slot beneath a worktop run and present a flush service height across the section. The refrigeration is self-contained with no remote pack to plumb in. Siting comes down to a level floor, clearance for the condenser to breathe, and an access route wide enough to bring it in. Check the gap it drops into and the delivery path before the unit arrives.

BEFORE YOU BUY

Questions, answered straight

It is a refrigerator, built to hold fresh product at chilled temperatures under the counter. It is not a freezer.

The three doors split the cabinet into separately accessed cold sections. Opening one to reach a tray keeps the other two shut, which limits how much cold you lose each time the counter is worked.

It is a counter-format unit meant to sit under a worktop in the working line, keeping chilled stock at the point of use with a service surface over the top.

No. The refrigeration is self-contained, so it plugs in rather than needing a remote pack. It does need a level floor, room for the condenser to draw air, and an access route wide enough to bring it in — check those before delivery.

It is a counter format with a surface over the storage, so it is built to be worked over. Keep hot equipment and heavy point loads off it and follow the unit's guidance.

Keep the condenser clear and clean so it holds temperature, and don't block airflow around the unit. For servicing or a fault, Craven Cooling's service team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 600 Series Refrigerated Counter Triple Door 7450.0116 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 1798 × 600 × 860 mm
Interior Dimensions 1230x480x560
Capacity 339 Ltr
Material Stainless steel 18/8
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2 / +8
Max. Ambient Temp. 38
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3
Electrical Power 0.34 kW
Voltage 230V / 50Hz
Lockable No
Noise Level 42 dB
Insulation 60 mm
Weight 145 kg
If you have any questions about the CombiSteel 600 Series Refrigerated Counter Triple Door 7450.0116 then please get in touch.
