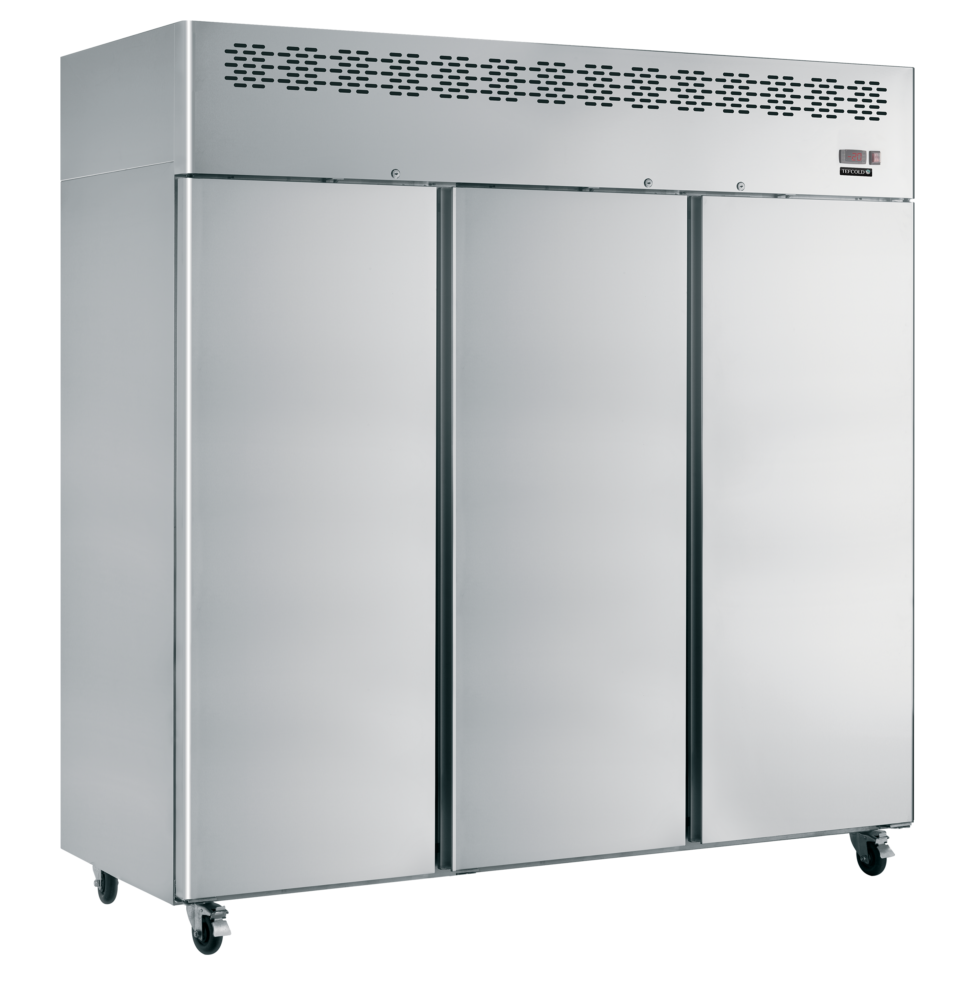

TEFCOLD CAF1390 Upright Freezer

£2,950.00 £1,595.00

+vat

- +

Brand:

SKU: 20299

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Lock
  • Self closing doors with stay open feature for ease of loading
  • Digital controller and temperature display
  • Replaceable door gasket
  • Castors, 2 lockable

Product description

The CAF range are solid door upright freezers designed for superior freezing in commercial environments. Crafted with robust materials, these freezers withstand the demands of busy kitchens and storage facilities. These work efficiently in up to 30°C ambient temperatures (Climate Class 4). These freezers maintain temperatures from -22 to -17°C, ideal for various food products.

Sale!
SPECIFICATION 38 facts · tap for all External W × D × H1800 x 745 x 1950 mmWidth1800 mmDepth745 mmGross / net weight200 / 190 kgGross weight200 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181991029site
Product code 20299site
Sub title Upright Freezercatalogue
Type Double Door Commercial Upright Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 745 mmsite
External (W×D×H) 1800 × 745 × 1950 mmcatalogue
External W × D × H 1800 x 745 x 1950 mmsite
Gross / net weight 200 / 190 kgsite
Gross weight 200 kgcatalogue
Height 1950 mmsite
Internal (W×D×H) 1700 × 540 × 1380 mmcatalogue
Internal W × D × H 1700 x 540 x 1380 mmsite
Packed (W×D×H) 1840 × 774 × 2030 mmcatalogue
Packed W × D × H 1840 x 774 x 2030 mmsite
Width 1800 mmsite

Capacity3

Doors 3catalogue
Gross volume 1390 litrescatalogue
Shelves 9catalogue

Performance8

Climate class 4site
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -22 to -17site
Thermometer Yessite

Power & energy4

Annual energy consumption 4307 kWh/yearsite
Energy consumption 11.8 kWh/24hsite
Input power 900 Wsite
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish Stainless steelsite
Reversible doors Nosite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this double door commercial upright freezer earns its place

The TEFCOLD CAF1390 is a three-door upright freezer for high-demand commercial kitchens, giving 1390 litres gross and 1005 litres usable behind three hinged solid doors. Nine shelves organise frozen stock across an 1800 mm-wide stainless steel cabinet. It holds bulk frozen deliveries, batch-cooked stock and ingredients at deep-freeze temperature for a high-throughput operation.

The cabinet runs from -22 to -17 °C for long-term frozen storage, with automatic electric defrost that clears the evaporator on a set cycle. Rated to climate class 4, it holds temperature in a warm working kitchen. Stainless steel construction inside and out is built for daily commercial cleaning and heavy back-of-house use.

It measures 1800 × 745 × 1950 mm externally and weighs 200 kg, shipping packed at 1840 × 774 × 2030 mm — plan the delivery route and doorway access for the width. The freezer draws 900 W from a standard 13-amp supply at 220-240 V and is charged with 150 g of R290 hydrocarbon refrigerant.

BEFORE YOU BUY

Questions, answered straight

It runs from -22 to -17 °C for long-term frozen storage. Automatic electric defrost clears the evaporator on a set cycle without manual work.

1390 litres gross and 1005 litres usable, organised across nine shelves behind three hinged solid doors. The interior is stainless steel throughout.

It is energy class D and uses 4307 kWh a year, about £1077 a year at 25p/kWh. Actual cost moves with your tariff and how hard the freezer works.

The freezer is 1800 mm wide, 745 mm deep and 1950 mm high, and ships packed at 1840 × 774 × 2030 mm. Plan the delivery route and access for the 1800 mm width before it arrives.

A standard 13-amp socket at 220-240 V; it draws 900 W. No special electrical supply is required.

It uses R290 refrigerant with a 150 g charge and automatic electric defrost, so routine servicing is straightforward. For servicing or spares call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1700 x 540 x 1380 mm
External Dimension (WxDxH): 1800 x 745 x 1950 mm
Packed Dimension (WxDxH): 1840 x 774 x 2030 mm

Cooling and Functions

Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.8 kWh/24h
Temperature Range: -22 to -17 °C
Annual Energy Consumption: 4307 kWh/year m³
Input Power: 900 W
Voltage / Frequency: 220-240/50 V/Hz

Measures and Content

Temperature Range: -22 to -17 °C
Climate Class: 4
Gross / Net Weight: 200 / 190 kg
Gross / Net Volume: 1390 / 1005 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CAF1390 Upright Freezer then please get in touch.
