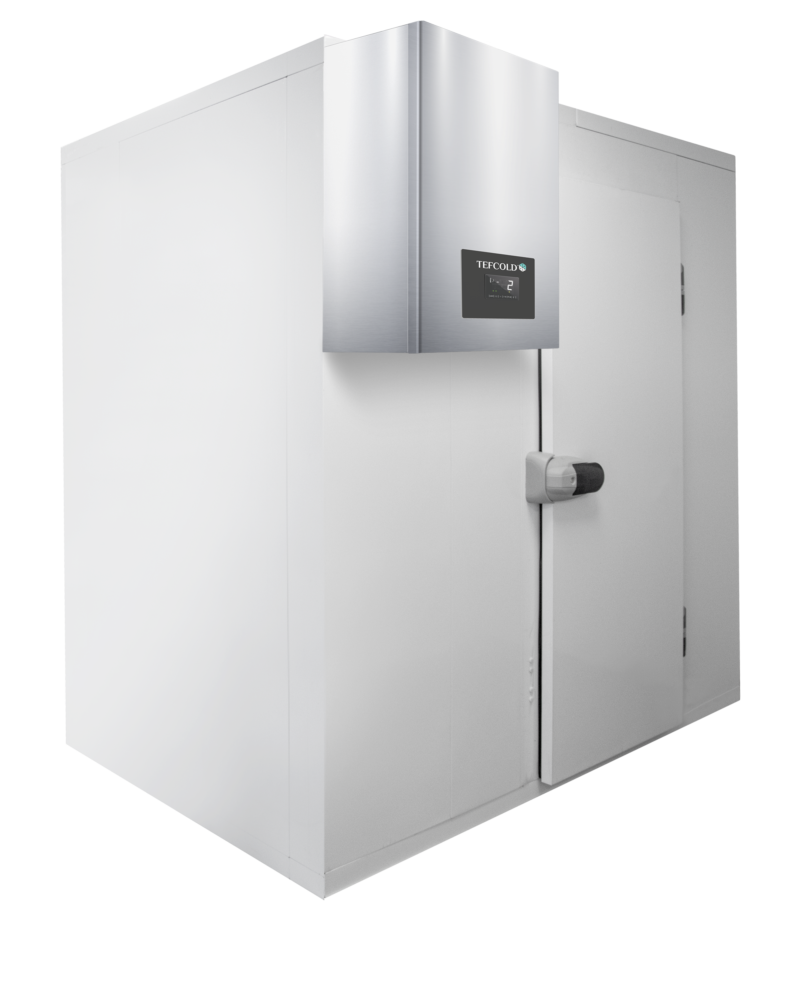

TEFCOLD CRPF3030 Chiller Room

£6,471.00

+vat

- +

Brand:

SKU: 66856

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The Tefcold CRPF3030 is a walk-in chiller room with a 2840 × 2840 × 2040 mm internal footprint that holds stock at 0 to +8 °C on R290 refrigerant, running automatic hot-gas defrost under electronic control and drawing about £2,365 a year at 25p/kWh.

SPECIFICATION 36 facts · tap for all External W × D × H3000 x 3000 x 2200 mmWidth3000 mmGross / net weight830 / 800 kgGross weight830 kgVoltage / frequency220-240/50 V/HzInput power960 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750879site
Product code 66856site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 3000 × 3000 × 2200 mmcatalogue
External W × D × H 3000 x 3000 x 2200 mmsite
Gross / net weight 830 / 800 kgsite
Gross weight 830 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2840 × 2840 × 2040 mmcatalogue
Internal W × D × H 2840 x 2840 x 2040 mmsite
Packed (W×D×H) 2500 × 1900 × 2400 mmcatalogue
Packed W × D × H 2500 x 1900 x 2400 mmsite
Width 3000 mmsite

Capacity2

Doors 1catalogue
Internal volume 16.45site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 9461 kWh/yearsite
Energy consumption 25.92 kWh/24hsite
Input power 960 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The Tefcold CRPF3030 is a walk-in chiller room for kitchens and food businesses that need a proper cold store rather than a wall of upright fridges. Its 2840 × 2840 × 2040 mm internal footprint gives you a room to walk into, shelve out and rotate stock in — deliveries, prepped batches and bulk ingredients held in one controlled space. It arrives as a modular kit with the motor unit, panels and shelving to build on site.

In use it holds chilled product across a 0 to +8 °C band under an electronic controller, so the temperature stays where it is set instead of drifting with manual adjustment. Defrost is automatic and hot-gas, clearing the evaporator on its own cycle without shutting the room down. The condensing unit runs on R290 hydrocarbon refrigerant with a 200 g charge and sits at a measured 60 dB while running.

The room draws power at 220-240 V / 50 Hz on a 960 W input, keeping it on a standard commercial single-phase supply. Access is through one hinged solid door 700 mm wide by 1,845 mm high — check that against your delivery route and doorways, since the assembled room weighs 830 kg gross. Both internal and external finishes are white throughout.

BEFORE YOU BUY

Questions, answered straight

It runs as a chiller room across a 0 to +8 °C band under an electronic controller. That covers standard fresh storage for produce, dairy, meat and prepped stock.

The internal footprint is 2840 × 2840 × 2040 mm (W × D × H), a room you walk into and shelve out. Access is through one hinged solid door 700 mm wide and 1,845 mm high.

Rated energy use is 9,460.8 kWh a year, which is about £2,365 a year at 25p/kWh. Your actual figure depends on tariff, ambient conditions and how often the door is opened.

It ships as a modular kit — motor unit, panels and shelving — to assemble on site. The finished room weighs 830 kg gross, so plan delivery access and the installation route before it arrives.

It uses R290 hydrocarbon refrigerant with a 200 g charge and runs at a measured 60 dB. It connects at 220-240 V / 50 Hz on a 960 W input.

Yes. For an install survey, delivery-access check or servicing, call the Craven Cooling team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

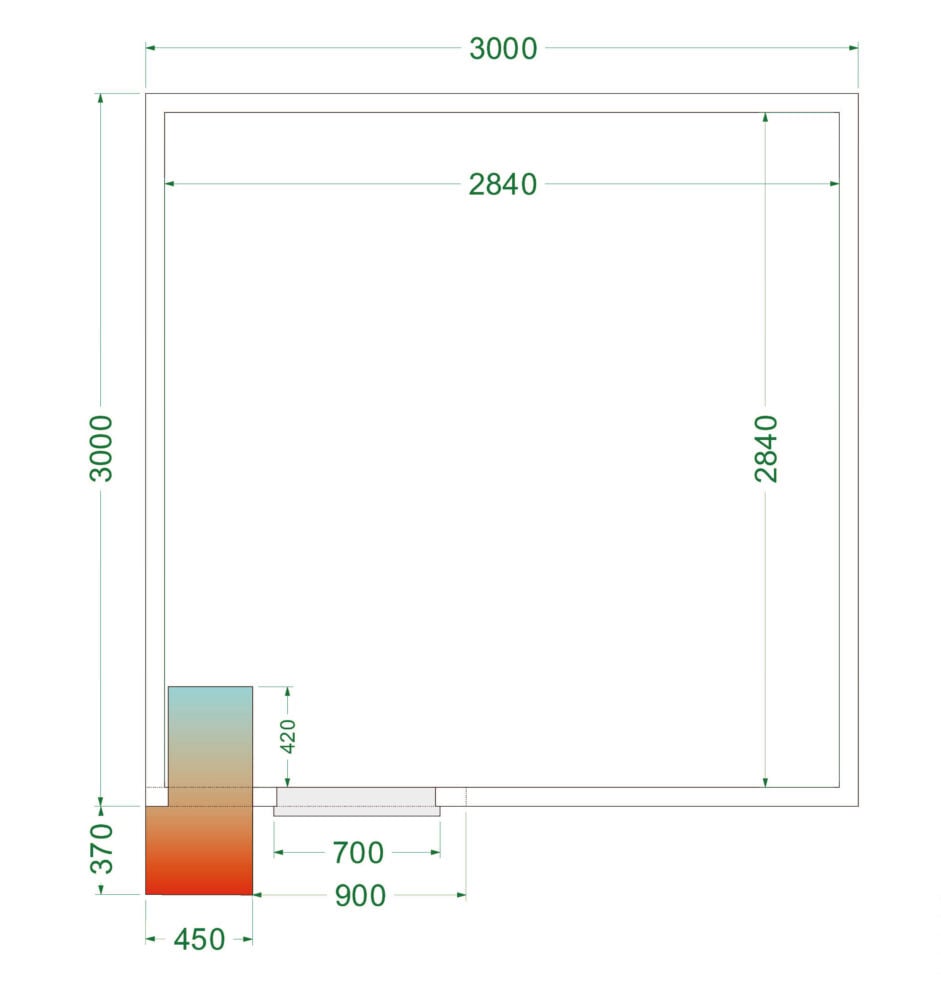

Dimensions

Internal Dimension (WxDxH): 2840 x 2840 x 2040 mm
External Dimension (WxDxH): 3000 x 3000 x 2200 mm
Packed Dimension (WxDxH): 2500 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 25.92 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 9461 kWh/year m³
Input Power: 960 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 16.45 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 830 / 800 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF3030 Chiller Room then please get in touch.
