TEFCOLD CRPF2427 Chiller Room

£5,235.00

+vat

- +

Brand:

SKU: 66824

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

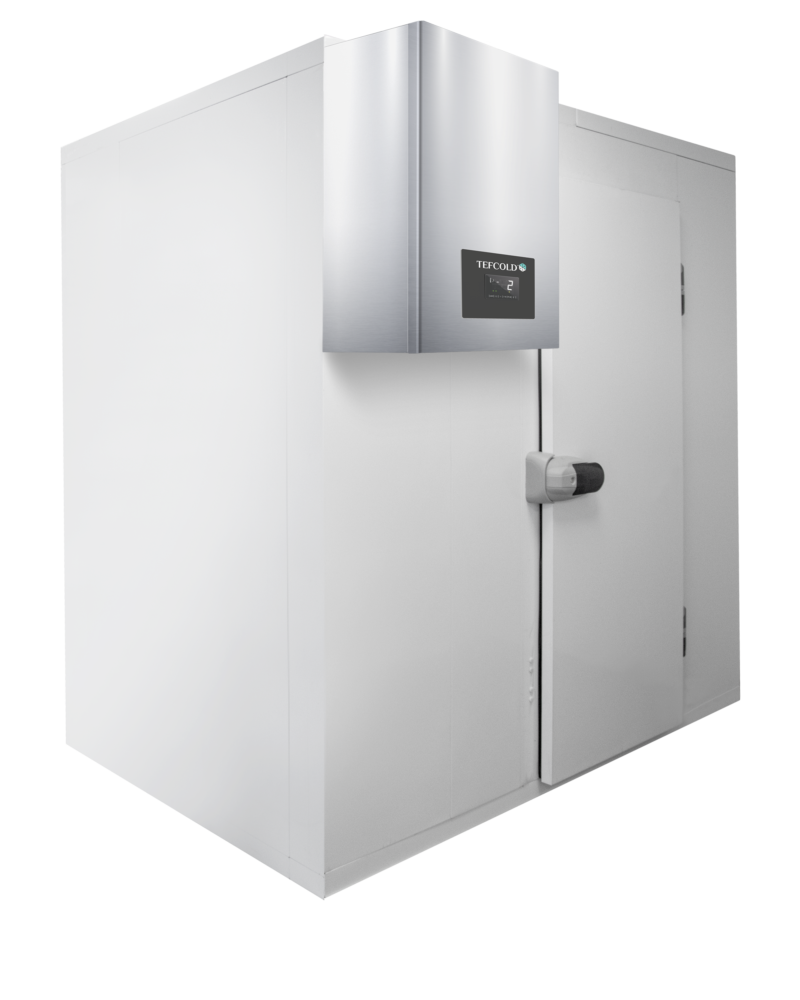

The TEFCOLD CRPF2427 is a large walk-in chiller room holding 0 to +8 °C across an internal 2240 × 2540 × 2040 mm space, entered through a single 700 mm hinged solid door, with automatic hot-gas defrost, electronic control and a low-GWP R290 system on a 220-240V supply.

SPECIFICATION 37 facts · tap for all External W × D × H2400 x 2700 x 2200 mmWidth2400 mmDepth2700 mmGross / net weight666 / 636 kgGross weight666 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750541site
Product code 66824site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2700 mmsite
External (W×D×H) 2400 × 2700 × 2200 mmcatalogue
External W × D × H 2400 x 2700 x 2200 mmsite
Gross / net weight 666 / 636 kgsite
Gross weight 666 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2240 × 2540 × 2040 mmcatalogue
Internal W × D × H 2240 x 2540 x 2040 mmsite
Packed (W×D×H) 2500 × 1900 × 2400 mmcatalogue
Packed W × D × H 2500 x 1900 x 2400 mmsite
Width 2400 mmsite

Capacity2

Doors 1catalogue
Internal volume 11.6site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 170 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 8541 kWh/yearsite
Energy consumption 23.4 kWh/24hsite
Input power 910 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The CRPF2427 is a walk-in chiller room for kitchens and back-of-house operations that need serious chilled volume in one place. It holds a band of 0 to +8 °C across a generous internal envelope of 2240 × 2540 × 2040 mm (W×D×H), enough floor and shelf space to store deliveries, prep and reserve stock without spreading it across separate cabinets. A single hinged solid door, 700 mm wide and 1845 mm high, gives trolley and tray access into the room.

In daily use an electronic controller holds the set temperature and runs automatic hot-gas defrost, so the room keeps its band through service and clears frost without a manual routine. The system uses R290 hydrocarbon refrigerant with a 170 g charge and draws 910 W. Running noise is rated at 60 dB, and at 8541 kWh a year the room costs about £2135 a year at 25p/kWh to run — the figure moves with tariff, ambient temperature and door traffic.

This is a substantial unit: net weight is 636 kg (666 kg gross), so plan the delivery route, lift and floor loading before it arrives. Panels are finished in white inside and out. It runs on a 220-240V 50Hz supply. As with any walk-in, check the 700 mm door width against your access route and internal doorways on the way to the install position.

BEFORE YOU BUY

Questions, answered straight

It holds a chilled band of 0 to +8 °C under electronic control. That suits general chilled storage of produce, dairy and prepped stock, not freezing.

It is rated at 8541 kWh a year, roughly £2135 a year at 25p/kWh. Your actual cost depends on your tariff, ambient temperature and how heavily the door is used.

The internal envelope is 2240 × 2540 × 2040 mm (W×D×H), giving room to shelve and rotate high volumes of chilled stock in one place.

It uses R290, a low-GWP hydrocarbon refrigerant, with a 170 g charge. The system draws 910 W and runs on a 220-240V 50Hz single-phase supply.

Net weight is 636 kg (666 kg gross). Plan the delivery route, lift and floor loading in advance, and check the 700 mm door width against your access route.

Craven Cooling handles servicing and support — call the team on 01792 732702 to book a visit or set up a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2240 x 2540 x 2040 mm
External Dimension (WxDxH): 2400 x 2700 x 2200 mm
Packed Dimension (WxDxH): 2500 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 170 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 23.4 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 8541 kWh/year m³
Input Power: 910 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 11.6 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 666 / 636 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED

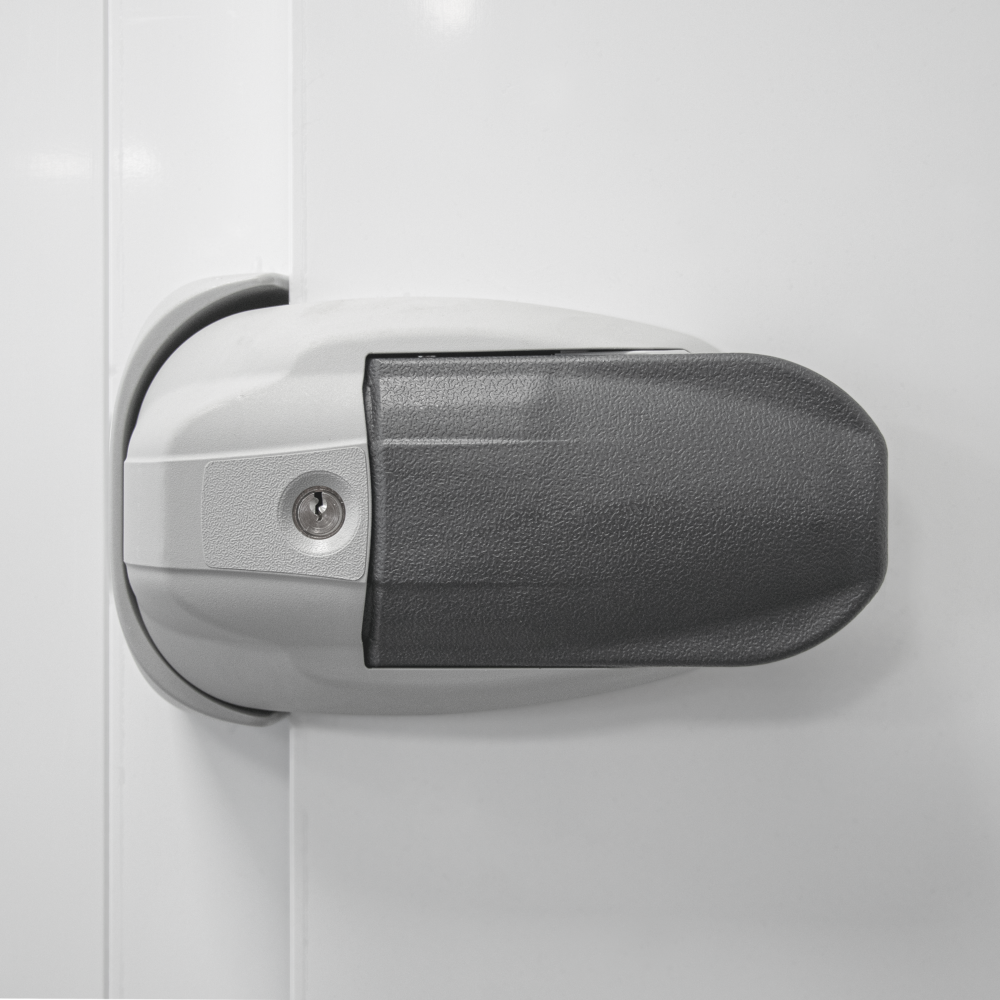

Lock: Yes
If you have any questions about the TEFCOLD CRPF2427 Chiller Room then please get in touch.
