TEFCOLD CRPF1527 Chiller Room

£4,045.00

+vat

Brand:

SKU: 66812

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The TEFCOLD CRPF1527 is a walk-in chiller room holding 0 to +8 °C across an internal 1340 × 2540 × 2040 mm space, entered through a single 700 mm hinged solid door, with automatic hot-gas defrost, electronic control and a low-GWP R290 system on a 220-240V supply.

SPECIFICATION 37 facts · tap for all External W × D × H1500 x 2700 x 2200 mmWidth1500 mmDepth2700 mmGross / net weight335 / 305 kgGross weight335 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750428site
Product code 66812site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2700 mmsite
External (W×D×H) 1500 × 2700 × 2200 mmcatalogue
External W × D × H 1500 x 2700 x 2200 mmsite
Gross / net weight 335 / 305 kgsite
Gross weight 335 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1340 × 2540 × 2040 mmcatalogue
Internal W × D × H 1340 x 2540 x 2040 mmsite
Packed (W×D×H) 2000 × 1600 × 2400 mmcatalogue
Packed W × D × H 2000 x 1600 x 2400 mmsite
Width 1500 mmsite

Capacity2

Doors 1catalogue
Internal volume 6.94site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 6833 kWh/yearsite
Energy consumption 18.72 kWh/24hsite
Input power 860 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The CRPF1527 is a walk-in chiller room that gives a commercial kitchen a dedicated cold store instead of a bank of upright fridges. It holds a chilled band of 0 to +8 °C across a deep internal envelope of 1340 × 2540 × 2040 mm (W×D×H) — a narrow, long footprint that suits a run of shelving down one wall for deliveries, prep and reserve stock. A single hinged solid door, 700 mm wide and 1845 mm high, gives trolley and tray access.

Day to day, an electronic controller holds the set temperature and runs automatic hot-gas defrost, so the room keeps its band through service and clears frost without a manual routine. The system uses R290 hydrocarbon refrigerant with a 130 g charge and draws 860 W. Running noise is rated at 60 dB, and at 6833 kWh a year the room costs about £1708 a year at 25p/kWh to run — the figure moves with your tariff, ambient temperature and door traffic.

Net weight is 305 kg (335 kg gross), so plan the delivery route and floor loading before it arrives. Panels are finished in white inside and out. The room runs on a 220-240V 50Hz supply. The 2540 mm internal depth and the 700 mm door width are the figures to check against your available floor space and access route.

BEFORE YOU BUY

Questions, answered straight

It runs a chilled band of 0 to +8 °C under electronic control, suited to general chilled storage of produce, dairy and prepped stock rather than freezing.

It is rated at 6833 kWh a year, about £1708 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

The internal envelope is 1340 × 2540 × 2040 mm (W×D×H) — a deep footprint that suits a long shelving run down one wall.

It uses R290, a low-GWP hydrocarbon refrigerant, with a 130 g charge. The system draws 860 W and runs on a standard 220-240V 50Hz single-phase supply.

Defrost is automatic and uses hot gas, so the room clears frost on its own without a manual routine or a separate heater cycle.

Craven Cooling handles servicing and support — call the team on 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

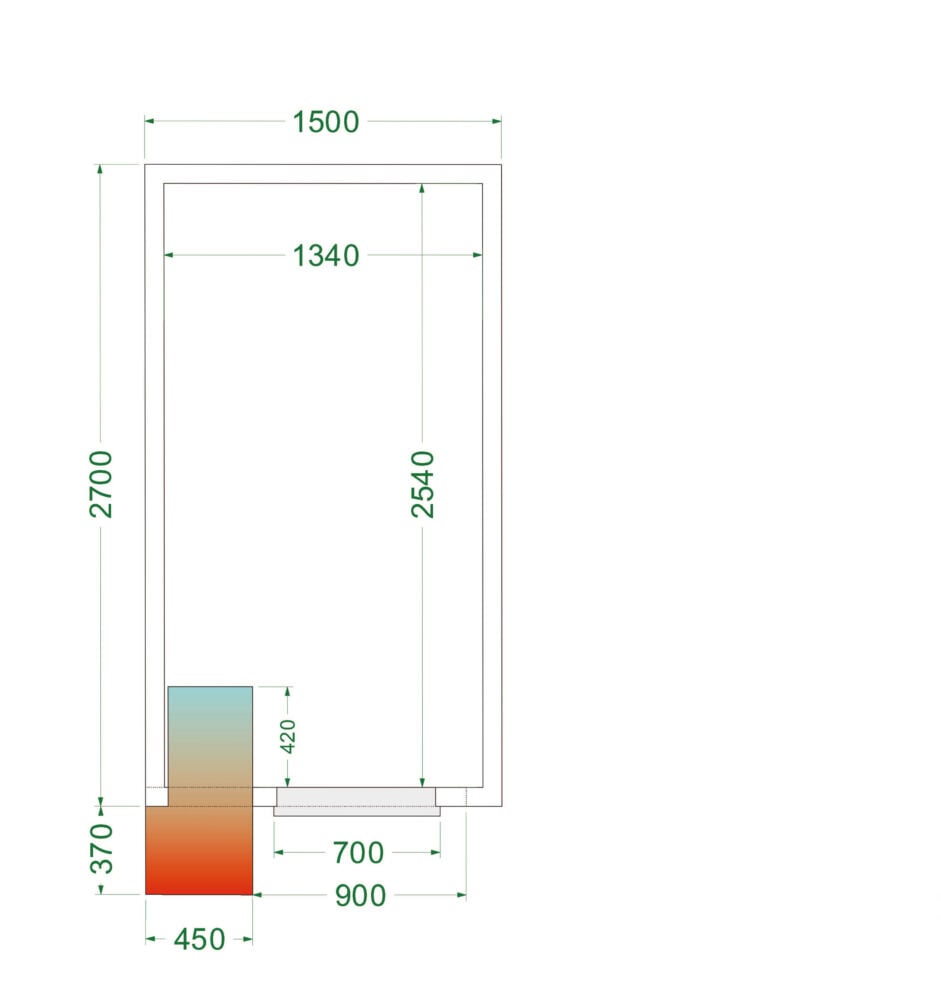

Dimensions

Internal Dimension (WxDxH): 1340 x 2540 x 2040 mm
External Dimension (WxDxH): 1500 x 2700 x 2200 mm
Packed Dimension (WxDxH): 2000 x 1600 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 18.72 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 6833 kWh/year m³
Input Power: 860 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 6.94 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 335 / 305 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1527 Chiller Room then please get in touch.
