TEFCOLD CRPF1230 Chiller Room

£4,764.00

+vat

Brand:

SKU: 66807

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation

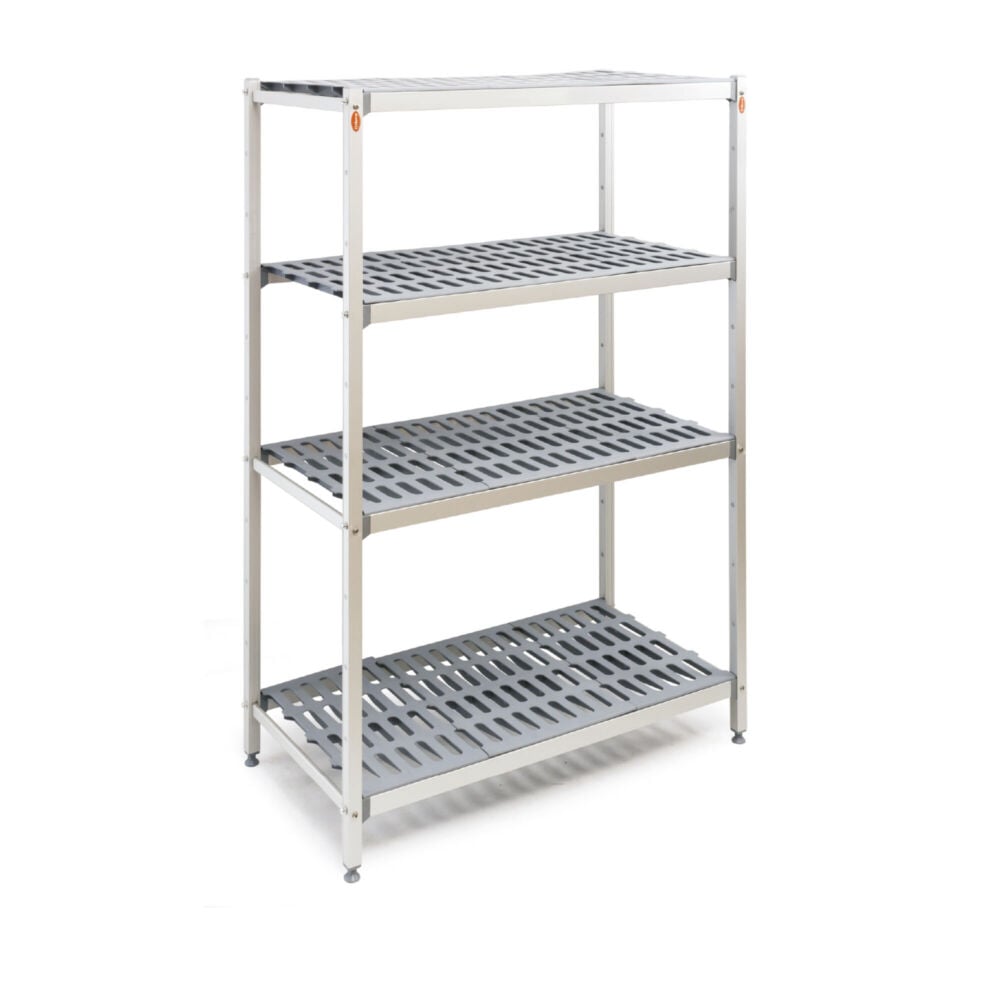

  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The TEFCOLD CRPF1230 is a walk-in chiller room that holds a 0 to +8 °C band across a 1040 × 2840 × 2040 mm internal chamber, running R290 refrigerant with automatic hot-gas defrost and an electronic controller.

SPECIFICATION 37 facts · tap for all External W × D × H1200 x 3000 x 2200 mmWidth1200 mmDepth3000 mmGross / net weight325 / 295 kgGross weight325 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750374site
Product code 66807site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 3000 mmsite
External (W×D×H) 1200 × 3000 × 2200 mmcatalogue
External W × D × H 1200 x 3000 x 2200 mmsite
Gross / net weight 325 / 295 kgsite
Gross weight 325 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1040 × 2840 × 2040 mmcatalogue
Internal W × D × H 1040 x 2840 x 2040 mmsite
Packed (W×D×H) 3100 × 1300 × 2400 mmcatalogue
Packed W × D × H 3100 x 1300 x 2400 mmsite
Width 1200 mmsite

Capacity2

Doors 1catalogue
Internal volume 6.03site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 6833 kWh/yearsite
Energy consumption 18.72 kWh/24hsite
Input power 860 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The TEFCOLD CRPF1230 is a self-contained walk-in chiller room for chilled back-of-house storage. Its long, narrow 1040 × 2840 × 2040 mm internal chamber holds a 0 to +8 °C band, giving a kitchen a dedicated cold store for fresh produce, dairy, prepped stock and chilled deliveries. The single hinged solid door opens to a 580 mm wide by 1845 mm high aperture, tall enough for stacked trolleys.

Day to day it runs on an electronic controller with automatic hot-gas defrost, so the evaporator clears itself and the chamber stays inside its chilled band. Cooling uses R290 refrigerant with a 130 g charge, draws 860 W and is rated at 60 dB. Against a verified 6833 kWh a year, running cost works out at about £1708 a year at 25p/kWh.

For install, the internal chamber is 1040 × 2840 × 2040 mm — a deep, narrow layout that suits storage down one wall. The unit weighs 325 kg gross and 295 kg net, so plan access and lifting. Electrical supply is a 220-240 V/50 Hz single-phase connection.

BEFORE YOU BUY

Questions, answered straight

It runs a 0 to +8 °C chilled band on an electronic controller. Automatic hot-gas defrost keeps the evaporator clear without a manual defrost routine.

Verified energy use is 6833 kWh a year, which is about £1708 a year at 25p/kWh. Actual cost depends on your tariff, door traffic and ambient conditions.

The internal chamber measures 1040 × 2840 × 2040 mm — a deep, narrow layout. The door aperture is 580 mm wide and 1845 mm high for loading trolleys.

It runs on a 220-240 V/50 Hz single-phase supply, draws 860 W and cools on R290, a low-GWP hydrocarbon refrigerant, with a 130 g charge.

It weighs 325 kg gross and 295 kg net, so plan delivery access and lifting before it arrives.

As with any commercial refrigeration, the R290 system should be serviced periodically to keep it performing. Craven Cooling can arrange this on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

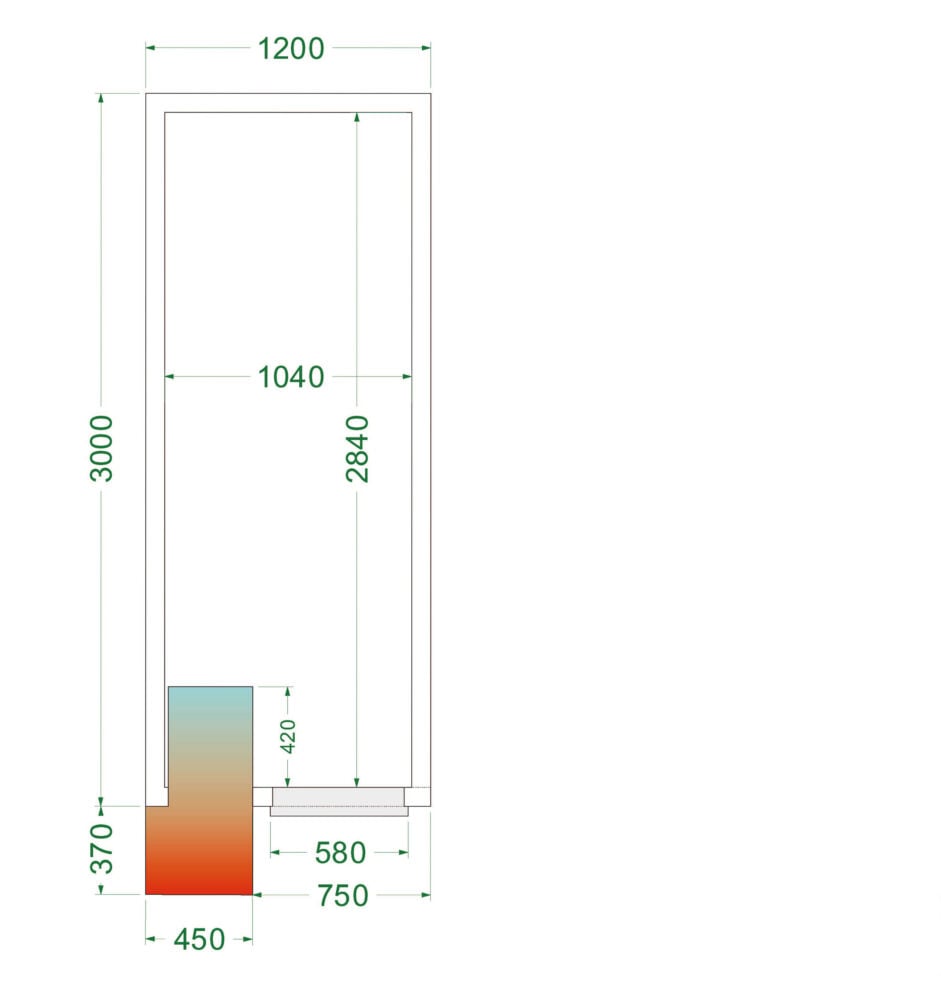

Dimensions

Internal Dimension (WxDxH): 1040 x 2840 x 2040 mm
External Dimension (WxDxH): 1200 x 3000 x 2200 mm
Packed Dimension (WxDxH): 3100 x 1300 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 18.72 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 6833 kWh/year m³
Input Power: 860 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 6.03 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 325 / 295 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1230 Chiller Room then please get in touch.
