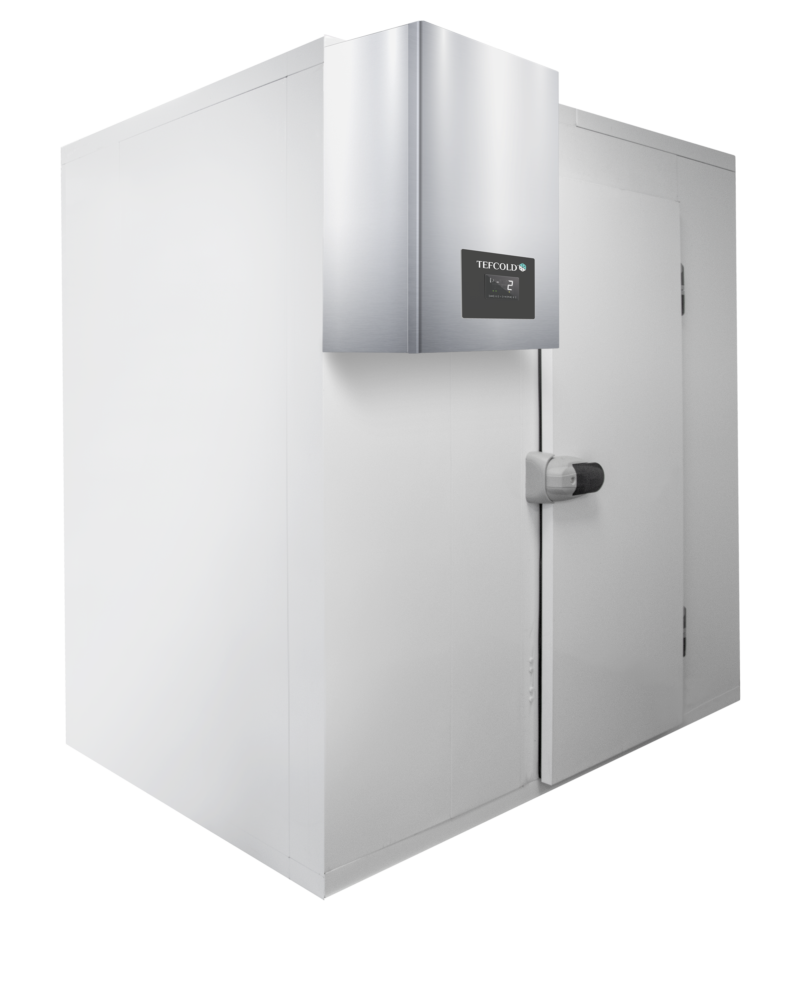

TEFCOLD CRPF1218 Chiller Room

£3,347.00

+vat

Brand:

SKU: 66803

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The Tefcold CRPF1218 is a walk-in chiller room holding 0 to +8 °C with automatic hot-gas defrost and an electronic controller, offering 1040 × 1640 × 2040 mm of internal space, an R290 refrigerant circuit and a single 580 mm-wide hinged door for back-of-house chilled storage.

SPECIFICATION 37 facts · tap for all External W × D × H1200 x 1800 x 2200 mmWidth1200 mmDepth1800 mmGross / net weight285 / 255 kgGross weight285 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750336site
Product code 66803site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1800 mmsite
External (W×D×H) 1200 × 1800 × 2200 mmcatalogue
External W × D × H 1200 x 1800 x 2200 mmsite
Gross / net weight 285 / 255 kgsite
Gross weight 285 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1040 × 1640 × 2040 mmcatalogue
Internal W × D × H 1040 x 1640 x 2040 mmsite
Packed (W×D×H) 2200 × 1300 × 2400 mmcatalogue
Packed W × D × H 2200 x 1300 x 2400 mmsite
Width 1200 mmsite

Capacity2

Doors 1catalogue
Internal volume 3.48site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 130 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 6545 kWh/yearsite
Energy consumption 17.93 kWh/24hsite
Input power 830 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The CRPF1218 is a walk-in chiller room built to hold bulk chilled stock at a steady 0 to +8 °C in a busy back-of-house. It gives a working kitchen 1040 × 1640 × 2040 mm of internal storage behind a single hinged solid door — room to wheel in trolleys, trays and cases and keep a full day's fresh production in one temperature-controlled space rather than spread across several uprights. Finished white inside and out, the surfaces wipe down for routine hygiene.

An electronic controller holds the 0 to +8 °C band without manual intervention, and defrost is automatic using hot gas, so ice does not build on the evaporator through service. The refrigeration circuit uses R290 with a 130 g charge and draws 830 W. Rated noise is 60 dB. On verified energy use of 6545 kWh a year, running cost is about £1636 a year at 25p/kWh.

The single hinged door opening measures 580 mm wide and 1845 mm high; plan trolley and stock access around that clear width before siting the room. Net weight is 255 kg and gross weight 285 kg. It runs on a 220–240 V/50 Hz supply, with the R290 circuit carrying a 130 g charge, finished white inside and out with an electronic controller for continuous back-of-house duty.

BEFORE YOU BUY

Questions, answered straight

It runs at 0 to +8 °C, the standard band for chilled food storage. An electronic controller maintains the setting and automatic hot-gas defrost keeps the evaporator clear during service.

The single hinged solid door gives a 580 mm-wide by 1845 mm-high opening. Check that trolleys, trays and stock cases clear that width before you finalise where the room sits.

On verified energy use of 6545 kWh a year, the room costs about £1636 a year at 25p/kWh. Actual cost depends on your tariff, ambient conditions and how often the door is opened.

The circuit uses R290, a natural hydrocarbon refrigerant, with a 130 g charge. It draws 830 W on a 220–240 V/50 Hz supply, with rated noise of 60 dB.

Net weight is 255 kg and gross weight 285 kg. Factor the delivered weight and your access route into installation planning.

Yes. Craven Cooling can arrange servicing and support for the CRPF1218; call 01792 732702 to discuss a maintenance visit or any technical query.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

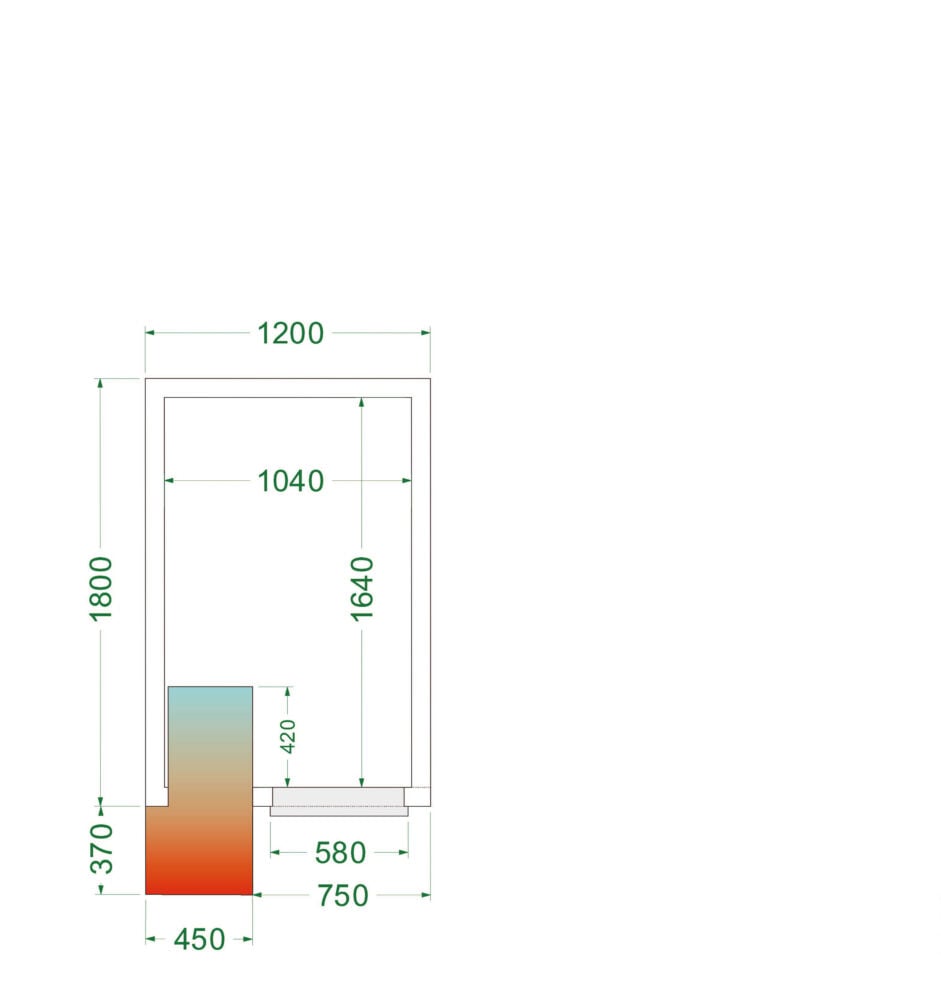

Dimensions

Internal Dimension (WxDxH): 1040 x 1640 x 2040 mm
External Dimension (WxDxH): 1200 x 1800 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1300 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 130 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 17.93 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 6545 kWh/year m³
Input Power: 830 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 3.48 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 285 / 255 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1218 Chiller Room then please get in touch.
