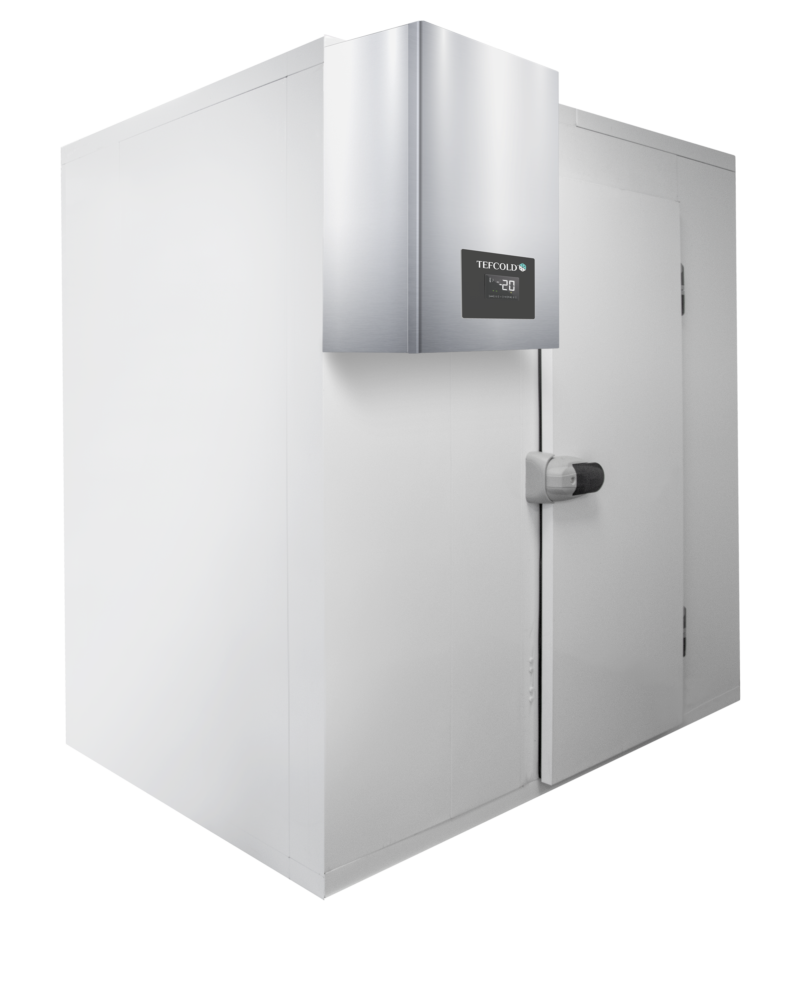

TEFCOLD CRNF2730 Freezer Room

£7,550.00

+vat

Brand:

SKU: 66853

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The Tefcold CRNF2730 is a plug-and-play walk-in freezer room holding -20 to -10 °C across a 2460 × 2760 × 1960 mm internal space, running on natural R290 refrigerant from a 13A supply with automatic hot-gas defrost and an electronic controller.

SPECIFICATION 37 facts · tap for all External W × D × H2700 x 3000 x 2200 mmWidth2700 mmDepth3000 mmGross / net weight845 / 815 kgGross weight845 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750831site
Product code 66853site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 3000 mmsite
External (W×D×H) 2700 × 3000 × 2200 mmcatalogue
External W × D × H 2700 x 3000 x 2200 mmsite
Gross / net weight 845 / 815 kgsite
Gross weight 845 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2460 × 2760 × 1960 mmcatalogue
Internal W × D × H 2460 x 2760 x 1960 mmsite
Packed (W×D×H) 2800 × 1900 × 2400 mmcatalogue
Packed W × D × H 2800 x 1900 x 2400 mmsite
Width 2700 mmsite

Capacity2

Doors 1catalogue
Internal volume 13.31site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 11598 kWh/yearsite
Energy consumption 31.78 kWh/24hsite
Input power 1630 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The Tefcold CRNF2730 is a walk-in freezer room for kitchens that need bulk frozen storage in one place rather than a bank of upright freezers. It arrives as a modular system with the refrigeration built in, giving 2460 × 2760 × 1960 mm of internal space to hold meat, fish, catering packs and prepped batches at a steady frozen temperature. It is the format back-of-house operations reach for when floor freezers stop keeping up with volume.

In use it holds -20 to -10 °C, cold enough for long-term frozen storage. Defrost is automatic and uses hot gas, so ice is cleared without manual intervention or a break in the cold chain, and an electronic controller manages the temperature. The system runs on R290, a natural hydrocarbon refrigerant with low environmental impact, and operating noise is rated at 60 dB. At the rated energy use, electricity works out at about £2900 a year at 25p/kWh.

Internally the room measures 2460 × 2760 × 1960 mm (W×D×H), and the single hinged solid door gives a 700 mm wide by 1765 mm high clear opening for loading trolleys and stacked stock. It runs from a 13A supply at 220-240V/50Hz and draws 1630W, with a 200g R290 charge — no three-phase connection needed. Gross weight is 845 kg (815 kg net), so floor loading and delivery access are worth checking before install.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -10 °C, suitable for long-term frozen storage. An electronic controller manages the temperature and defrost is automatic using hot gas, so the room clears ice without interrupting the cold chain.

The internal dimensions are 2460 × 2760 × 1960 mm (W×D×H). The single hinged solid door opens to a 700 mm wide by 1765 mm high aperture, wide enough for trolleys and stacked stock.

It runs from a 13A supply at 220-240V/50Hz and draws 1630W. No three-phase connection is required.

Electricity works out at about £2900 a year at 25p/kWh. Actual figures depend on door use, ambient conditions and your tariff.

It uses R290, a natural hydrocarbon refrigerant with low global warming potential, with a 200g charge. Cooling is managed by an electronic controller.

Yes. Craven Cooling can arrange installation support and ongoing servicing — call the team on 01792 732702 to discuss maintenance for your site.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

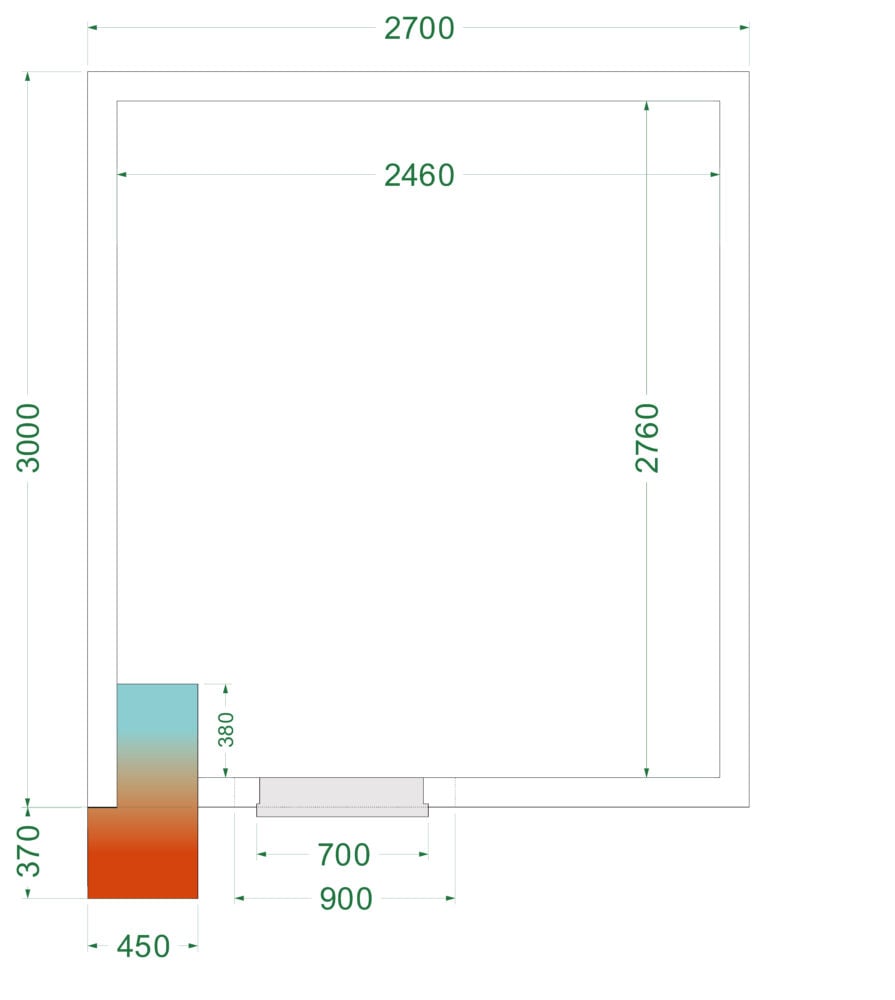

Internal Dimension (WxDxH): 2460 x 2760 x 1960 mm
External Dimension (WxDxH): 2700 x 3000 x 2200 mm
Packed Dimension (WxDxH): 2800 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 31.78 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 11598 kWh/year m³
Input Power: 1630 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 13.31 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 845 / 815 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED

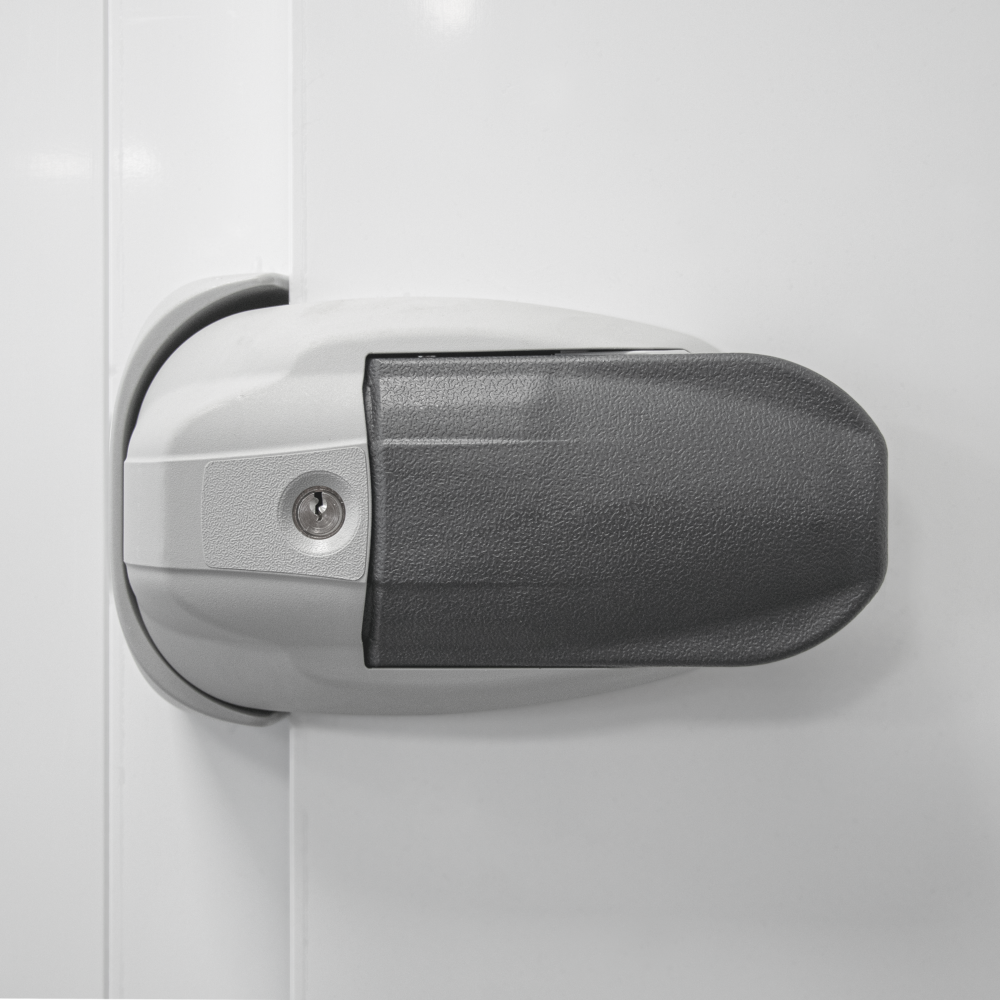

Lock: Yes
If you have any questions about the TEFCOLD CRNF2730 Freezer Room then please get in touch.
