TEFCOLD CRNF1827 Freezer Room

£5,823.00

+vat

Brand:

SKU: 66843

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The TEFCOLD CRNF1827 is a self-contained walk-in freezer room with a 1560 × 2460 × 1960 mm internal chamber that holds -20 to -10 °C using an R290 refrigeration system with automatic hot-gas defrost and electronic control on a standard 13 A supply.

SPECIFICATION 37 facts · tap for all External W × D × H1800 x 2700 x 2200 mmWidth1800 mmDepth2700 mmGross / net weight685 / 655 kgGross weight685 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750732site
Product code 66843site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2700 mmsite
External (W×D×H) 1800 × 2700 × 2200 mmcatalogue
External W × D × H 1800 x 2700 x 2200 mmsite
Gross / net weight 685 / 655 kgsite
Gross weight 685 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1560 × 2460 × 1960 mmcatalogue
Internal W × D × H 1560 x 2460 x 1960 mmsite
Packed (W×D×H) 2000 × 1900 × 2400 mmcatalogue
Packed W × D × H 2000 x 1900 x 2400 mmsite
Width 1800 mmsite

Capacity2

Doors 1catalogue
Internal volume 7.52site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 9864 kWh/yearsite
Energy consumption 27.02 kWh/24hsite
Input power 1510 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The CRNF1827 is a walk-in freezer room built for bulk frozen storage in a commercial kitchen or back-of-house. Its internal chamber measures 1560 × 2460 × 1960 mm (W×D×H), giving full standing height and enough floor area to hold trolleys and stacked frozen stock in one temperature-controlled space rather than spreading it across several upright freezers.

In service the room runs at -20 to -10 °C, deep enough for long-term frozen storage through busy periods. Defrost is automatic and hot-gas, so ice is cleared from the evaporator without the room being shut down, and an electronic controller manages the cycle. Running noise is around 60 dB(A). At a rated 9864 kWh a year, that works out at about £2466 a year at 25p/kWh, with the compressor drawing 1510 W.

The chamber is finished white inside and out and is entered through a single hinged solid door measuring 700 mm wide by 1765 mm high — worth checking against your access route, as the room ships as panels for on-site build. It runs on a 220-240 V, 13 A supply, uses R290 refrigerant with a 150 g charge, and weighs 685 kg gross.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -10 °C, suitable for long-term frozen storage. An electronic controller manages the setpoint and the automatic hot-gas defrost cycle.

The room is delivered as panels and assembled on site, so it does not need to pass through in one piece. The chamber's own access door is 700 mm wide and 1765 mm high.

At its rated 9864 kWh a year, roughly £2466 a year at 25p/kWh. Actual figures depend on ambient conditions, how often the door is opened and your electricity tariff.

A 220-240 V single-phase 13 A supply; the unit draws 1510 W. No three-phase connection is required.

Defrost is fully automatic using hot gas, clearing ice from the evaporator on a timed cycle without shutting the room down or any manual intervention.

R290, a low-GWP hydrocarbon refrigerant, with a 150 g charge. If you need servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

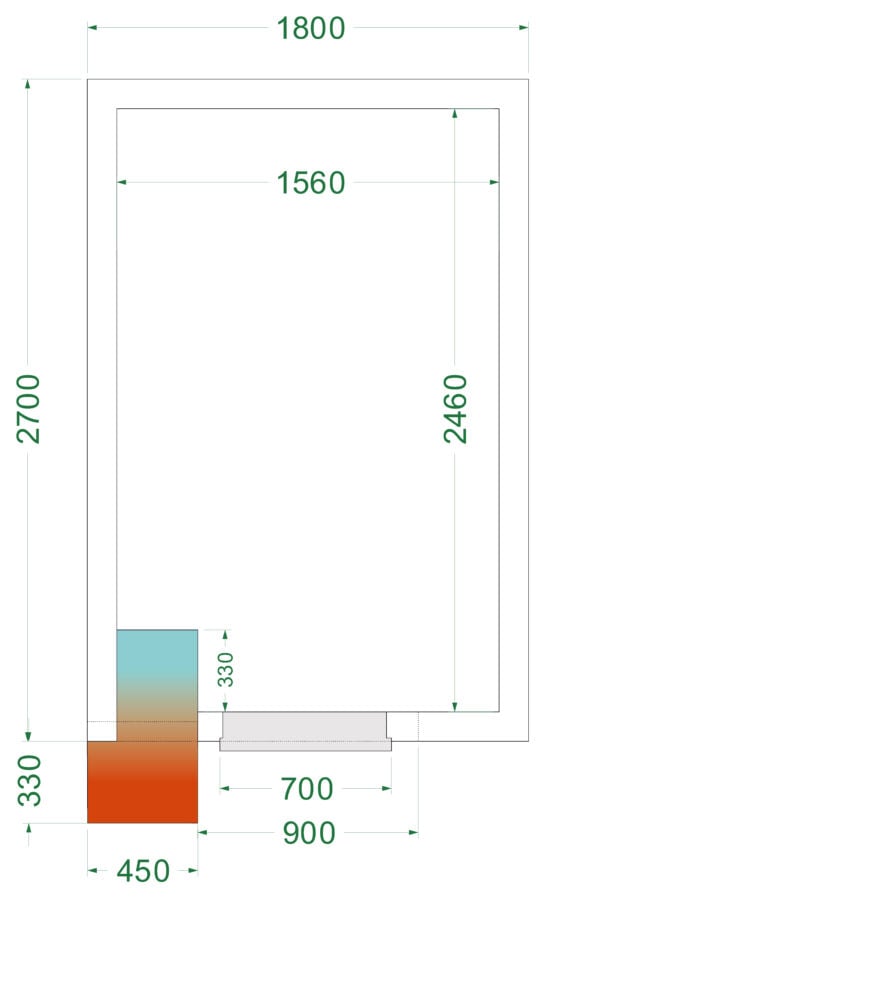

Dimensions

Internal Dimension (WxDxH): 1560 x 2460 x 1960 mm
External Dimension (WxDxH): 1800 x 2700 x 2200 mm
Packed Dimension (WxDxH): 2000 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 27.02 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 9864 kWh/year m³
Input Power: 1510 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 7.52 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 685 / 655 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF1827 Freezer Room then please get in touch.
