TEFCOLD CRNF1824 Freezer Room

£5,513.00

+vat

Brand:

SKU: 66842

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The Tefcold CRNF1824 is a walk-in freezer room holding -20 to -10 °C across a 1560 × 2160 × 1960 mm internal footprint, cooling on R290 refrigerant with electronic control, automatic hot-gas defrost and a single hinged solid door, on a standard 13 amp supply.

SPECIFICATION 37 facts · tap for all External W × D × H1800 x 2400 x 2200 mmWidth1800 mmDepth2400 mmGross / net weight680 / 645 kgGross weight680 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750725site
Product code 66842site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2400 mmsite
External (W×D×H) 1800 × 2400 × 2200 mmcatalogue
External W × D × H 1800 x 2400 x 2200 mmsite
Gross / net weight 680 / 645 kgsite
Gross weight 680 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1560 × 2160 × 1960 mmcatalogue
Internal W × D × H 1560 x 2160 x 1960 mmsite
Packed (W×D×H) 2150 × 1500 × 2400 mmcatalogue
Packed W × D × H 2150 x 1500 x 2400 mmsite
Width 1800 mmsite

Capacity2

Doors 1catalogue
Internal volume 6.6site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 9864 kWh/yearsite
Energy consumption 27.02 kWh/24hsite
Input power 1510 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The Tefcold CRNF1824 is a walk-in freezer room built for back-of-house frozen storage, for when uprights and chest freezers stop keeping up with service volume. Finished in white inside and out, it gives a kitchen, butchery or catering operation a sealed, walk-in cold space held at freezer temperature, entered through a single hinged solid door with a 700 mm wide, 1765 mm high aperture.

The room runs at -20 to -10 °C under electronic control, with automatic hot-gas defrost keeping the evaporator clear without manual intervention. Sound output is rated at 60 decibels. Energy use is 9864 kWh a year — about £2466 a year at 25p/kWh — so it belongs alongside your other fixed running costs rather than being a unit you switch off between services.

Internally the room measures 1560 × 2160 × 1960 mm (W×D×H) and the assembled unit weighs 680 kg. It runs on a 220-240V/50 single-phase supply drawing 13 amps, with a 1510 W input, and cools on R290 hydrocarbon refrigerant with a 150 g charge. Plan the delivery route and final position around the panel weight and the door aperture before install.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -10 °C under electronic control, with automatic hot-gas defrost keeping the evaporator clear. That band suits bulk frozen storage.

A 220-240V/50 single-phase supply drawing 13 amps, with a 1510 W input. That is a standard single-phase 13 amp connection.

Internally the room measures 1560 × 2160 × 1960 mm (W×D×H), and access is through a single hinged solid door with a 700 mm wide, 1765 mm high aperture.

R290 hydrocarbon refrigerant, with a 150 g charge. Cooling is controlled electronically with automatic hot-gas defrost.

Sound output is rated at 60 decibels. Energy use is 9864 kWh a year, which is about £2466 a year at 25p/kWh.

Yes. Call our team on 01792 732702 to arrange servicing or talk through installation and siting.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

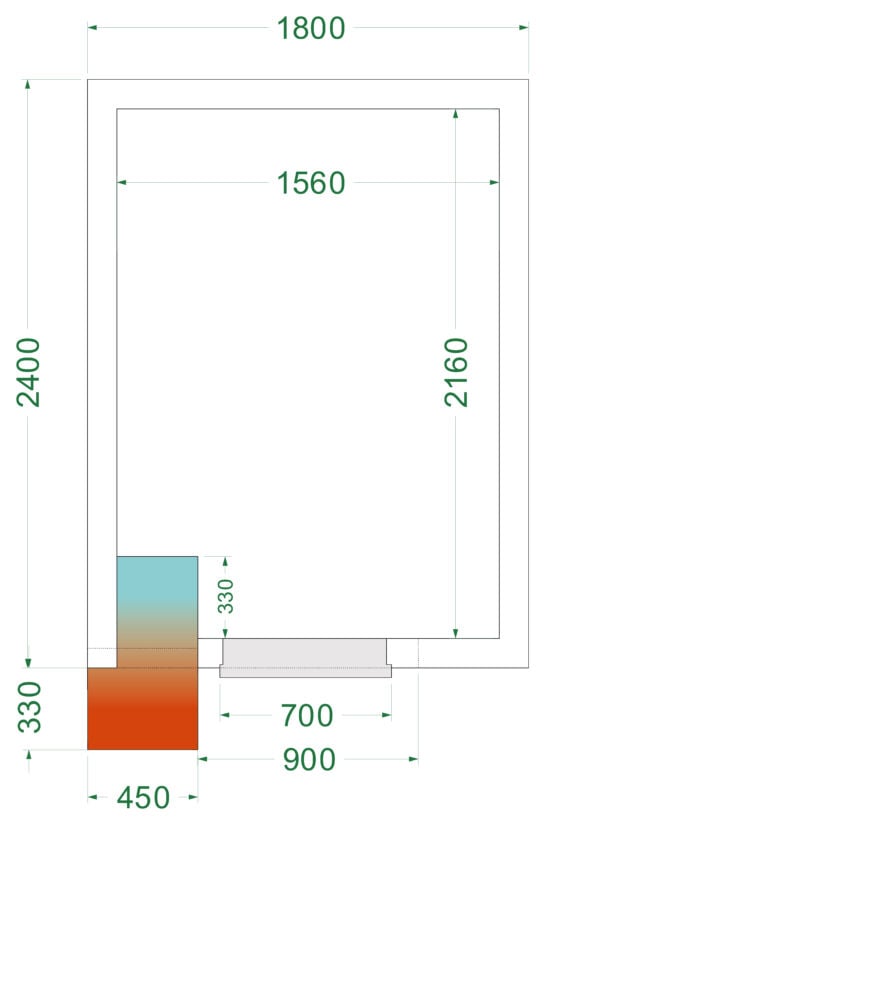

Dimensions

Internal Dimension (WxDxH): 1560 x 2160 x 1960 mm
External Dimension (WxDxH): 1800 x 2400 x 2200 mm
Packed Dimension (WxDxH): 2150 x 1500 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 27.02 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 9864 kWh/year m³
Input Power: 1510 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 6.6 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 680 / 645 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF1824 Freezer Room then please get in touch.
