CombiSteel Positive Wall-mounted Unit 7.8-13.4m³ Small 7492.0130

£1,585.31

+vat

- +

SKU: 7492.013

Product summary

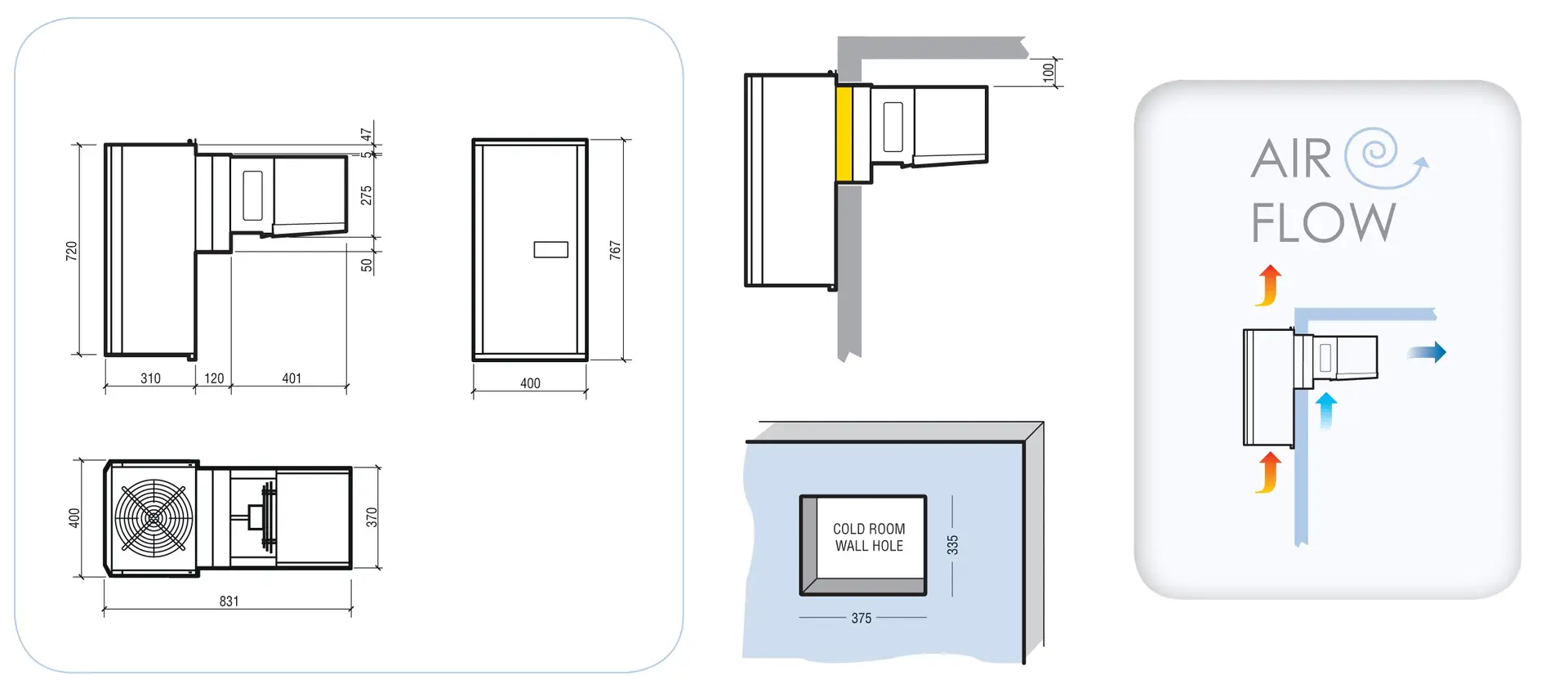

Size W/D/H (mm) 400 x 831 x 767

Product description

Downloads

SPECIFICATION 17 facts · tap for all Width400 mmDepth831 mmHeight767 mmGross / net weight56 kgGross weight50 kgVoltage / frequency230

Identity2

Brand CombiSteelcatalogue
Type Positive Monoblockscatalogue

Size & weight6

Depth 831 mmsite
External (W×D×H) 400 × 831 × 767 mmcatalogue
Gross / net weight 56 kgsite
Gross weight 50 kgcatalogue
Height 767 mmsite
Width 400 mmsite

Capacity2

Capacity 7,8-13,4 m3 cold roomcatalogue
Cooling capacity >7,8-13,4site

Performance3

Cooling type R 449 Asite
Refrigerant R449A (580 gr)catalogue
Temperature range 0/+5site

Power & energy4

Energy consumption 1,16site
Rated input 920 Wcatalogue
Voltage 230Vcatalogue
Voltage / frequency 230site
THE WORKING VIEW

Why this positive monoblock earns its place

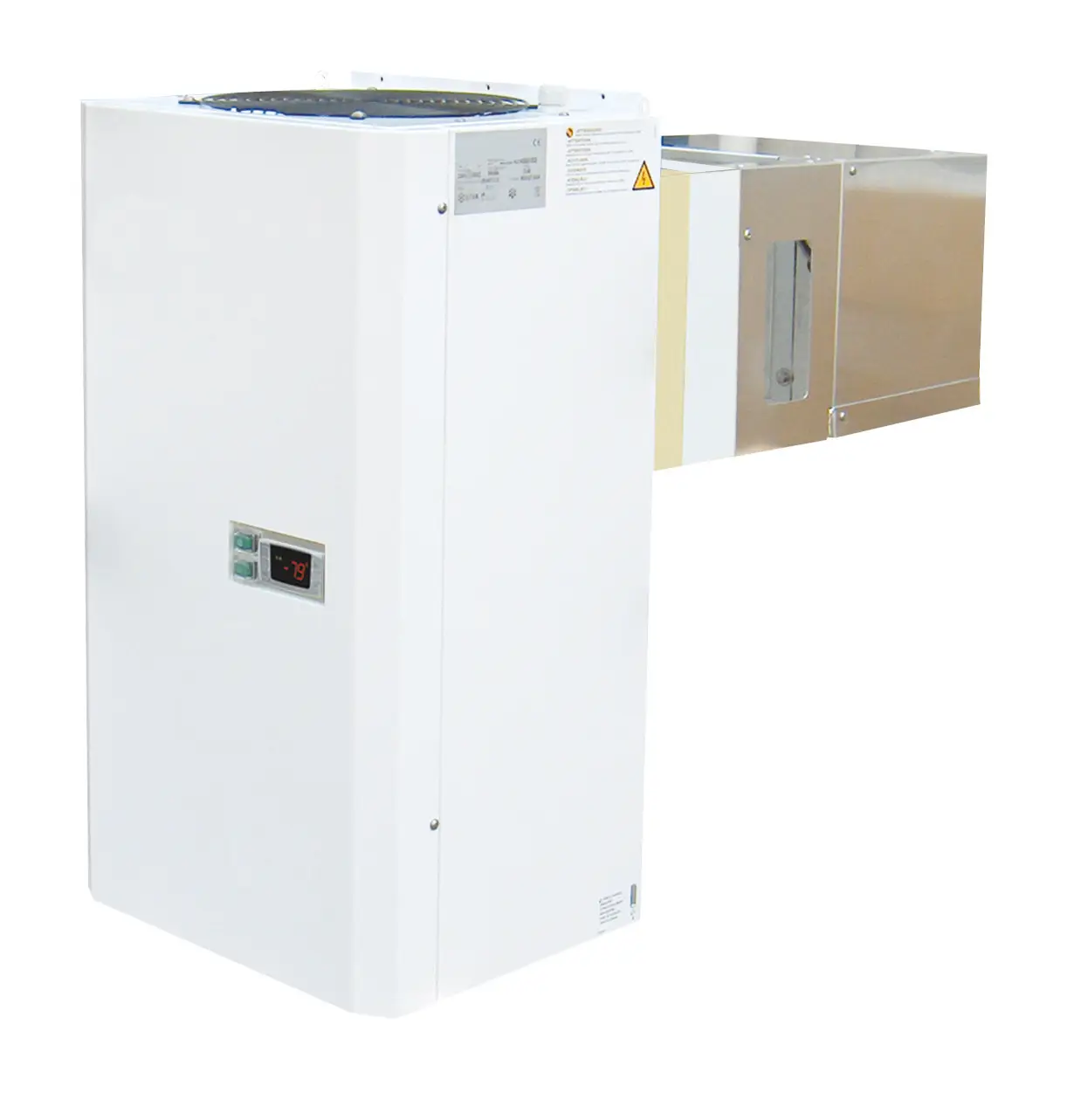

This is a compact monoblock unit designed for kitchens building a small positive-temperature walk-in cold room. It mounts on the wall and delivers the chilled air internally whilst rejecting waste heat outside. As a single sealed unit, installation is straightforward — mount it, connect the supply, and it works. No remote condensing plant to site elsewhere, no complex pipework to commission.

The wall-mounted design keeps the footprint minimal in the kitchen itself. If you're refitting a prep area or setting up a new kitchen, this unit fits into the wall cavity between the inside (where the cold reaches) and the outside (where the heat goes), making efficient use of space that would otherwise be lost.

Positive temperature means it runs chill rather than frozen, so it's built for the fresh-stock environment — storing prepared ingredients, finished plates before service, or ingredients that need to stay fresh but not solid.

BEFORE YOU BUY

Questions, answered straight

It is the refrigeration unit only. You supply the insulated panels, door frame and hinges separately; this unit provides the cooling.

It is a single self-contained cooling unit that mounts in or on the wall between your room interior and exterior. The cold side pulls chilled air into the walk-in; the heat-rejecting side faces outside.

The cubic-metre range tells you the volume of room it is designed to chill. A 2 m × 2 m × 2 m room is 8 m³, so this unit sits at that scale. Larger rooms need larger units.

As a monoblock, the whole sealed unit is your service point. You can typically unbolster it from the wall and have it refurbished or replaced as one item — no pipework splits needed.

This unit is not fitted with winter regulation, so it works best when the ambient around it stays warm. For outdoor-adjacent spaces or cool kitchens, ask about the straddle-type variant with winter regulation.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Positive Wall-mounted Unit 7.8-13.4m³ Small 7492.0130 Product Data

Brand CombiSteel
Dimensions 400 x 831 x 767 mm (W x D x H)
Capacity 7,8-13,4 m3 cold room
Temperature Range 0/+5°C
Refrigerant R449A (580 gr)
Power 0.92 kW
Voltage 230V
Weight 50 kg (gross)
If you have any questions about the CombiSteel Positive Wall-mounted Unit 7.8-13.4m³ Small 7492.0130 then please get in touch.
