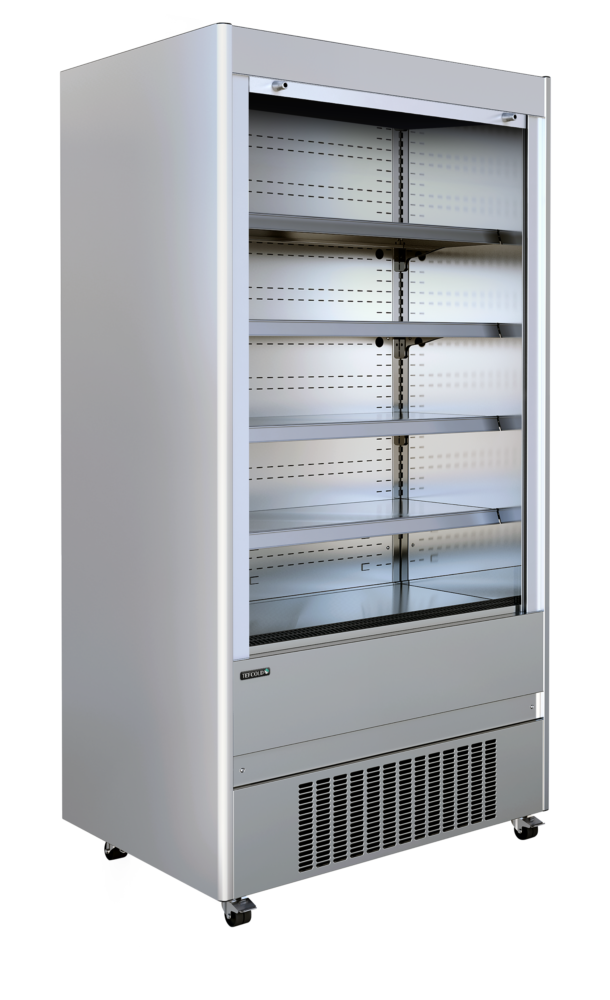

TEFCOLD MCX130M Multideck with shutter

£3,802.00

+vat

- +

Brand:

SKU: 45599

Energy Arrow

Product summary

  • Ideal for impulse buys and promotions
  • Lockable security shutter
  • Ventilated cooling
  • Adjustable shelves
  • Fully automatic
  • Castors with brake
  • Digital controller and temperature display
  • Ticket strip included

Product description

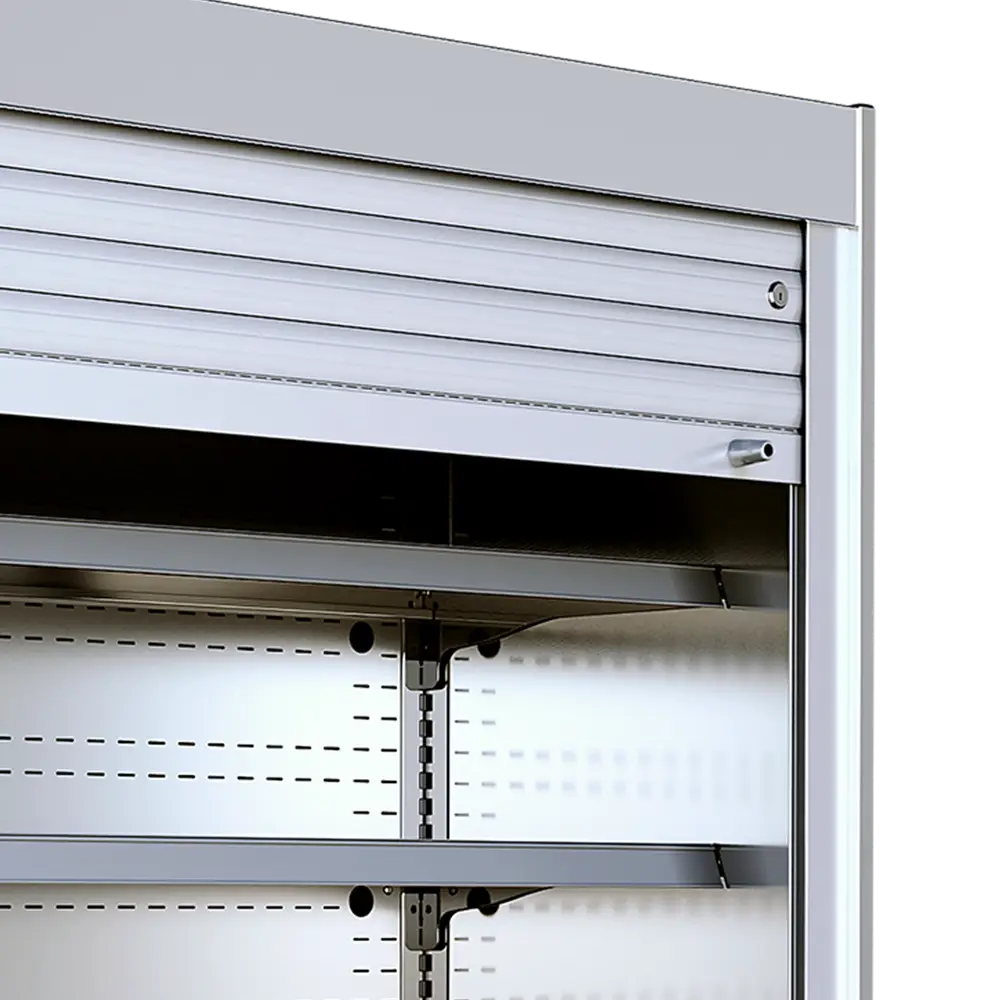

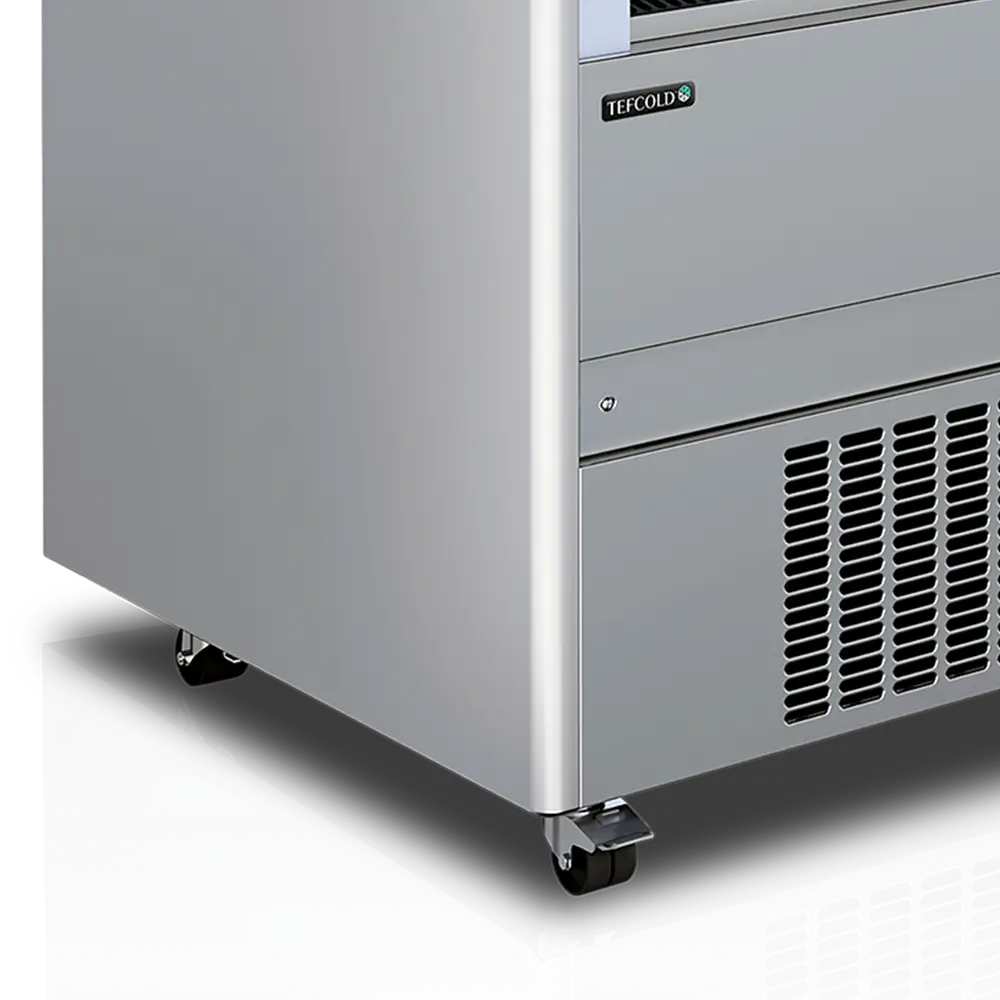

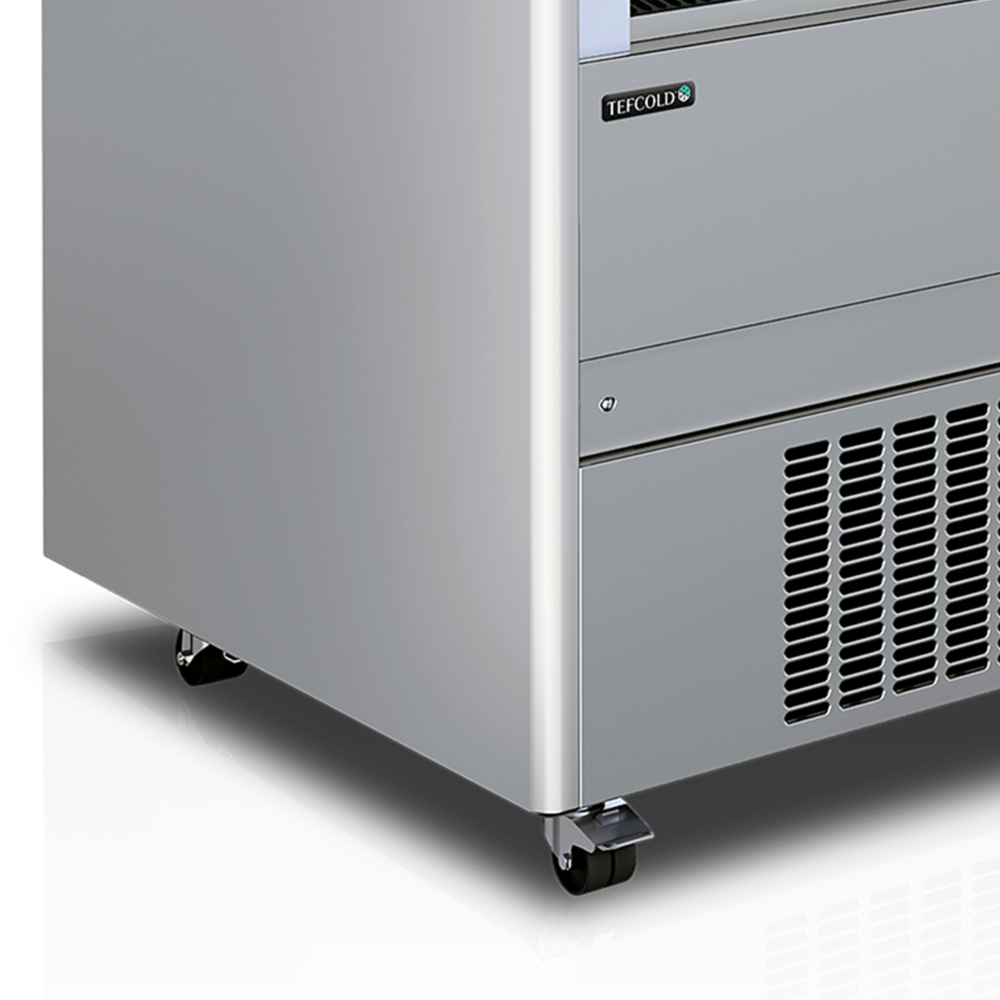

The TEFCOLD MCX Range is an open front stainless steel multideck, ideal for grab and go and impulse purchases. It can be set to temperature suitable for drink, dairy or fresh meat to suit your requirements. The MCX also benefits from a rigid lockable security shutter to prevent access to product when food is not being served, it is also supplied on lockable castors to allow movement of the cabinet. This allows the unit to be more versatile as to where it can be utilised to maximise sales.

The MCX Range is is the perfect solution for a wide range of establishments such as cafeterias, hotels, schools, colleges, and university canteens. It caters to the need for a refrigerated multideck during service while also prioritising product security during non-service periods. This feature becomes especially valuable in environments where customers, staff, or students may still have access to the unit.

MCX Range is an open front, stainless steel multideck, ideal for grab and go and impulse purchases. The unit benefits from a rigid lockable security shutter to prevent access to product when food is not being served and lockable castors. The cabinet is the perfect solution for a range of sites such as cafeterias, hotels, colleges, and university canteens. It fulfils the need for multidecks during service while also prioritising product security during non-service periods.

SPECIFICATION 43 facts · tap for all External W × D × H1312 x 740 x 1994 mmWidth1312 mmDepth740 mmGross / net weight310 / 230 kgGross weight310 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181722401site
Product code 45599site
Sub title Multideck with shuttercatalogue
Type Open Fronted Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 740 mmsite
External (W×D×H) 1312 × 740 × 1994 mmcatalogue
External W × D × H 1312 x 740 x 1994 mmsite
Gross / net weight 310 / 230 kgsite
Gross weight 310 kgcatalogue
Height 1994 mmsite
Internal (W×D×H) 1250 × 436 × 1250 mmcatalogue
Internal W × D × H 1250 x 436 x 1250 mmsite
Packed (W×D×H) 1400 × 790 × 2150 mmcatalogue
Packed W × D × H 1400 x 790 x 2150 mmsite
Width 1312 mmsite

Capacity3

Display area 1.46 m²site
Gross volume 680 litrescatalogue
Shelves 4catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 140 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 6449 kWh/yearsite
Energy consumption 17.67 kWh/24hsite
Energy efficiency index 71.8 %site
Input power 1080 Wsite
Noise level 61 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors Castorssite
Exterior finish SS304site
Interior light LED as optionsite

Other stated facts1

Energy class Fcatalogue
THE WORKING VIEW

Why this open fronted multideck fridge earns its place

The TEFCOLD MCX130M is an open-fronted multideck built for grab-and-go merchandising, putting chilled stock within instant reach with no door between the customer and the product. It presents 1.46 m² of display across four adjustable shelves, giving 580 litres of usable net capacity from a 680-litre gross cabinet. The SS304 stainless-steel finish, inside and out, stands up to busy retail and back-of-house use.

It holds a -1 to +5 °C band suited to pre-packed chilled food and drink, with automatic defrost and an electronic controller keeping the temperature steady without manual intervention. Being open-fronted, it carries an energy class F rating and draws 6449 kWh a year — about £1612 a year in electricity at 25p/kWh — so weigh the impulse-sales gain against the running cost. Running noise is 61 dB, and it is built to climate class 3.

The cabinet measures 1312 mm wide, 740 mm deep and 1994 mm high, and ships at 1400 × 790 × 2150 mm packed, so check your access route against the packed height before delivery. It weighs 230 kg net (310 kg gross), runs on a 220-240 V/50 Hz supply and draws 13 A at 1080 W input, so a standard 13 A socket carries it. Cooling uses R290 hydrocarbon refrigerant with a 140 g charge.

BEFORE YOU BUY

Questions, answered straight

The MCX130M is rated energy class F and draws 6449 kWh a year, roughly £1612 a year in electricity at 25p/kWh. Open-fronted cabinets use more energy than glass-door models, so weigh the impulse-sales gain against the running cost.

The cabinet is 1312 mm wide, 740 mm deep and 1994 mm high, and ships at 1400 × 790 × 2150 mm packed. Measure your access route and doorways against the packed height before delivery; at 310 kg gross it needs clear, level access.

It runs on a 220-240 V/50 Hz supply and draws 13 A at 1080 W input, so a standard 13 A socket carries it. No special electrical installation is required beyond a dedicated point.

It runs at -1 to +5 °C, suited to pre-packed chilled food and drink. Automatic defrost and an electronic controller hold the band steady without manual intervention.

Net capacity is 580 litres from a 680-litre gross cabinet, across four adjustable shelves and 1.46 m² of display area.

Yes — Craven Cooling services the cabinets it supplies. Call the team on 01792 732702 to arrange servicing or discuss installation.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 436 x 1250 mm
External Dimension (WxDxH): 1312 x 740 x 1994 mm
Packed Dimension (WxDxH): 1400 x 790 x 2150 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 17.67 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 6449 kWh/year m³
EEI: 71.8 %
Input Power: 1080 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 61 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 310 / 230 kg
Gross / Net Volume: 680 / 580 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.46 m² m²

Design and Material

Shelf Color: Stainless steel
Castors: Castors
Exterior Finish: SS304
Interior Finish: SS304
Interior Light: LED as option
If you have any questions about the TEFCOLD MCX130M Multideck with shutter then please get in touch.
