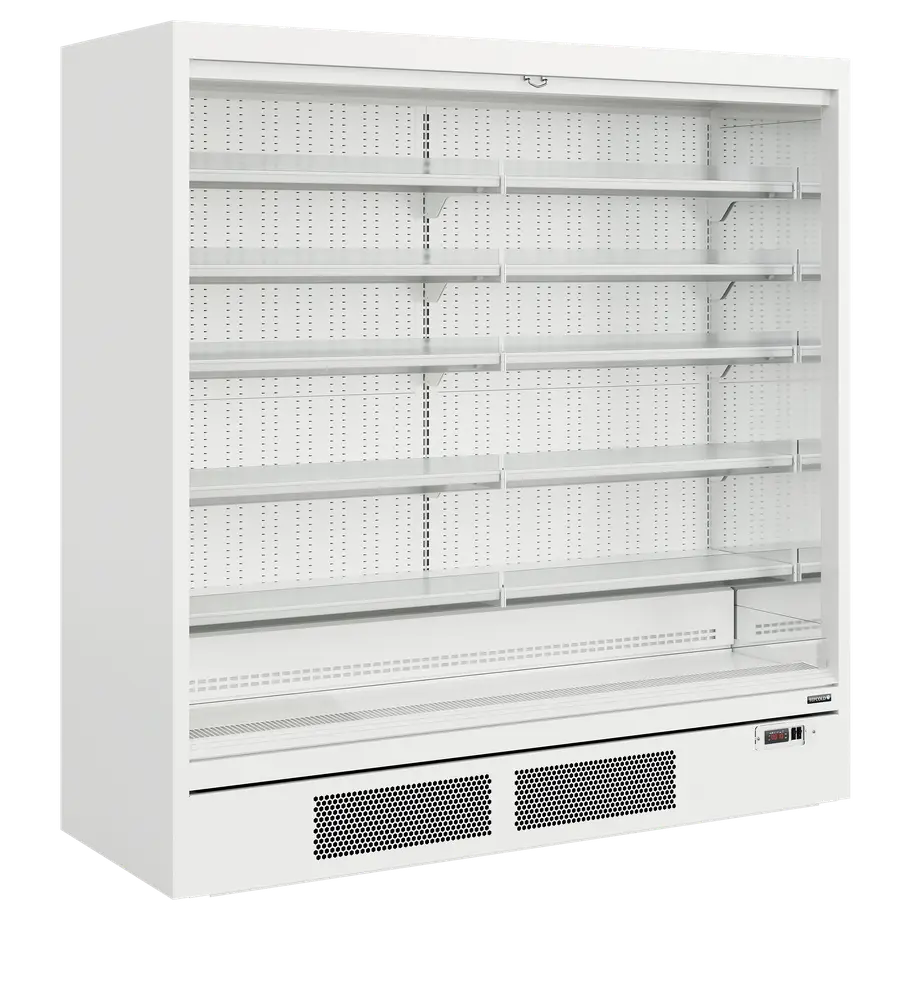

TEFCOLD Galaxy+ GP20 White Multideck

£4,435.00

+vat

- +

SKU: 46491

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Horizontal LED lighting
  • Solid 40 mm endwalls with mirrored interior
  • Soft closing nightblind
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)

Product description

Open front multideck

The TEFCOLD Galaxy+ open front is part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimized cabinet efficiency, offering easy access to customers for impulse buys with excellent LED lighting. The cabinets come with 39mm EPOS ticket strips together with shelf risers as standard. The 5 Shelves can be angled at 7 or 14 degrees to give more options for merchandising and creating an attractive display for your customers. The Galaxy+ open range is suitable for fresh meat, dairy and drinks. It is ideal for use in supermarkets, convenience stores, farm shops, delis and sandwich shops.

SPECIFICATION 45 facts · tap for all External W × D × H1955 x 750 x 2005 mmWidth1955 mmDepth750 mmGross / net weight392 / 370 kgGross weight392 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181726324site
Product code 46491site
Sub title Multideckcatalogue
Type Open Fronted Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1955 × 750 × 2005 mmcatalogue
External W × D × H 1955 x 750 x 2005 mmsite
Gross / net weight 392 / 370 kgsite
Gross weight 392 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 1875 × 544 × 1562 mmcatalogue
Internal W × D × H 1875 x 544 x 1562 mmsite
Packed (W×D×H) 2000 × 770 × 2320 mmcatalogue
Packed W × D × H 2000 x 770 x 2320 mmsite
Width 1955 mmsite

Capacity3

Display area 2.87 m²site
Gross volume 2165 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 7928 kWh/yearsite
Energy consumption 21.72 kWh/24hsite
Energy efficiency index 48.8 %site
Input power 1479 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish White RAL9003site
Feet / legs 6 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Shelf dimensions 938x400mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this open fronted multideck fridge earns its place

The Galaxy+ GP20 White is an open-fronted multideck for high-volume chilled retail, giving customers a clear 2.87 m² display face with nothing between them and the stock. Five adjustable shelves and 943 litres of net volume, from a 2165-litre gross cabinet, let you merchandise a wide chilled range and rotate it through the day. The white RAL9003 finish, inside and out, gives a clean retail look built for repeat cleaning.

Day to day it holds a -1 to +5 °C band on ventilated cooling with automatic defrost, so there is no manual defrost routine to schedule. An electronic controller manages the temperature, and the cabinet is rated to climate class 3 for typical shop-floor conditions. It runs at 55 dB and carries an energy class D rating; at 7,927.8 kWh a year that is about £1,982 a year at 25p/kWh, worth factoring into the running budget.

The cabinet measures 1955 × 740 × 2040 mm externally and ships packed at 2000 × 770 × 2320 mm, so measure your access route — the near-2 m body width needs wide, clear access. Net weight is 370 kg (392 kg gross), so plan the lift and final positioning. Electrically it takes a 16 A supply at 220-240 V and uses 150 g of R290 hydrocarbon refrigerant.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1955 mm wide, 740 mm deep and 2040 mm tall, and ships packed at 2000 × 770 × 2320 mm. At almost 2 m wide it needs wide, clear access — measure doorways and the route before delivery.

It carries an energy class D rating and uses 7,927.8 kWh a year, which is about £1,982 a year at 25p/kWh. That reflects the large open-front display area, so budget for it.

It runs on a 16 A supply at 220-240 V, 50 Hz. Confirm the circuit and final connection with your installer before delivery.

No. The GP20 White uses automatic defrost managed by its electronic controller, so there is no scheduled manual defrost to run.

It uses R290, a hydrocarbon refrigerant, with a charge of 150 g.

Yes. Craven Cooling can arrange servicing and repairs — call the team on 01792 732702 to book.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 544 x 1562 mm
External Dimension (WxDxH): 1955 x 750 x 2005 mm
Packed Dimension (WxDxH): 2000 x 770 x 2320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 21.72 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 7928 kWh/year m³
EEI: 48.8 %
Input Power: 1479 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 392 / 370 kg
Gross / Net Volume: 2165 / 943 l
Max Ambient: +25°C, 60% RH
Total Display Area: 2.87 m² m²

Design and Material

Shelf Color: White
Shelf Dimensions: 938x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 6 adjustable feet
Exterior Finish: White RAL9003
Interior Finish: White RAL9003
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP20 White Multideck then please get in touch.
