TEFCOLD Galaxy+ GP10 White Multideck

£2,665.00

+vat

- +

SKU: 46487

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Horizontal LED lighting
  • Solid 40 mm endwalls with mirrored interior
  • Soft closing nightblind
  • Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)

Product description

Open front multideck

The TEFCOLD Galaxy+ open front is part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency, offering easy access to customers for impulse buys with excellent LED lighting. The cabinets come with 39mm EPOS ticket strips together with shelf risers as standard. The 5 Shelves can be angled at 7 or 14 degrees to give more options for merchandising and creating an attractive display for your customers. The Galaxy+ open range is suitable for fresh meat, dairy and drinks. It is ideal for use in supermarkets, convenience stores, farm shops, delis and sandwich shops.

SPECIFICATION 45 facts · tap for all External W × D × H1018 x 750 x 2005 mmWidth1018 mmDepth750 mmGross / net weight208 / 196 kgGross weight208 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181726393site
Product code 46487site
Sub title Multideckcatalogue
Type Open Fronted Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1018 × 750 × 2005 mmcatalogue
External W × D × H 1018 x 750 x 2005 mmsite
Gross / net weight 208 / 196 kgsite
Gross weight 208 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 938 × 544 × 1562 mmcatalogue
Internal W × D × H 938 x 544 x 1562 mmsite
Packed (W×D×H) 1100 × 770 × 2320 mmcatalogue
Packed W × D × H 1100 x 770 x 2320 mmsite
Width 1018 mmsite

Capacity3

Display area 1.44 m²site
Gross volume 1083 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 3953 kWh/yearsite
Energy consumption 10.83 kWh/24hsite
Energy efficiency index 38.6 %site
Input power 733 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Exterior finish White RAL9003site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Shelf dimensions 938x400mmsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this open fronted multideck fridge earns its place

The Galaxy+ GP10 is an open-fronted multideck built to put chilled stock in front of customers with nothing between them and the product. It offers a 1.44 m² display area and five adjustable shelves over 472 litres of net capacity, so drinks, dairy, sandwiches and grab-and-go lines sit at browsing height across the full run. The white RAL9003 finish, inside and out, gives a clean, bright backdrop that suits open shop-floor layouts.

Day to day it holds -1 to +5 °C under an electronic controller, with automatic defrost handling ice build-up so staff don't have to. Noise is rated at 55 dB and the cabinet carries a climate class 3 rating. It sits in energy class D at 3952.9 kWh a year, which works out at about £988 a year at 25p/kWh before you account for your own tariff and store conditions.

The cabinet measures 1018 × 740 × 2040 mm externally and ships packed at 1100 × 770 × 2320 mm, weighing 208 kg gross and 196 kg net, so plan the delivery route around the 2040 mm height and 1018 mm width. It runs on a 220-240V 50Hz supply and uses 110 g of R290 hydrocarbon refrigerant.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1018 mm wide, 740 mm deep and 2040 mm tall externally, and ships packed at 1100 × 770 × 2320 mm. Check your access route for the 2040 mm height and 1018 mm width before delivery, as it arrives as one piece weighing 208 kg gross.

It runs at -1 to +5 °C, which covers chilled fresh-meat display within that band. Set the electronic controller to suit your product and follow your own food-safety requirements.

It's rated energy class D at 3952.9 kWh a year, about £988 a year at 25p/kWh. As an open-fronted cabinet, actual consumption depends heavily on your store's ambient temperature and airflow around the unit.

The cabinet is rated at 55 dB. It carries a climate class 3 rating, so keep it clear of direct heat sources and allow airflow around the unit to keep it working within spec.

It runs on a standard 220-240V 50Hz supply. Have a qualified electrician confirm the final connection and circuit for your site before install.

It uses 110 g of R290 hydrocarbon refrigerant with automatic defrost and an electronic controller. For servicing or a maintenance quote, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 938 x 544 x 1562 mm
External Dimension (WxDxH): 1018 x 750 x 2005 mm
Packed Dimension (WxDxH): 1100 x 770 x 2320 mm

Cooling and Functions

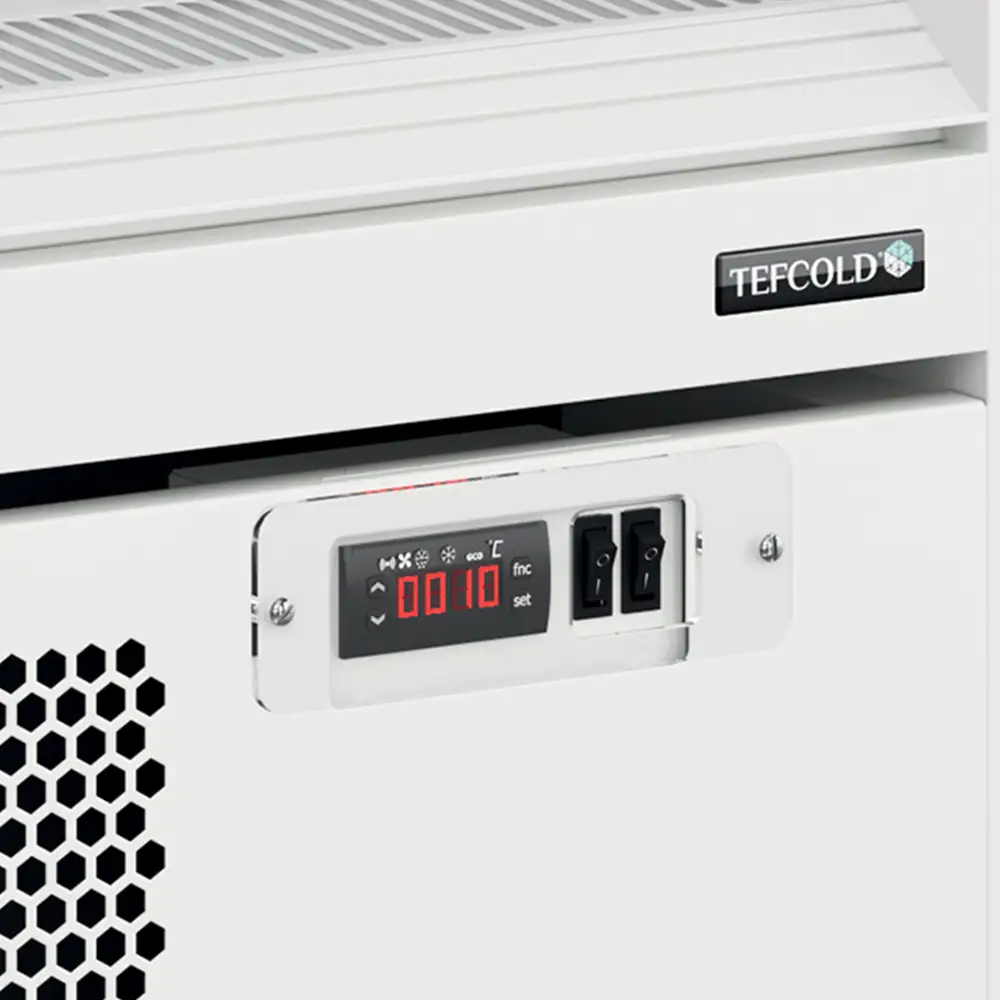

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.83 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 3953 kWh/year m³
EEI: 38.6 %
Input Power: 733 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 208 / 196 kg
Gross / Net Volume: 1083 / 472 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.44 m² m²

Design and Material

Shelf Color: White
Shelf Dimensions: 938x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: White RAL9003
Interior Finish: White RAL9003
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP10 White Multideck then please get in touch.
